Bushed DOM Sleeve

Bushed DOM Sleeve

Fully assembled sleeves ready for motor mounts, crossmembers, and custom fab work.

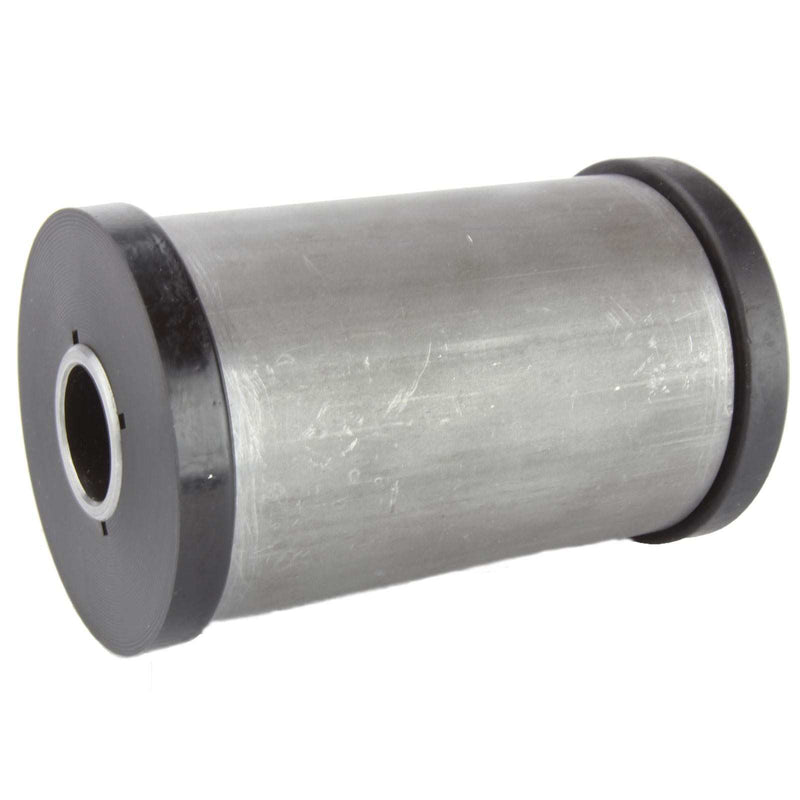

This is the bushed sleeve you've been waiting for—fully assembled and ready to go. Each unit includes a DOM outer sleeve, two high-quality polyurethane bushings, and a DOM inner sleeve sized for your chosen bolt diameter. These are commonly used in motor mounts, traction bar ends, crossmembers, or any custom fab job where controlled flex and long-term durability matter.

Choose from two DOM sizes depending on your application: 1.75" O.D. x .120" wall for lighter-duty setups or 2" O.D. x .250" wall for heavy-duty builds. Available to fit standard 2.625" wide link brackets and other common sizes with custom widths available from 2" to 4".

Key Features

• Part Number: R1087
• Fitment: Universal application for motor mounts and crossmembers
• Material: DOM tubing with polyurethane bushings
• Available widths: 2.625", 2.75", 3", 3.1875", 3.4375"
• DOM options: 1.75" x .120" wall or 2" x .250" wall

What's Included

• 1x DOM outer sleeve (1.75" x .120" or 2" x .250")
• 1x Inner DOM sleeve for 1/2" or 9/16" bolt
• 2x High-quality polyurethane bushings

Notes

• Use silicone or lithium-based grease on polyurethane bushings - petroleum-based lubricants will degrade the bushing and void warranty
