Overview

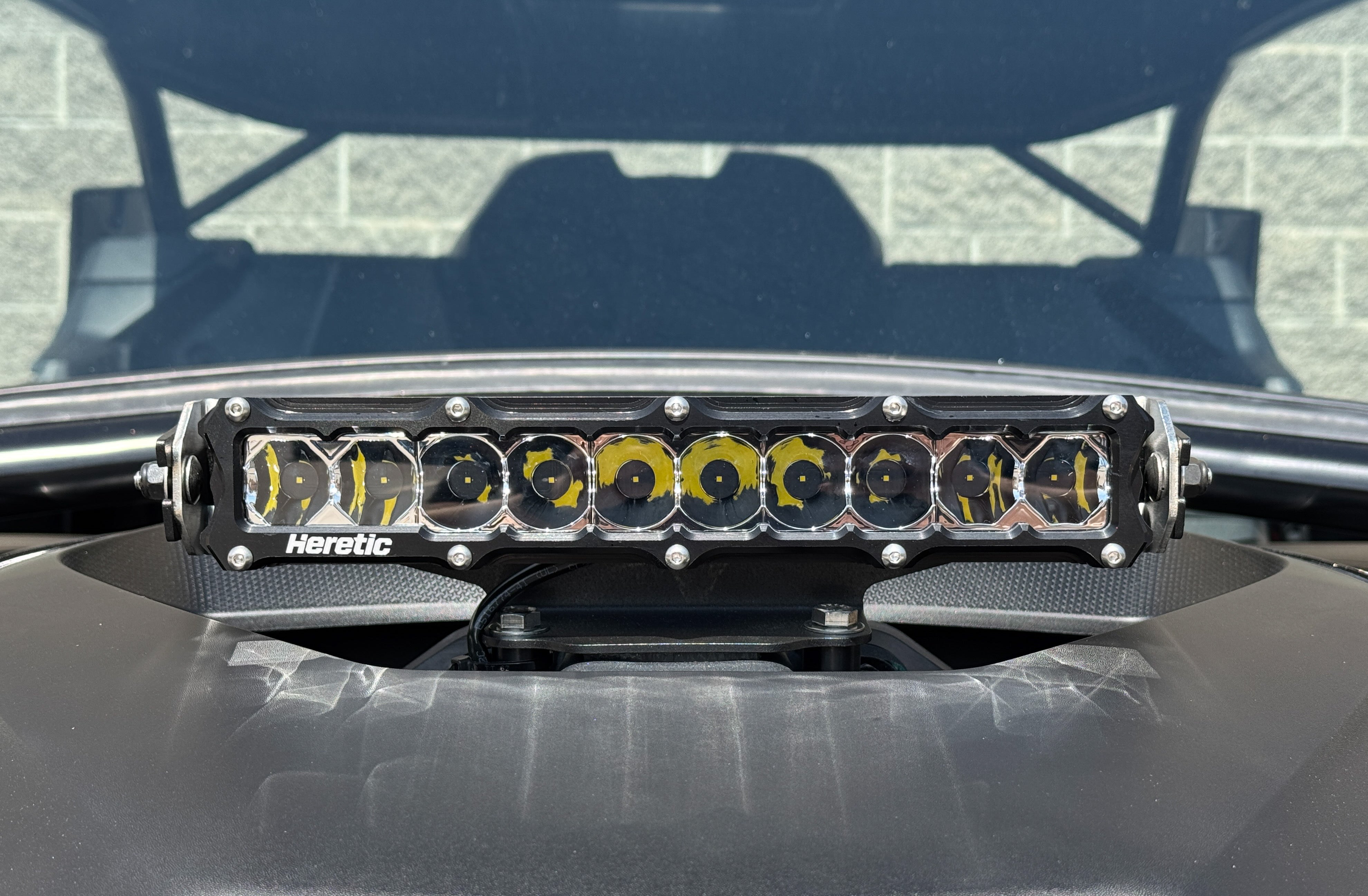

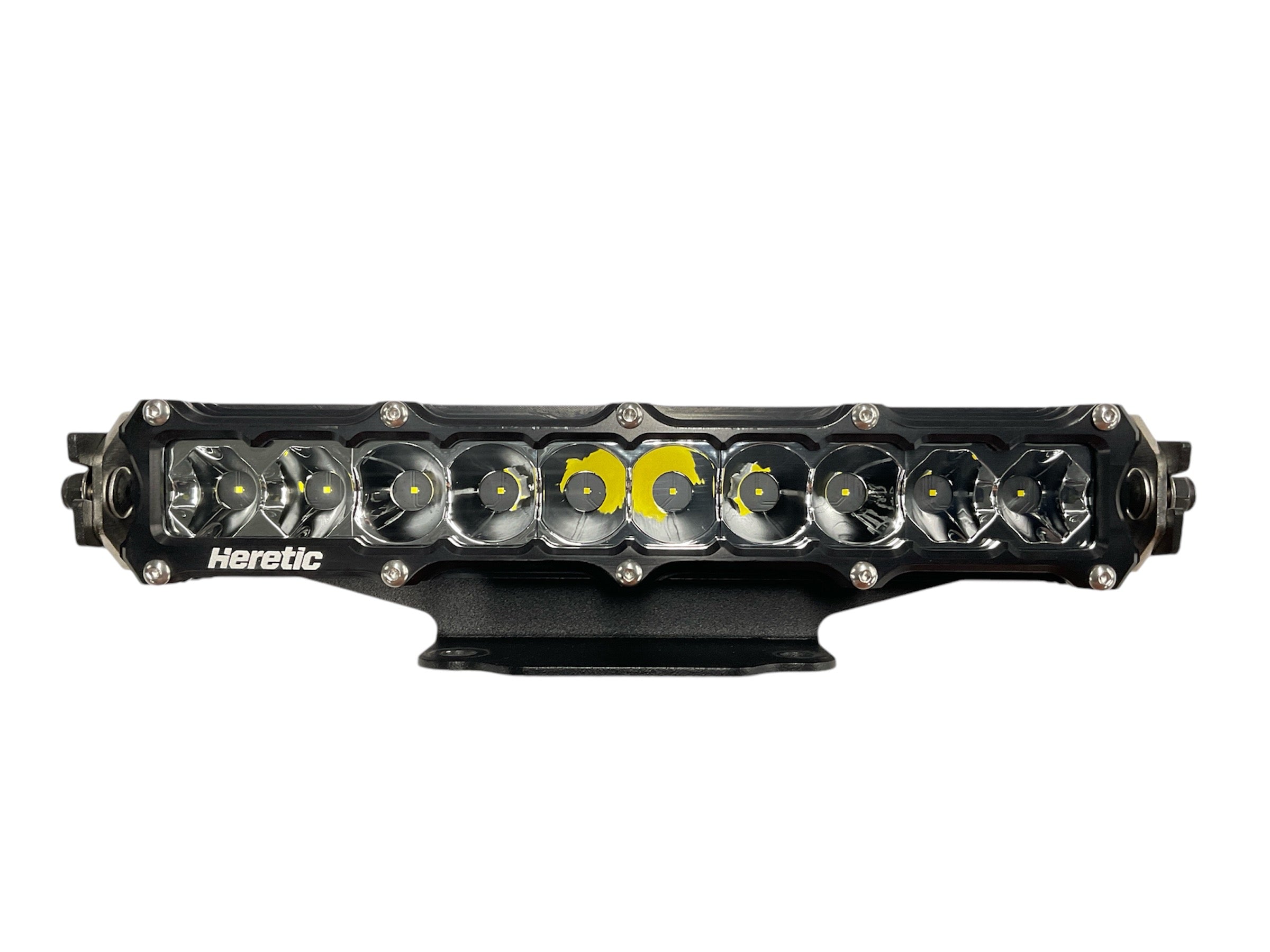

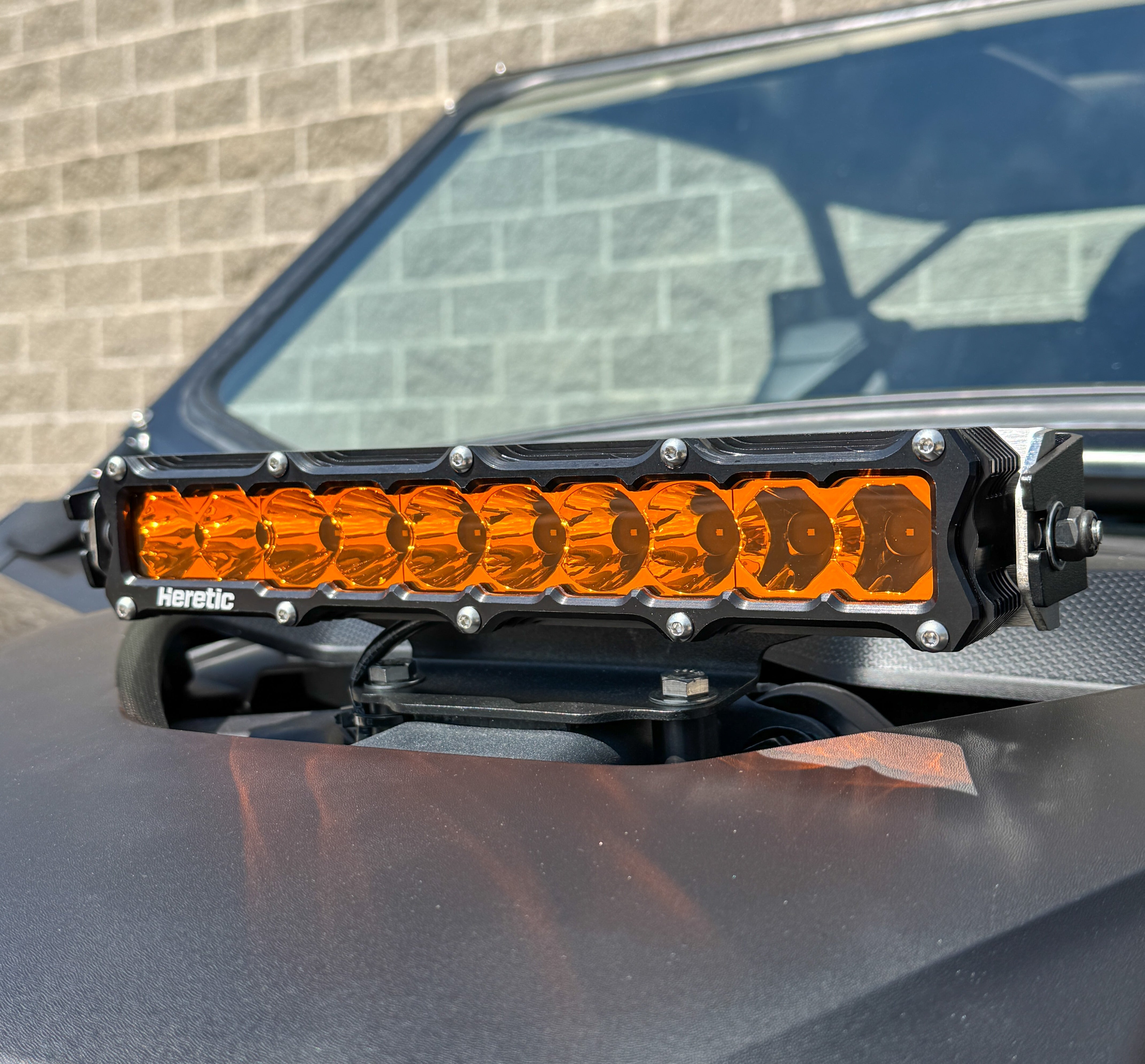

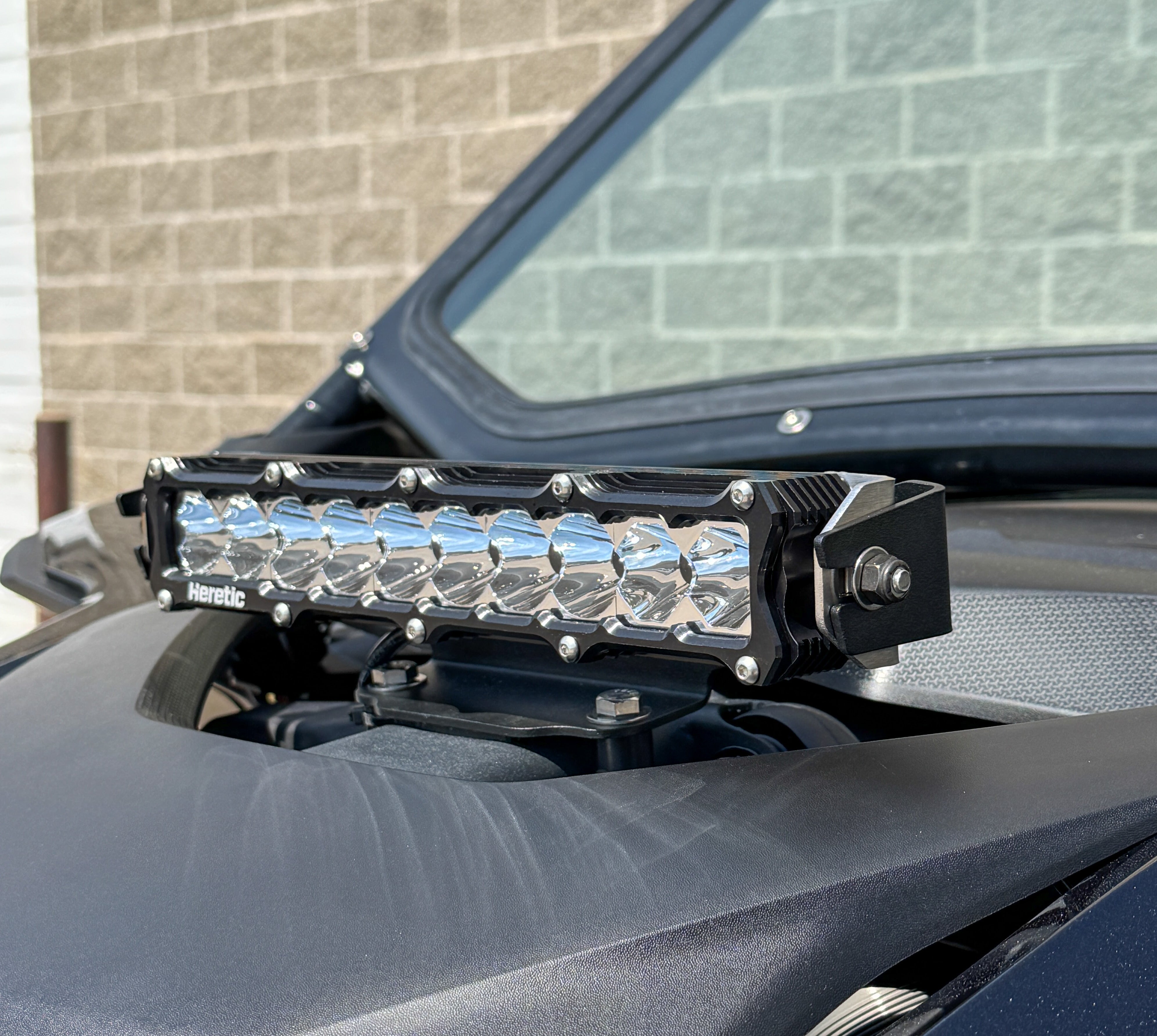

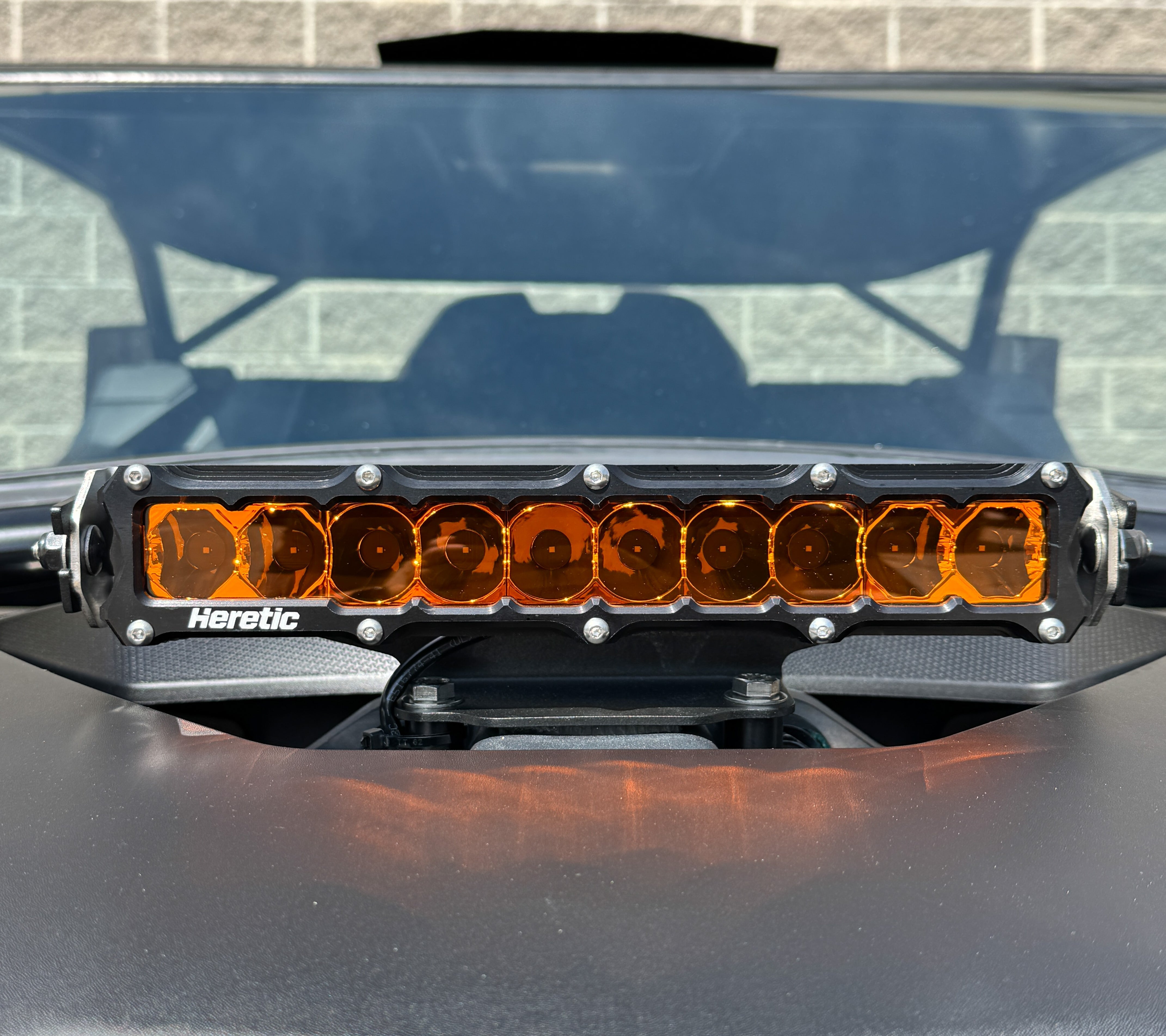

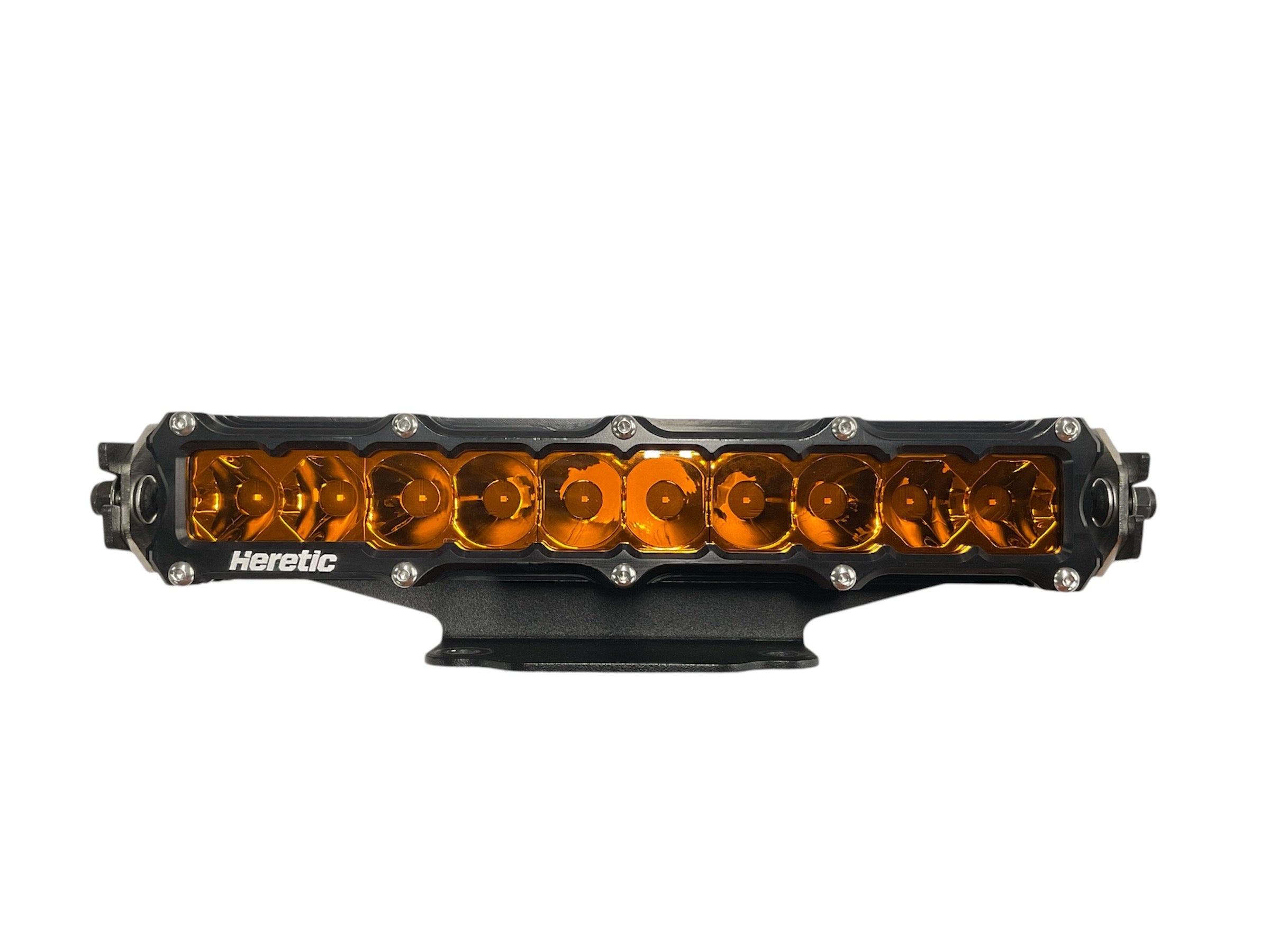

The Heretic Can Am Maverick R 10 Inch Shock Tower Light Bar takes our staple 10-inch LED Light Bar and utilizes our in-house designed mounts, custom built for the Can Am Maverick R. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. This LED light bar is housed in CNC aircraft-grade aluminum and features the highest quality CREE LEDs. The clear lens allows for increased ability to navigate in clear night conditions on your UTV trips. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo.
Features
- (1) Can Am Maverick R Shock Tower 10 Inch Light Bar

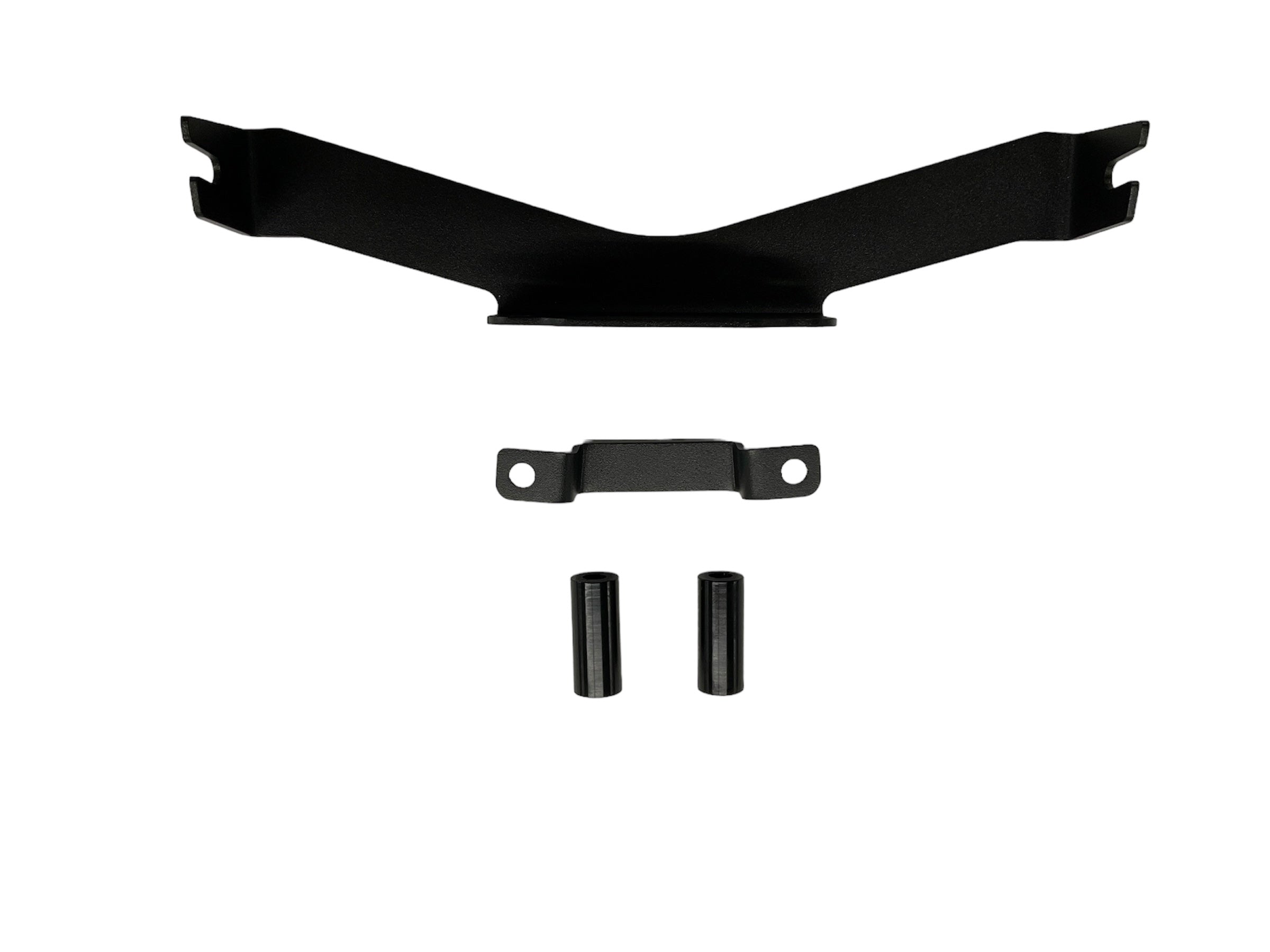

- Powered Coated Stainless Steel Mounting Brackets
- Mounting Hardware
- USA Patented 6061 CNC Aluminum Grade Billet Housing
- (10) 6-Watt CREE LED
UTV Trim Compatibility

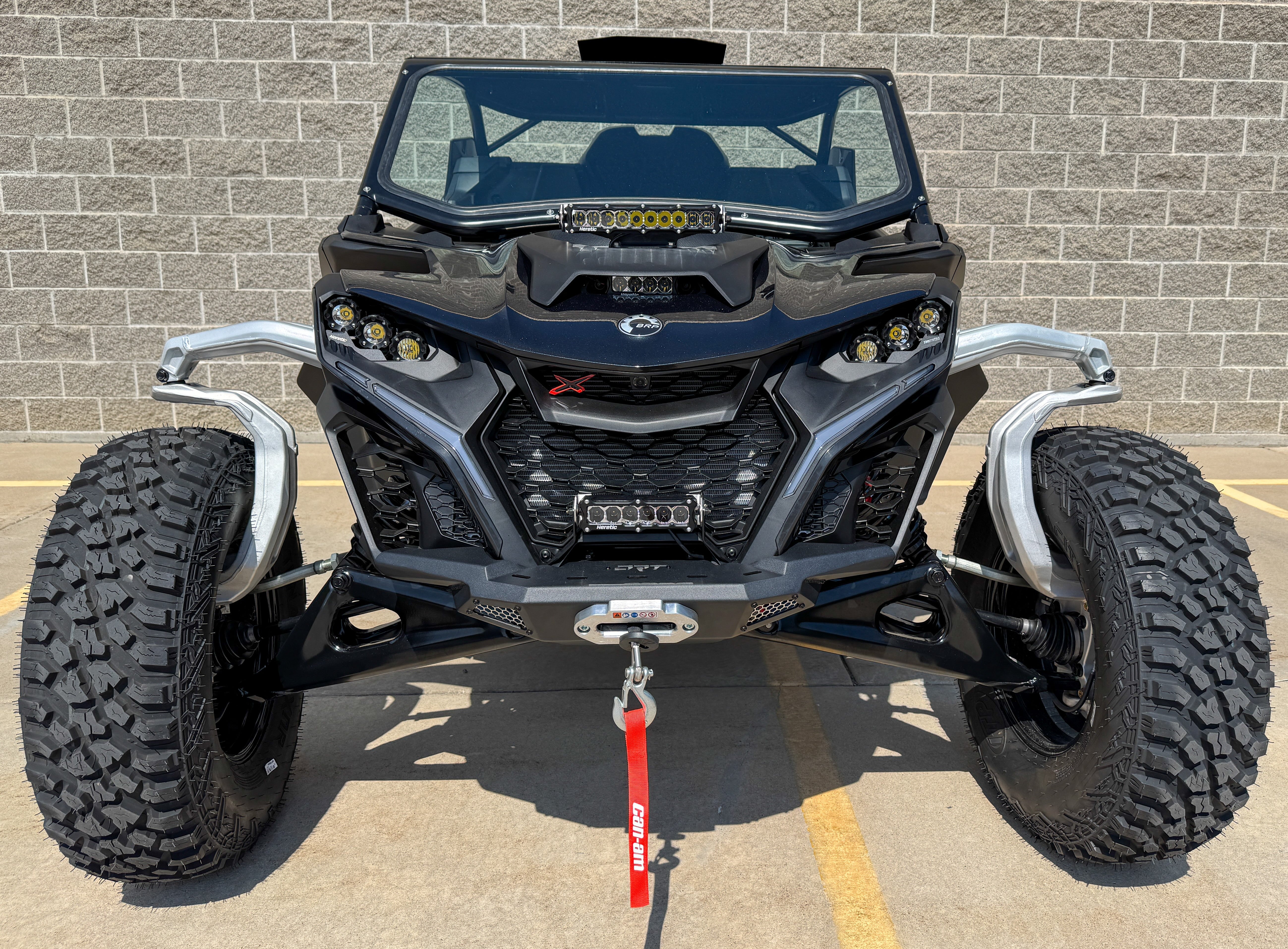

Can Am Maverick R UTV
Parts Sold Separately
- Wire Harness
Details/ Specs
- Shipping Weight: 4lbs
- Type: 10” LED Light Bar
- Housing: CNC Aircraft-Grade Aluminum
- Location: Roof, Bumper, Grille, Rack
- Light Color: White Lens Color: Clear
- Wattage: 60W
- Amp Draw at 13.8V: 5.3A
- Voltage: 9V-36V
- IP Rating: IP68
- DIM (Light Only): L 11” x D 1.5” x H 2”
- DIM (Light W/ Bracket): L 12” x D 1.5” x H “2.4
- Lumens: 7260 lm
-
Lux At 10m:
- Spot: 2063 lx
- Flood: 439 lx
- Combo: 1413 lx
Candela:
- Spot: 206250 cd
- Flood: 43875 cd
- Combo: 141300 cd
Beam Distance:
- Spot: 908 m
- Flood: 419 m
- Combo: 752 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No
Installation Guide
Click to Download: Maverick R 10in Shock Tower KIT Install Guide
