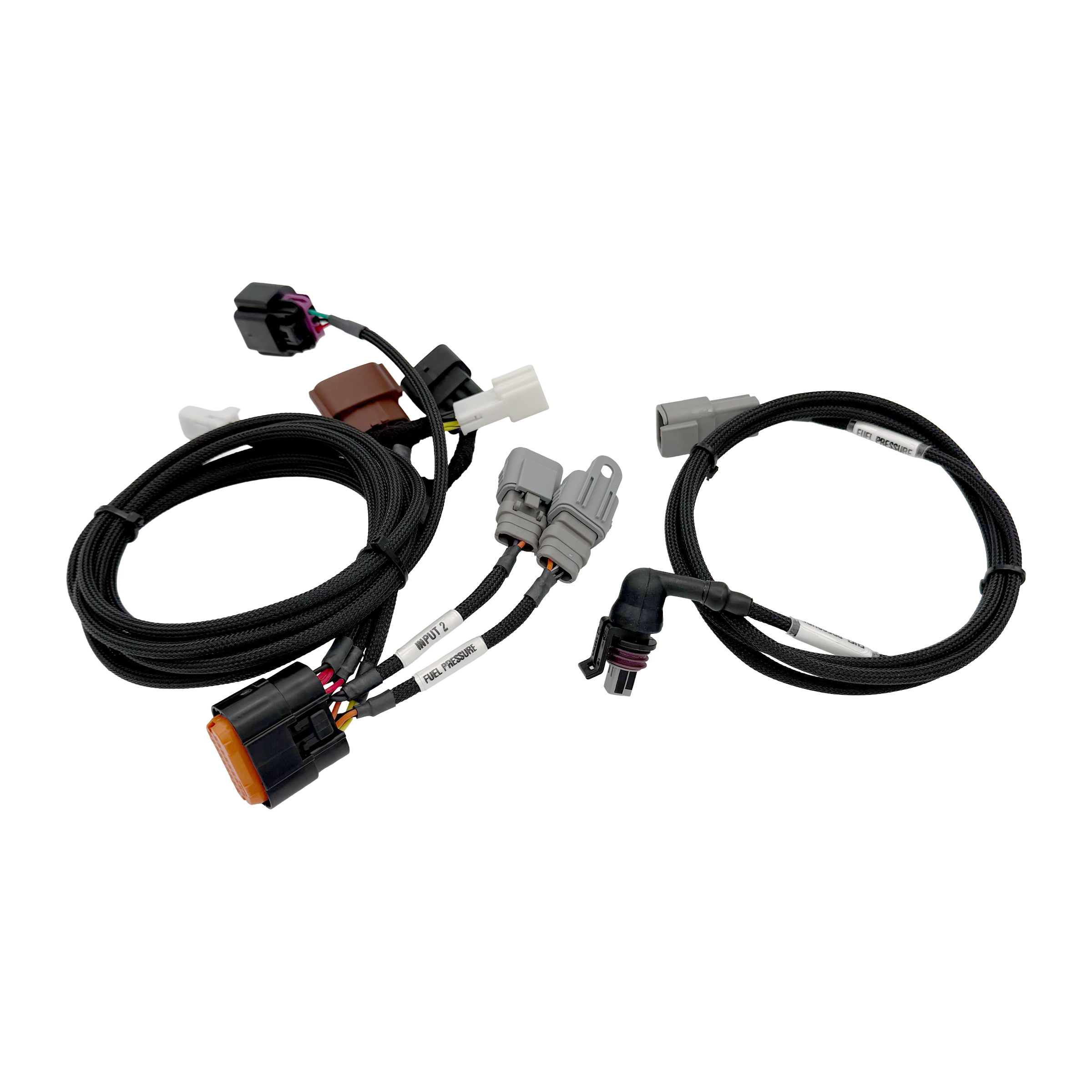

Plug and play CANBOXPRO I/O harness designed specifically for the Nissan R35 GTR.
This harness is intended for vehicles that already have a Visconti CANBOXPRO controller installed and are currently using it in analog mode. The CANBOXPRO GTR I/O Harness allows the system to be upgraded to full CAN bus integration with the vehicle.
The harness provides the required CAN High and CAN Low connections along with the fuel pressure sensor connection, allowing the CANBOXPRO to communicate directly with the vehicle's CAN bus while maintaining a clean plug and play installation.
Once installed, the CANBOXPRO can transmit data over CAN to supported tuning platforms such as EcuTek while also enabling the available analog inputs and PWM outputs for advanced integrations.
The CANBOXPRO GTR I/O harness provides two 0–5V analog inputs and two PWM outputs that can be configured directly within the CANBOXPRO for data acquisition, control strategies, or auxiliary functions.
Typical uses include fuel pressure monitoring, coolant pressure monitoring, auxiliary pump control, solenoid control, or other advanced integration strategies.
Designed specifically for the Nissan R35 GTR, this harness allows existing CANBOXPRO installations to be upgraded to full CAN bus functionality while maintaining a clean and reversible installation.
