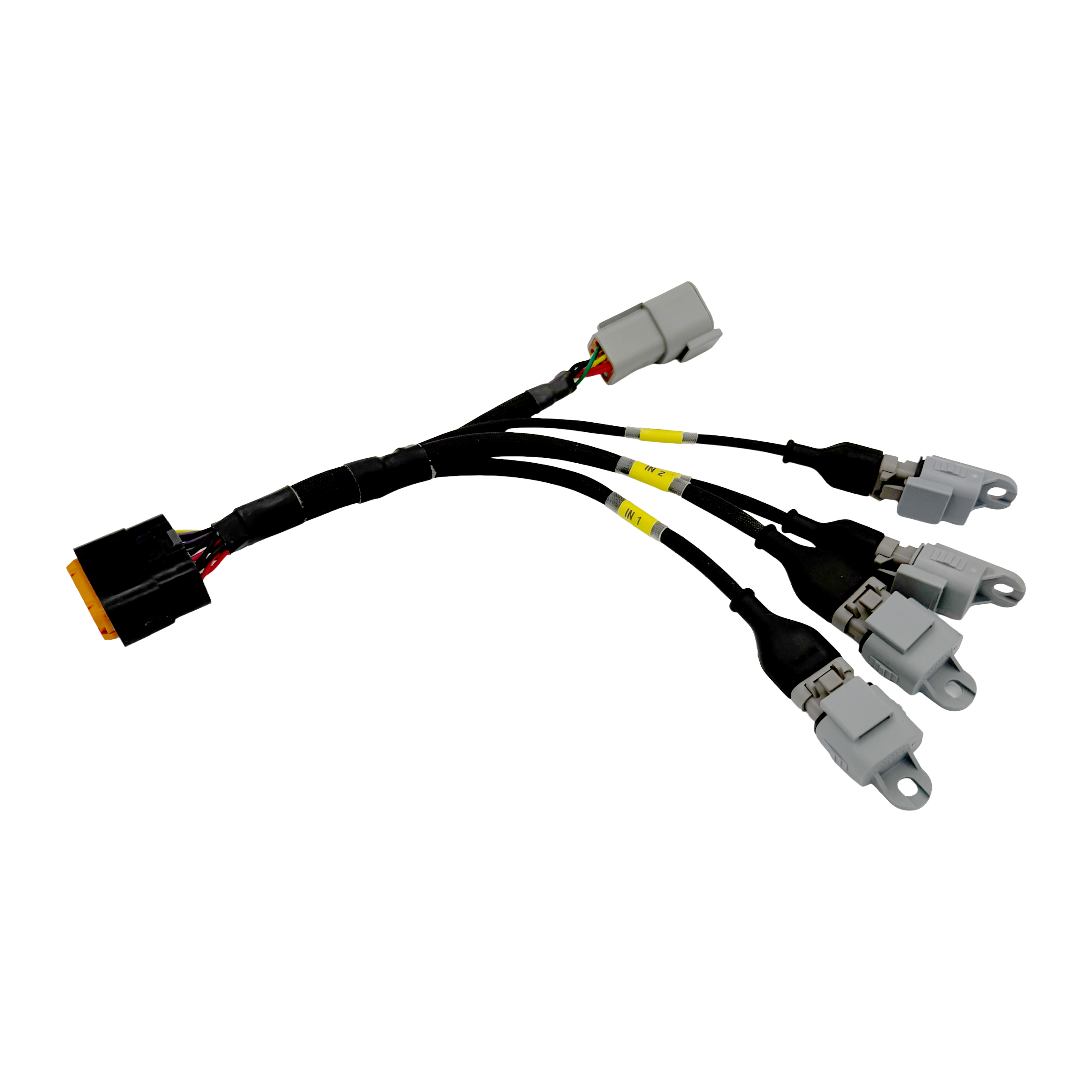

Plug and play CANBOXPRO I/O harness designed for use with the Visconti CANBOXPRO I/O controller.
This harness is intended for existing Visconti CAN bus flex fuel installations and requires a Visconti Flex Fuel Sub Harness already installed in the vehicle. The Flex Fuel Sub Harness must be equipped with the 6-pin DTM connector that provides Power, Ground, CAN High, CAN Low, and Ethanol Sensor connections.
The CANBOXPRO I/O harness connects between the CANBOXPRO controller and the Flex Fuel sub-harness, providing access to the available I/O channels without cutting, splicing, or modifying any wiring.
This harness is not vehicle specific and is intended for integrations where additional sensors or control outputs are required. It provides two 0–5V analog inputs and two PWM outputs that can be configured directly within the CANBOXPRO for data acquisition, control strategies, or auxiliary functions when used with supported tuning platforms such as EcuTek and MHD+.
Ideal for advanced setups requiring external sensor inputs, solenoids, relays, or other PWM-controlled devices while maintaining a clean and reversible installation.
