THIS ITEM IS WINCH ONLY

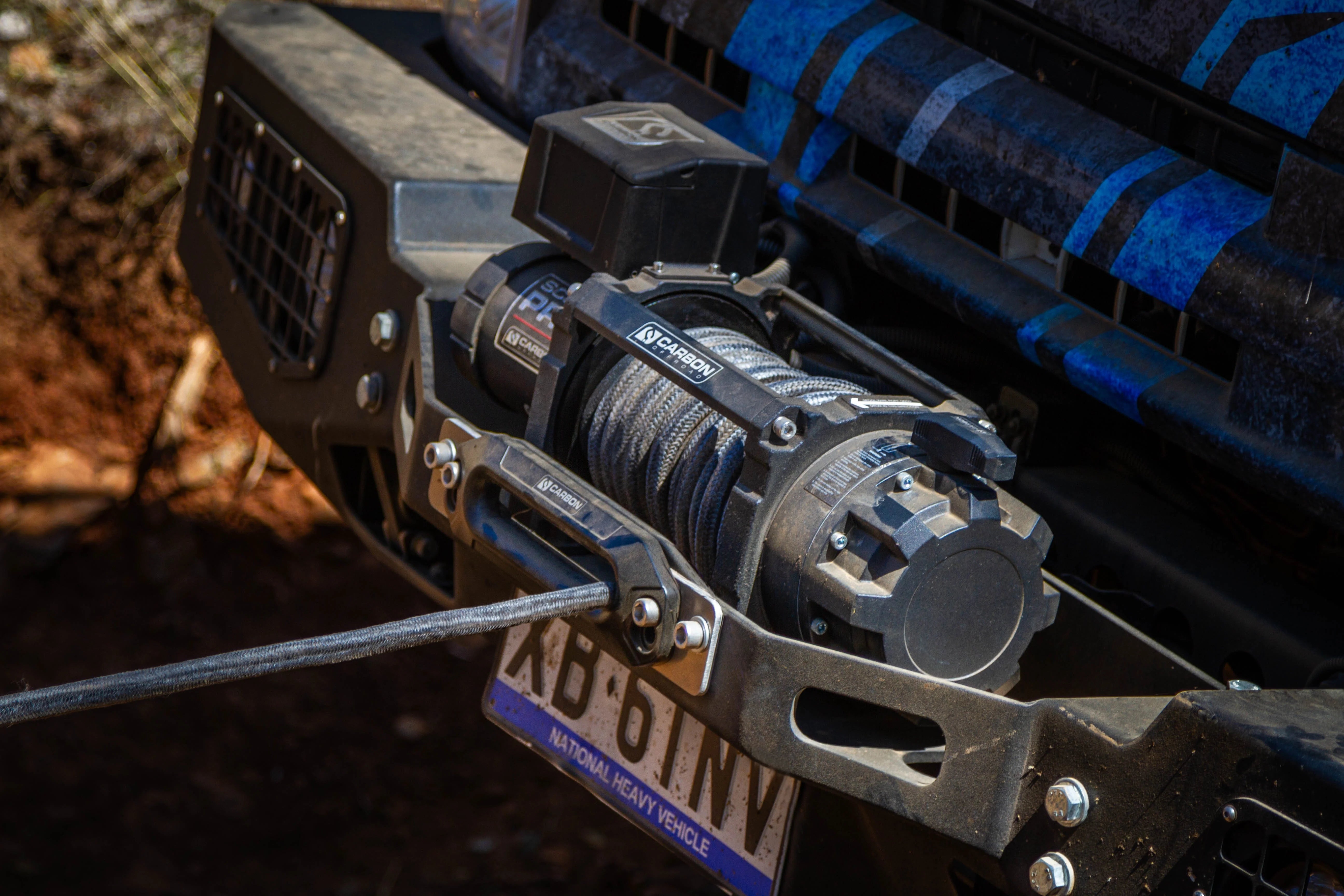

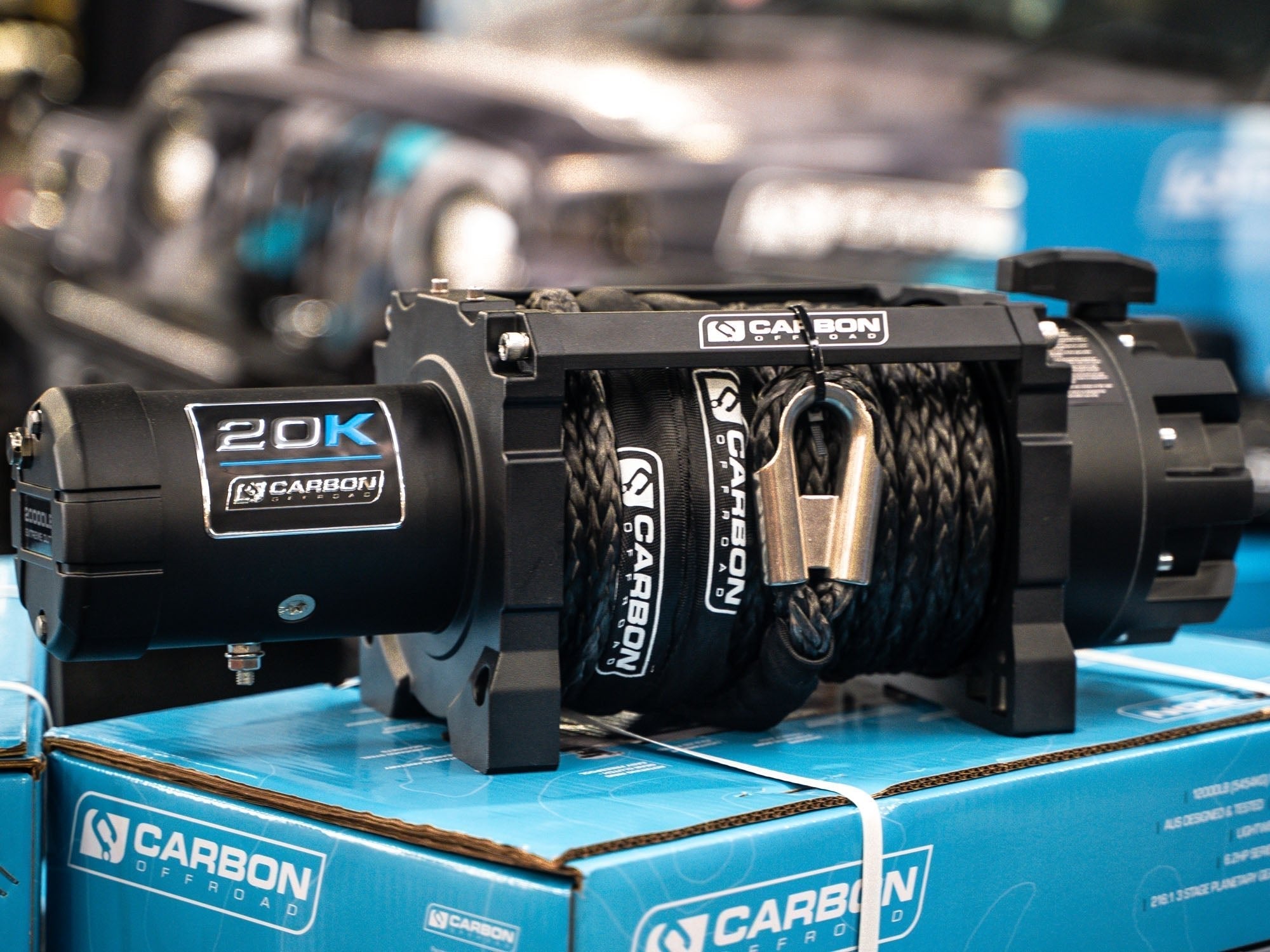

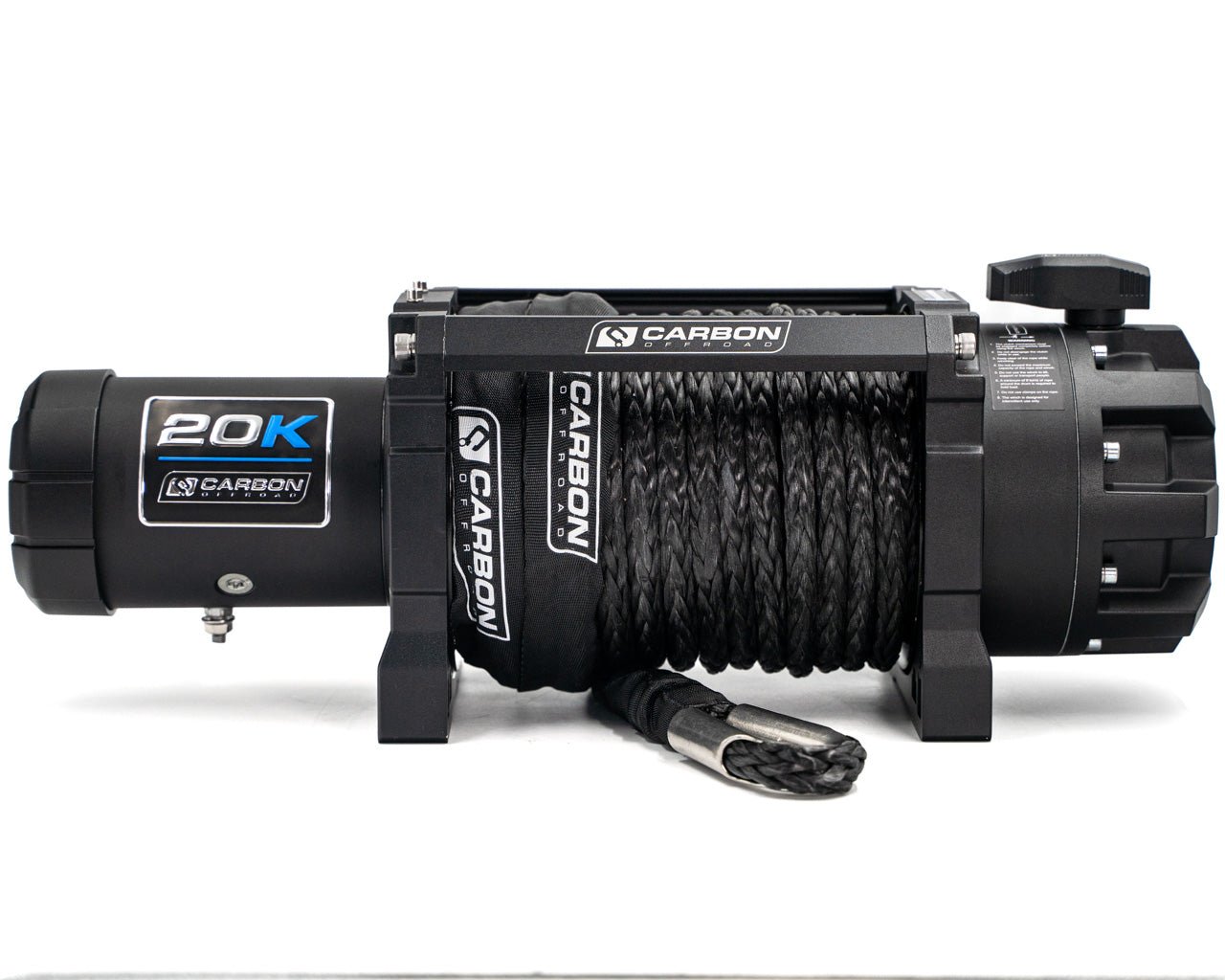

The Scout Pro 20K is built for serious recovery on heavy-duty 24V rigs. With 20,000lb of pulling capacity, a 7HP series-wound motor, and a rugged build, it’s made for oversized trailers, expedition trucks, and heavy work vehicles. Whether hauling, rescuing fully loaded 4WDs, or tackling brutal off-road conditions, this winch delivers dependable, uncompromising power.
You can upgrade this winch with with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
- 20,000lb (9,072kg) Rated Pull – Maximum capacity for extreme recoveries
- 7HP Series-Wound Motor – Delivers high torque for confident pulling
- 354:1 Gear Ratio – Optimized for controlled, powerful winching
- 82ft (25m) Synthetic Rope – Supplied fitted to the winch drum
- Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm)
- Drum Dimensions – 3.46in x 8.82in (88mm x 224mm)
- Winch Dimensions – 22.8in x 7.6in x 8.8in (579mm x 192mm x 224mm)
- IP68 Rated – Fully sealed against dust and water
- Rotating Ring Gear Clutch – Quick shift between freespool and engaged modes
- Automatic Load-Holding Brake – Prevents rollback and overheating
