Expected delivery W/C June 1st

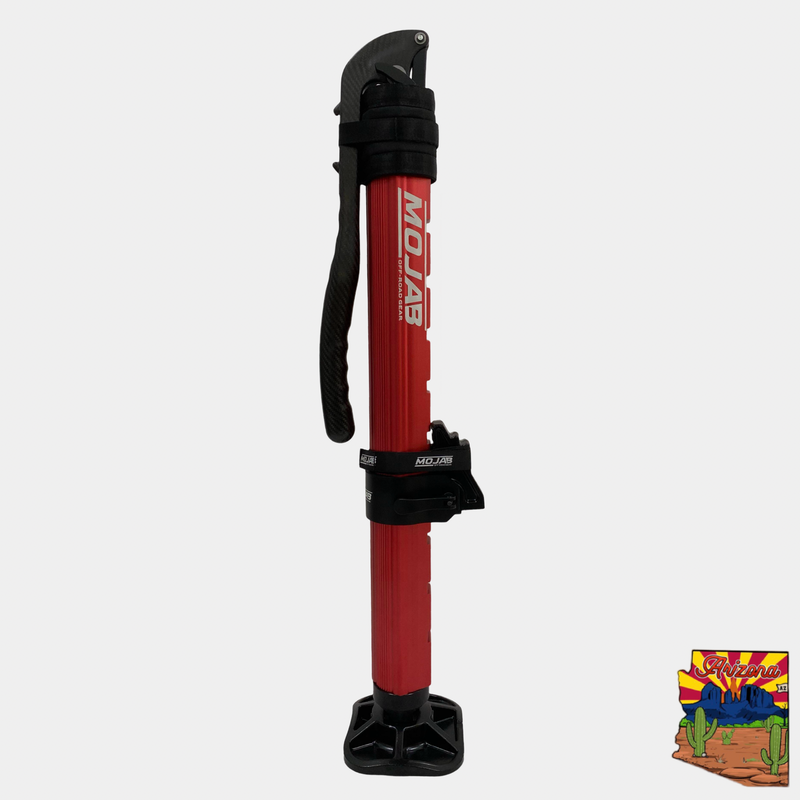

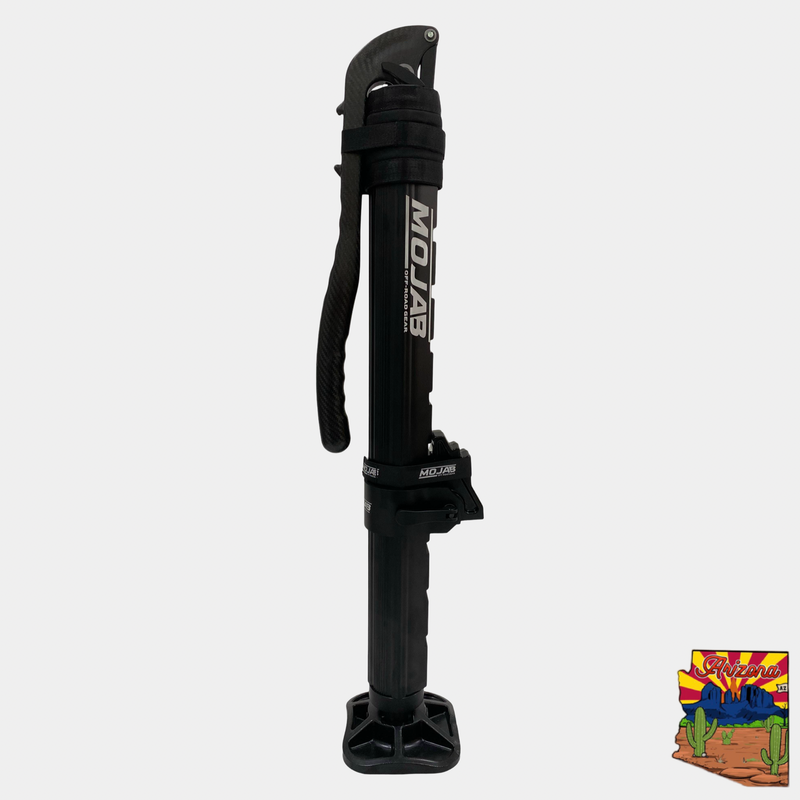

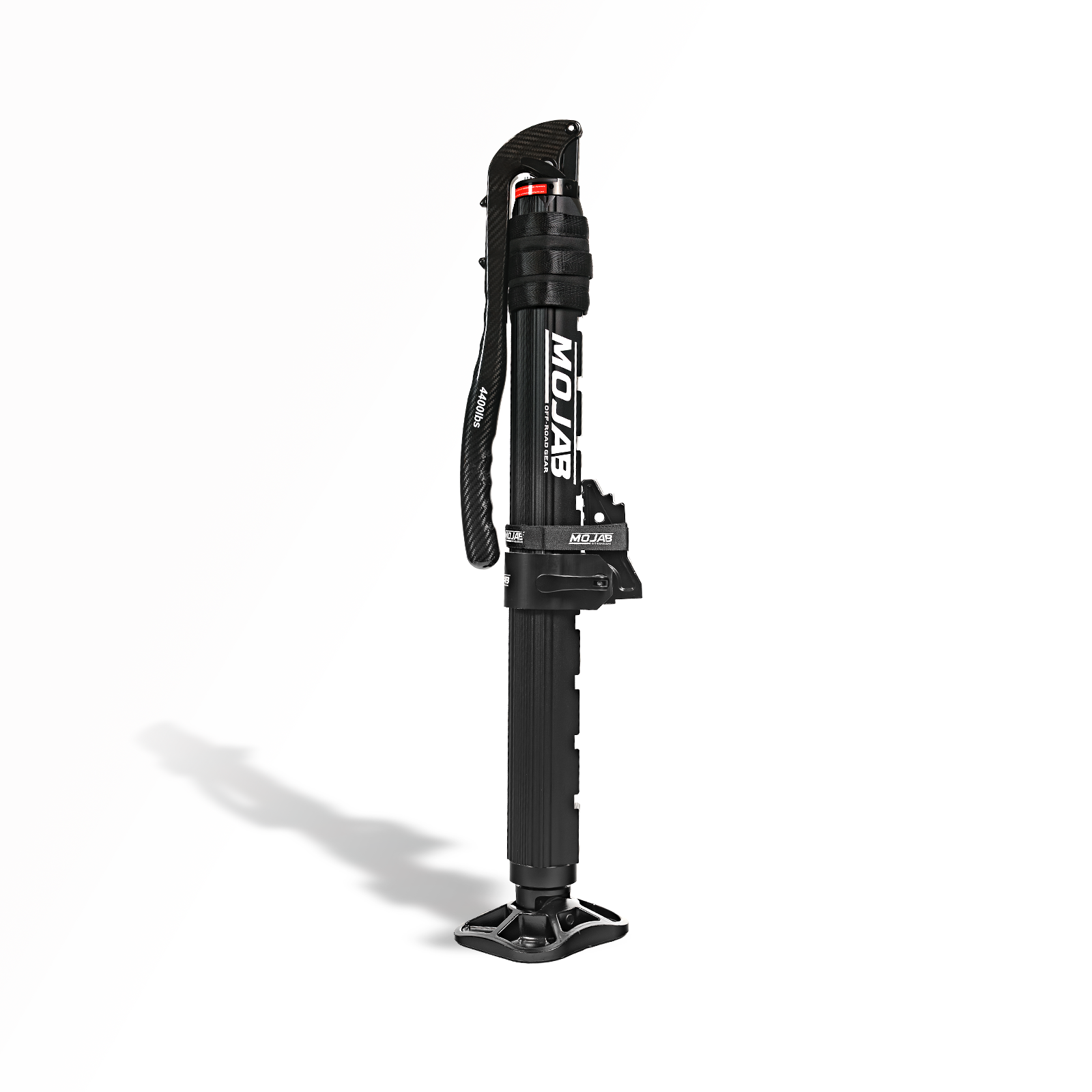

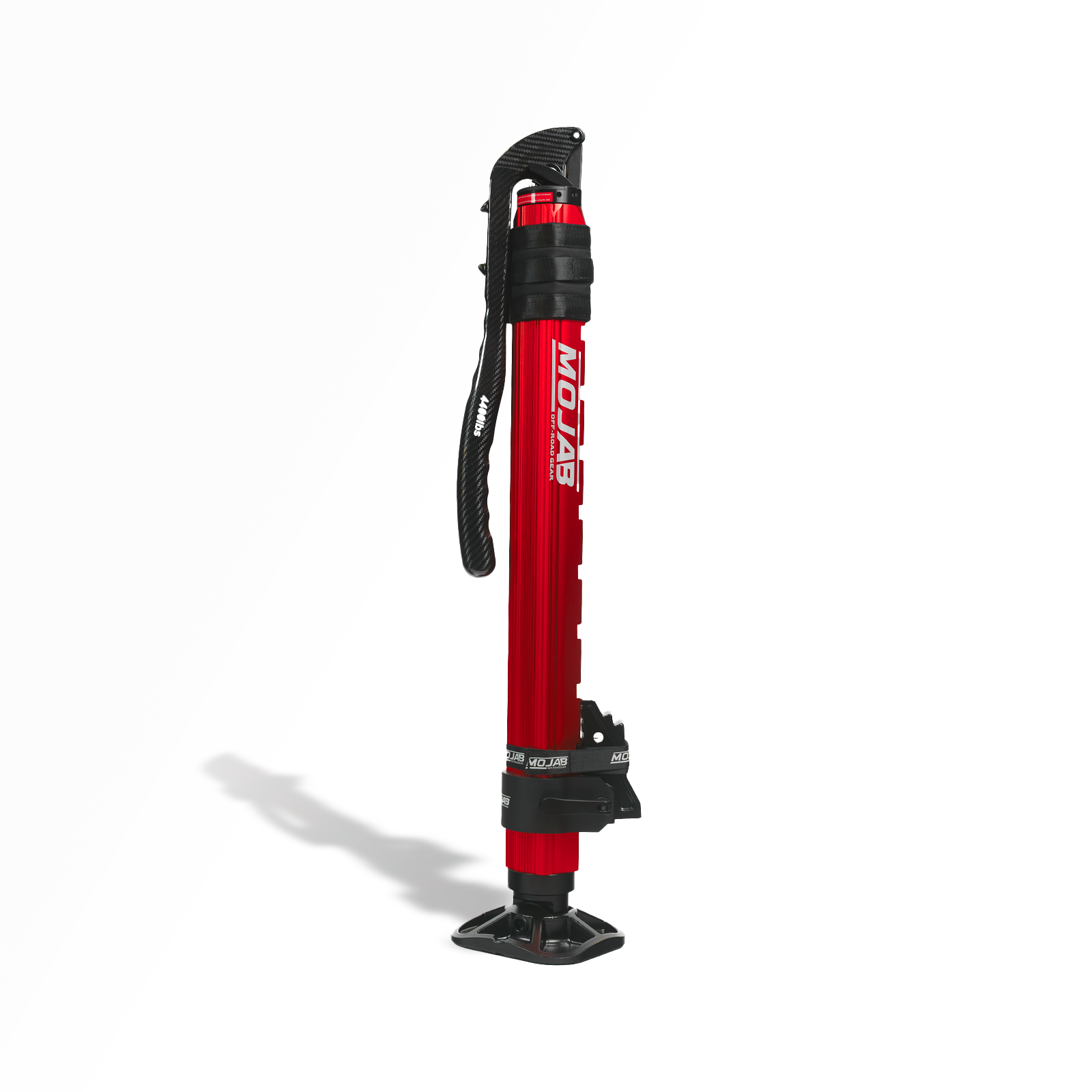

CarbonPro Hydraulic Jack MLH 48''

• Click here to download the manual
• Lightweight real carbon fiber handle construction
• Lockable air bleeder valve
• Fast and slow lowering functions
• Min. Lifting Height: 6''
• Max. Lifting Height: 48''
• Travel: 21''
• Lifting Range: 6'' - 48''
• Compressed Height: 35''
• Extended Height: 56.3''
• Weight: 25.5 lbs
• Max Lifting Capacity: 4,400 lbs
• Fluid: Hydraulic Mineral Oil
• Fluid Capacity: 1200ml

Experience effortless lifting with the Ultimate Hydraulic Jack. Powered by hydraulic technology, this jack enables smooth and efficient operation with minimal human force required. Say goodbye to strenuous lifting and let the hydraulic system do the work for you. With a simple pump of the handle, you can effortlessly raise heavy loads with ease. The hydraulic mechanism ensures precise control and stability, allowing you to perform the jack with confidence and ease. Whether you're lifting vehicles, machinery, or other heavy objects, the hydraulic power of this jack guarantees a hassle-free lifting experience. Upgrade to the Ultimate Hydraulic Jack and enjoy the convenience and efficiency of hydraulic lifting.

With a minimum lifting height of 6 inches and a maximum lifting height of 48 inches, this jack offers a versatile range for various applications. The travel distance of 21.25 inches ensures smooth and efficient lifting. The lifting range spans from 6 inches to 48 inches, accommodating a wide range of lifting needs. The compressed height is 35 inches, while the extended height reaches 56.3 inches, providing ample clearance for lifting tasks. With a weight of 11.6 kgs (25.5 lbs), this hydraulic jack is lightweight and easy to maneuver. It boasts a maximum lifting capacity of 2000 kg (4410 lbs), making it suitable for a variety of vehicles and equipment. The hydraulic system utilizes mineral oil for optimal performance, and the fluid capacity is 1200ml, ensuring sufficient fluid for consistent operation. Equip yourself with the Ultimate Hydraulic Jack for reliable and efficient lifting operations.

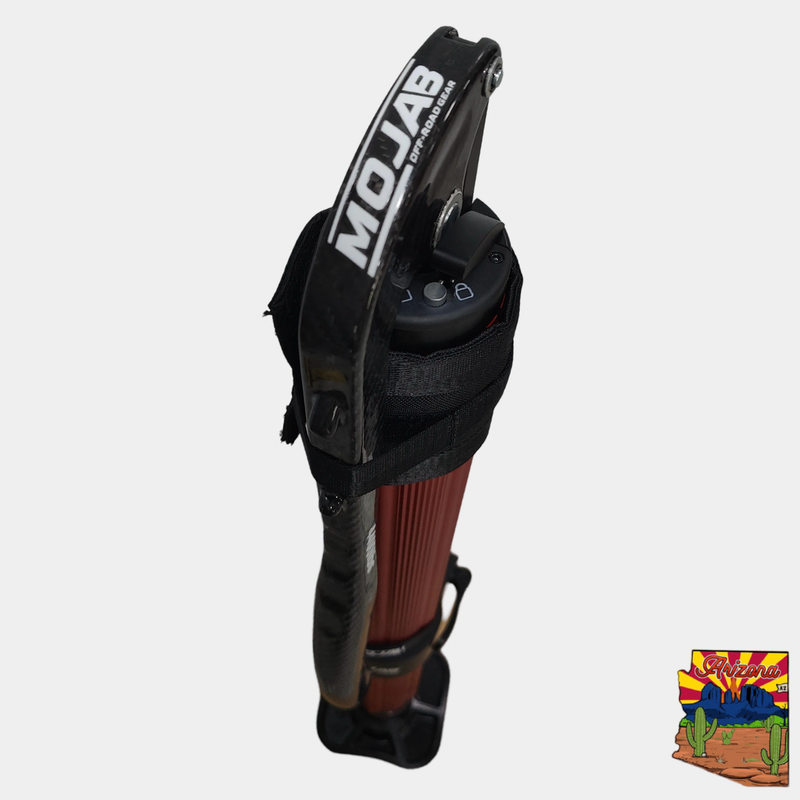

Note: The Carbon Pro Jack features a silver air bleeder valve located just underneath the black lowering lever. This valve has two positions: Lock and Unlock.

While the jack is mounted and in the stored position: Keep the valve in the Lock position.

When you start using the jack: Turn the valve to the Unlock position.

Fully compress the jack after use and store it in a dry place, away from moisture and water, to prevent the steel piston from rusting.

Coating Disclaimer:

Please note that the finish on the jack is not UV-resistant and may fade or discolor if exposed to direct sunlight for extended periods. The coating is not covered under warranty, as it is considered a cosmetic finish.For best results and to preserve the appearance of your jack, we recommend storing it in a shaded or covered area when not in use. Prolonged exposure to sun and harsh outdoor conditions may accelerate wear on the surface coating.

Air Bleeding Process:

The primary function of this valve is to bleed air from the system. To do this, turn the valve counterclockwise to unlock it, then push the valve down when there is no pressure behind the handle until you hear the air release. It's recommended to bleed the air out of the system every 7 to 8 cranks to allow the jack to equalize properly

This kit includes the following:

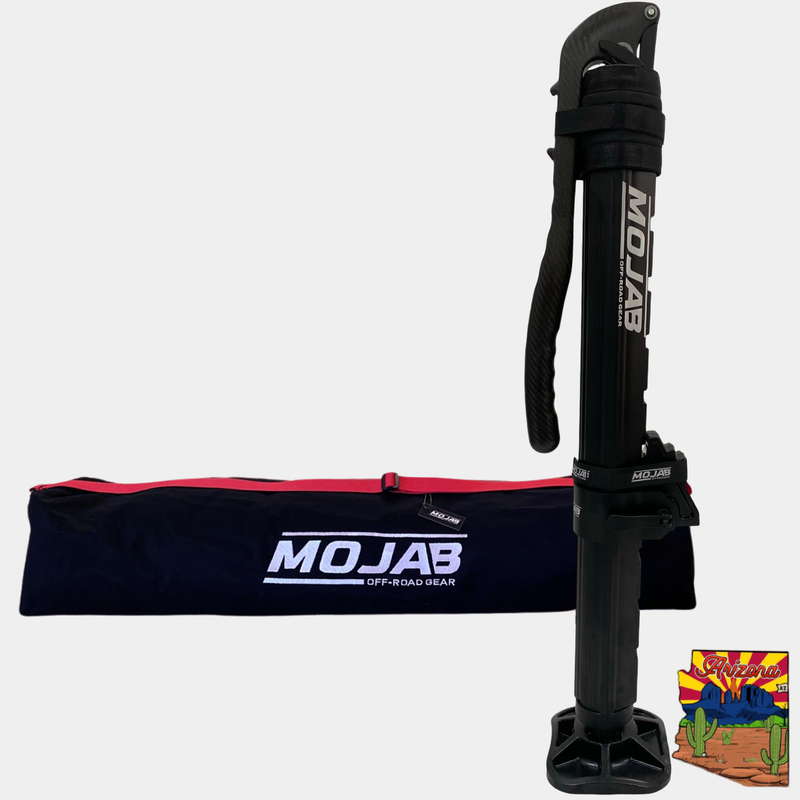

• CarbonPro Hydraulic Jack
• Durable canvas storage bag

Note: The mounting clamps and clamp adapter are not included in this kit but can be purchased separately on our website.

SKU:

Black: CPHJ-B

Red: CPHJ-R
