4-Pattern 293QIO8; 2900-7200 RPM

4-Pattern?Optimize Valve Events Based on Runner Length; Increases Area Under the Curve & High RPM Stability

To make the most power from your engine, you need to optimize the air ingested and captured by avoiding valves closing too soon or too late. Any conventional center layout single throttle body or carbureted V8 intake manifold features longer outboard runners and shorter inboard runners, meaning that each valve event should occur at a different moment. COMP Cams® 4-Pattern Camshafts are the very first series of cams designed to accommodate this difference in length and avoid valves closing at the wrong times. NASCAR teams have been using camshafts designed this way for years, and using lessons learned along with them, COMP Cams® has designed a series of cams that optimizes valve events and features a large increase in both area under the curve and stability at high RPM. The camshafts feature four different lobe patterns with one intake and exhaust design for outboard runners, and another intake and exhaust design for the inboard runners. While the four inboard cylinders are all the same grinds, the outboard exhaust openings are two degrees earlier, with outboard intake closings coming two degrees later. This is the first ever use of technology in street vehicles to balance air/fuel ratio per cylinder and can net you a possible 1000+ RPM over other hydraulic rollers and anywhere from 5-20+ horsepower peak to peak, depending on cylinder head flow.

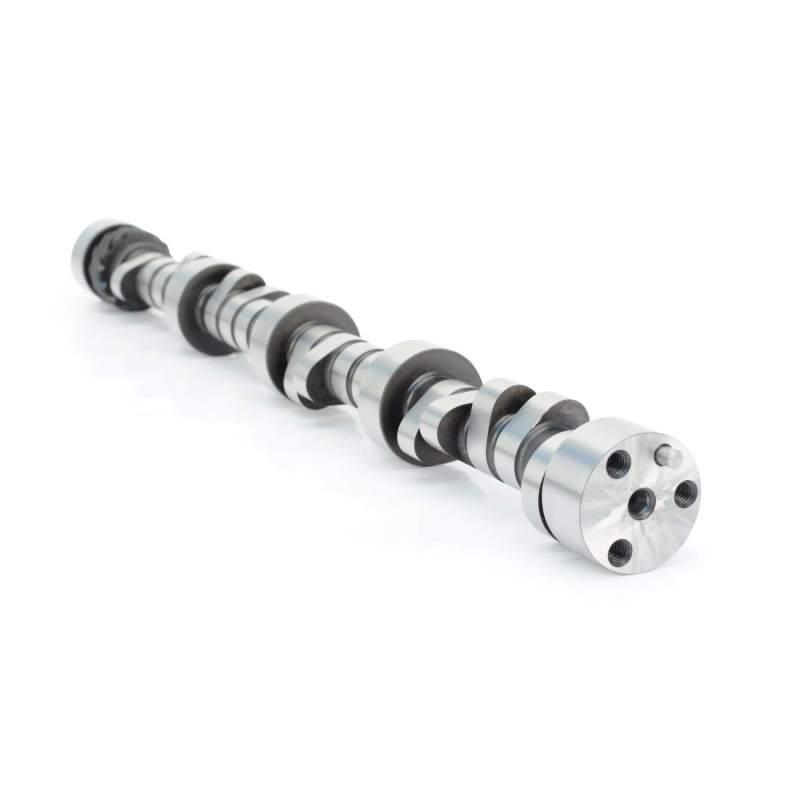

The 4-Pattern hydraulic roller cams are CNC-Machined from steel billet cores with cast iron distributor drive gears. The cams also feature a tight lobe separation for both excellent performance and a throaty sound.

Features:

• For Retro-Fit (Link Bar) Hydraulic Roller Lifters; Fits '58-'02;262-400 cid Chevy Small Blocks
• Excellent for street/strip applications w/ good heads & raised compression in high RPM engines
• 3200+ Stall
• Upgraded valve train components & aftermarket cylinder heads required.

Specifications

Lifter Type: Retro-Fit Hydraulic Roller

Engine Family: Chevrolet 262-400 C.I. 8 CYL. 1958-1998

Cam Family: 4-Pattern -Optimize Valve Events Based on Runner Length; Increases Area Under the Curve & High RPM Stability

RPM Range: 2900 to 7200

Valve Timing: .006

Lobe Separation: 108.5 / 107.5°

Intake Centerline: 103 / 102°

Valve Lash: Hyd.(Intake)/ Hyd.(Exhaust)

Duration: 295 / 293(Intake)/ 307 / 305(Exhaust)

Duration @ .050" Lift: 243 / 241(Intake)/ 253 / 251(Exhaust)

Valve Lift: .638 / .637(Intake)/ .622 / .622(Exhaust)

Lobe Lift: .399 / .398(Intake)/ .389 / .389(Exhaust)
