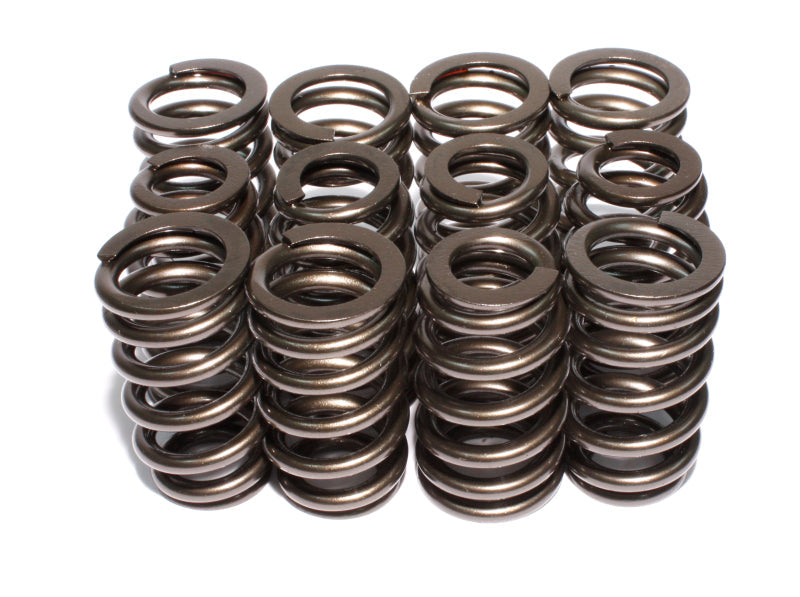

With a .575" maximum lift, these Beehive Valve Springs were designed for hydraulic or solid flat tappet as well as hydraulic roller cams. They work in a variety of small block engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.

Specification:

Top O.D. : 1.065

Bottom O.D : 1.415

Top I. D : .650

I.D. : 1.000

Seat Load: 109 @ 1.800

Open Load: 284 @ 1.175

Coil Bind: 1.060

Rate (Lbs./In.): 280

Titanium Retainer: 788

Steel Retainer: 1787, 787, 795

Cup Seat: 4696

Shims: 4755
