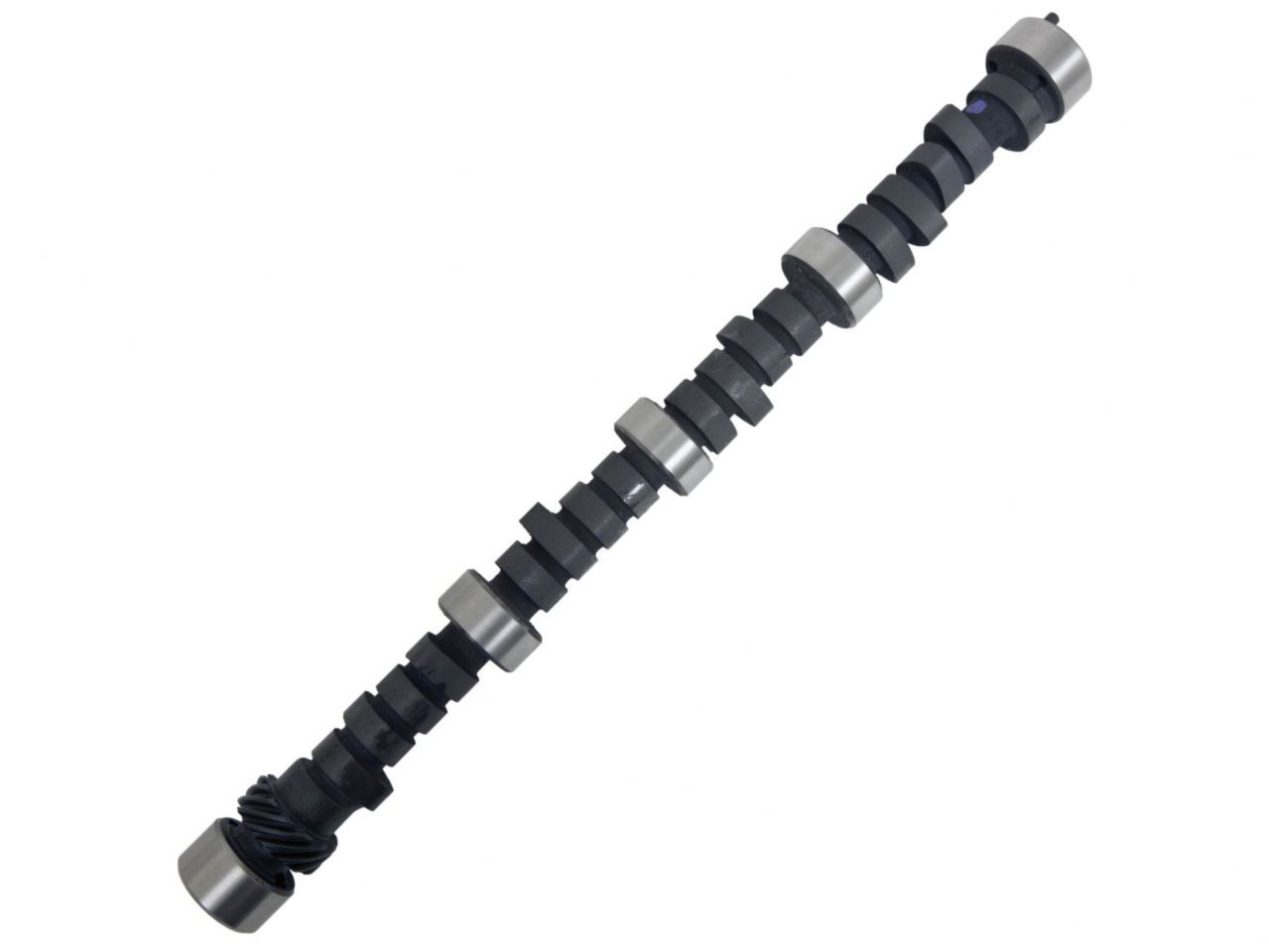

Dual Energy Camshafts

COMP Cams Dual Energy camshafts have more exhaust duration and lift than intake. They're designed for applications where a slight sacrifice in low-end power is acceptable for an increase in mid- and upper-range rpm horsepower. These cams are ideal for use with restricted exhaust port cylinder heads, or applications using a full-length exhaust system. Select the model and options designed for your vehicle and engine application.

Specifications

Part Type:Camshafts

Product Line:COMP Cams Dual Energy Camshafts

Cam Style:Hydraulic flat tappet

Basic Operating RPM Range:2,000-6,000

Intake Duration at 050 inch Lift:219

Exhaust Duration at 050 inch Lift:229

Duration at 050 inch Lift:219 int./229 exh.

Advertised Intake Duration:275

Advertised Exhaust Duration:277

Advertised Duration:275 int./277 exh.

Intake Valve Lift with Factory Rocker Arm Ratio:0.462 in.

Exhaust Valve Lift with Factory Rocker Arm Ratio:0.482 in.

Valve Lift with Factory Rocker Arm Ratio:0.462 int./0.482 exh.

Lobe Separation (degrees):110

Computer-Controlled Compatible:No

Valve Springs Required:Yes

Quantity:Sold individually
