- SBC LS1 Flat Top & Dish
- Designed on X-style forging to clear reluctor wheel
- Fit LS1, LS2 and LS6 heads
- Designed for shorter wrist pins
- Pinfitting included at no cost
- Chamfered pins and wire locks included
- Accumulator and anti-detonation grooves included
- Designed for back-cut rings
- Double pin oilers, force fed from oil ring
- Pick lock grooves for easy lock removal
- Custom skirt cam and barrel shapes
- Supplied with Wire Locks and 927×2.250 Pin (106g)
- CP Pistons are priced and sold per piston. 8 Cylinder engines will require Quantity 8 of each part #.
- Individual CP Piston For 5.0 Stroker Supplied with .866 x 2.500 pin (111g) Supplied with Double Spiral Locks
- 2nd Ring: 1.5
- Bore: 3.552
- Comp Height: 1.200
- Comp Ratio: 10.0:1
- Dome VR CC: -9cc
- Gas Ports: No
- Oil Ring: 3.0
- Rod: 5.850
- Stroke: 3.765
- Top Ring: 1.5
- Weight: 349For 5.0 Stroker

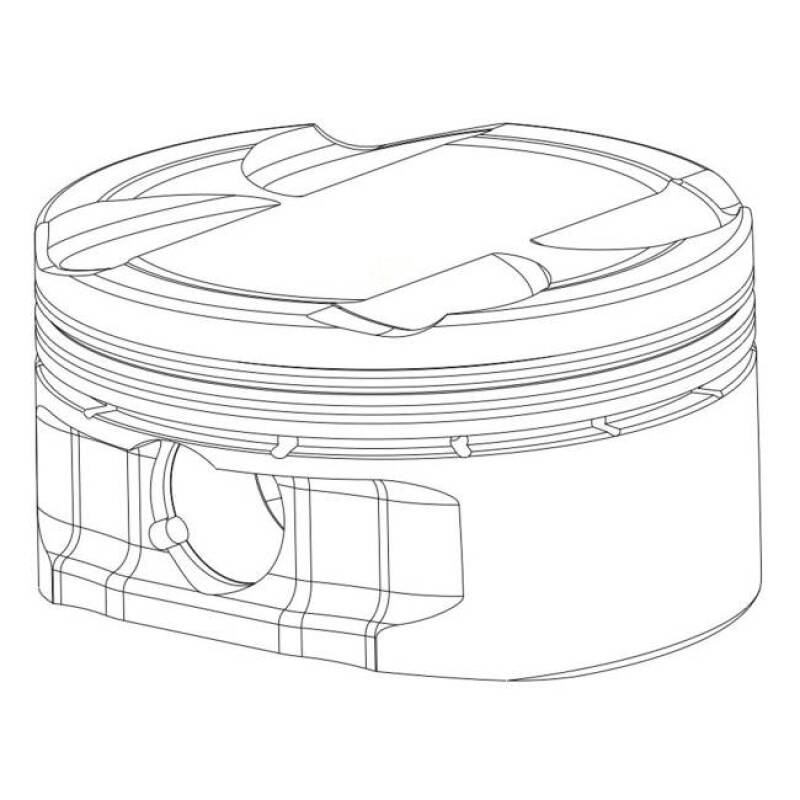

CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 1453 0DF0F
Regular price
$125.54
Sold out
