- SBC LS1 Flat Top & Dish
- Designed on X-style forging to clear reluctor wheel
- Fit LS1, LS2 and LS6 heads
- Designed for shorter wrist pins
- Pinfitting included at no cost
- Chamfered pins and wire locks included
- Accumulator and anti-detonation grooves included
- Designed for back-cut rings
- Double pin oilers, force fed from oil ring
- Pick lock grooves for easy lock removal
- Custom skirt cam and barrel shapes
- Supplied with Wire Locks and 927×2.250 Pin (106g)
- CP Piston Kit Flat Top X Style Forgings Supplied with Wire Locks .010 Deck Clearance with 3.480 Stroke Supplied with .927 x 2.250 Pin (118g)
- 2nd Ring: 1.5
- Bore: 4.030
- Comp Height: 1.550
- Dome VR CC: F.T. -2cc
- Gas Ports: Yes
- Oil Ring: 3.0
- Rod: 5.700
- Stroke: 3.500
- Top Ring: 1.5
- Weight: 417
- w/ 2.020/1.600 Valve Milled Head

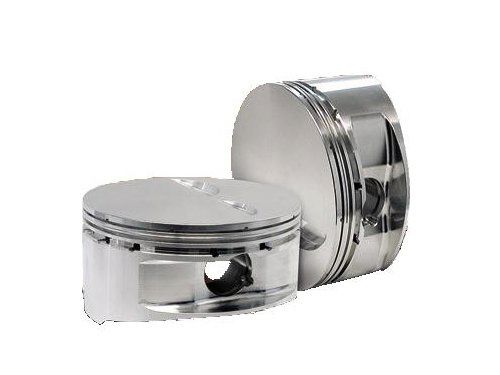

CP-Carrillo Automotive Piston, Set Of 8, Cyl: 8, Material ID: 2869 06BEM
Sale price
$1,100.00
Regular price
$1,224.00You saved$124.00 OFF
Sold out
