- SBC LS1 Flat Top & Dish
- Designed on X-style forging to clear reluctor wheel
- Fit LS1, LS2 and LS6 heads
- Designed for shorter wrist pins
- Pinfitting included at no cost
- Chamfered pins and wire locks included
- Accumulator and anti-detonation grooves included
- Designed for back-cut rings
- Double pin oilers, force fed from oil ring
- Pick lock grooves for easy lock removal
- Custom skirt cam and barrel shapes
- Supplied with Wire Locks and 927×2.250 Pin (106g)
- CP Piston Kit Domed Fits Standard Open Chamber & Brodix BB3 Xtra Heads Supplied With Double Spiral Locks Supplied with .180 Wall .990 x 2.750 pin (142g)
- or optional 165g
- 2nd Ring: 0.043
- Bore: 4.500
- Comp Height: 1.270
- Dome VR CC: .615 Dome +46cc
- Gas Ports: Yes
- Oil Ring: 3.0
- Rod: 6.385
- Stroke: 4.250
- Top Ring: 0.043
- Weight: 614
- Super Series w/ Standard Open Chamber or BRODIX BB3 Xtra Heads

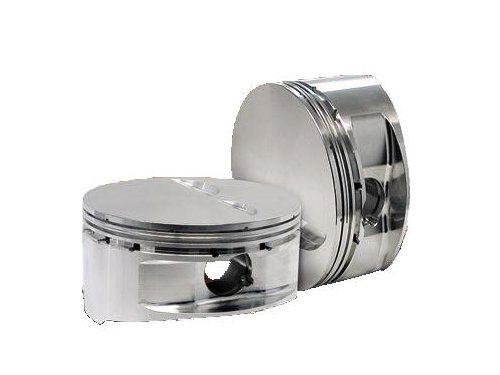

CP-Carrillo Automotive Piston, Set Of 8, Cyl: 8, Material ID: 3335 00BNX
Sale price
$1,150.00
Regular price
$1,328.02You saved$178.02 OFF
Sold out
