- SBC LS1 Flat Top & Dish
- Designed on X-style forging to clear reluctor wheel
- Fit LS1, LS2 and LS6 heads
- Designed for shorter wrist pins
- Pinfitting included at no cost
- Chamfered pins and wire locks included
- Accumulator and anti-detonation grooves included
- Designed for back-cut rings
- Double pin oilers, force fed from oil ring
- Pick lock grooves for easy lock removal
- Custom skirt cam and barrel shapes
- Supplied with Wire Locks and 927×2.250 Pin (106g)
- CP Piston Kit 18Degree Dome Rail Supports included Supplied With 927 x 2.750 Pin (130g) Supplied with Wire Locks
- 2nd Ring: 1.5
- Bore: 4.130
- Comp Height: 1.000
- Dome VR CC: .175 +3.5cc
- Gas Ports: Yes
- Oil Ring: 3.0
- Rod: 6.000
- Stroke: 4.000
- Top Ring: 1.5
- Weight: 439

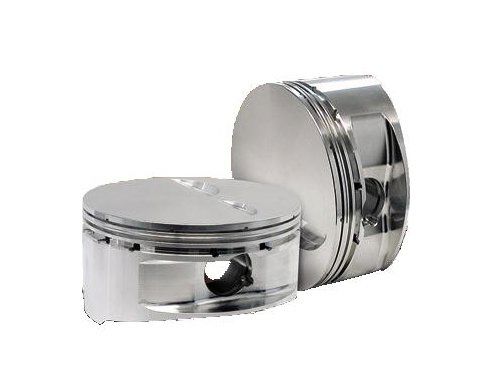

CP-Carrillo Automotive Piston, Set Of 8, Cyl: 8, Material ID: 4094 00C2X
Sale price
$1,182.00
Regular price
$1,350.00You saved$168.00 OFF
Sold out
