- SBC LS1 Flat Top & Dish
- Designed on X-style forging to clear reluctor wheel
- Fit LS1, LS2 and LS6 heads
- Designed for shorter wrist pins
- Pinfitting included at no cost
- Chamfered pins and wire locks included
- Accumulator and anti-detonation grooves included
- Designed for back-cut rings
- Double pin oilers, force fed from oil ring
- Pick lock grooves for easy lock removal
- Custom skirt cam and barrel shapes
- Supplied with Wire Locks and 927×2.250 Pin (106g)
- CP Piston Kit 23Degree Dome Supplied With Double Spiral Locks .010 Deck Clearance with 3.480 Stroke Rail Supports included Can be used with 3.750 Stroke & 6.000 Rod Supplied with .927 x 2.750 Pin (130g)
- 2nd Ring: 1/16
- Bore: 4.040
- Comp Height: 1.125
- Dome VR CC: .450 Dome +13cc
- Gas Ports: No
- Oil Ring: 3/16
- Rod: 6.125
- Stroke: 3.500
- Top Ring: 1/16
- Weight: 422

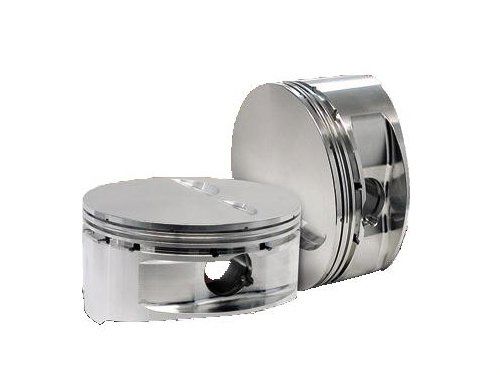

CP-Carrillo Automotive Piston, Set Of 8, Cyl: 8, Material ID: 463 06VVY
Sale price
$1,034.00
Regular price
$1,184.00You saved$150.00 OFF
Sold out
