This 3/4" D-Ring is made in America and has a WLL of 6.5 Tons.
This D-Ring is used with our standard 2" Shackle Blocks and has a black powdercoat finish.

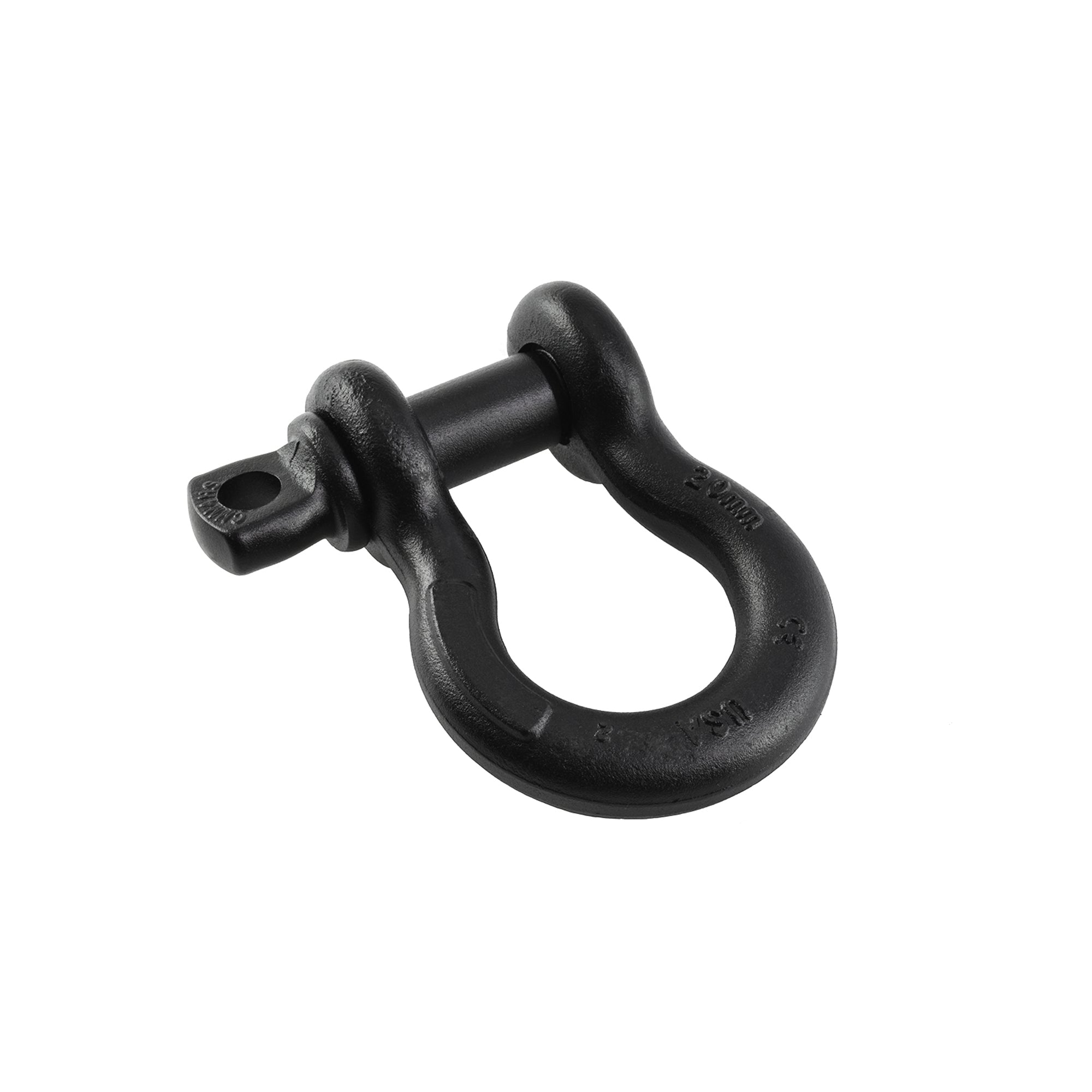

Columbus McKinnon (CM) Super Strong Screw Pin Anchor Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor.
- Size (Shackle Body Thickness): 3/4"
- Working Load Limit (WLL): 6.50 tons (13,000 lbs)
- 6:1 design factor
- Pin Size: 7/8"
- Pin Type: Screw Pin
- Material: Micro Alloy Steel Body & Alloy Steel Pin
- Finish: Black powder coat
- Working load limit and traceability codes shown as permanent markings on body
- Manufactured from technically advanced domestic (USA) micro alloy steel with optimal hardness for strength and ductility
- Alloy quenched and tempered pins
- Made in the USA
