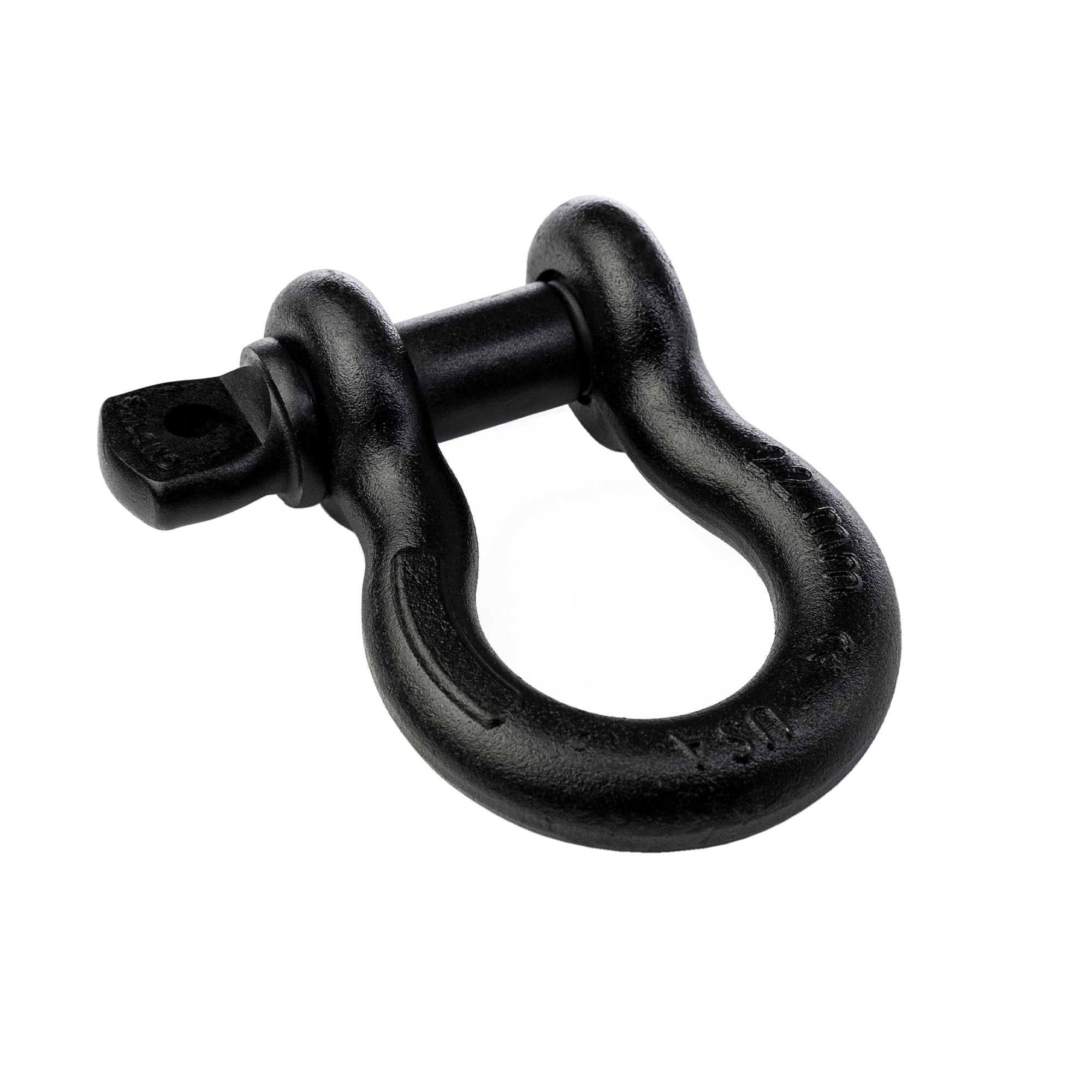

7/8" US Made D-Ring Shackle, 8 1/2 ton WLL w/ Powder Coat finish
This D-Ring is used with our 2.5" Shackle Blocks and our 2" Soft Shackle Blocks
Columbus McKinnon (CM) Super Strong Screw Pin Anchor Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor.
- Size (Shackle Body Thickness): 7/8"
- Working Load Limit (WLL): 8.50 tons (17,000 lbs.)
- 6:1 design factor
- Pin Size: 1"
- Pin Type: Screw Pin
- Material: Micro Alloy Steel Body & Alloy Steel Pin
- Finish: Black powder coat
- Working load limit and traceability codes shown as permanent markings on body
- Manufactured from technically advanced domestic (USA) micro alloy steel with optimal hardness for strength and ductility
- Alloy quenched and tempered pins
- Made in the USA
