Dana 44 Crossover Kit (1 Ton)

Dana 44 Crossover Kit (1 Ton)

Factory-Style Steering Upgrade with 1-Ton Components and Hex Adjusters

This crossover steering kit mimics the factory setup but steps it up with easier adjustability and much stronger materials. Built with 1.5" x .25" wall DOM tubing and beefy GM 1-ton tie rod ends, this system offers both strength and serviceability. Hex head bungs allow you to use a crescent wrench for adjustments—no pipe wrenches gouging your tubing or killing your paint. Can be used with high steer arms and features standard GM taper.

This is a DIY-style kit and includes extra DOM tubing to allow for fitment changes or error correction. Be sure to test steering clearance at full lock before final cutting or welding.

Key Features

• Part Number: R2144
• Factory-style crossover setup using GM 1-ton components
• 1.5" x .25" wall DOM tubing for strength
• Hex head bungs allow easy adjustment without damage
• High-angle tie rod ends (ES2027L & ES2027R)
• Includes Dana 44 passenger-side high steer arm
• Extra tubing length provided for safe trimming

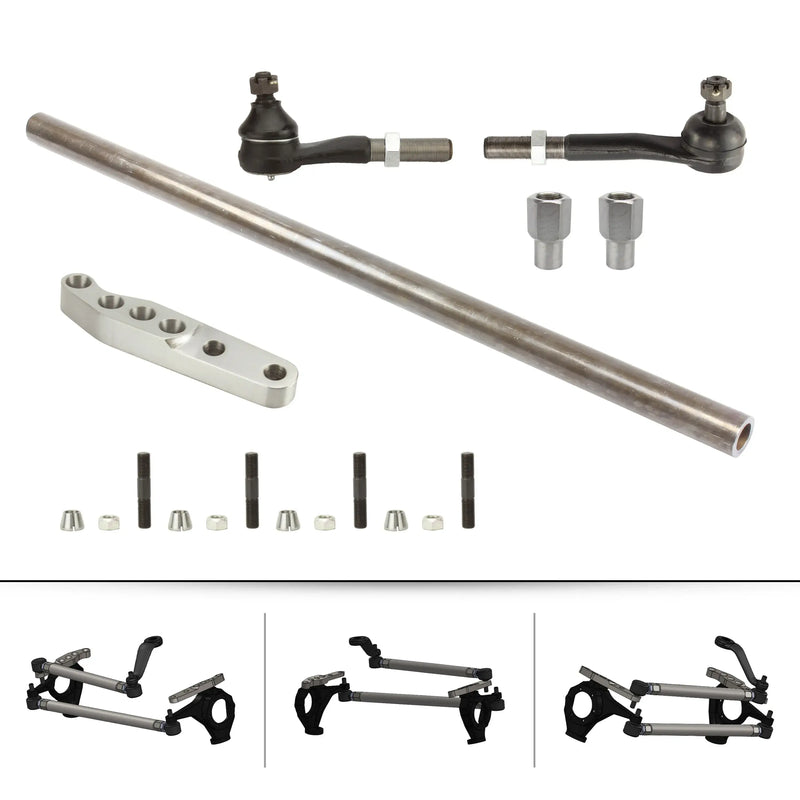

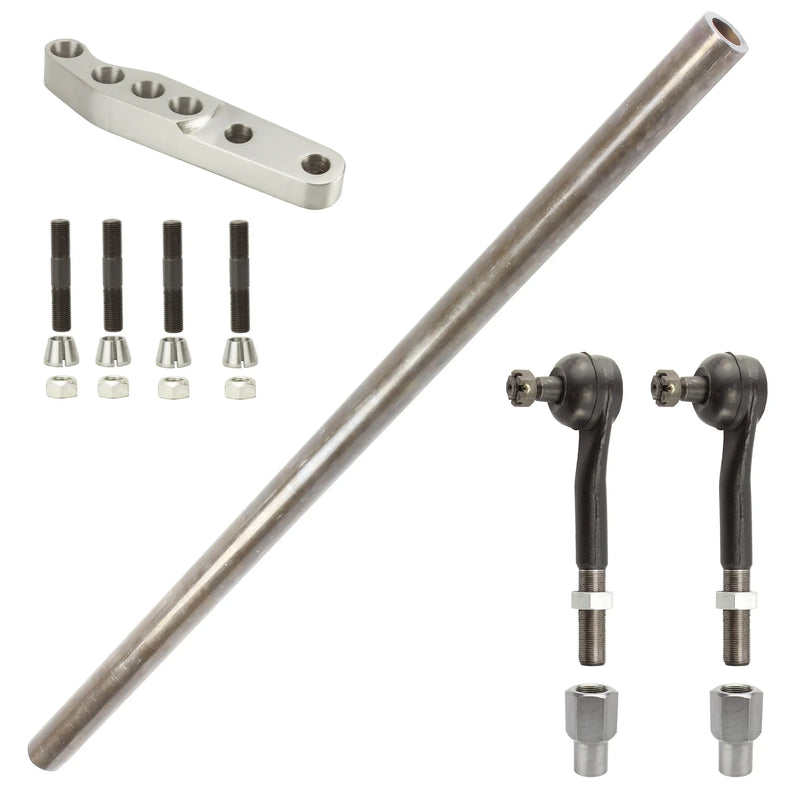

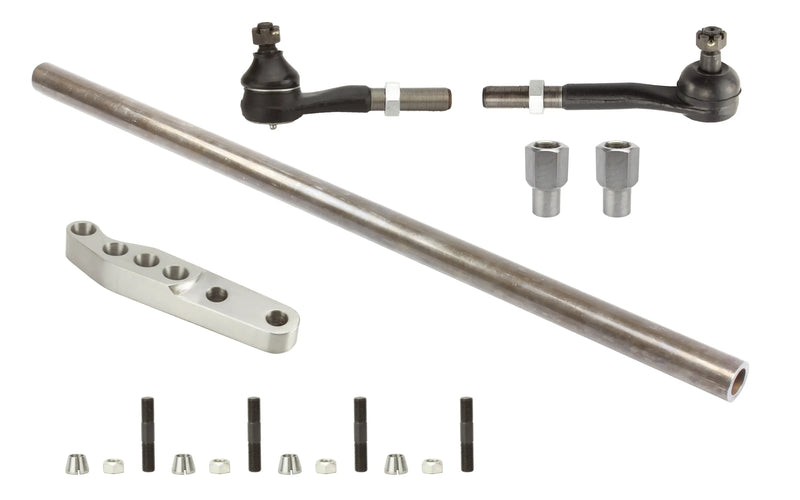

Kit Includes

• (1) 43" of 1.5" x .25" wall DOM tubing
• (1) RH 7/8"-18 Hex Head Weld Bung
• (1) LH 7/8"-18 Hex Head Weld Bung
• (1) RH 7/8"-18 Jam Nut
• (1) LH 7/8"-18 Jam Nut
• (1) GM 1 Ton Tie Rod End – High Angle (ES2027L)
• (1) GM 1 Ton Tie Rod End – High Angle (ES2027R)
• (1) Dana 44 High Steer Arm – Passenger Side
• (4) Dana 44 High Steer Arm Studs & Cone Nuts

Note: Due to high demand, please allow a 3–5 business day turnaround on steering kits.
Welding required. Make sure installation is done with proper tools and technique. Always check steering clearance at full lock before final cutting or welding.
