Dana 44 Stud Kit (3 Studs/Nuts)

Dana 44 Stud Kit (3 Studs/Nuts)

3-Stud Mounting Kit for Dana 44 Flat Top Knuckles

This Dana 44 stud kit is designed for use with stock Chevy and Ford flat top knuckles. The kit includes everything needed to secure a high steer arm to a 3-stud knuckle setup. Passenger-side flat top knuckles must be machined flat, drilled, and tapped prior to installation.

Key Features

• Part Number: R1533
• Fits Chevy and Ford Dana 44 flat top knuckles
• Requires machining on passenger side knuckle
• Chromoly studs and hardware included
• Sold as a 3-stud kit

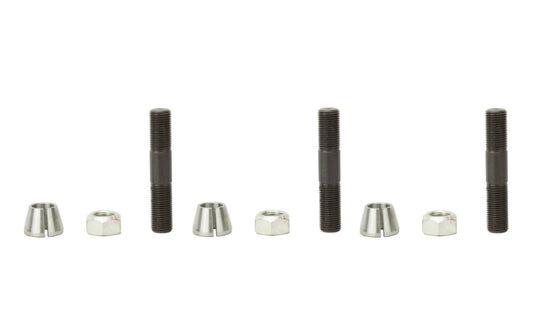

Kit Includes

• (3) 9/16" NF Chromoly Studs
• (3) Cone Washers
• (3) 9/16" NF Stover Nuts

Note: Installation requires drilling and tapping the knuckle. Ensure proper thread engagement and torque.
