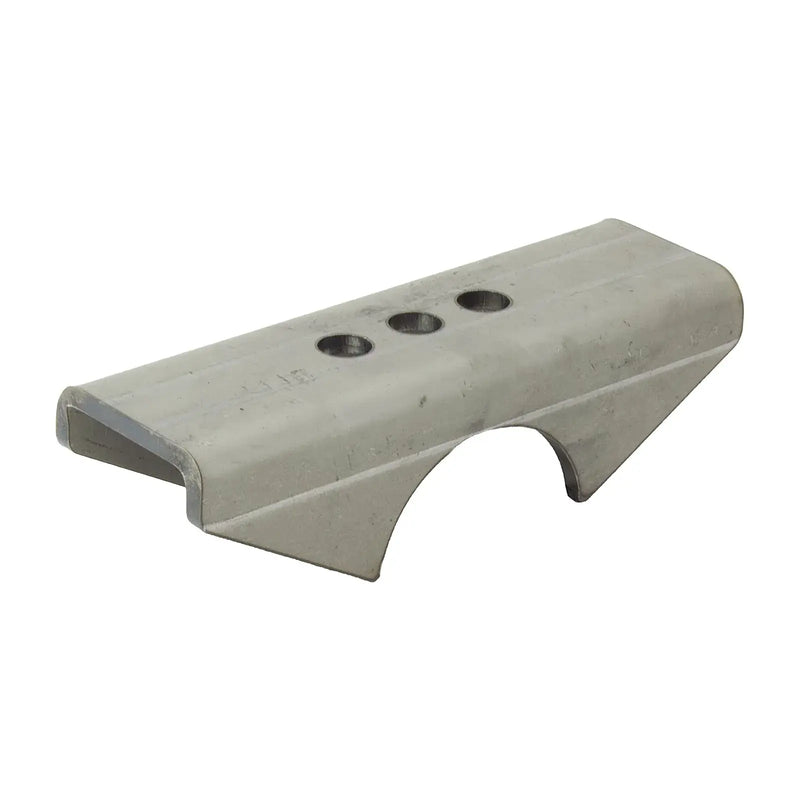

Dana 44HD Spring Perches, 2.5" wide

Dana 44HD Spring Perches, 2.5" Wide

Weld-On Leaf Spring Perches for 3.0" Axle Tubes – Spring Over

These spring perches are designed for spring-over applications using Dana 44HD axles with 3.0" diameter tubes. Made from 1/4" HR P&O steel, they’re CNC laser cut and brake-formed for precision. At 8" long, they help reduce axle wrap, and the 2.5" width provides a stable base for leaf springs. The triple spring pin options allow for wheelbase adjustment during installation. Easily modified with a grinder to fit slightly larger or smaller axle tubes.

Key Features

• Part Number: R1110
• Fits 3.0" axle tubes (Dana 44HD)
• 2.5" wide spring mounting surface
• 8.0" long for added anti-wrap support
• Made from 1/4" HR P&O steel
• Three spring pin mounting positions for wheelbase adjustment
• Sold in pairs

Kit Includes

• (2) Spring perches – 2.5" wide, cut for 3.0" axle tubes

Note: Welding required. Make sure installation is done with proper tools and technique.
