DANA 60 High Steer Arm 6 Stud Kit

Dana 60 High Steer Arm 6 Stud Kit

6-Stud Mounting Kit for Aftermarket Dana 60 Kingpin Knuckles

This 6-stud high steer arm hardware kit is built specifically for use with Solid Industries aftermarket Dana 60 kingpin knuckles on Chevy and Ford axles. The 6-stud configuration is designed to provide the most secure clamping force available, reducing the risk of arm movement under extreme load conditions commonly found in heavy-duty off-road and rock crawling applications.

The added stud increases resistance to steering stress and minimizes deflection, making this kit ideal for full hydraulic steering setups, heavy rigs with large tires, or any vehicle needing maximum steering arm stability. Each kit includes high-strength 1/2" NF chromoly studs and matching tapered nuts for secure and repeatable torque. This kit is meant for a single high steer arm—order two kits for a full set.

Key Features

• R1521
• Fits Solid Industries Dana 60 kingpin knuckles (Chevy & Ford)
• 6-stud mounting offers maximum clamping strength for steering arms
• Ideal for high-load steering systems or full hydro builds
• Includes chromoly hardware for added strength and durability
• Sold as one complete kit for a single arm

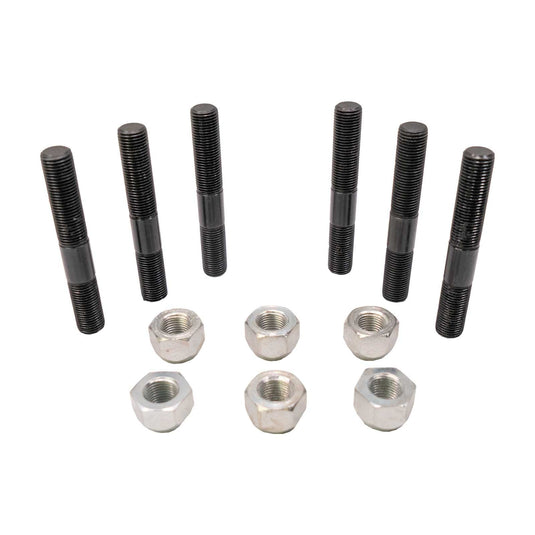

Kit Includes

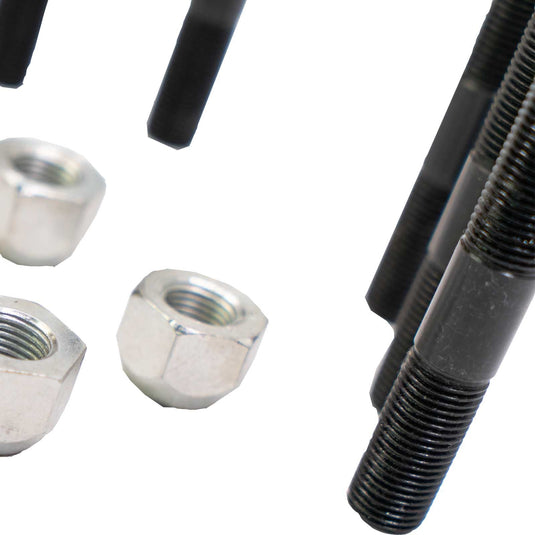

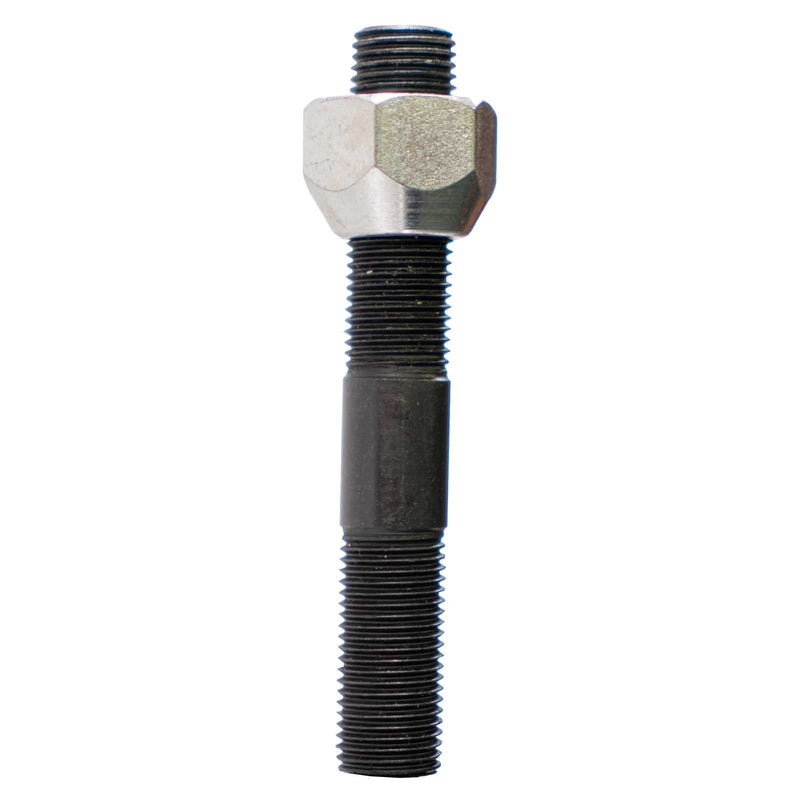

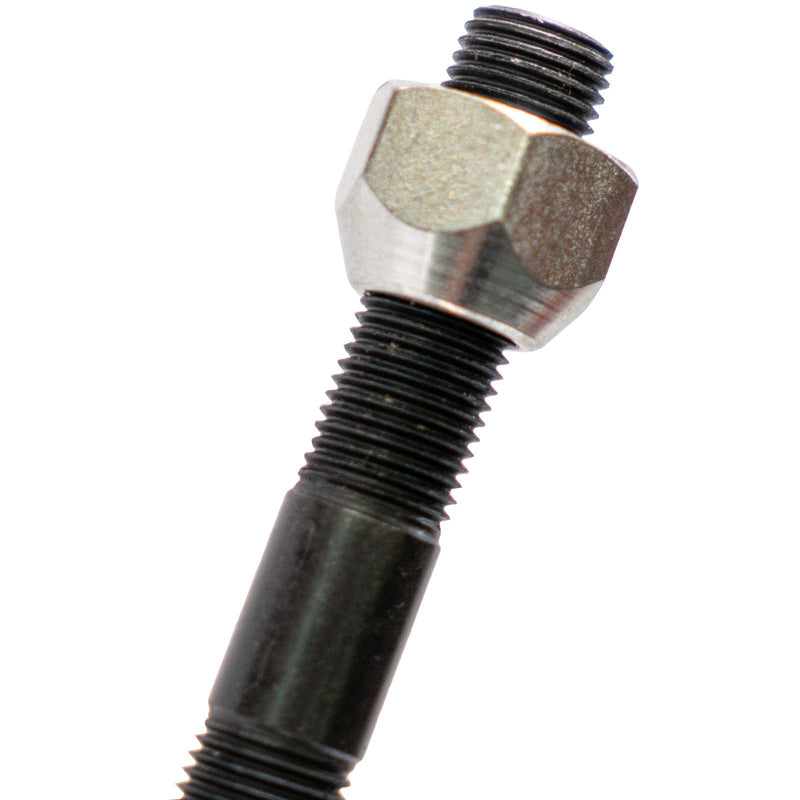

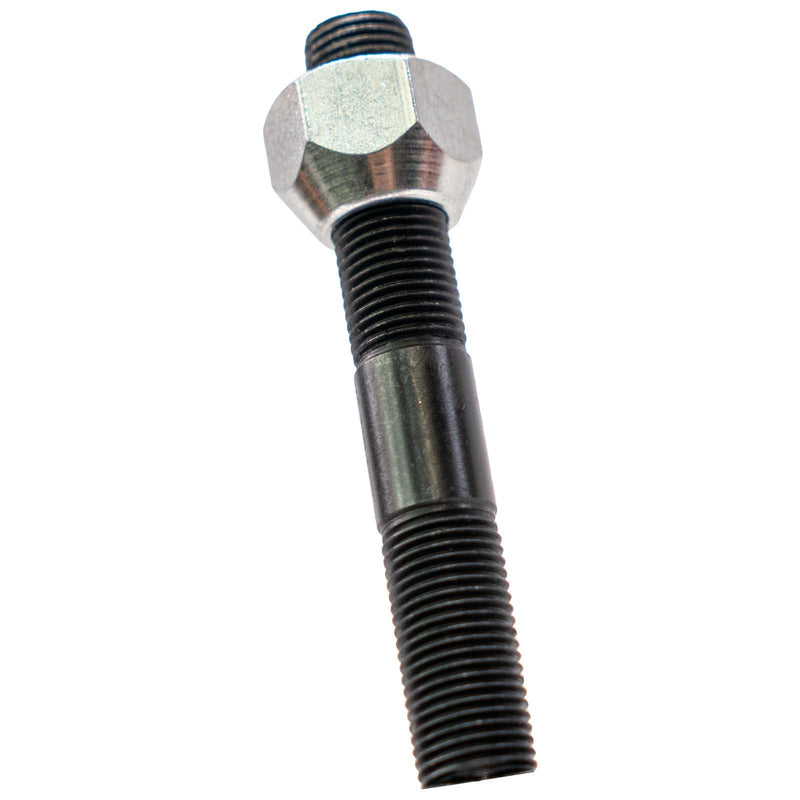

• (6) 1/2" NF Chromoly Studs
• (6) 1/2" NF Tapered Nuts

Note

• Confirm your aftermarket knuckle uses a 6-stud high steer arm pattern before installation.
• Designed specifically for Solid Industries Dana 60 knuckles with 6 mounting holes.
