Dana 70 HD or Dana 80 U-Bolt Plates

Dana 70 HD or Dana 80 U-Bolt Plates

Heavy Duty U-Bolt Plates for Large Axle Tubes

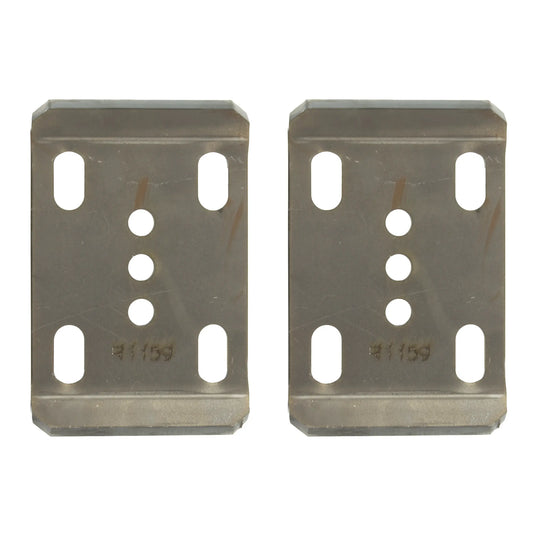

These U-bolt plates are designed for the larger axle tubes found on Dana 70 HD and Dana 80 axles. Built for use with 2.5" wide leaf springs, they provide a strong, reliable mounting platform for heavy-duty applications.

The plates are CNC-cut from 3/8" thick HR P&O steel and feature three spring pin mounting positions to fine-tune axle placement. They fit axle tube diameters ranging from 2.5" to 4" and work with either 9/16" or 5/8" U-bolts—though 5/8" is recommended for added strength.

Key Features

• Part Number: R1159
• Fits axle tube diameters from 2.5" to 4"
• Made from 3/8" thick HR P&O steel
• Designed for 2.5" wide leaf springs
• Accepts 9/16" or 5/8" U-bolts (5/8" recommended)
• Three spring pin mounting options
• Sold as a pair
