DIY Long Arm Kit For Jeep

DIY Jeep Long Arm Kit

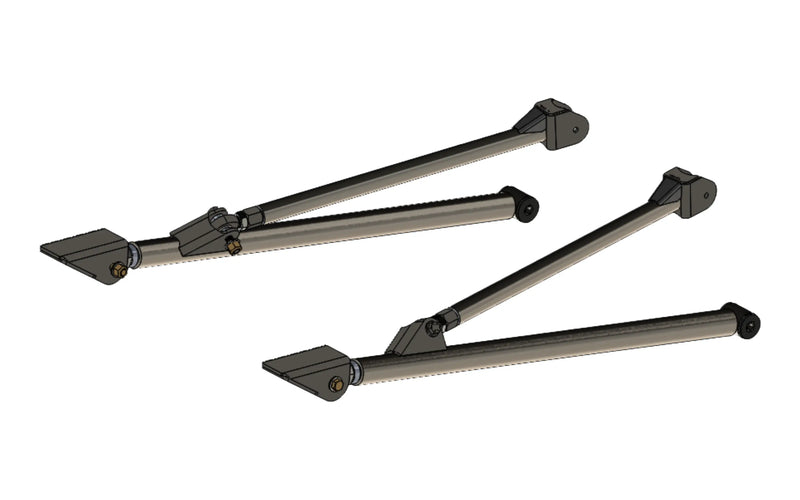

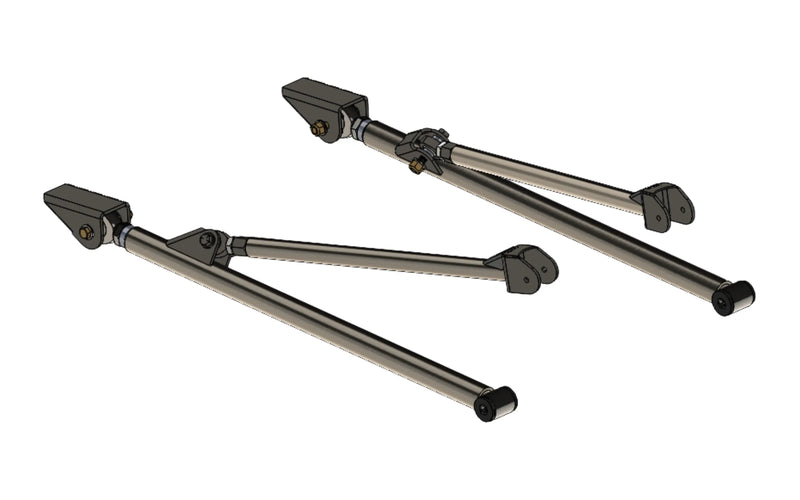

Heavy-Duty Long Arm Kit for Custom Jeep Suspension Builds

This DIY long arm kit is the upgrade your radius arm or long arm setup needs to survive real trail use. Whether you’re building a Ford Bronco-style suspension or a basic 3-link, this kit gives you a strong starting point with plenty of flexibility for your own design.

The lower links are made from 2" x .25" wall DOM tubing, cut to 38" long. The uppers are 1.5" x .25" wall DOM, cut to 24" and left long for trimming to fit. It comes with heat-treated chromoly heims—1.25" on the lowers with your choice of misalignment spacing, and 7/8" on the uppers with 9/16" stainless misalignment sized to fit 1 5/8" brackets. The kit is designed for Jeep use but adaptable to other custom setups. Comes unwelded with bolts included.

Key Features

• Part Number: R1667
• Strengthens or replaces Jeep long arm and radius arm setups
• Lower arms: 2" x .25" wall DOM, 38" long
• Upper arms: 1.5" x .25" wall DOM, 24" long (cut-to-fit)
• 1.25" lower heat-treated heims with selectable misalignment spacing
• 7/8" upper heat-treated heim with 9/16" stainless misalignment (1 5/8" width)
• Chassis link bracket hole size: 9/16"
• Compatible with radius arm, 3-link, or custom link setups
• Kit comes unwelded
• All bolts included

Available Kit Options

• Bolt Hole Size: 10mm
• Bolt Hole Size: 1/2"
