DIY Rock Sliders 84"

DIY Rock Sliders 84"

Complete DIY Rock Slider Kit with Tubing – 84" Length

This 84" DIY rock slider kit is built for maximum coverage and protection. It’s designed for fabricators who want a full-length slider setup without needing a tube bender. The kit includes everything required to build a strong and functional set of rock sliders for both sides of your vehicle using 1.75" x .120 wall DOM tubing.

Inner and outer slider tubes are spaced 5.25" apart with pre-cut 16" DOM frame tubes. End caps are cut at a 45° angle for strength and clean finish, and the entire kit comes unwelded so you can set it up exactly how you want it.

Key Features

• Part Number: R2253-C
• Includes tubing to build 84" rock sliders
• Made from 1.75" x .120 wall DOM tubing throughout
• 3/16" end caps and gussets for added durability
• Frame legs position rails 5.25" apart
• Includes components for both sides of the vehicle
• Kit comes unwelded

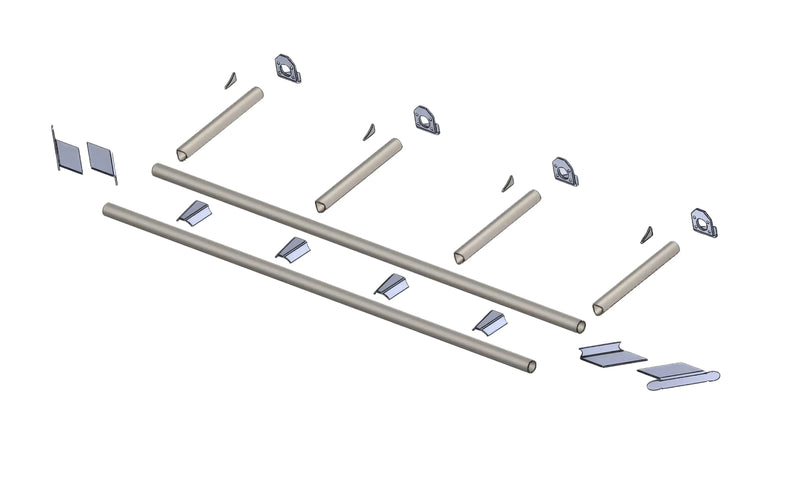

Kit Includes

• (4) 3/16" Slider End Cap Brackets
• (4) 3/16" Slider Inner Gussets
• (8) 1/4" Slider Frame Plates
• (8) 1/4" Slider Frame Plate Gussets
• (8) 16" Long 1.75" x .120" Wall DOM Slider Frame Tubes
• (2) 84" Long 1.75" x .120" Wall DOM Main Tubes
• (2) 74" Long 1.75" x .120" Wall DOM Main Tubes
