Dual Mount Adjustable 4 Link Brackets

Dual Mount Adjustable 4 Link Brackets

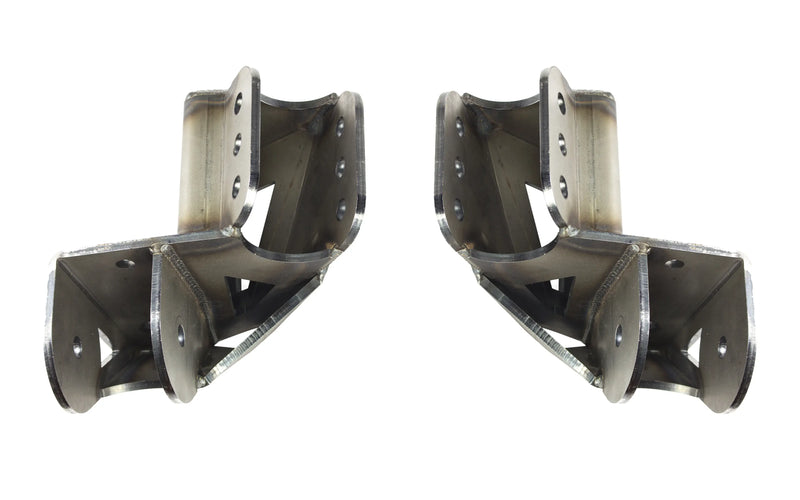

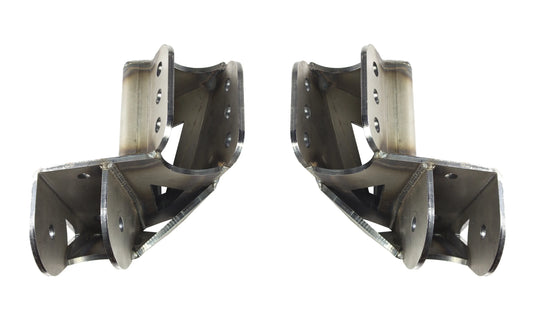

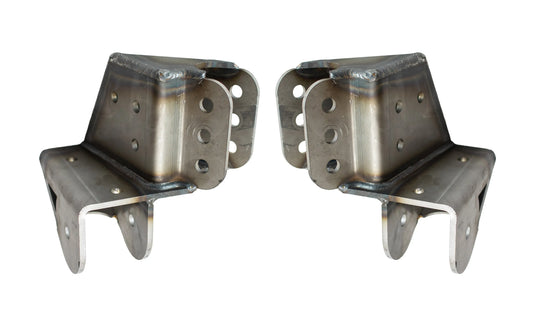

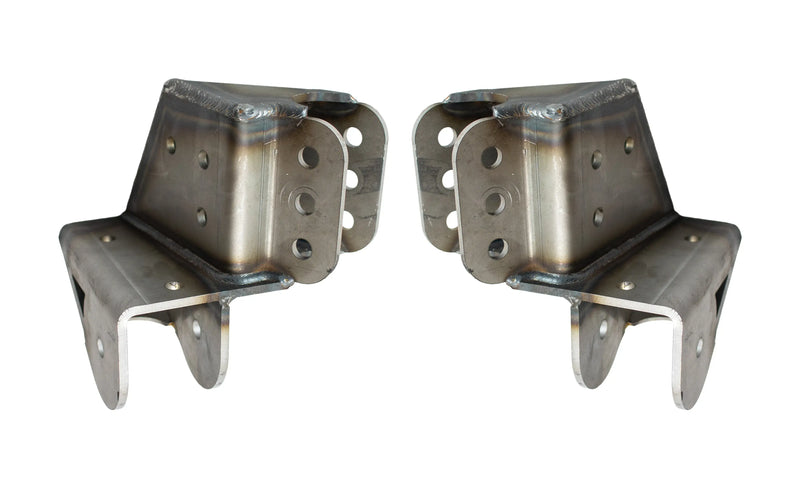

Upper and lower link mounts combined into one bracket

This bracket simplifies frame-side mounting for upper triangulated 4-link setups by combining both the upper and lower link mounts into a single structure. The combined design adds strength by tying both mounts together, reducing flex and improving durability. It must be installed on a boxed frame—C-channel frames will need to be boxed before installation.

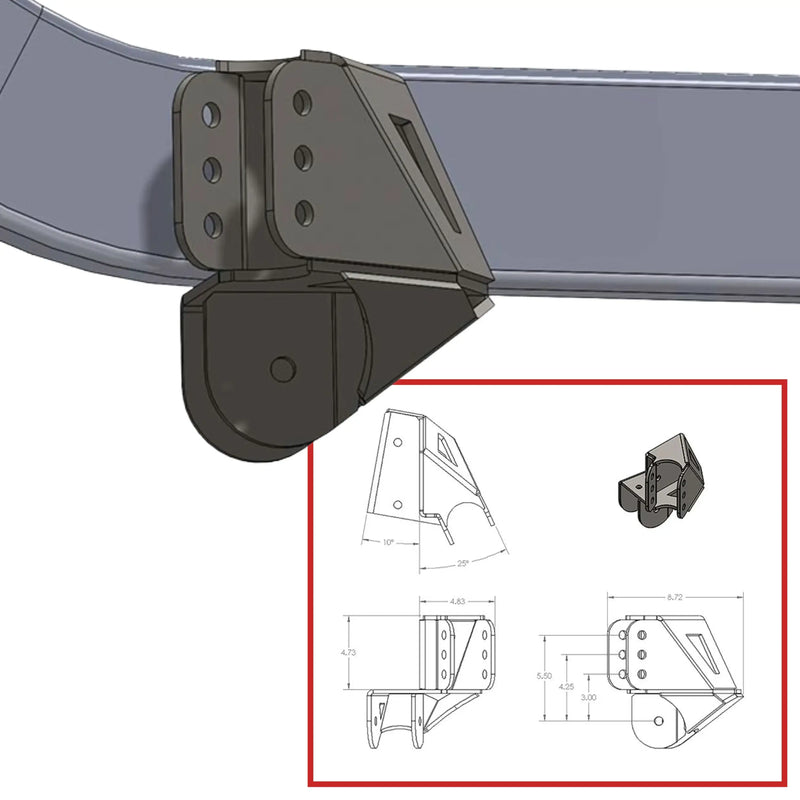

Adjustable upper link holes allow fine-tuning of link separation and angle to dial in your suspension geometry. At just under 5" tall from the bottom of the frame, this bracket fits tight frame setups like the TJ and YJ without requiring a body lift. It's designed with a 10° lower and 25° upper angle for proper triangulation and includes plug weld holes for added strength or bolt-on use.

Key Features

• Part Number: R2228
• Sold in pairs
• Designed for upper triangulated 4-link suspension setups
• 10° angle on lower mounts, 25° on upper (±10° depending on joint)
• 2-5/8" mounting width for 1.25" heims or joints
• 9/16" mounting holes
• 3", 4.25", or 5.5" vertical separation on upper link
• 1/2" plug weld holes on side and bottom
• Optional fully welded version
• Fits TJ/YJ Wrangler frames and other similar boxed frames

Start your selection

Note

This bracket is designed for boxed frames only. If your frame is C-channel, you must box the mounting area before installation.
