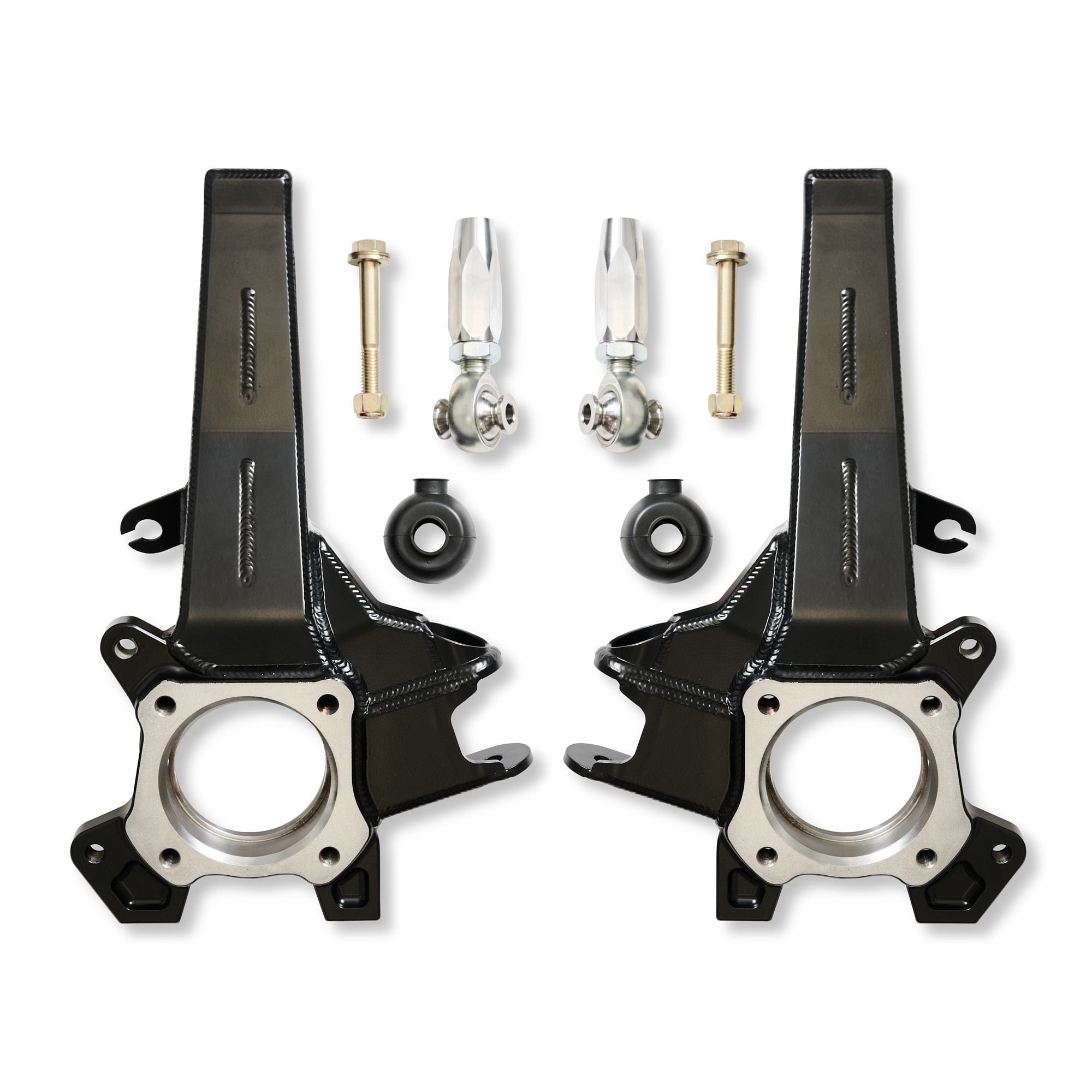

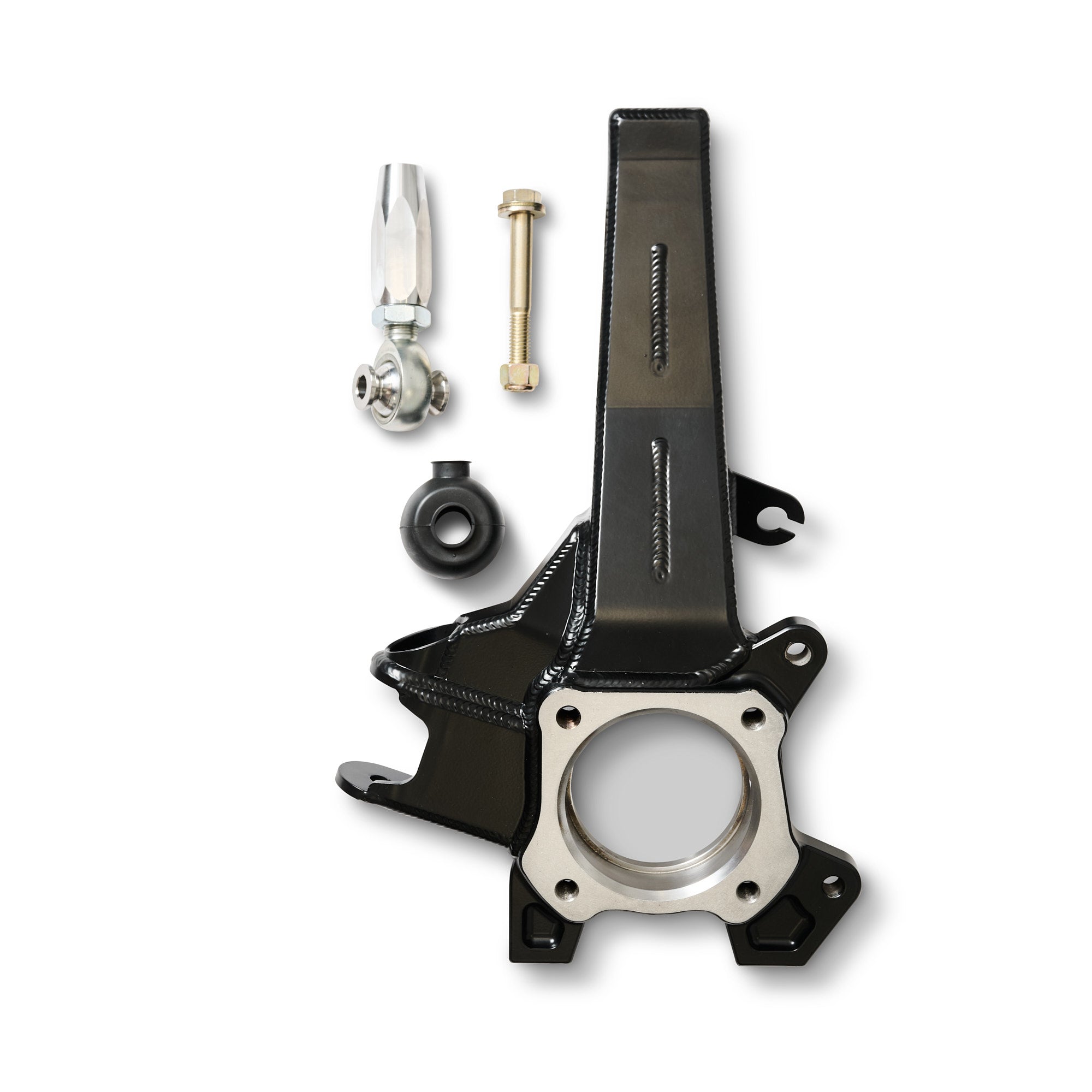

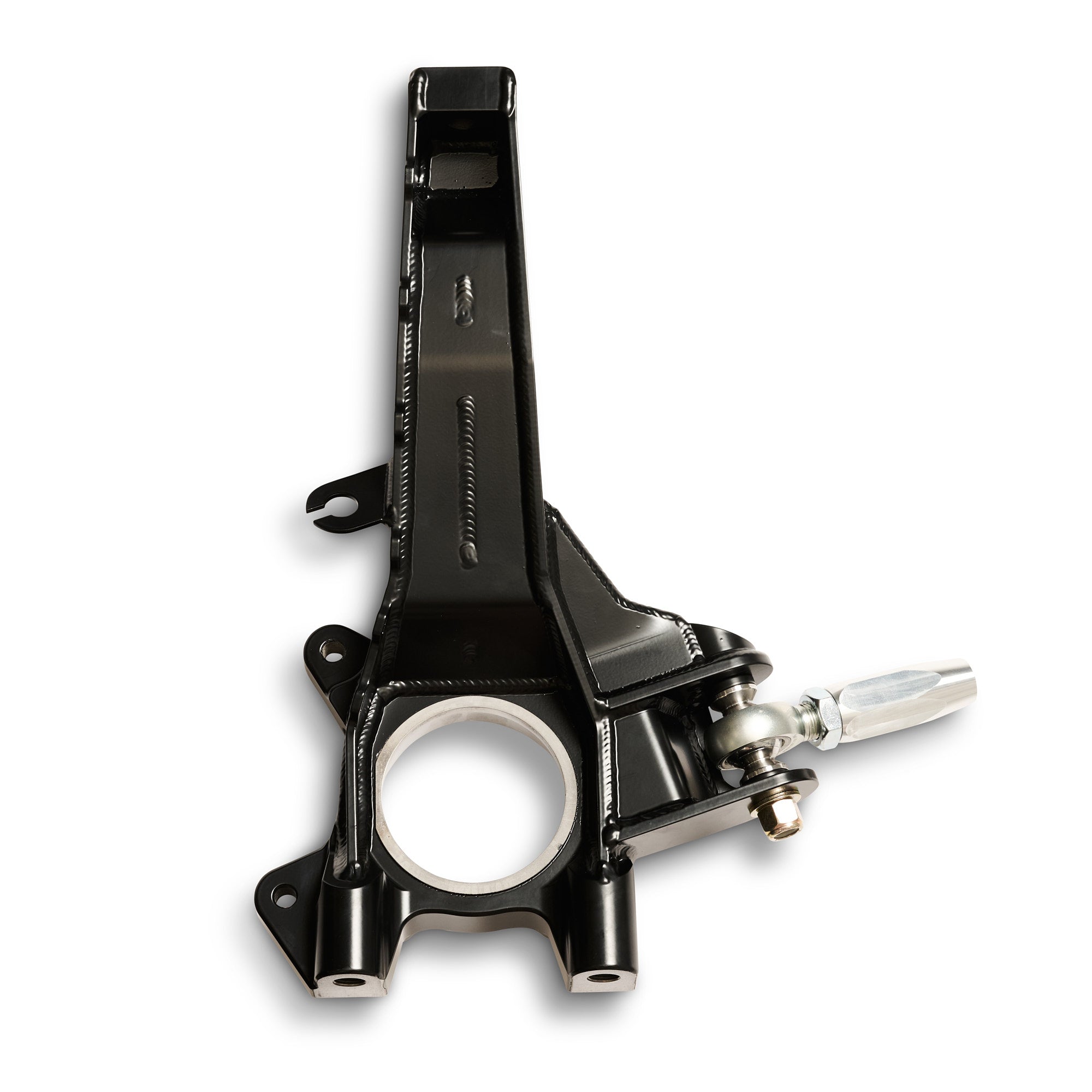

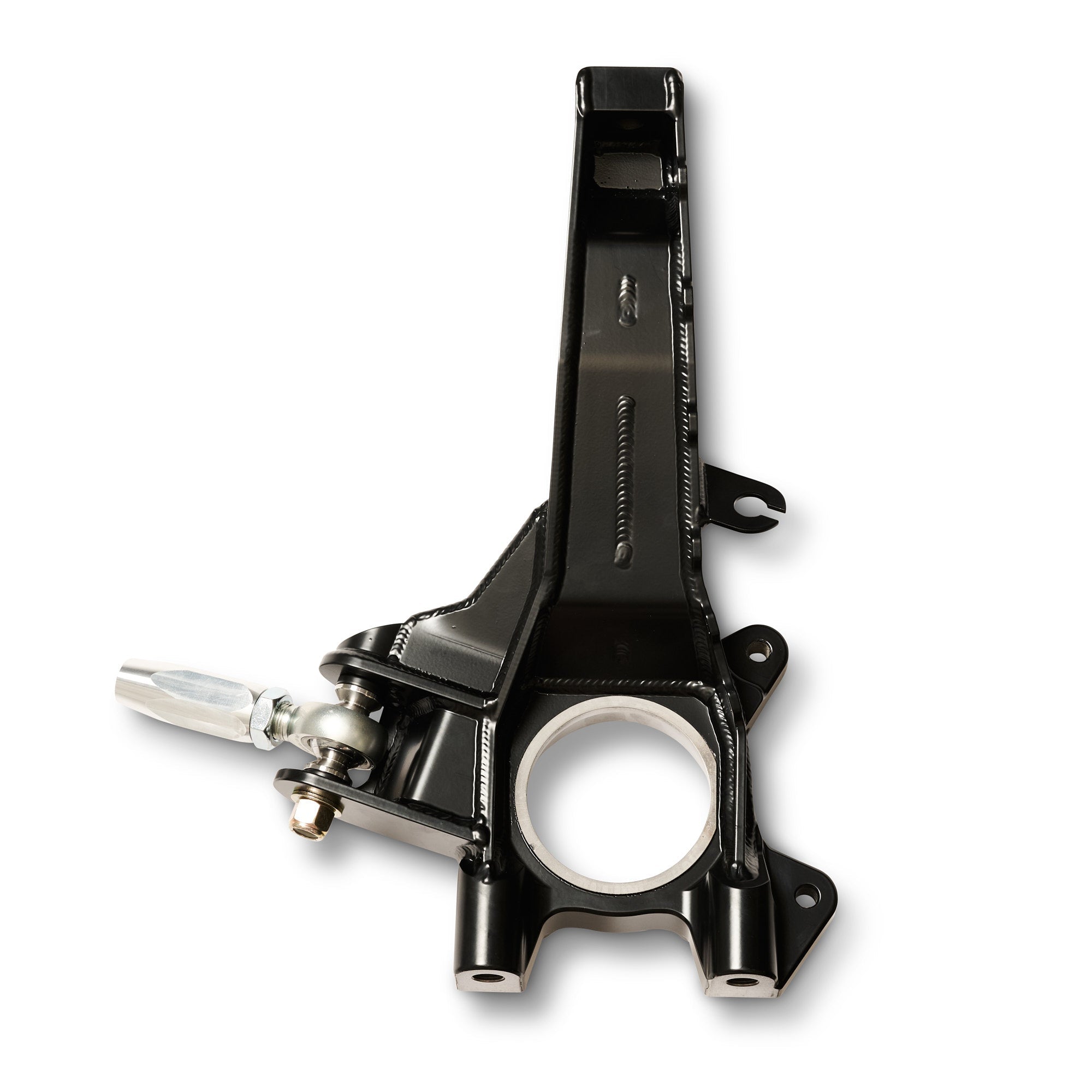

DRT Fabricated Spindle
IMPORTANT NOTE
All non Tacoma models will require a Tacoma bottom taper misalignment from your UCA manufacturer. Extended brake lines are required
If you have questions, please contact info@drt-fabrication.com before ordering.
Why Upgrade?
Most bolt on long travel kits on the market today reuse factory spindles, leaving a critical weak point in the suspension system. The DRT Fabrication fabricated spindle eliminates that weak link, providing the missing link needed to build a truly bulletproof suspension package.

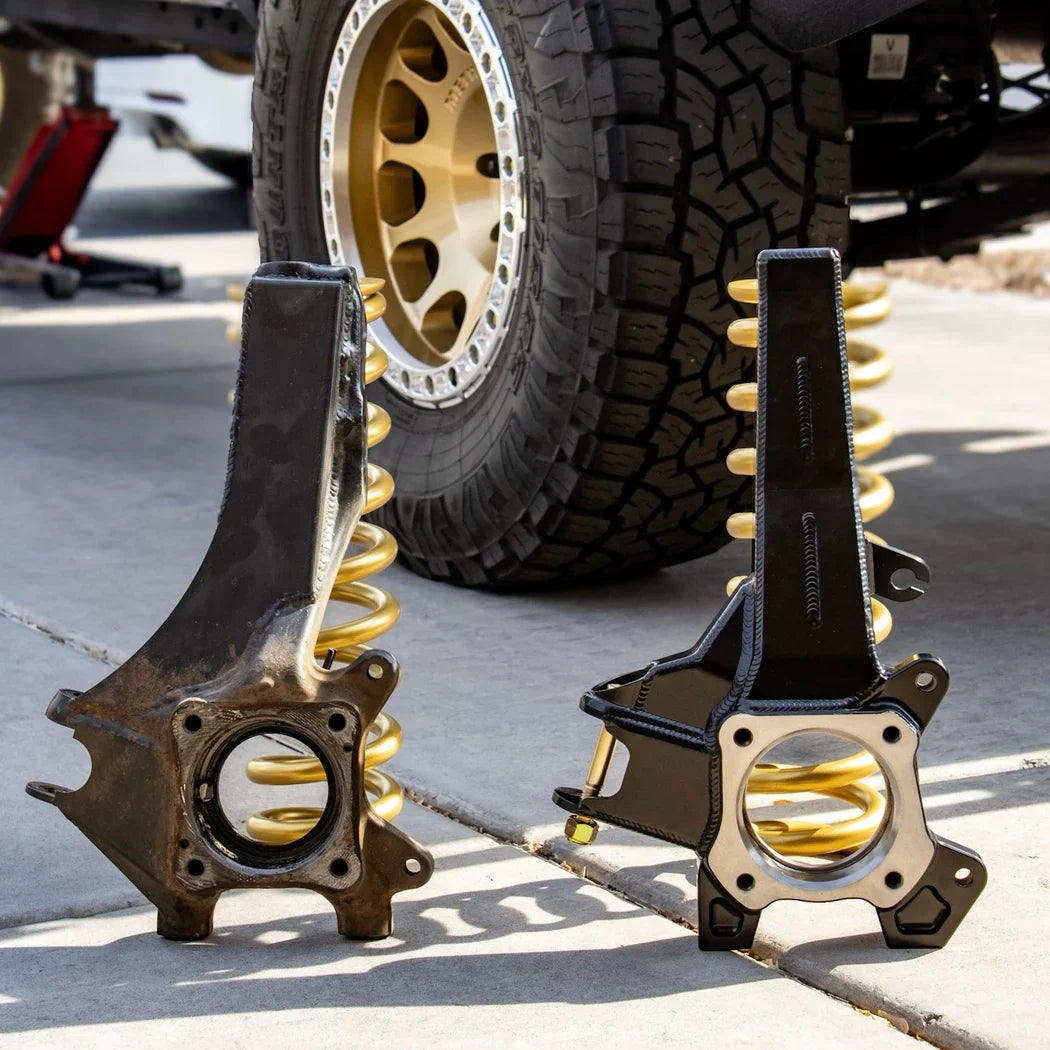

This design is based on the factory spindle with no geometry changes, allowing compatibility with any bolt on long travel kit designed around OEM spindles. This includes both 2WD and 4WD Tacoma based suspension systems, as well as applicable 4Runner, GX460, and FJ Cruiser platforms.
Key Features
Strength & Construction
Built from 3/16 inch and 1/4 inch A36 steel plate with internal gussets
100 percent MIG welded for maximum strength and durability
Steering

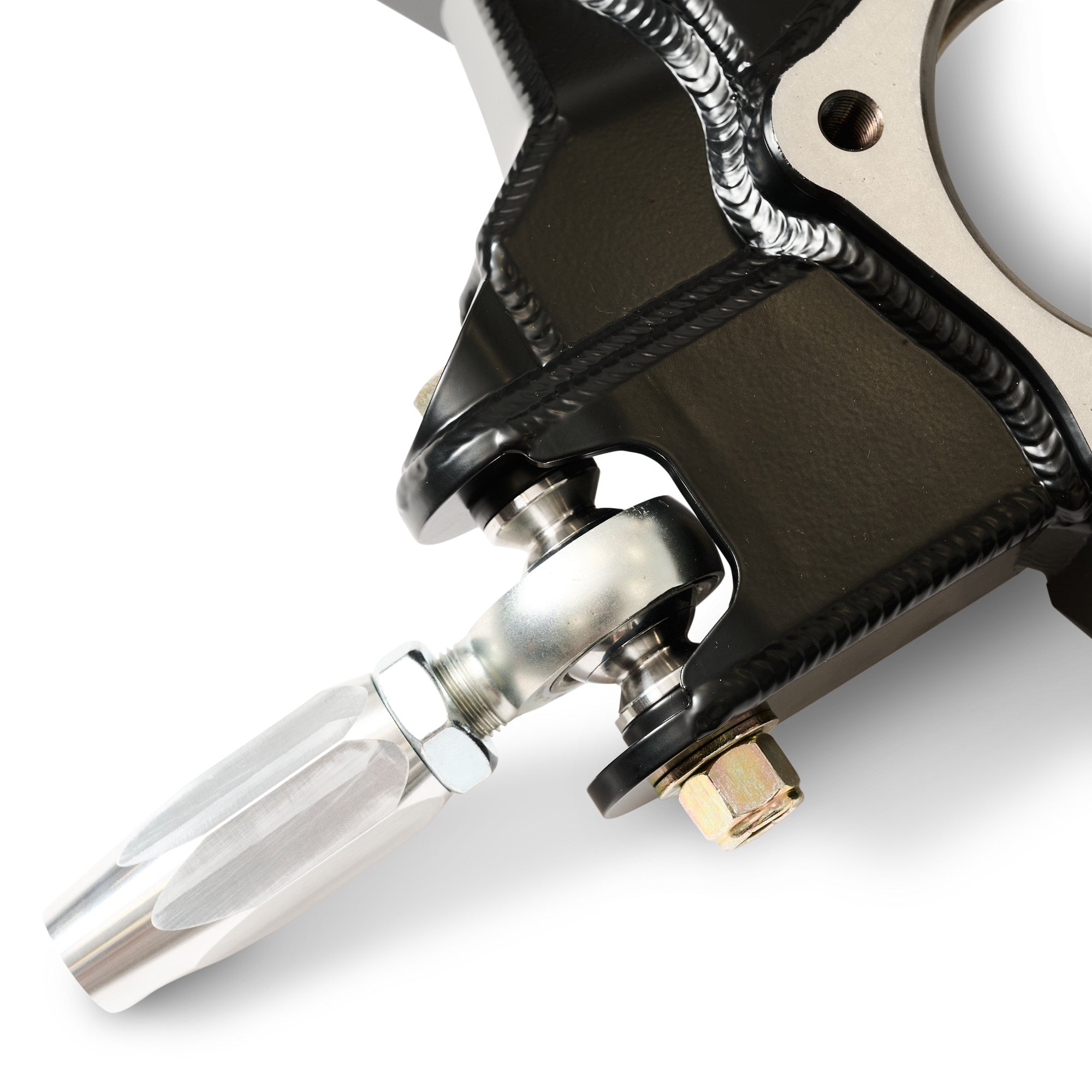

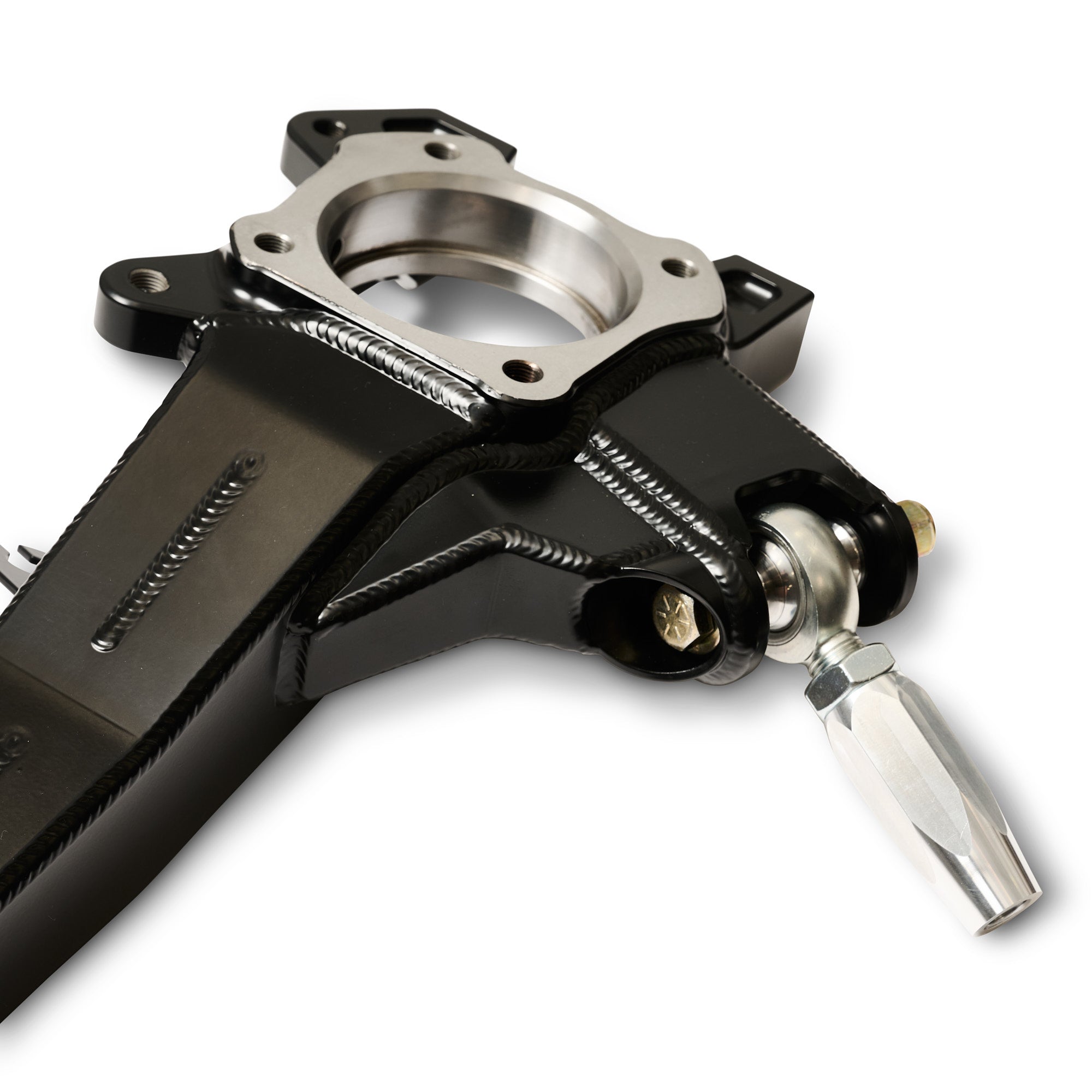

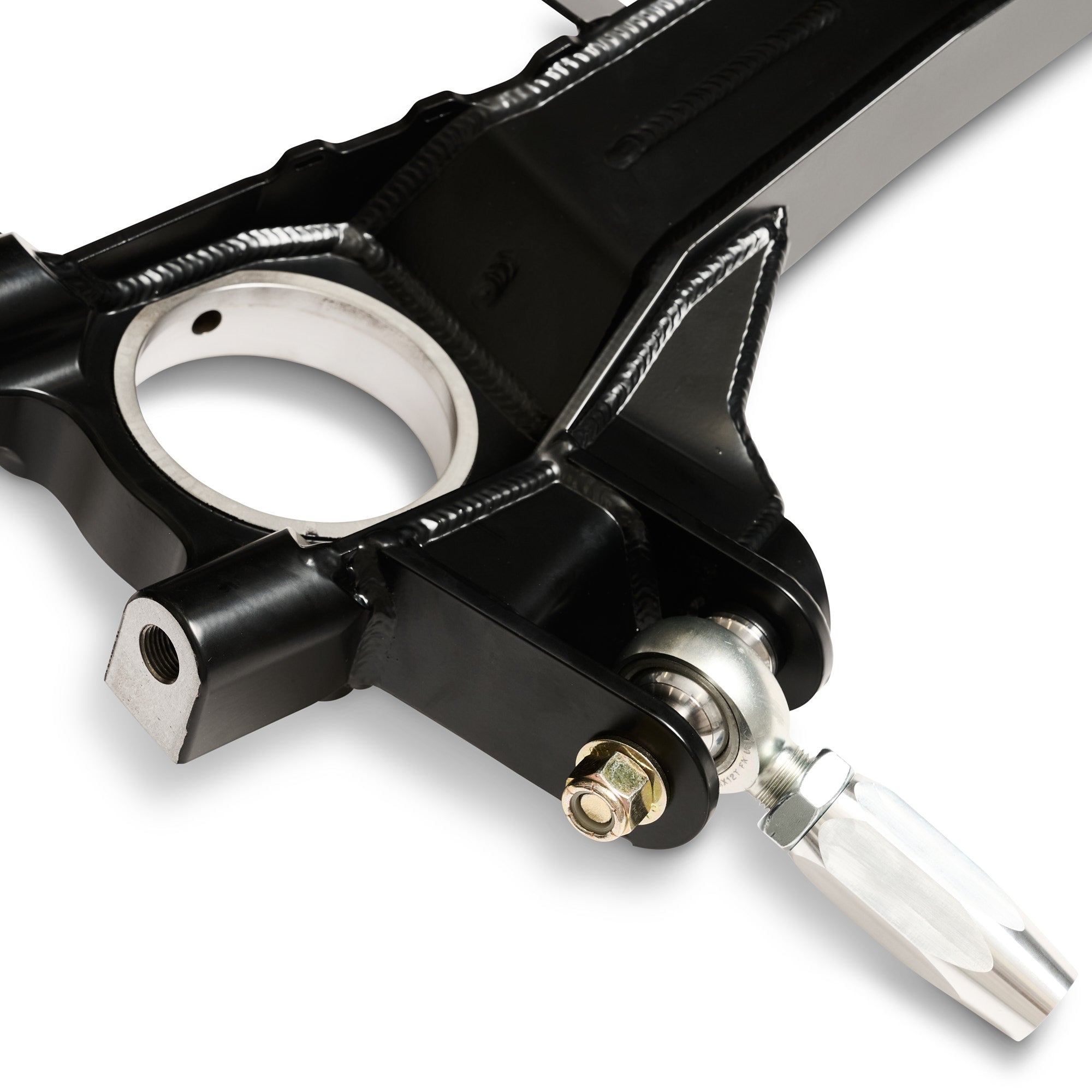

Standard dual shear heim outer steering with correct heim center placement
Avoids geometry changes common with aftermarket steering conversions
Works with factory inner and outer tie rods as well as steering extenders

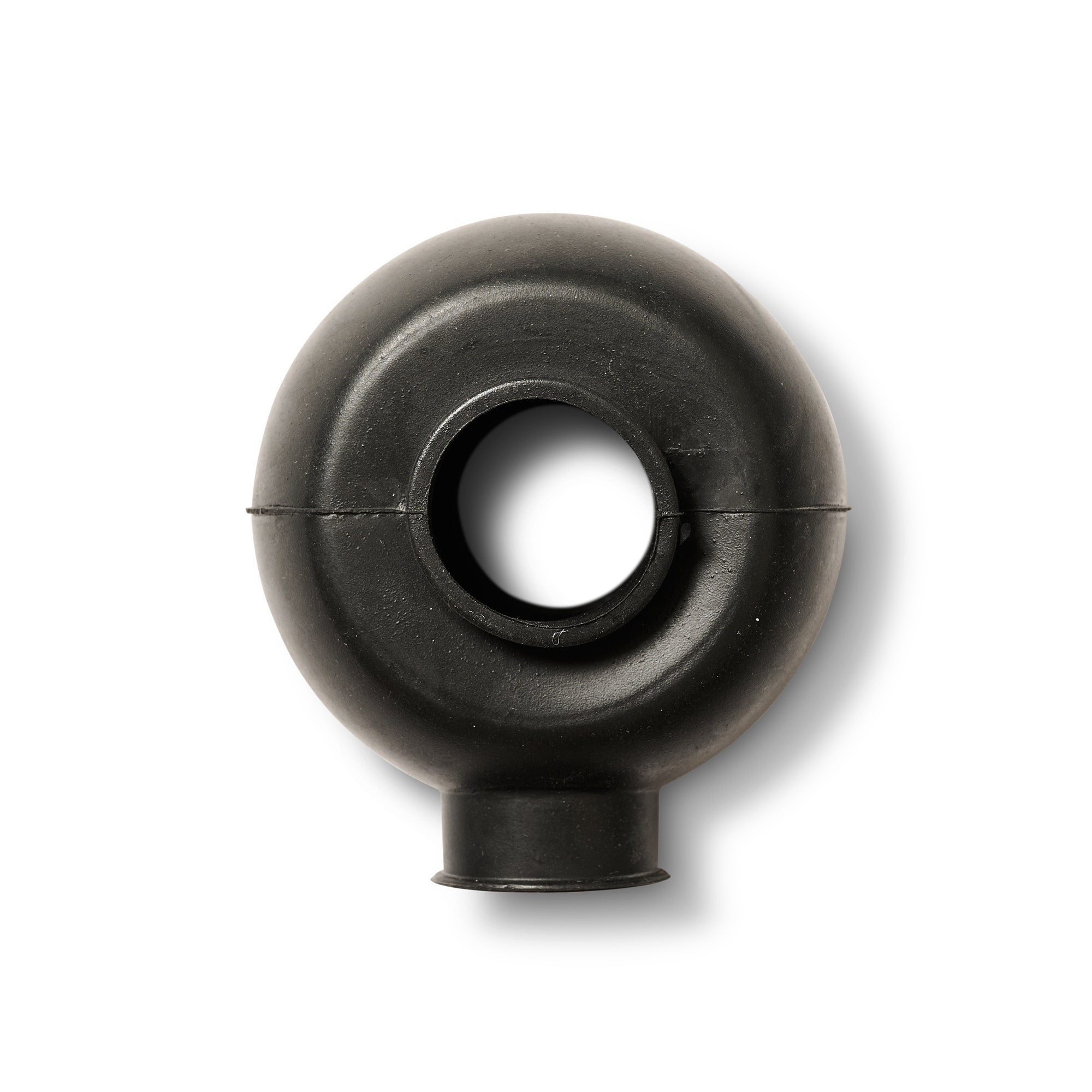

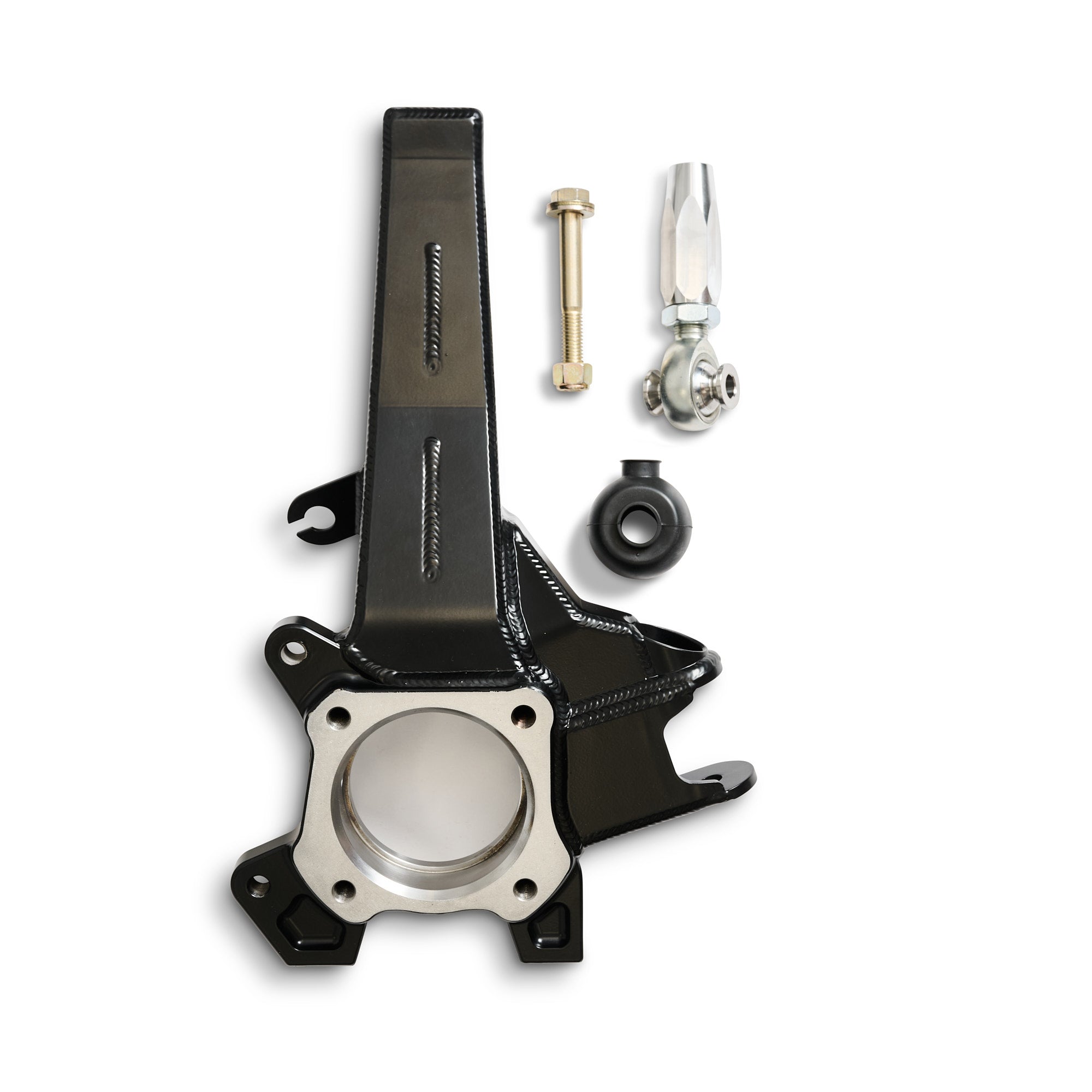

Includes 3/4 inch FK JMX12T heim, custom high angle misalignments, and rubber boot cover
Hub Block & Brake Integration
Machined billet steel hub block with integrated caliper mounts
ABS sensor relocated behind the caliper bracket for improved protection
Stress risers minimized through extensive filleting
Specs
- 3/16" and 1/4" A36 steel plate with internal gusseting
- 100% MIG welded construction
- Dual-shear heim outer steering with boot cover
- Relocated ABS sensor
- Billet hub block, tie rod mount, and UCA mount
- Finish: Satin black powder coat
Fitment & Requirements
- Fitment: Toyota Tacoma 2005-2023; 4Runner, GX460, and FJ Cruiser 2010-2014 (non-Tacoma models require a Tacoma bottom taper misalignment from your UCA manufacturer)
- Wheels: Minimum 16" diameter and 4.5" backspacing
- Suspension: Works with factory and aftermarket lower control arms; fits mid-travel and long-travel setups using OEM-style spindles; compatible with bolt-on long travel kits and JMX12T heim steering kits; must use DRT HAM high-angle misalignments
- Sway Bars: Not compatible
- Brake Kits: SOS Performance and PowerBrake big brake kits require a special adapter (contact the manufacturer); extended brake lines are required
- Use: Off-road use only
- Lead Time: 3-4 weeks
