FJ40 / FJ60 Diff Cut Spring Over Axle Perch Pair

FJ40/FJ60 Diff-Cut Spring-Over-Axle Perch Pair

SOA perch pair for 3.0" axles with 2.75" springs; includes 0° and 10° plates

This perch pair is built for spring-over-axle conversions on Toyota Land Cruiser FJ40 and FJ60 housings with 3.0" axle tubes and 2.75" wide springs. It includes one standard perch, one diff-cut perch, and both 0° and 10° perch plates so you can match your steering and caster setup. Use the included plates to set spring angle based on your knuckle rotation and model for a clean, serviceable install.

The diff-side perch replaces the traditional near-differential U-bolt with two grade 8 side bolts to solve the common interference issue. Use the 0° plate on FJ40s with unrotated knuckles, and the 10° plate on FJ60s or FJ40s with rotated knuckles to hit your target caster. For easier alignment and clamping, we recommend slotted Toyota 2-3/4" spring plates during installation.

Key Features

• Part Number: R1128
• Toyota Land Cruiser FJ40/FJ60 spring-over-axle application
• Fits 3.0" axle tubes and 2.75" (2-3/4") wide springs
• Diff-side perch uses grade 8 side-bolt retention in place of a U-bolt
• Includes 0° and 10° plates to match knuckle rotation and caster goals
• Sold as a pair

Kit Includes

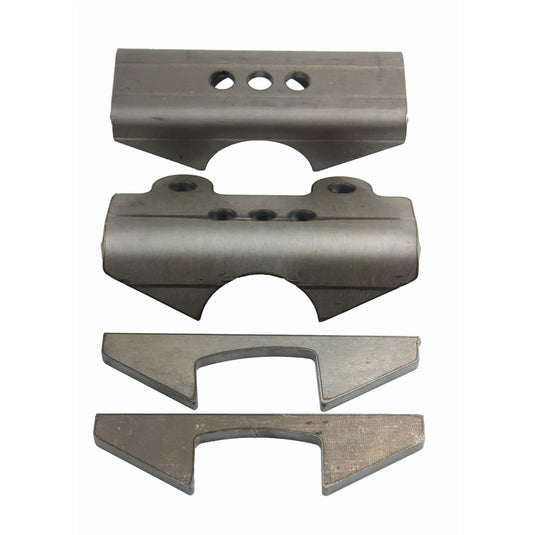

• (1) Toyota Spring Perch (3.0" axle × 2.75" wide springs)
• (1) Toyota Diff-Cut Spring Perch
• (1) Zero Degree Perch Plate
• (1) Ten Degree Perch Plate

Recommended Accessories

• Toyota 2-3/4" wide spring plates (slotted holes)

Note

Install the diff-cut perch on the differential side and the standard perch on the opposite side. Choose the 0° or 10° plate as outlined above, then tack, cycle the suspension to verify third member and fastener clearance, and weld fully. Re-check pinion/caster targets and all fastener torque after initial shakedown.
