Flat Link Tab Set

Flat Link Tab Set

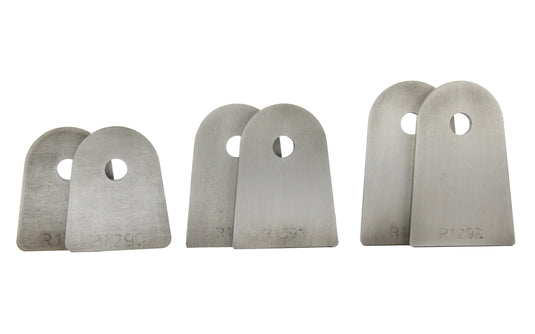

3/8" steel link tabs with 9/16" hole — choose any 3 pairs

This set supplies six weld-on link tabs made from .375" (3/8") plate with a 9/16" bolt hole for common link hardware. The extra thickness provides strength comparable to paired 1/4" brackets while keeping packaging simple. Pick any mix of Small, Medium, and Large to match your bracket spacing and joint size.

Tabs can be used singly for 3-link layouts or paired and bridged to create a custom double-shear 4-link bracket. The flat faces make fixturing straightforward on frames, trusses, or crossmembers, and the 9/16" hole suits typical 1.25" joint hardware. Sold as a kit of six pieces (three matched pairs) for flexible setup.

Key Features

• Part Number: R1297
• Material: .375" (3/8") steel
• Bolt hole: 9/16"
• Quantity: 6 tabs (3 pairs)
• Sizes: Small, Medium, Large (mix-and-match)
• Weld-on application for 3- or 4-link suspensions

Set Options (choose one)

• 2 Small, 2 Medium, and 2 Large Tabs
• 4 Large and 2 Medium Tabs
• 4 Large and 2 Small Tabs
• 4 Medium and 2 Large Tabs
• 4 Medium and 2 Small Tabs
• 4 Small and 2 Large Tabs
• 4 Small and 2 Medium Tabs
• 6 Large Tabs
• 6 Medium Tabs
• 6 Small Tabs

Start your selection

Note

Set tab spacing to your joint width and misalignment spacers, tack in place, cycle suspension, then weld fully. Use proper 9/16" hardware and verify bolt shank clears the tab faces. For double-shear brackets, add a bridge plate between paired tabs and check clearance at full bump and droop.
