Overview

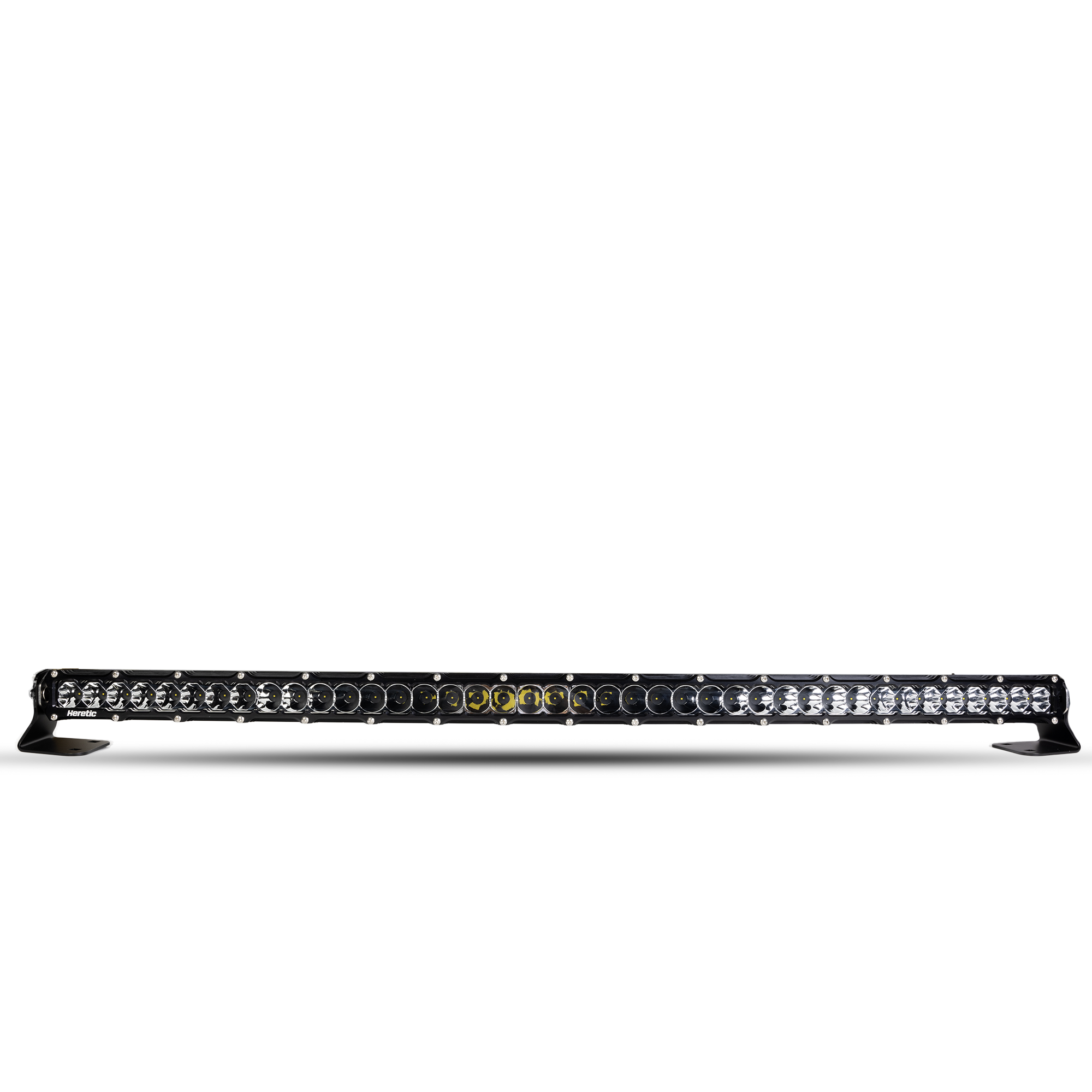

The Heretic 40" Curved LED light bar is a beast of a light when it comes to LED light bars. They truly turn darkness into light. These high performance 6-series curved clear LED light bars are designed and assembled in the USA. CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo.

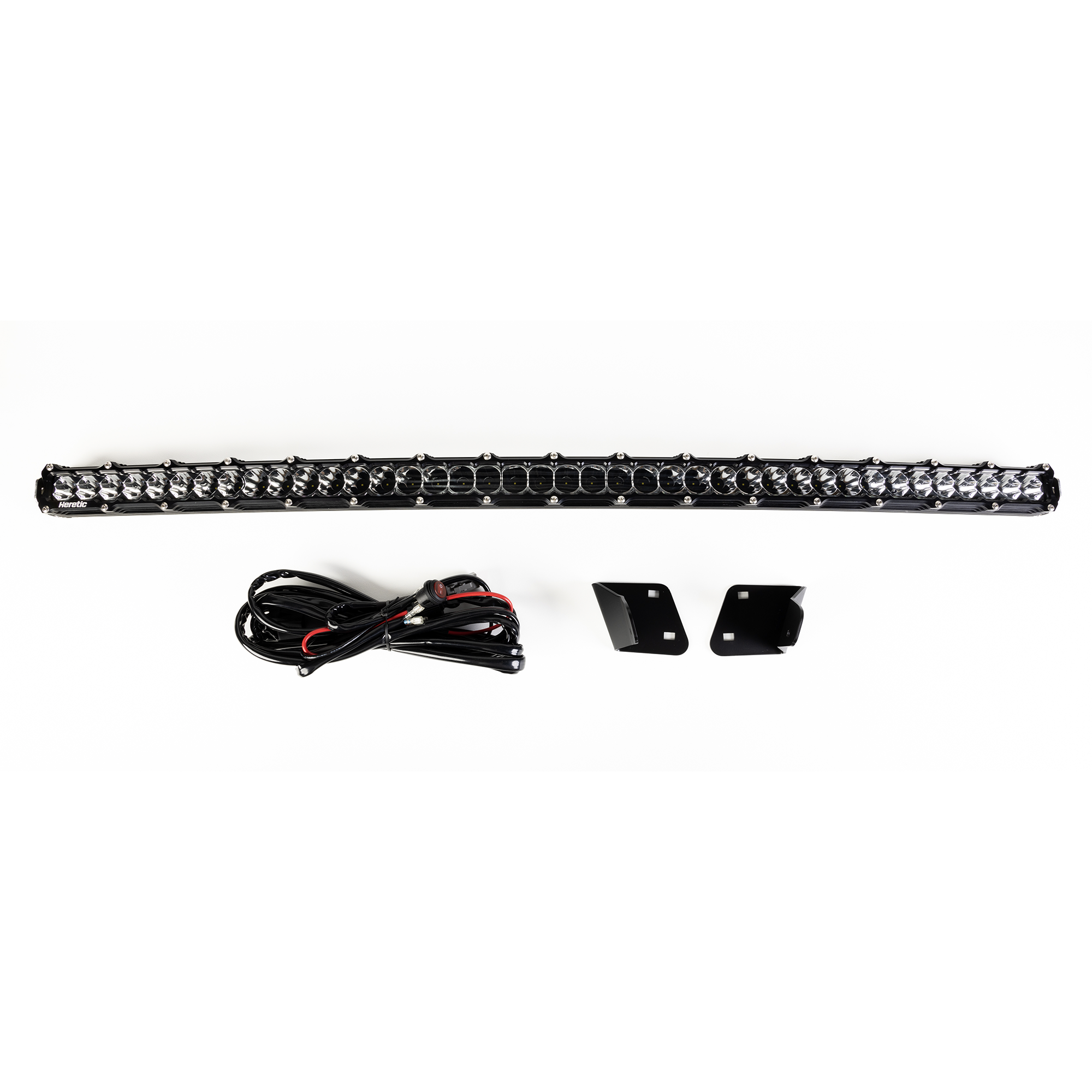

Kit Includes
- Curved 40in bar
- Wire Harness

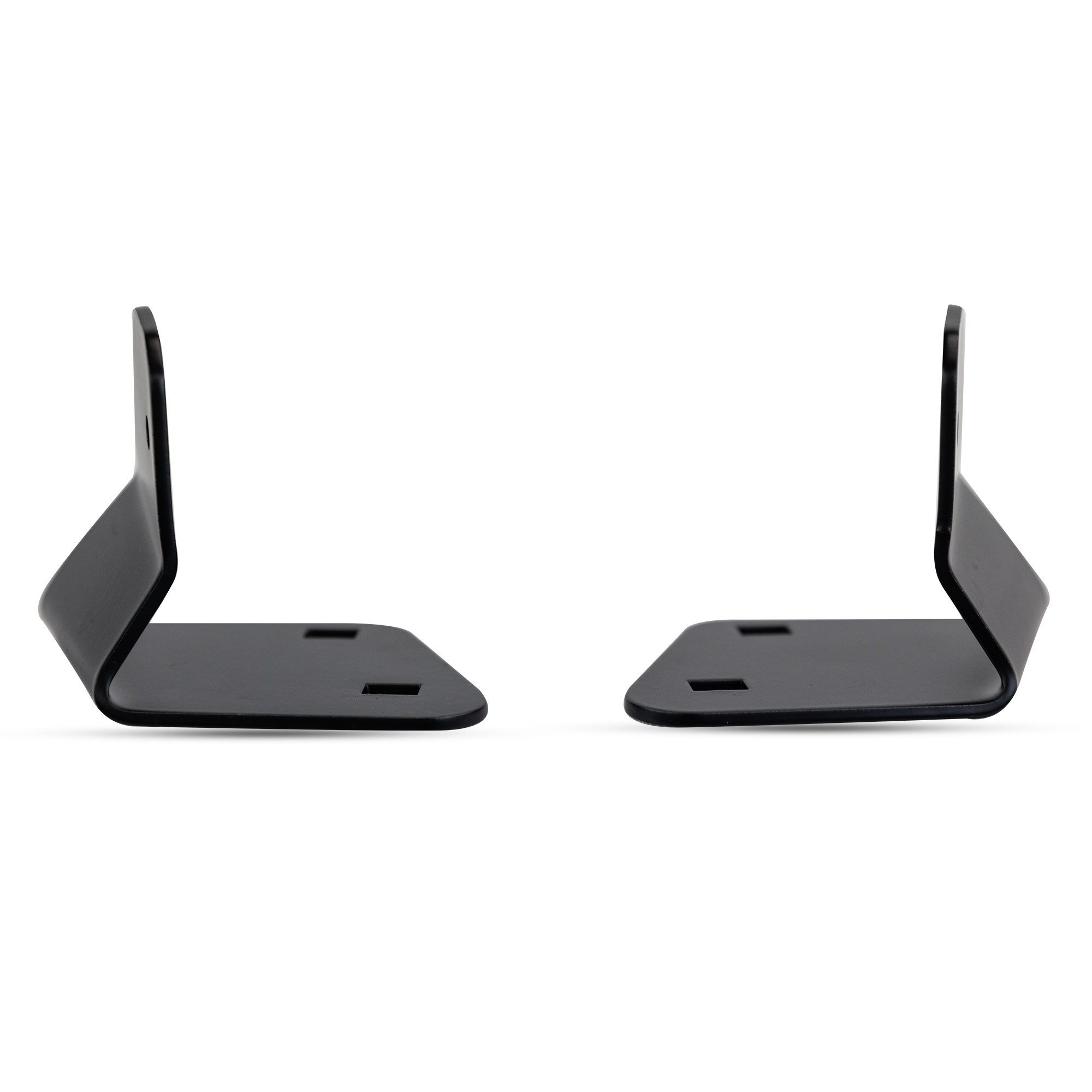

- Stainless Steel powder coated brackets
- Hardware
Vehicle Trim Compatibility
Ford F-250 ('20-'22)
Ford F-350 ('20-'22)
Specifications
Shipping Weight: 8lbs
Type: 40” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 240W
Amp Draw at 13.8V: 25.4A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 41” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 42” x D 1.5” x H “2.4
Lumens: 29040 lm
Lux At 10m:
- Spot: 8250 lx
- Flood: 1755 lx
- Combo: 5652 lx
Candela:
- Spot: 825000 cd
- Flood: 1175500 cd
- Combo: 565200 cd
Beam Distance:
- Spot: 1817 m
- Flood: 838 m
- Combo: 1504 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No
