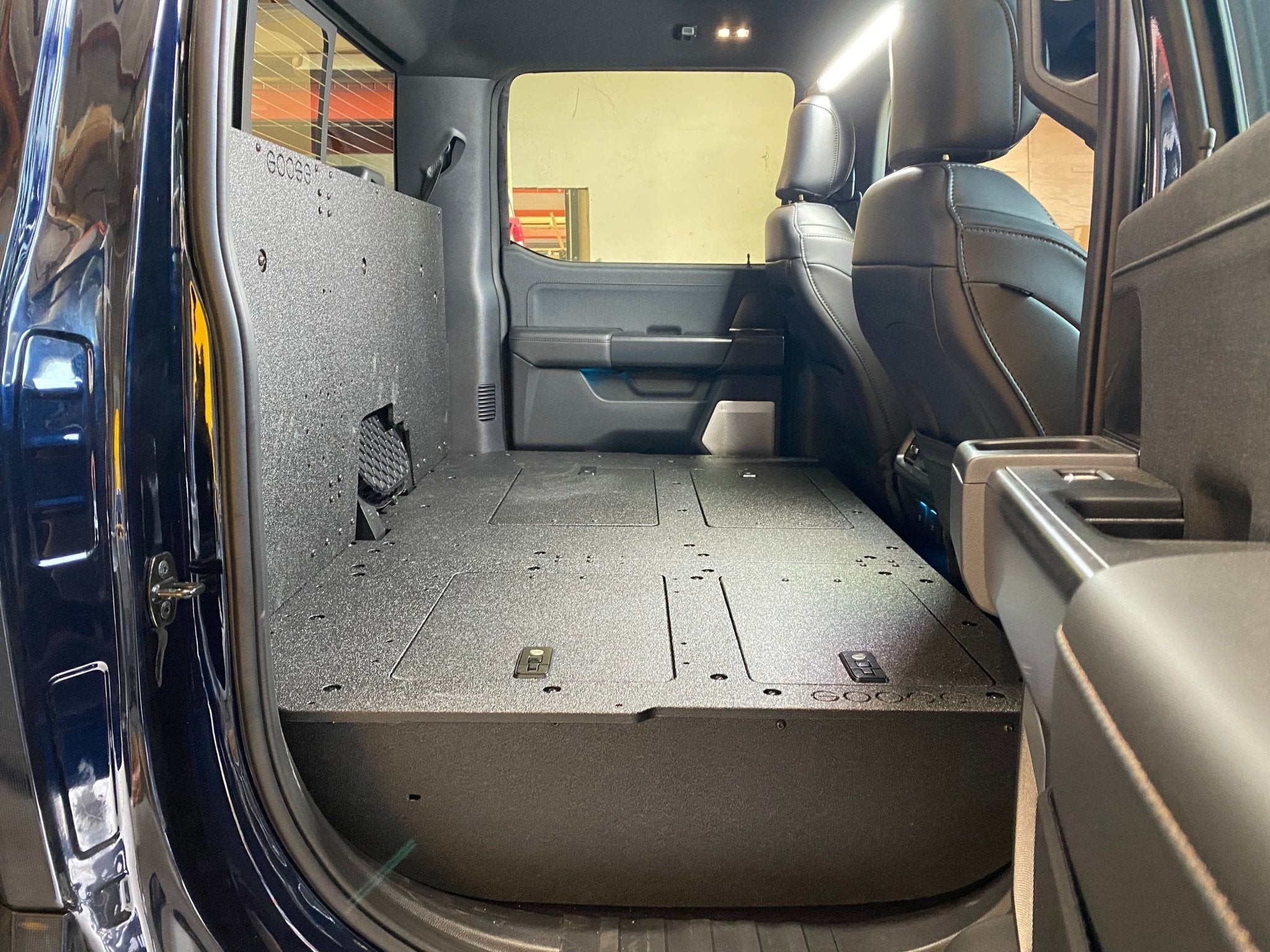

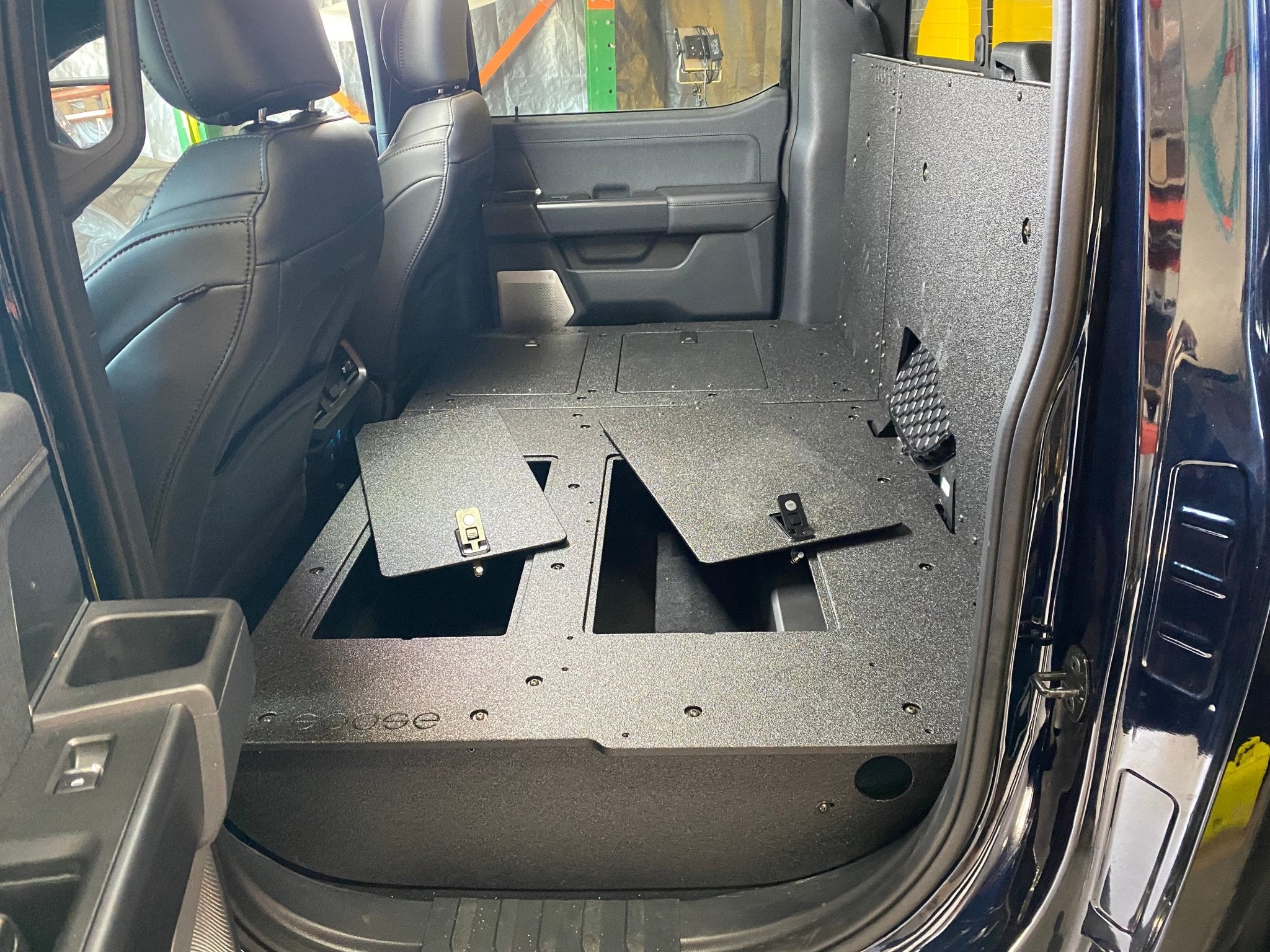

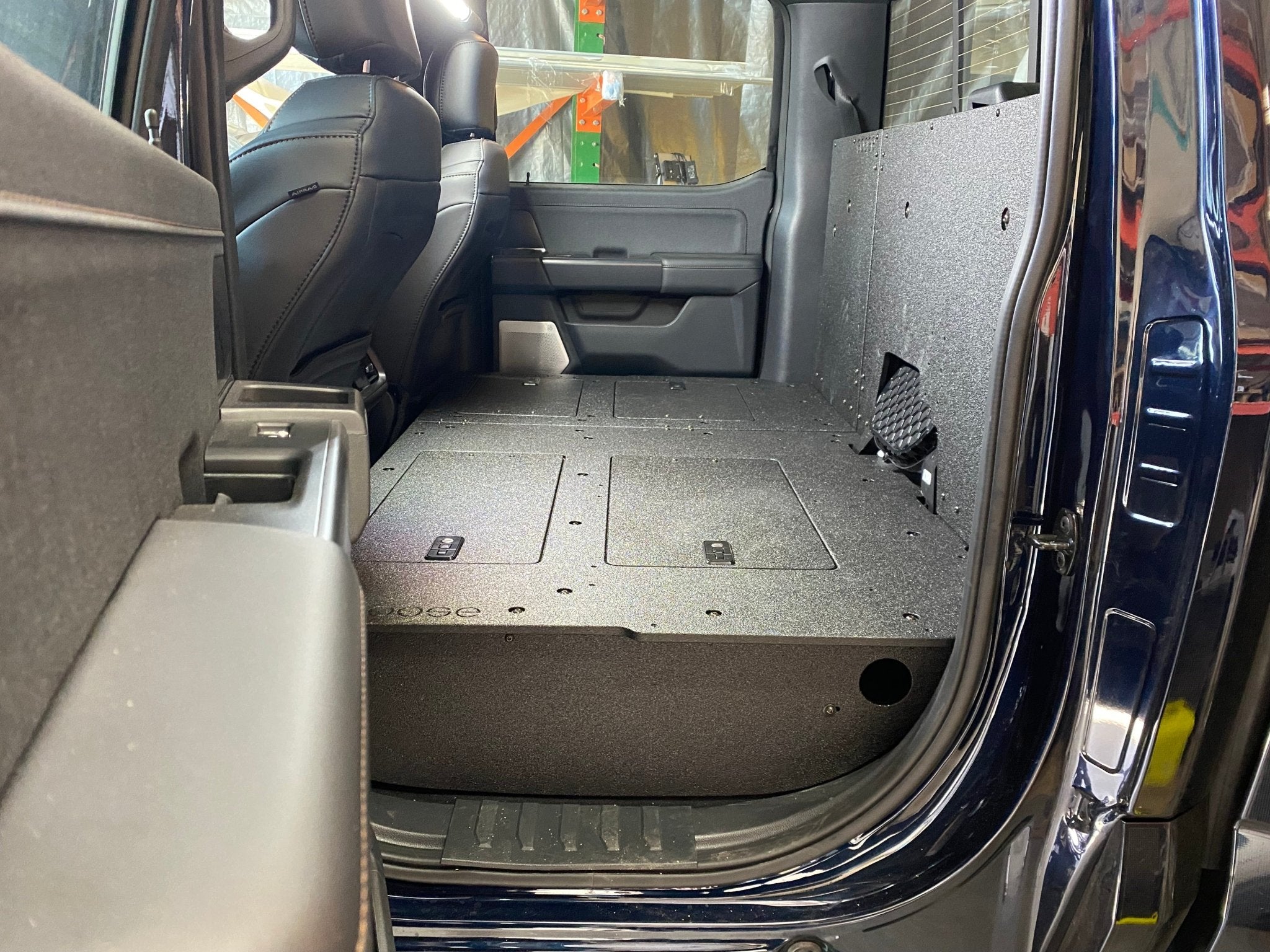

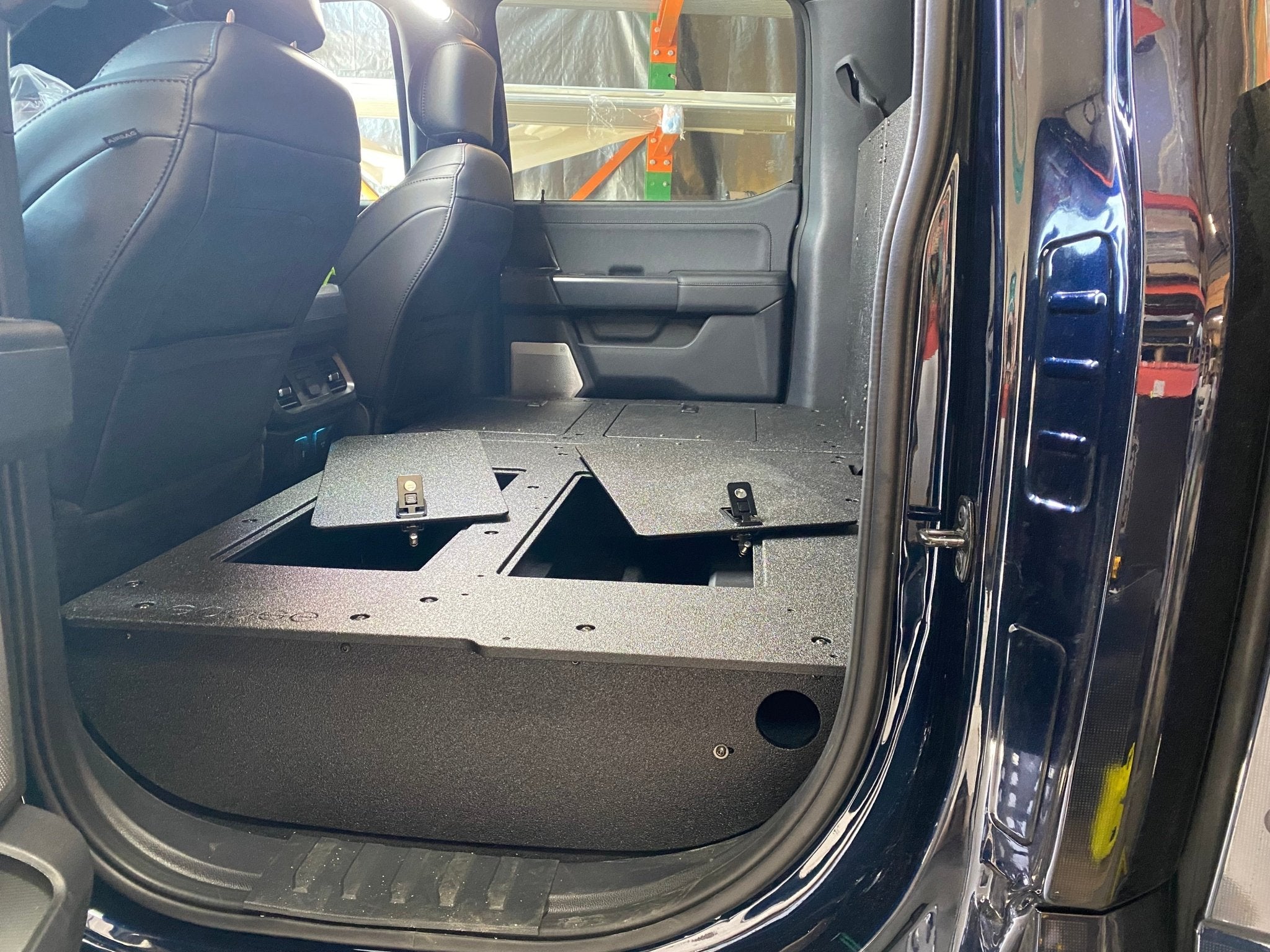

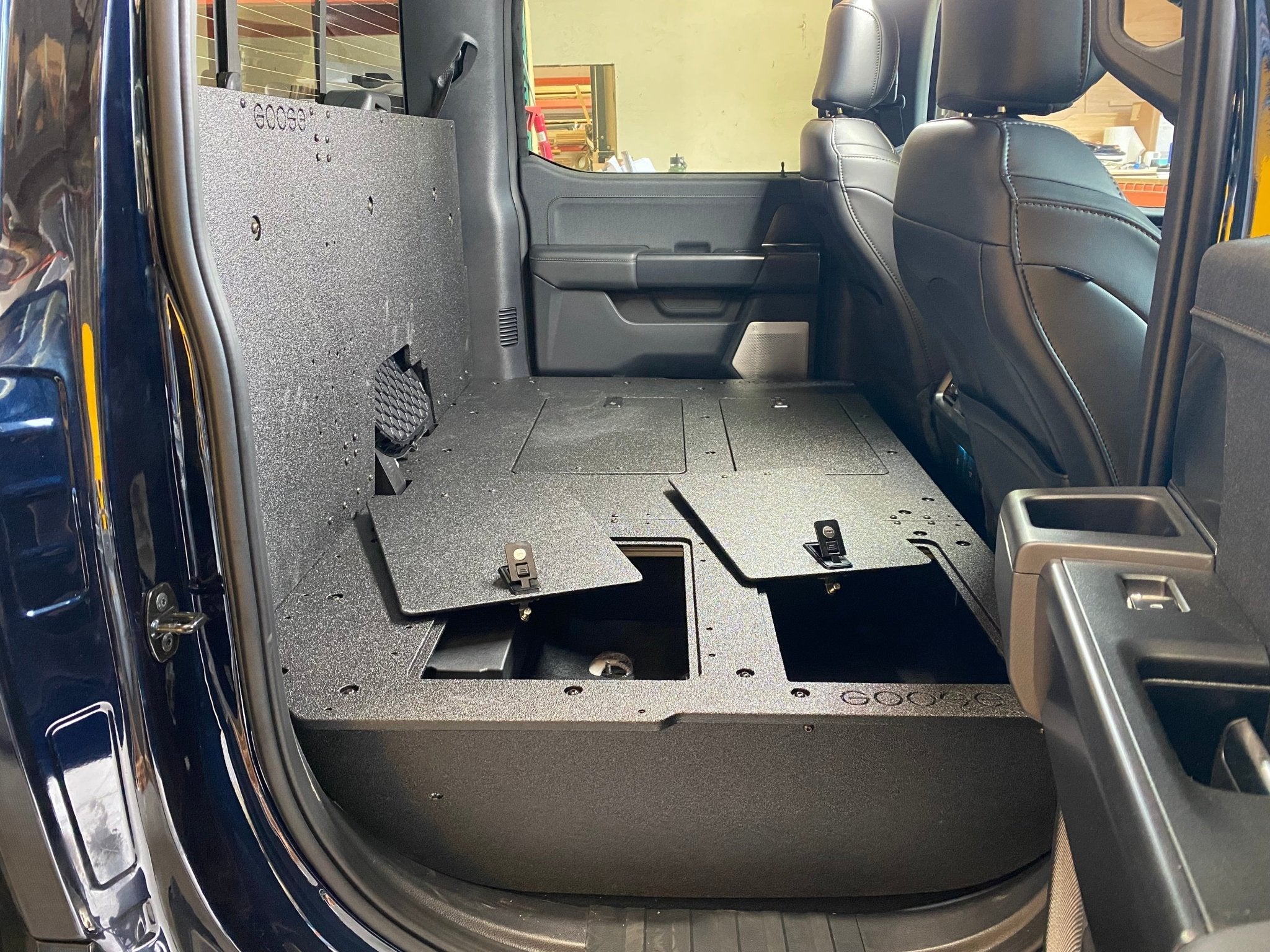

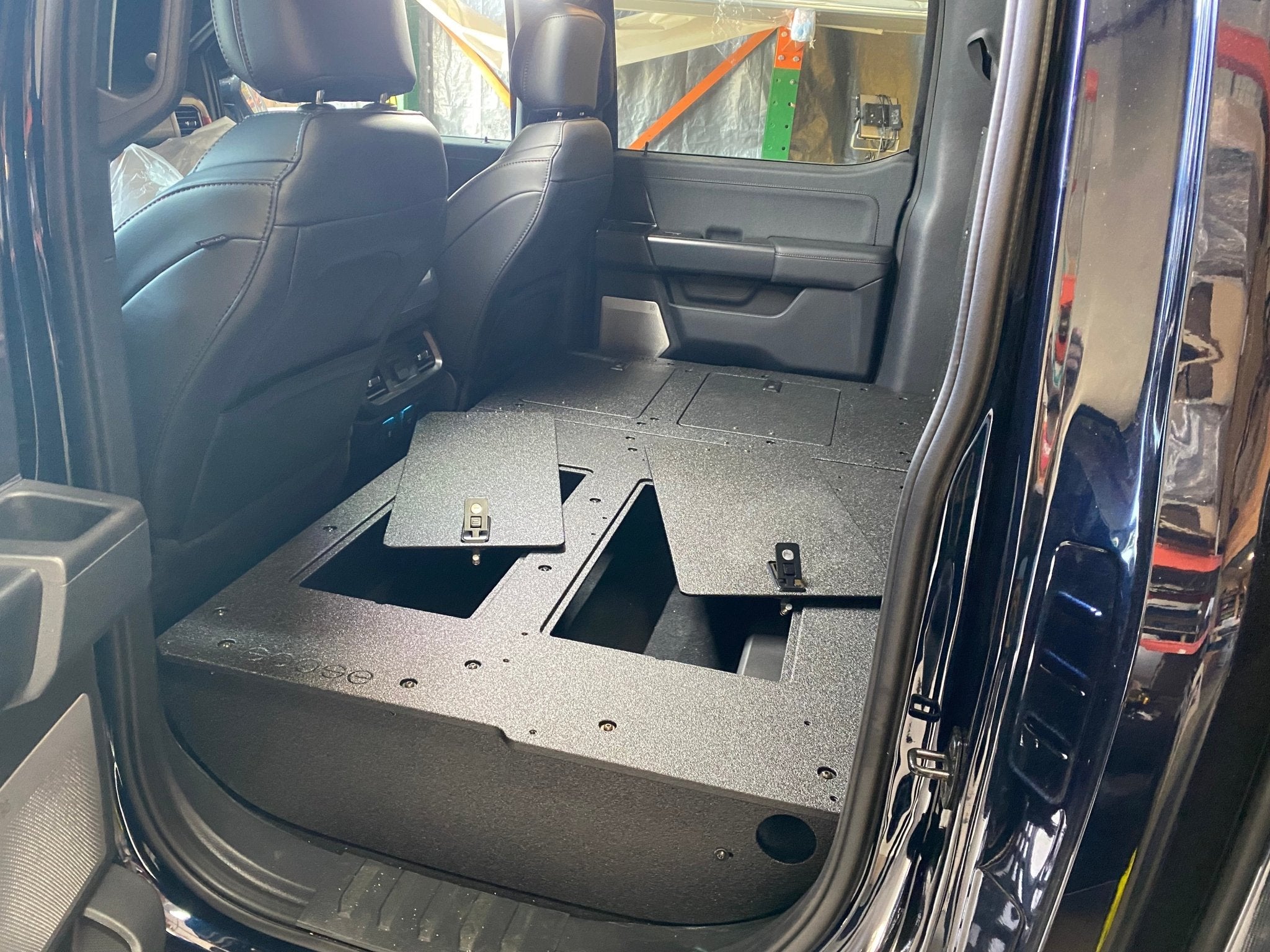

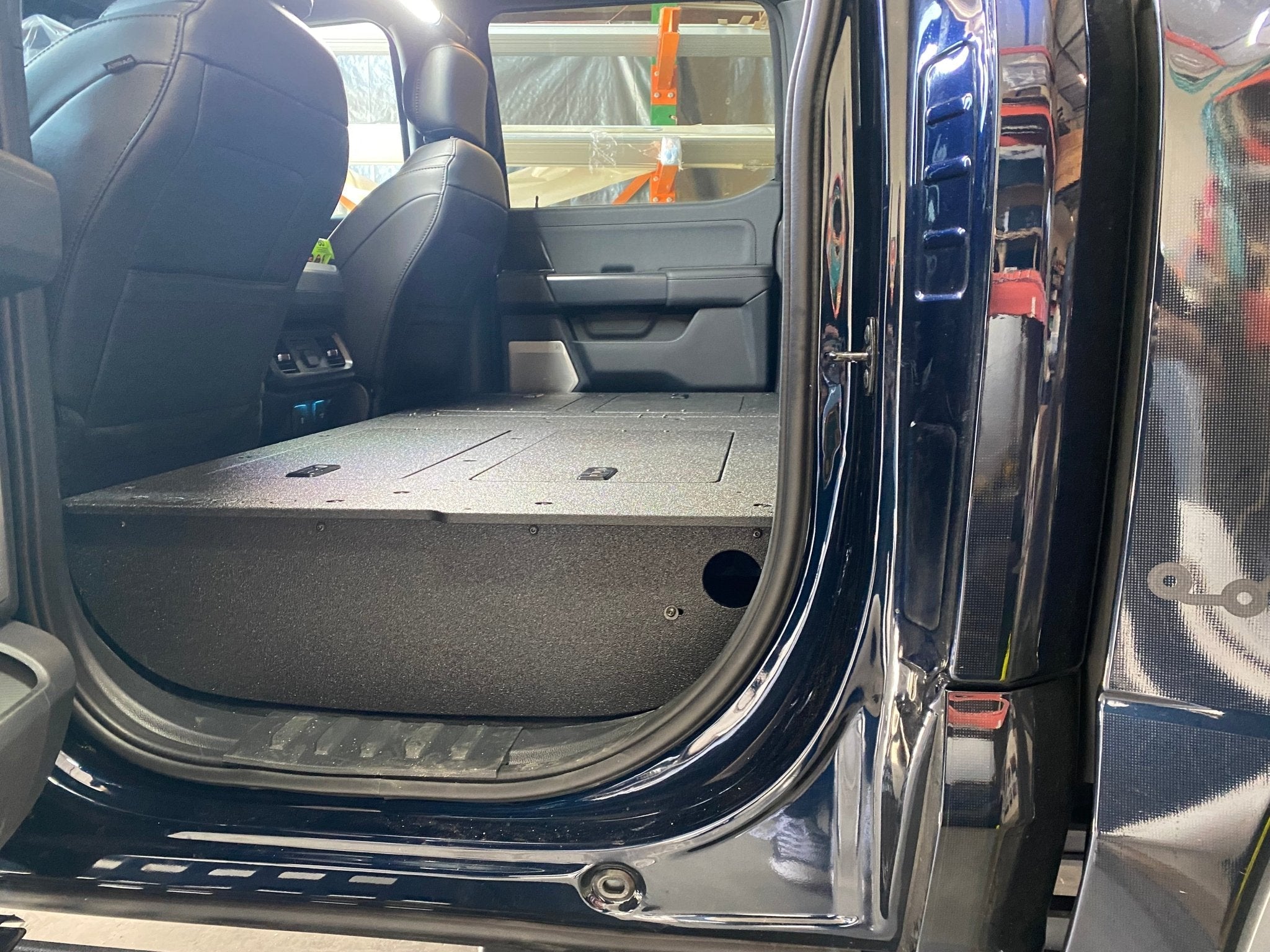

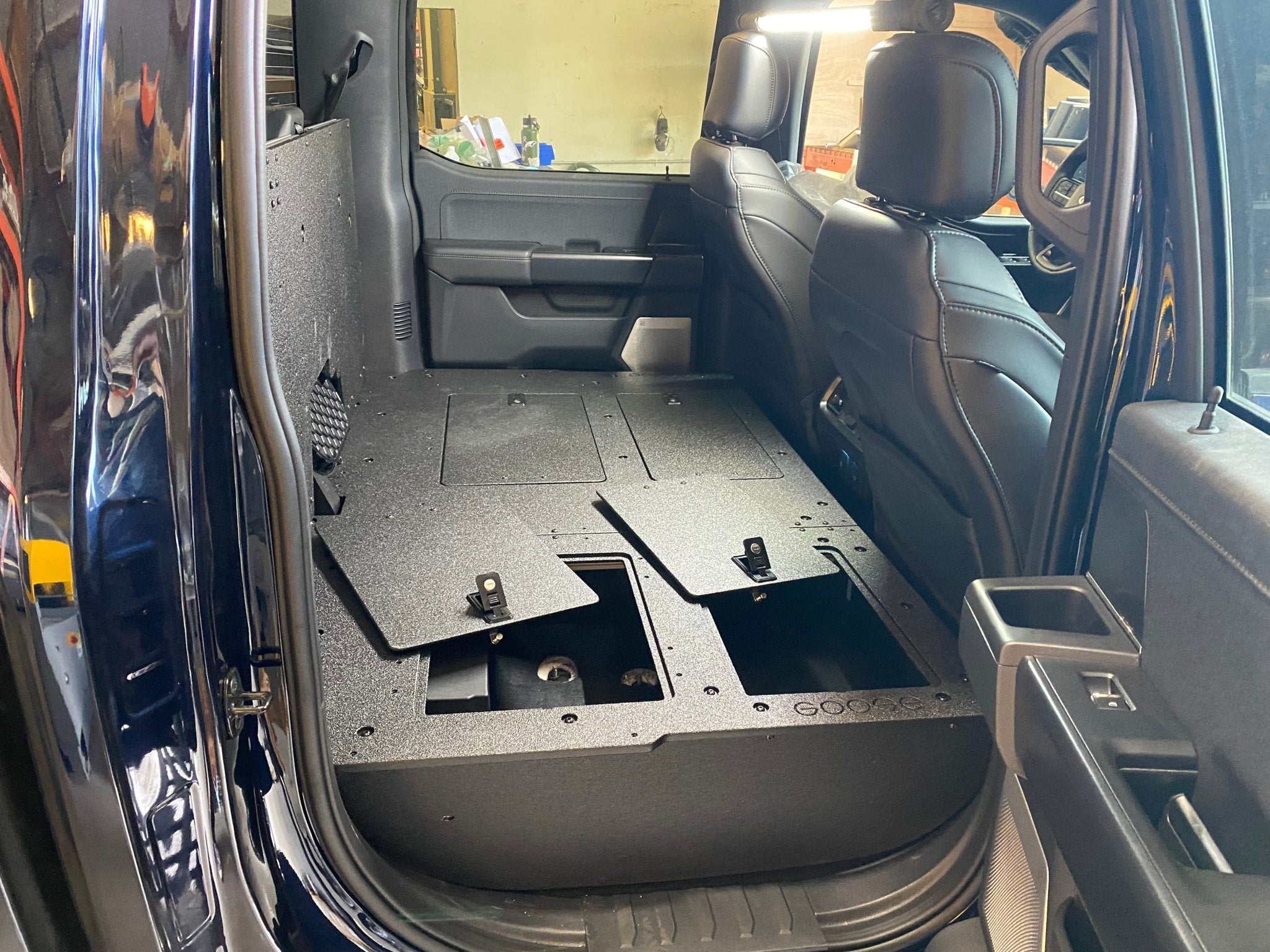

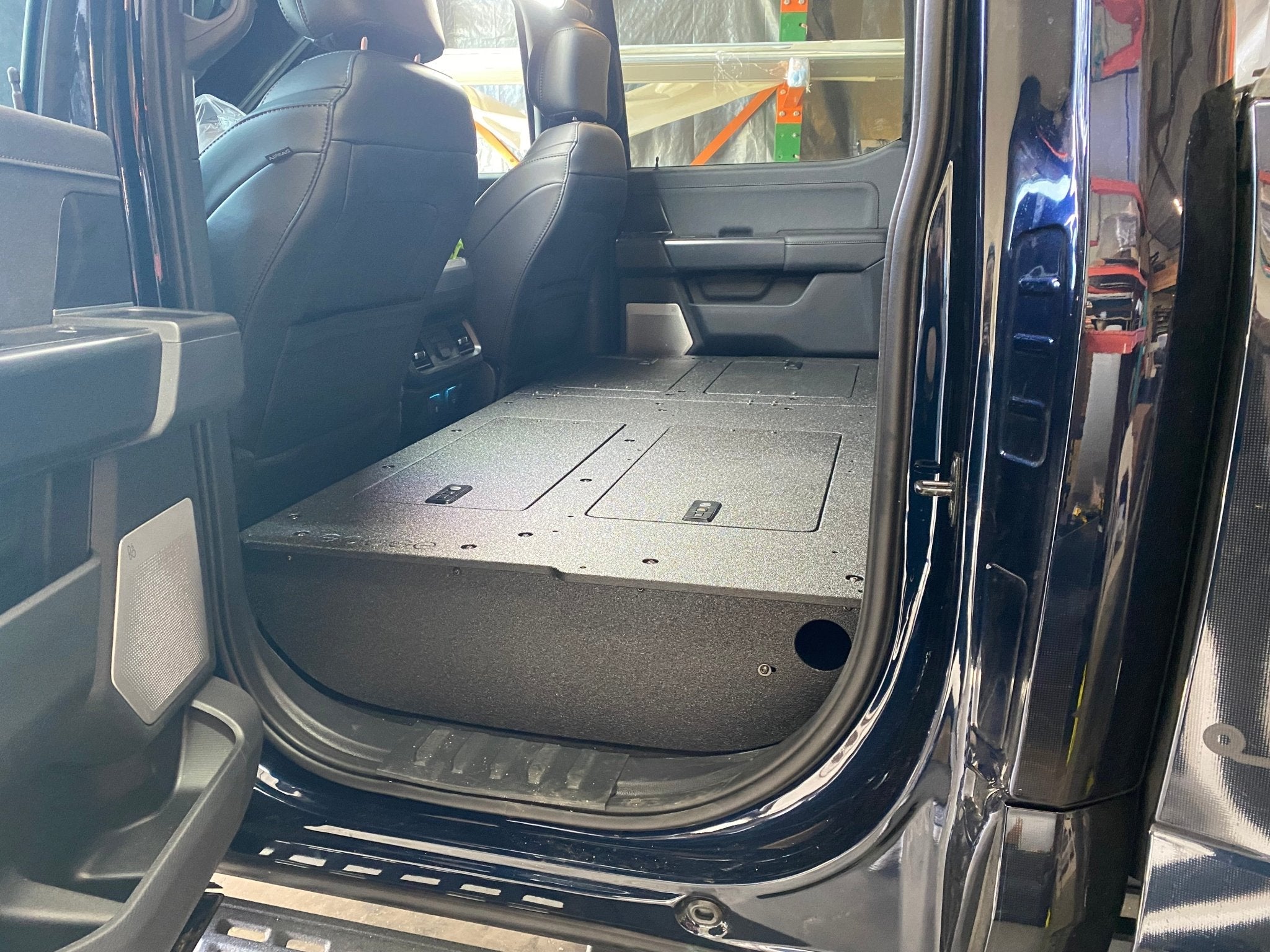

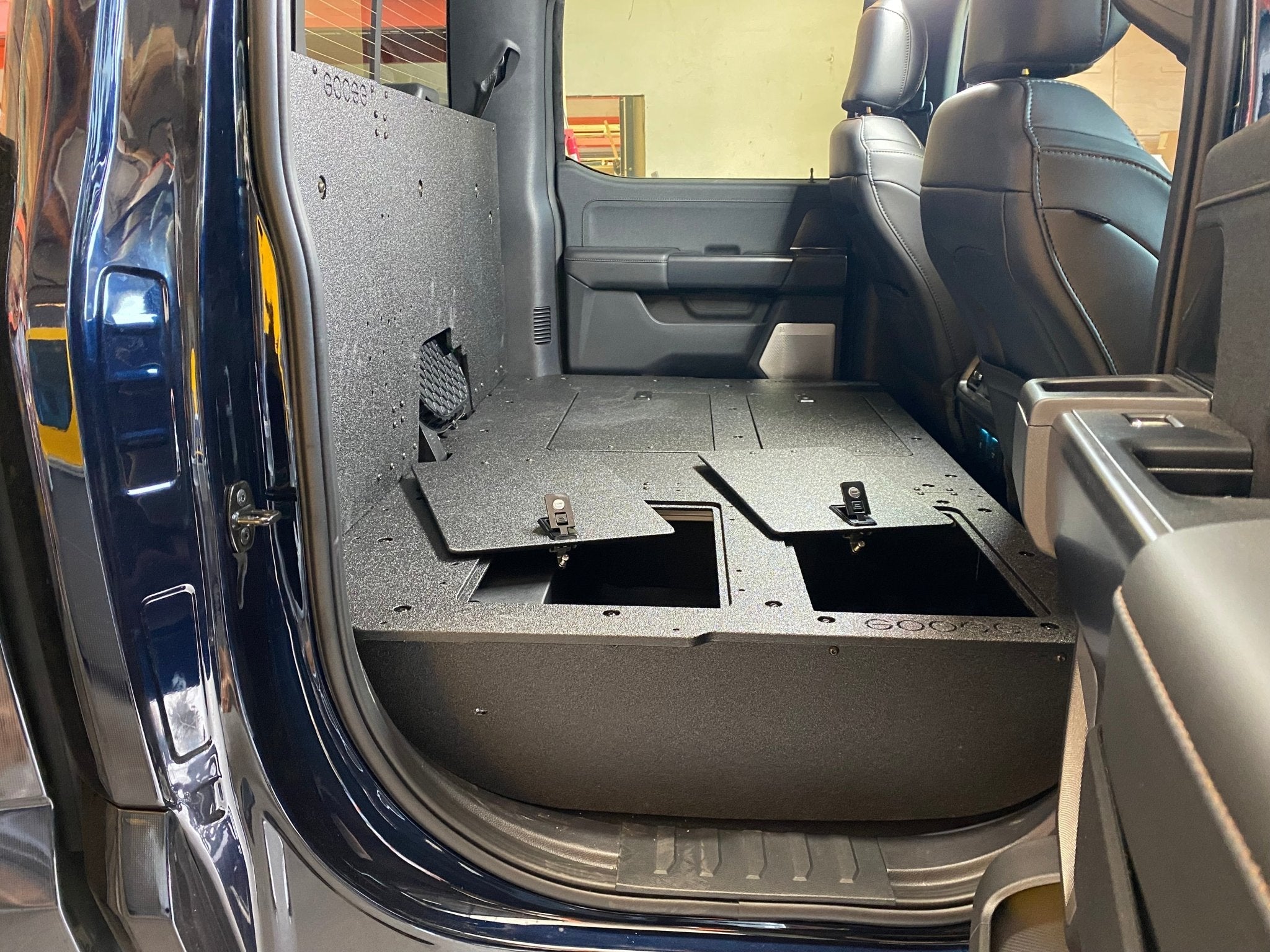

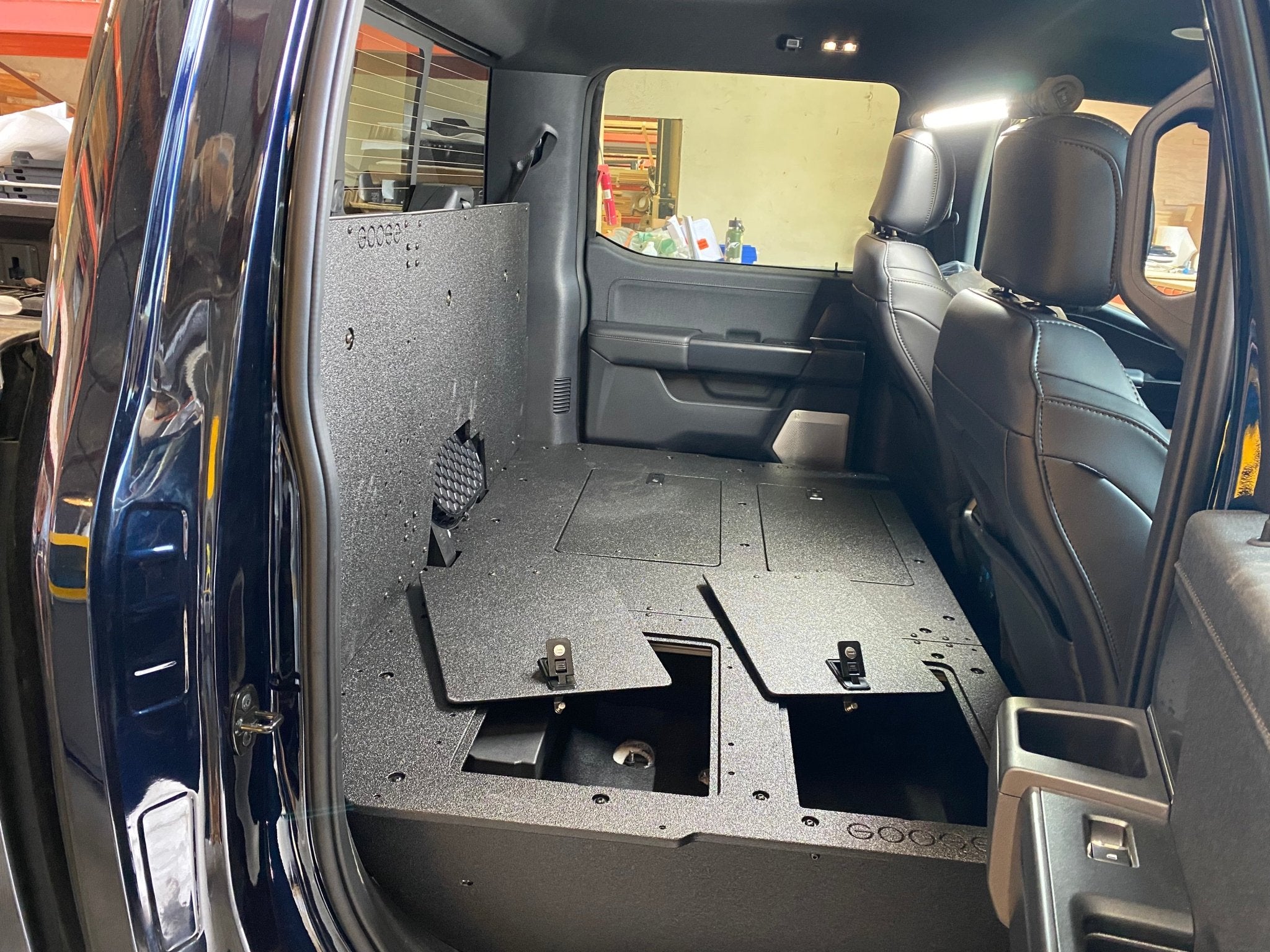

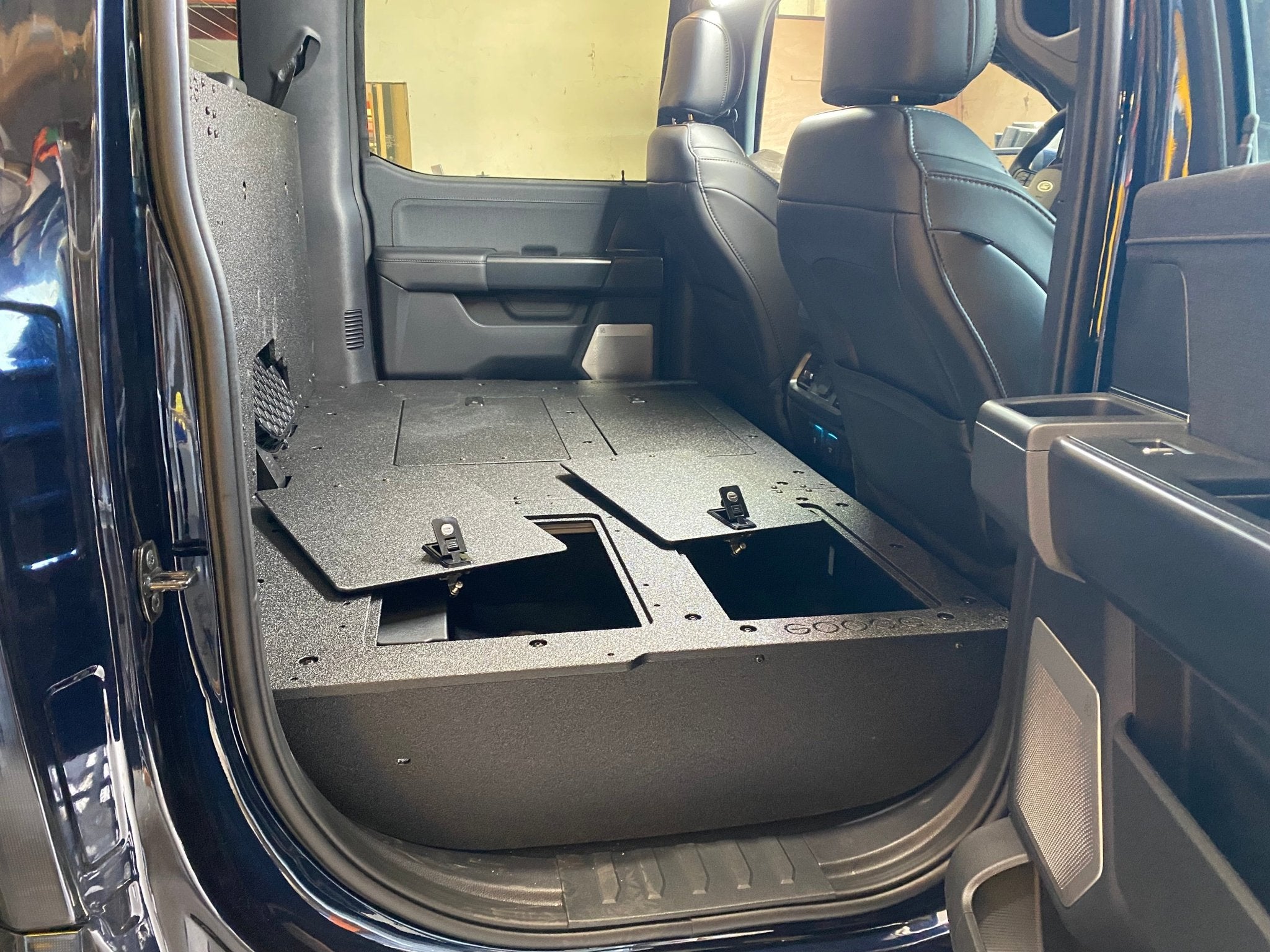

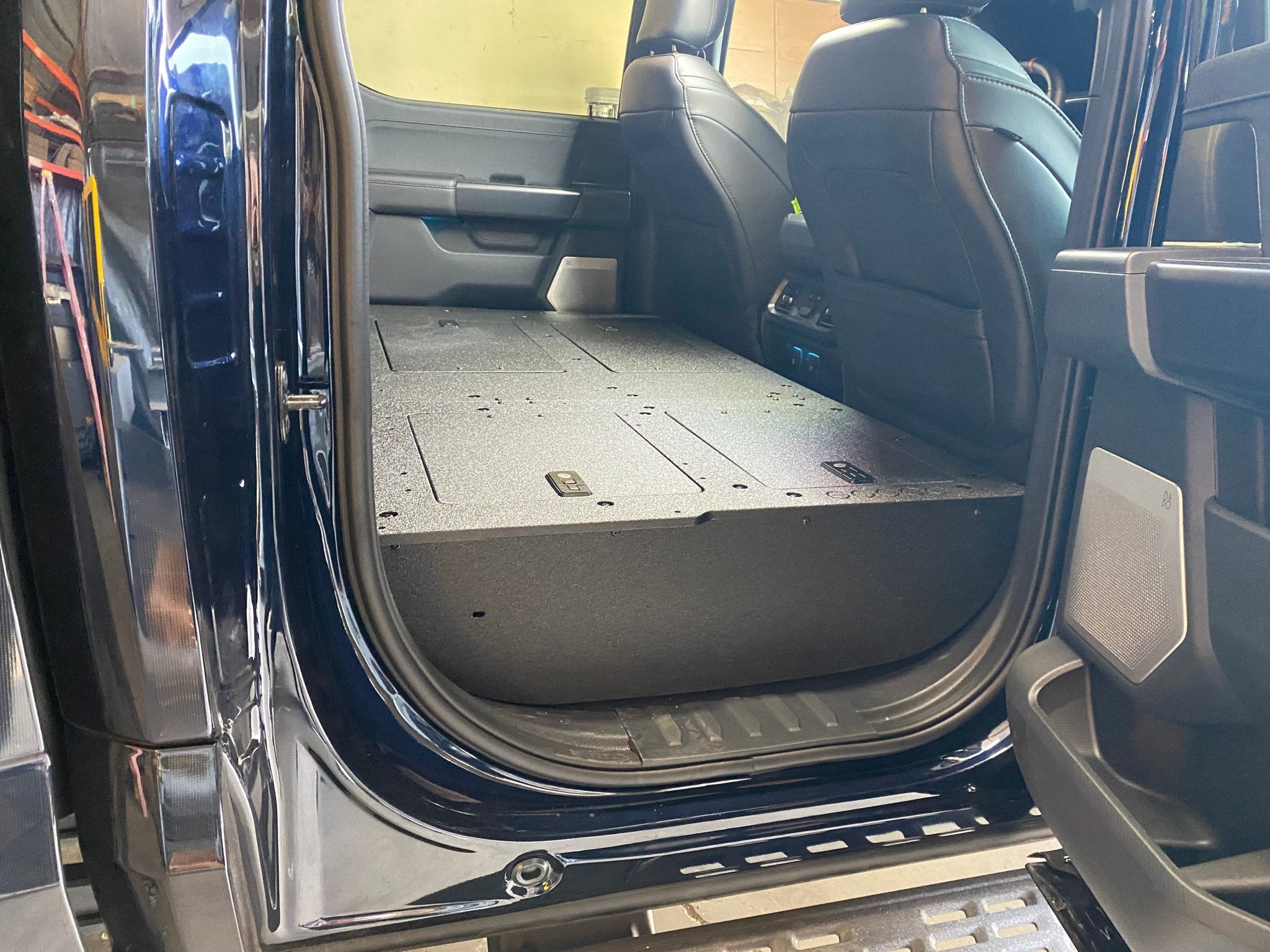

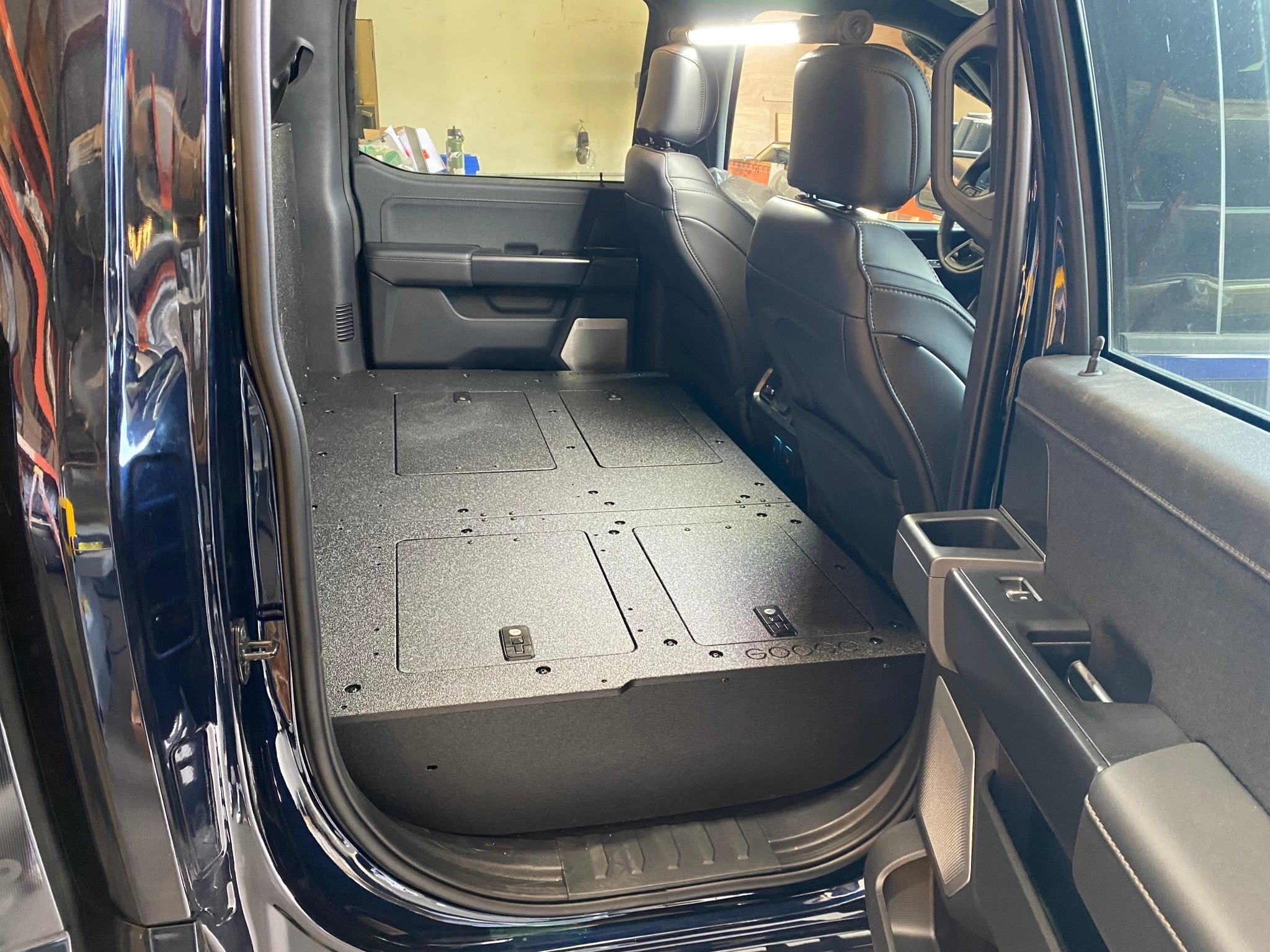

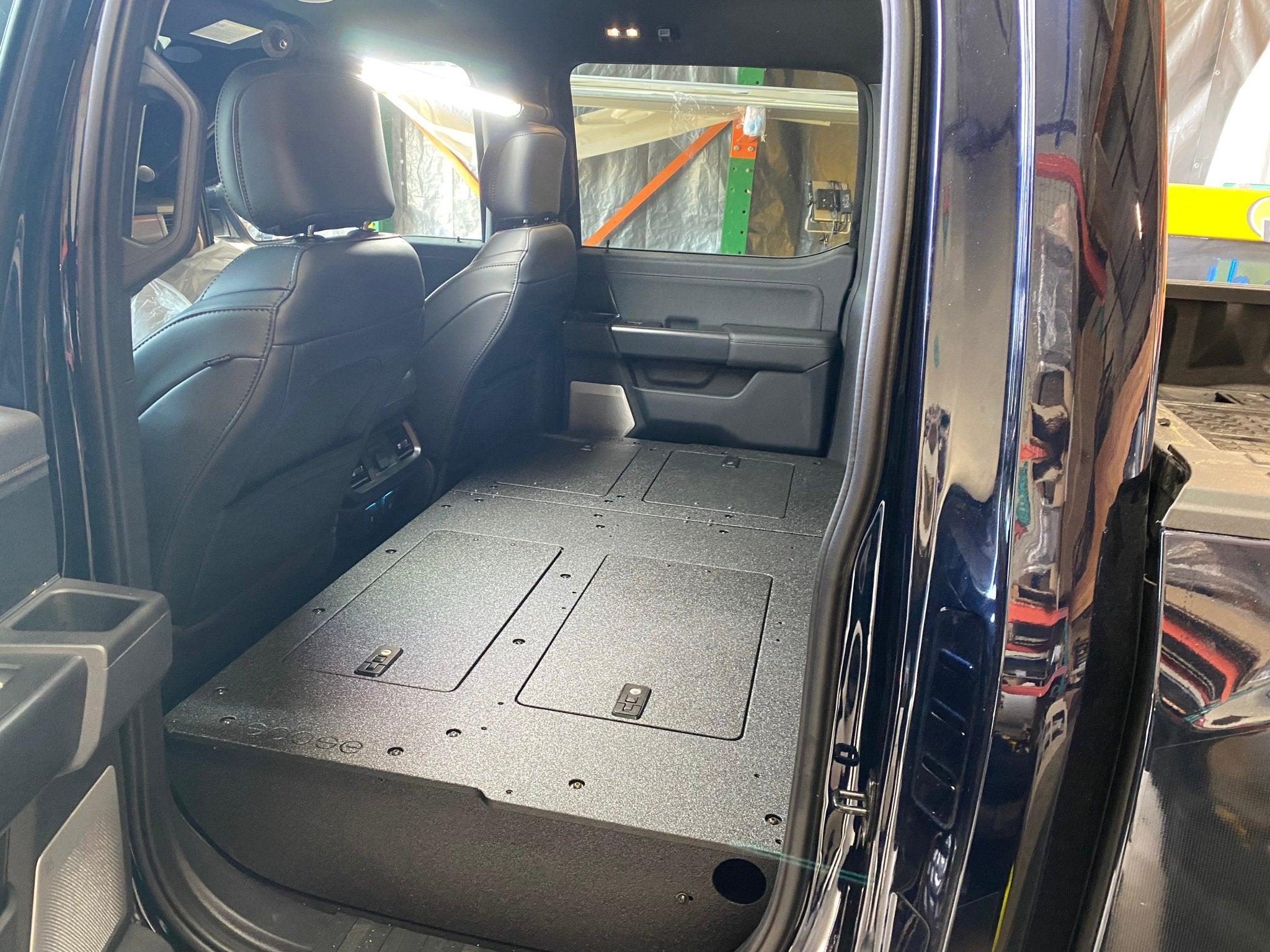

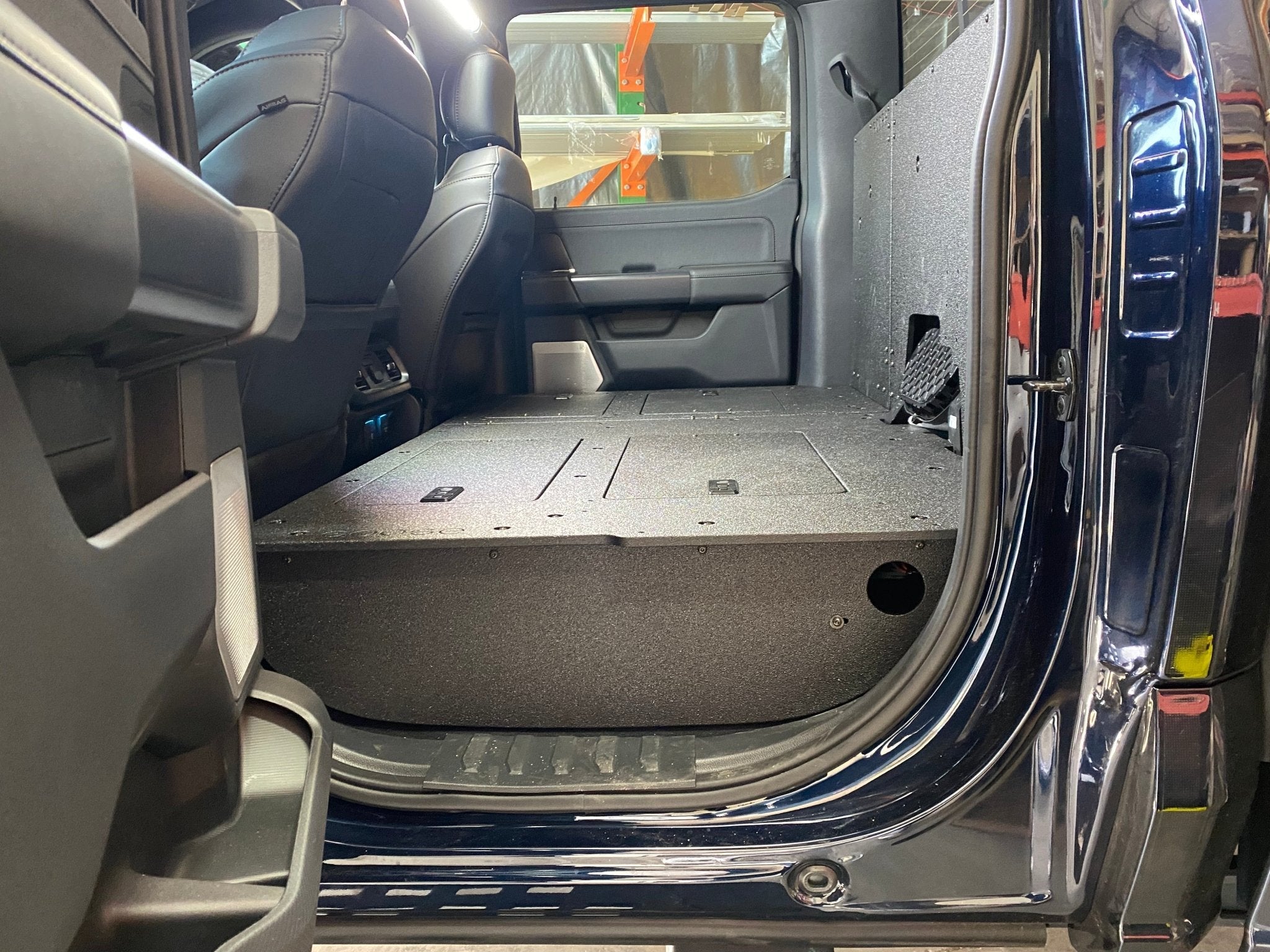

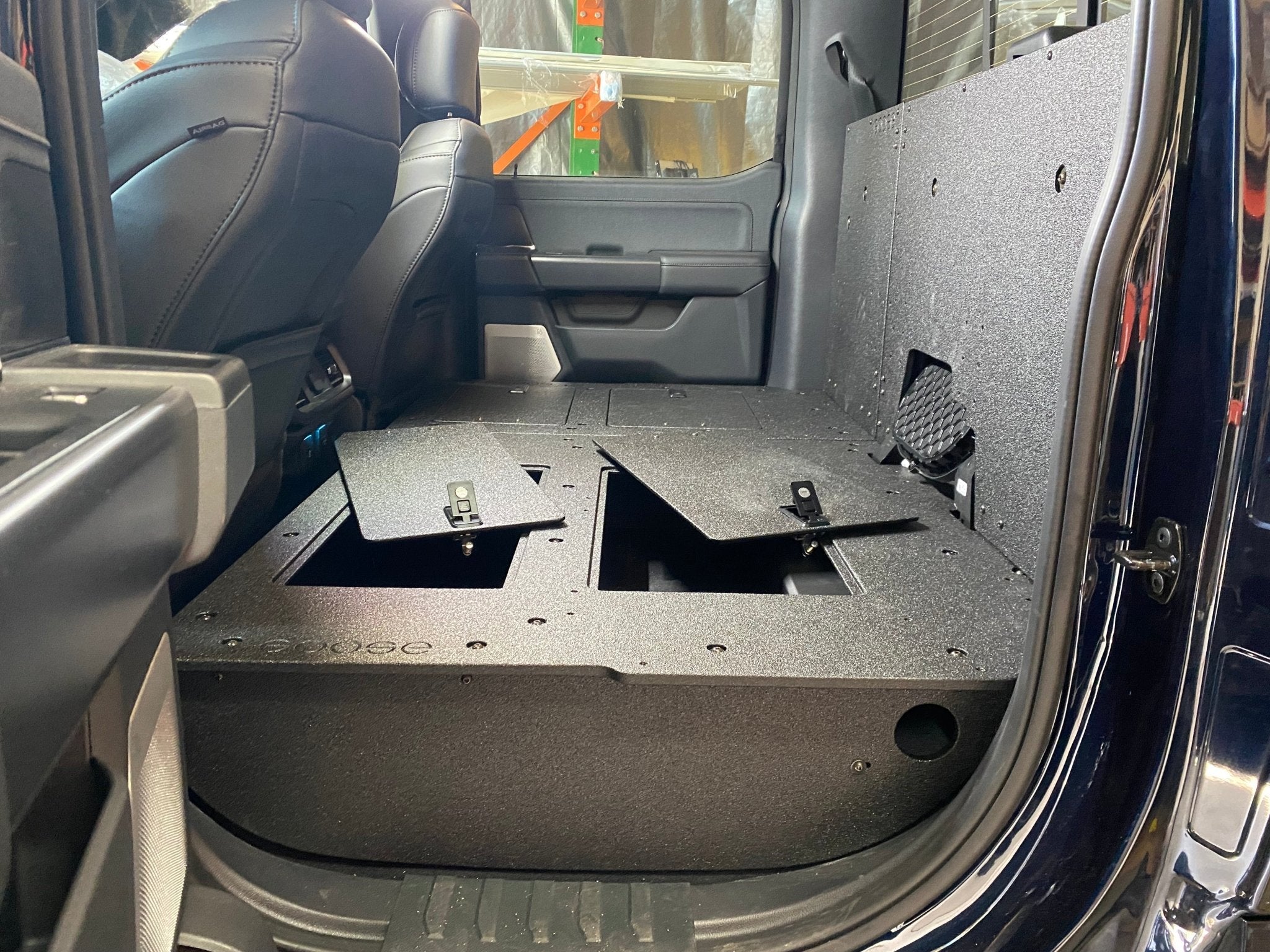

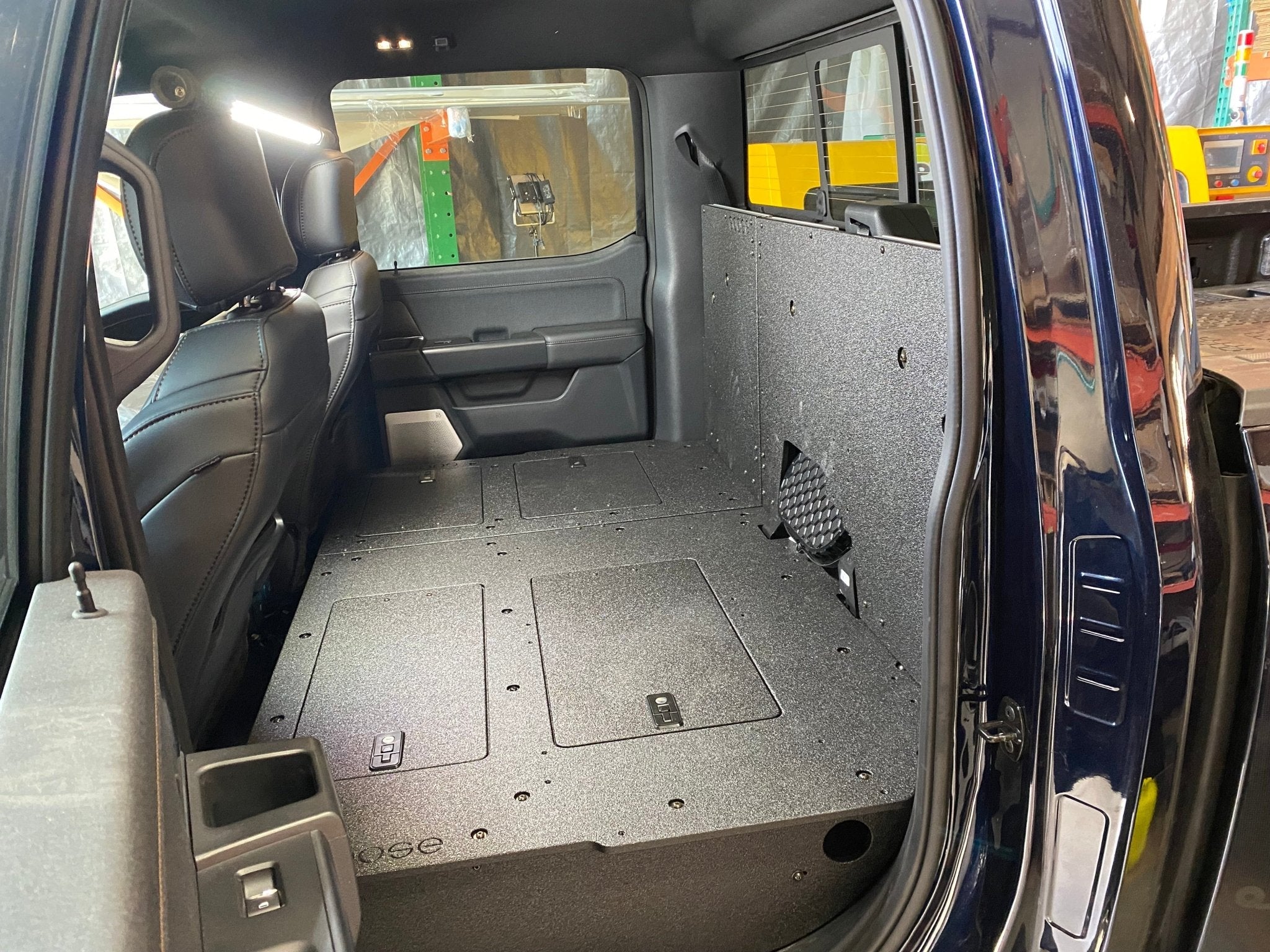

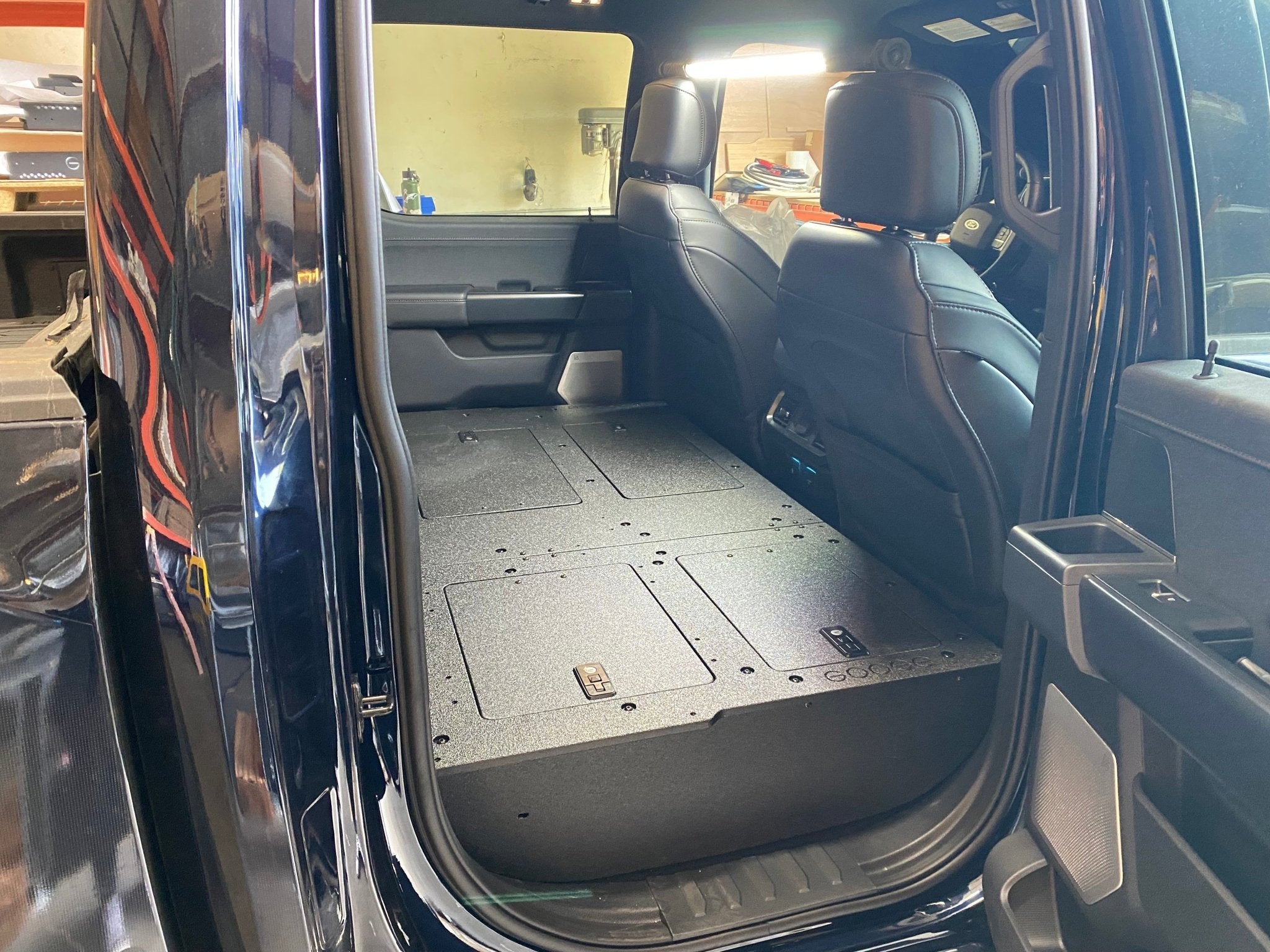

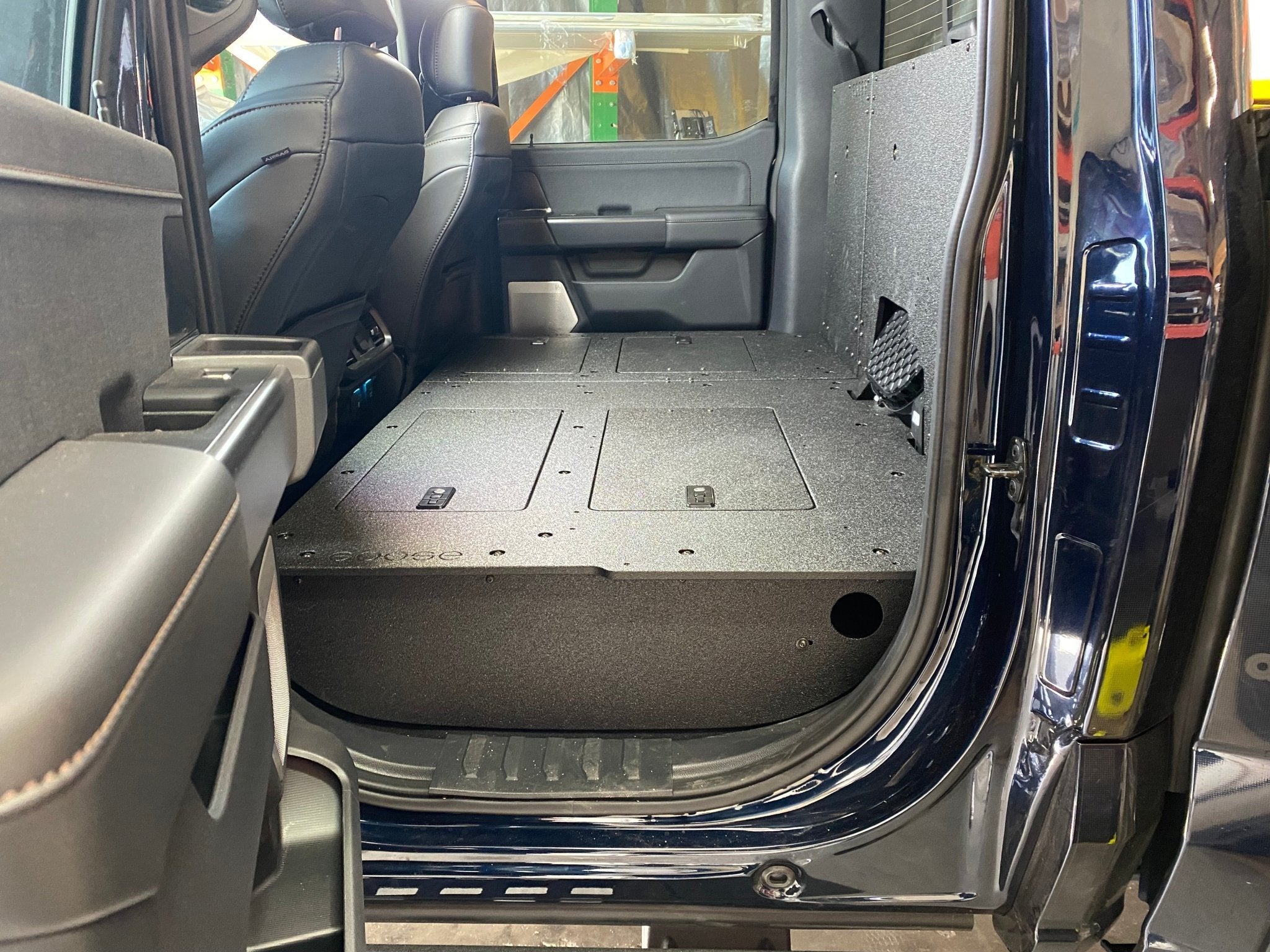

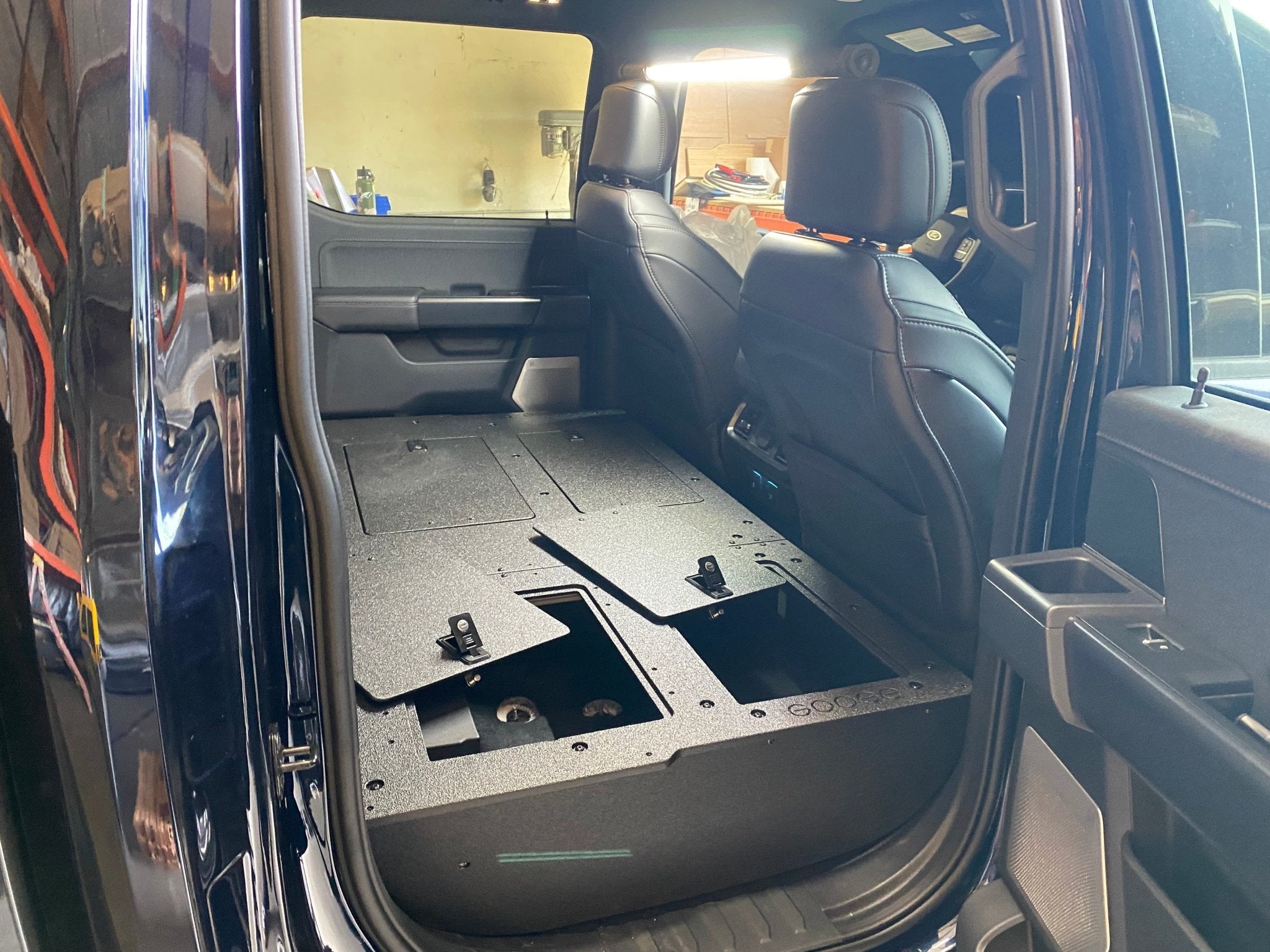

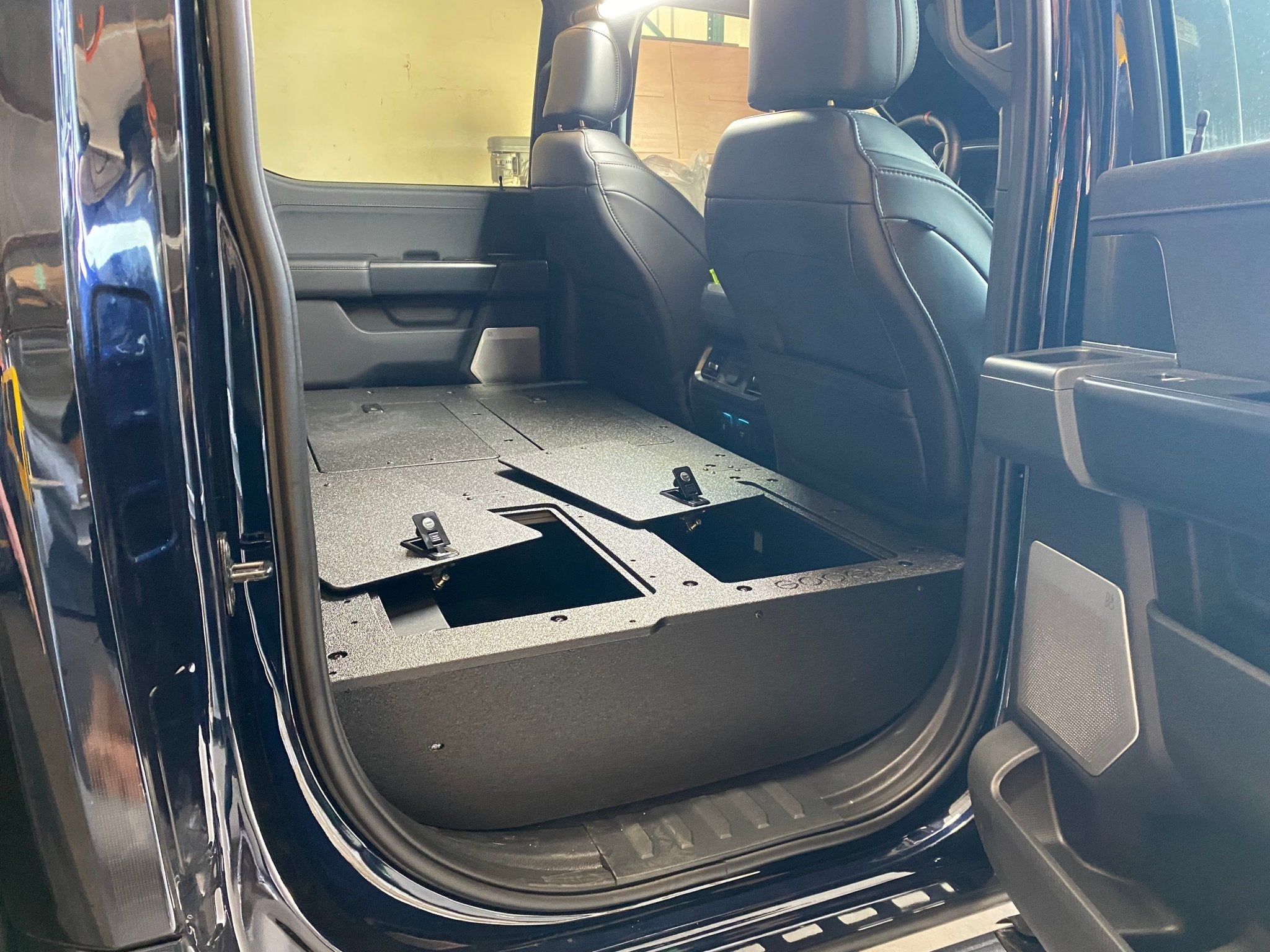

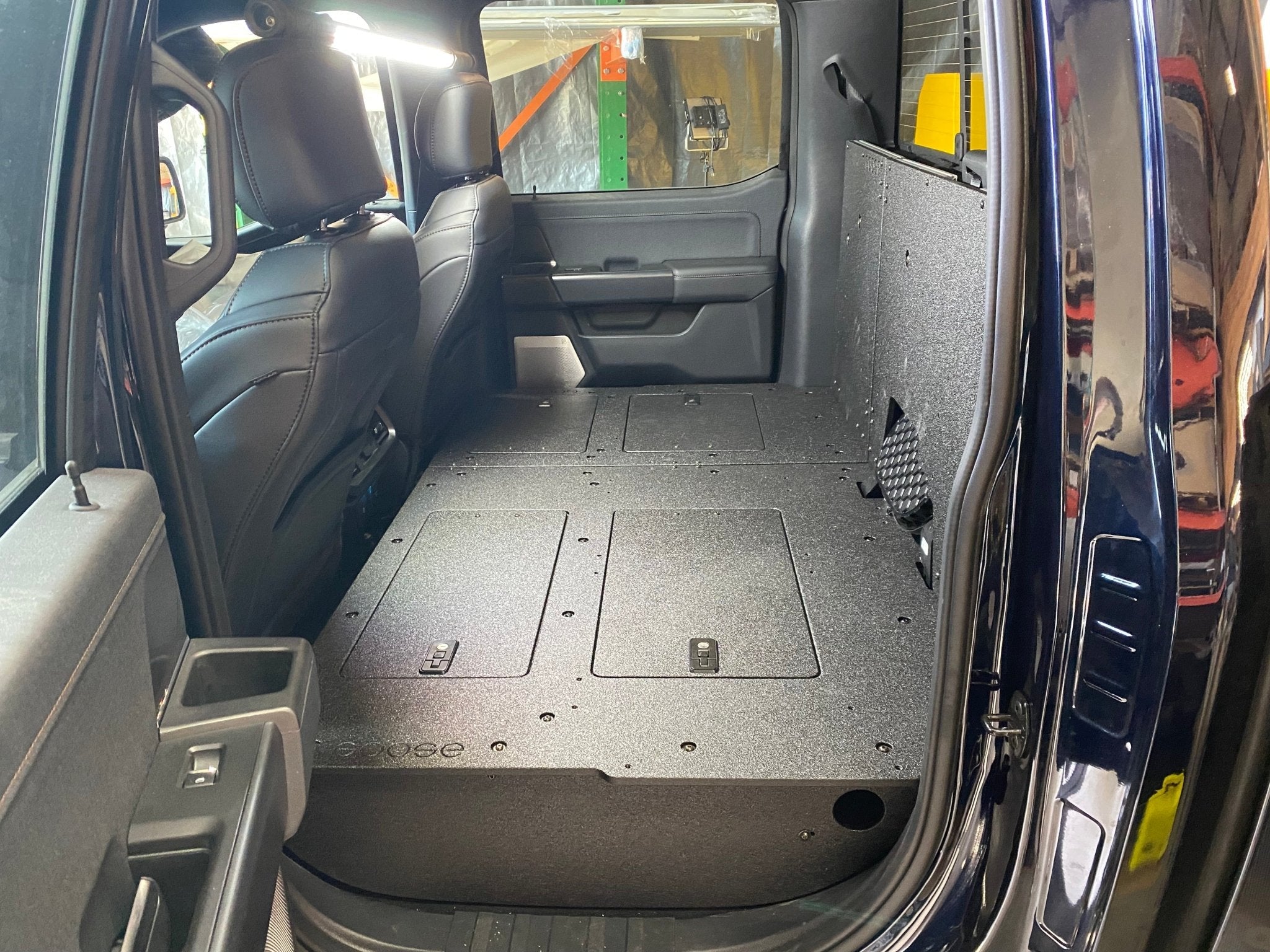

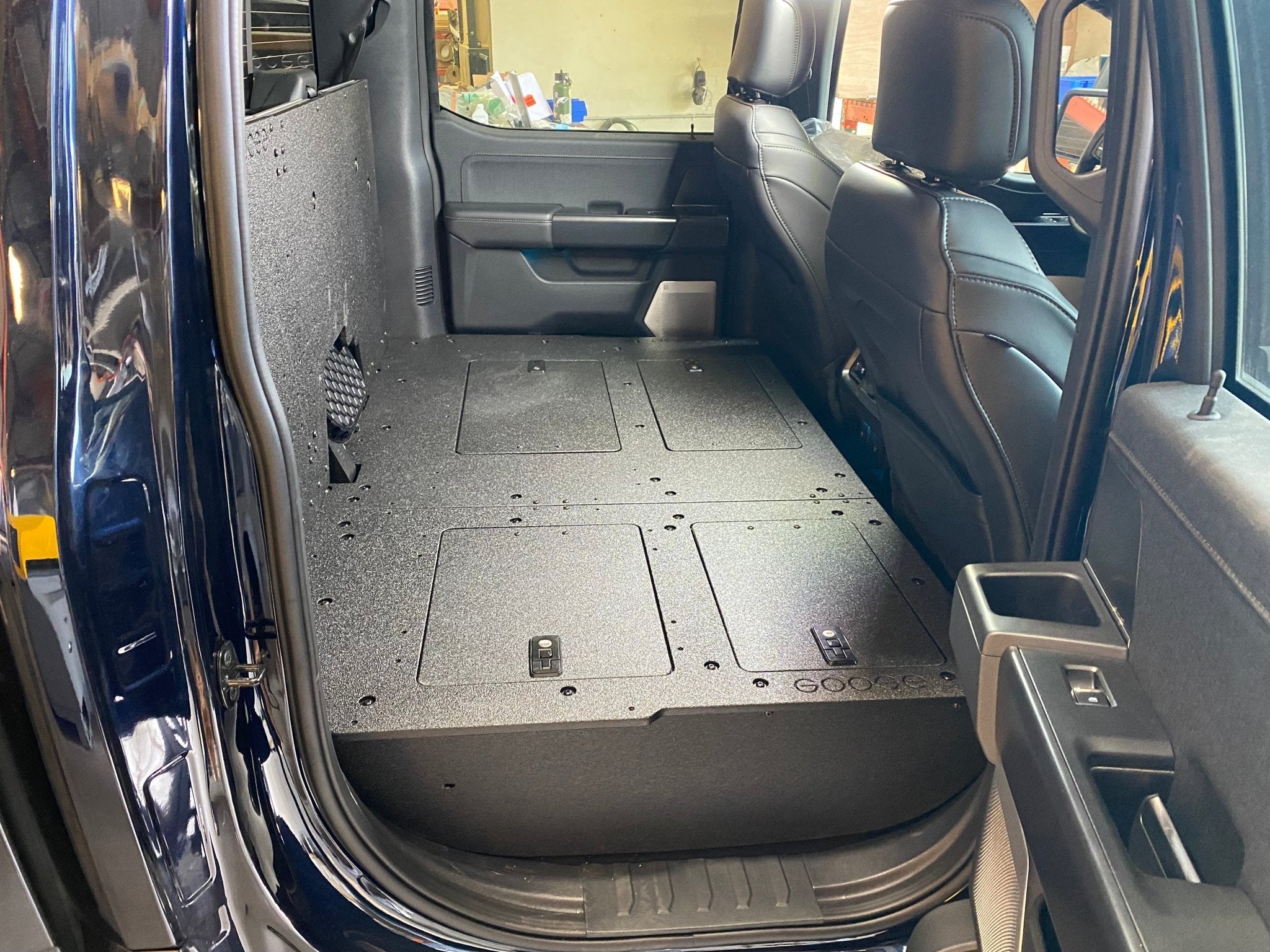

The Ford F150 second row seat deletes for the Super Crew 4 door F150 are designed for you to easily remove your rear seats and create a flat platform for securing your gear. The platform includes hatches that allow access to the factory storage space below the rear seats. In addition to the base plate, you also get a back wall replacement that is secured to the base plate and factory anchor points in the back wall.
This product is designed to match the factory seat layout:
- 40% Passenger Side Seat Delete with B&O Center Mounted Subwoofer
- 60% Driver Side Seat Delete with B&O Center Mounted Subwoofer
Run both Seat Deletes for a 100% Second Row Seat Delete
This unit is 100% bolt in and does not require drilling. This system is designed to work around the factory subwoofer.

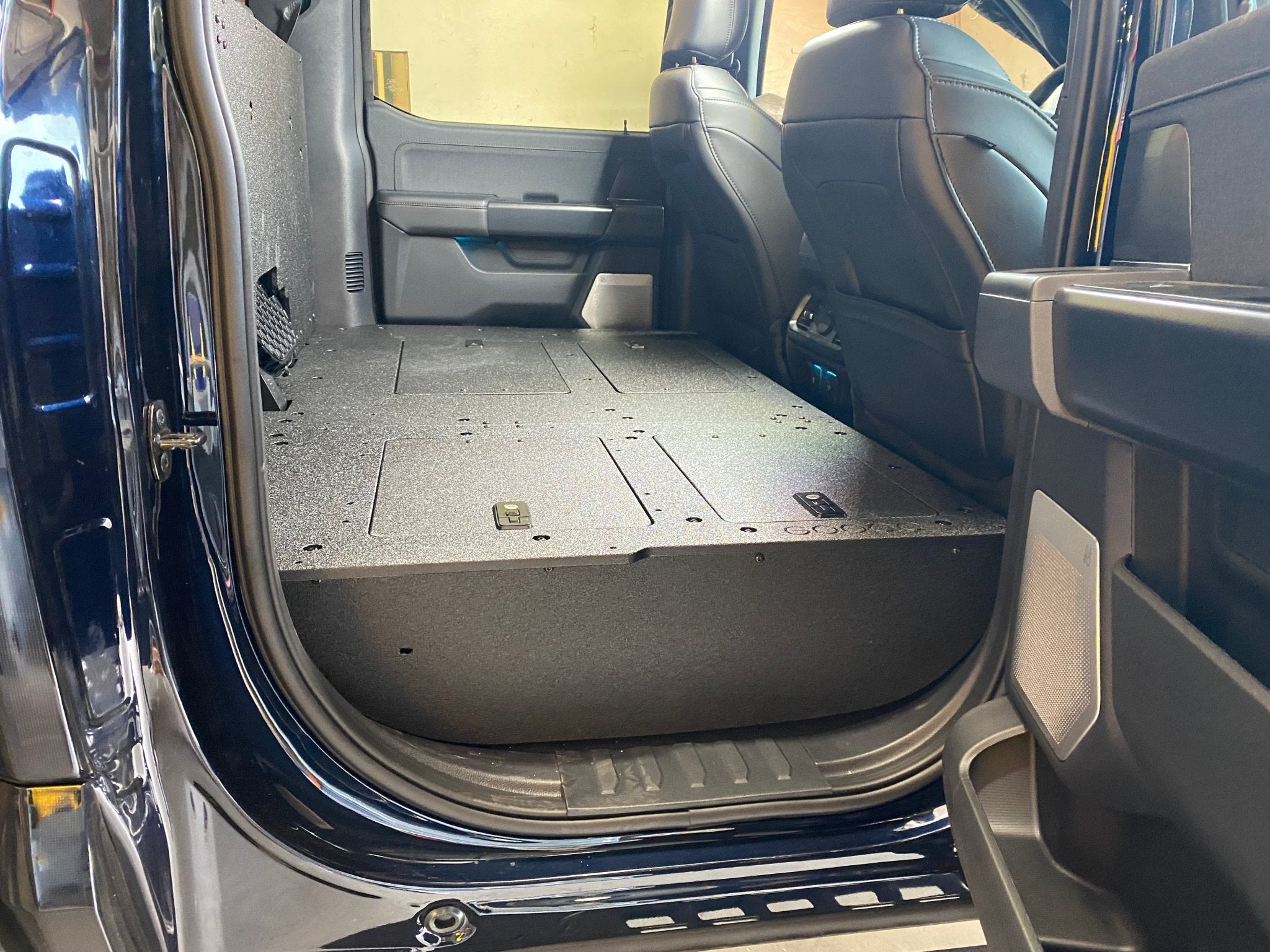

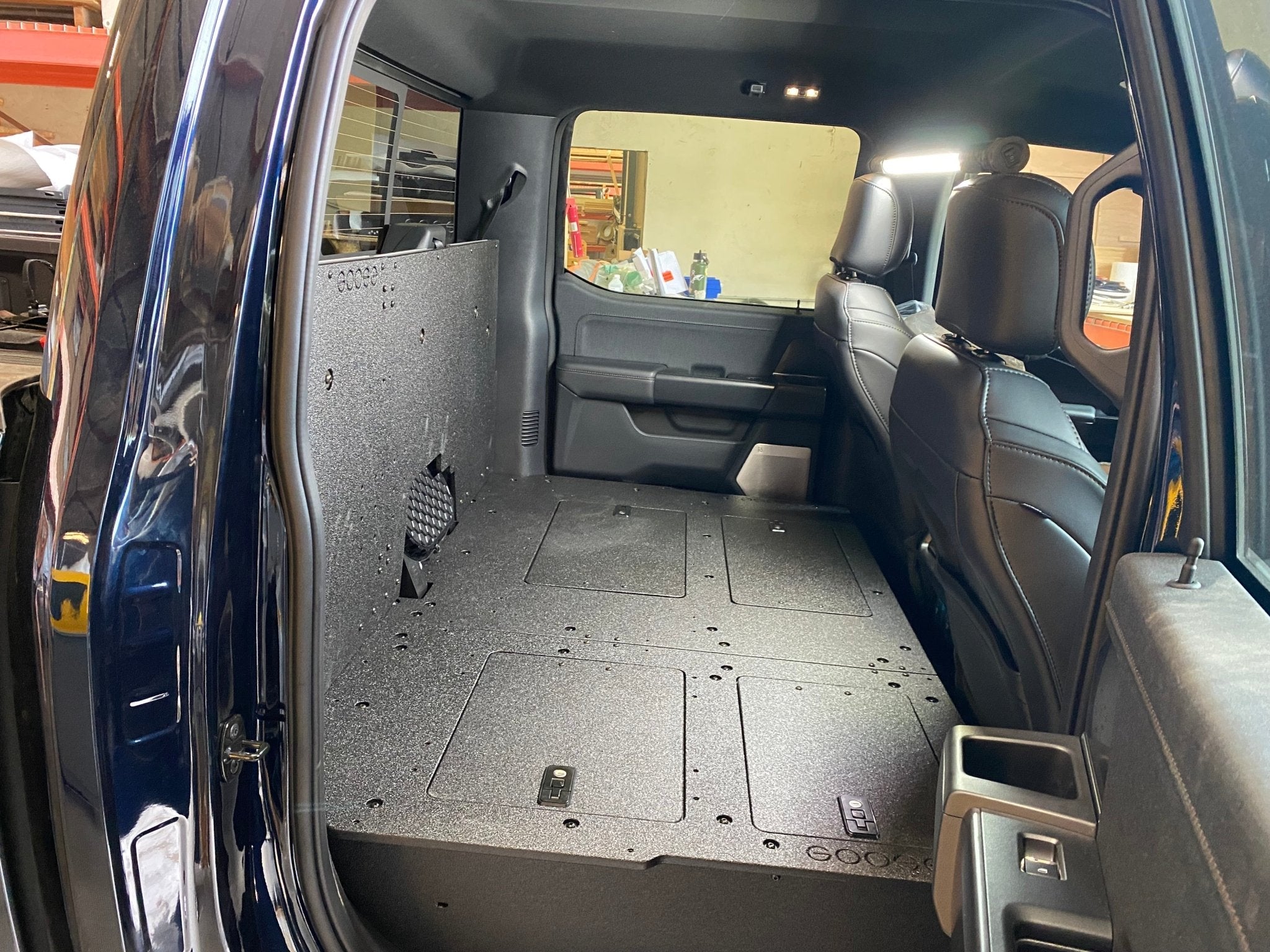

The addition of the back wall gives you ample space to secure other gear if necessary, such as fire extinguishers, first aid kits and other personal gear.
For the design, we utilized our preferred design of 60/40 split. This design allows the user to add a fridge or cooler behind the front passenger seat in a front to back orientation, keeping the 60% space wide open and usable. Fridge models that would easily fit in this space include:
- National Luna Weekender 50 and 52, Legacy 40 and 52
- Dometic CFX3 35, 45 and 55
- ARB Classic 35, 47 and Zero 38 and 47
- SnoMaster TR42 and CL40
- Other fridge models can fit in this space. Our recommended maximum dimensions for this area are 28"w x 18"d x 22"h
Product Specifications:
- Product Weight
- 40% Seat Delete: 21 lbs. (5319-GGR-SH)
- 60% Seat Delete: 32 lbs. (5027-GGR-SH)
AIR BAG ISSUES
Air Bag Warning Light may be triggered. Below are photos of how one customer plugged in components that eliminated the air bag warning light on his higher end King Ranch Edition. We expect the same from the Platinum and Limited versions as well.
The seat belt coil and the black box, which has to be removed from the rear seat, need to be plugged in to defeat the air bag warning light.
Please note: There is a possibility of airbag warning light activation for seat deletes installed on 2020-present Ford F150 and F250-550 Super Duty models, including King Ranch, Platinum, and Limited trims. The only way to eliminate the Air Bag warning light is to connect the seat belt coil and the small black box back into the factory plugs. The wiring and connectors need to be hidden away somewhere safe. We recommend wrapping it in something to keep it quiet and stuffing it under the seat delete towards the rear of the vehicle.
