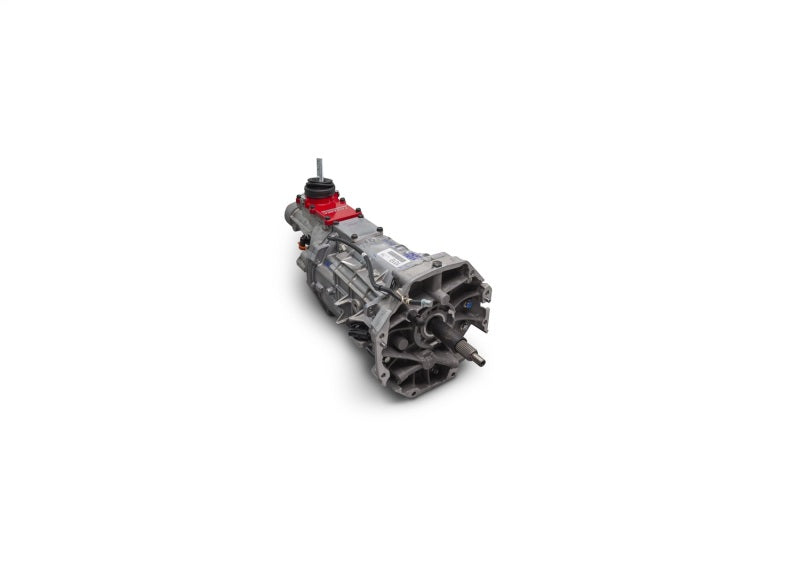

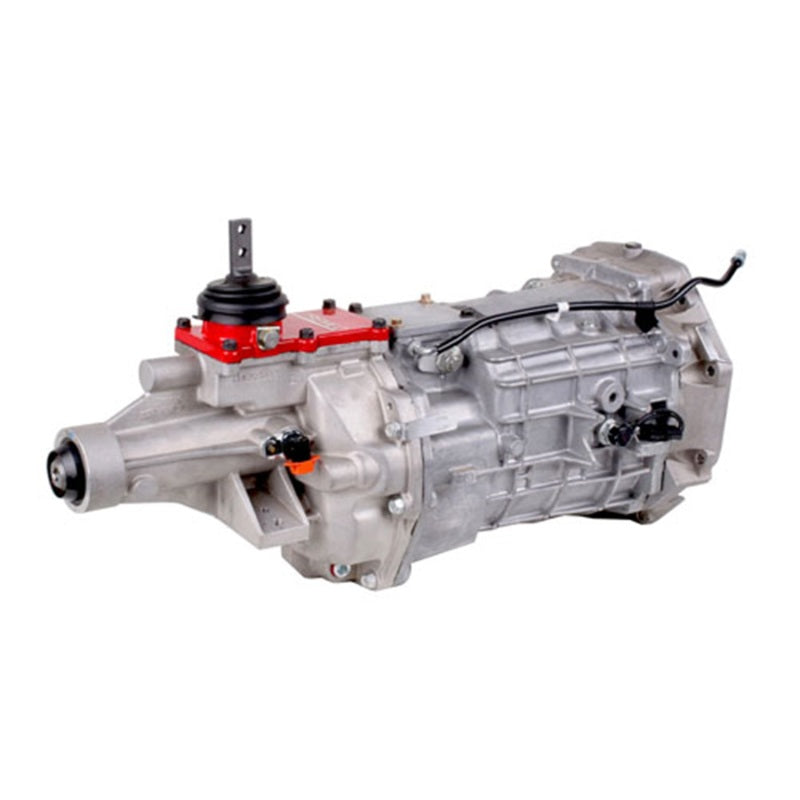

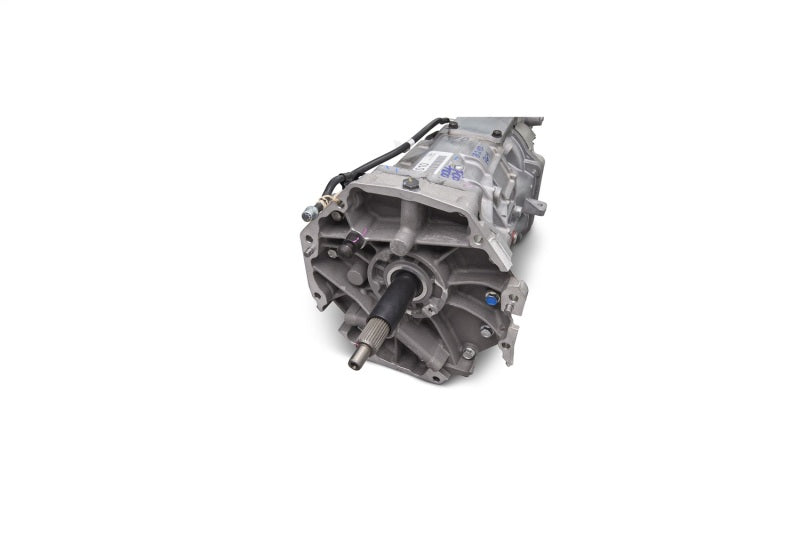

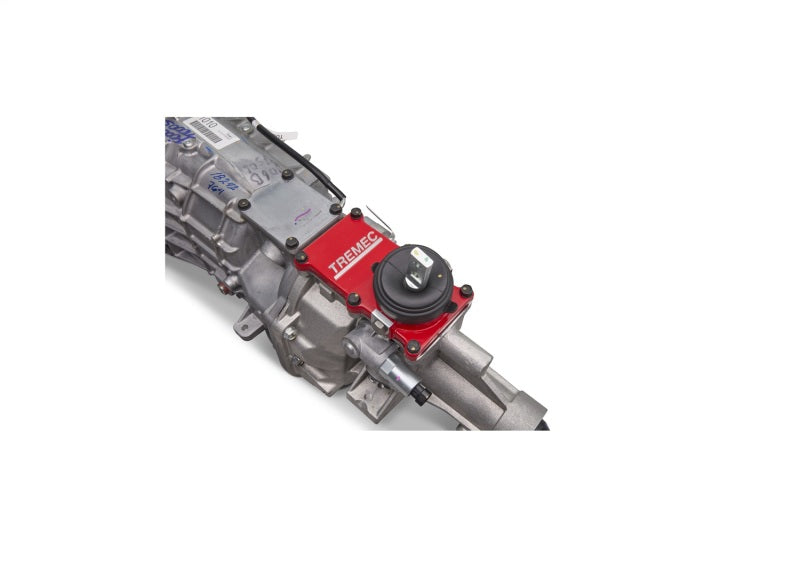

Tremec 6-speed Transmission (2.66 1st Gear/26 Spline)
- Fits: SBF, 4.6L SOHC/DOHC and 5.0L Ti-VCT engines
- Can be used in 1999-2004 Mustangs and Cobras
- For SBF 302/351 use Quicktime bellhousing part # 8031, For modular 4.6L/5.0L/5.4L use Quicktime bellhousing part # 8080
- May require shorter driveshaft, modified crossmember/trans mount and other minor modifications
- 700 lbs./ft. torque capacity
- Gear ratios: 1st 2.66, 2nd 1.78, 3rd 1.30, 4th 1.00, 5th 0.80, and 6th 0.63
- Input shaft is 26 spline; output shaft is 31 spline
- Provision for both mechanical and electronic speedometer
- Mechanical speedometer drive gear has 7 teeth
- Electronic speedometer rotor has 12 positions
