Overview

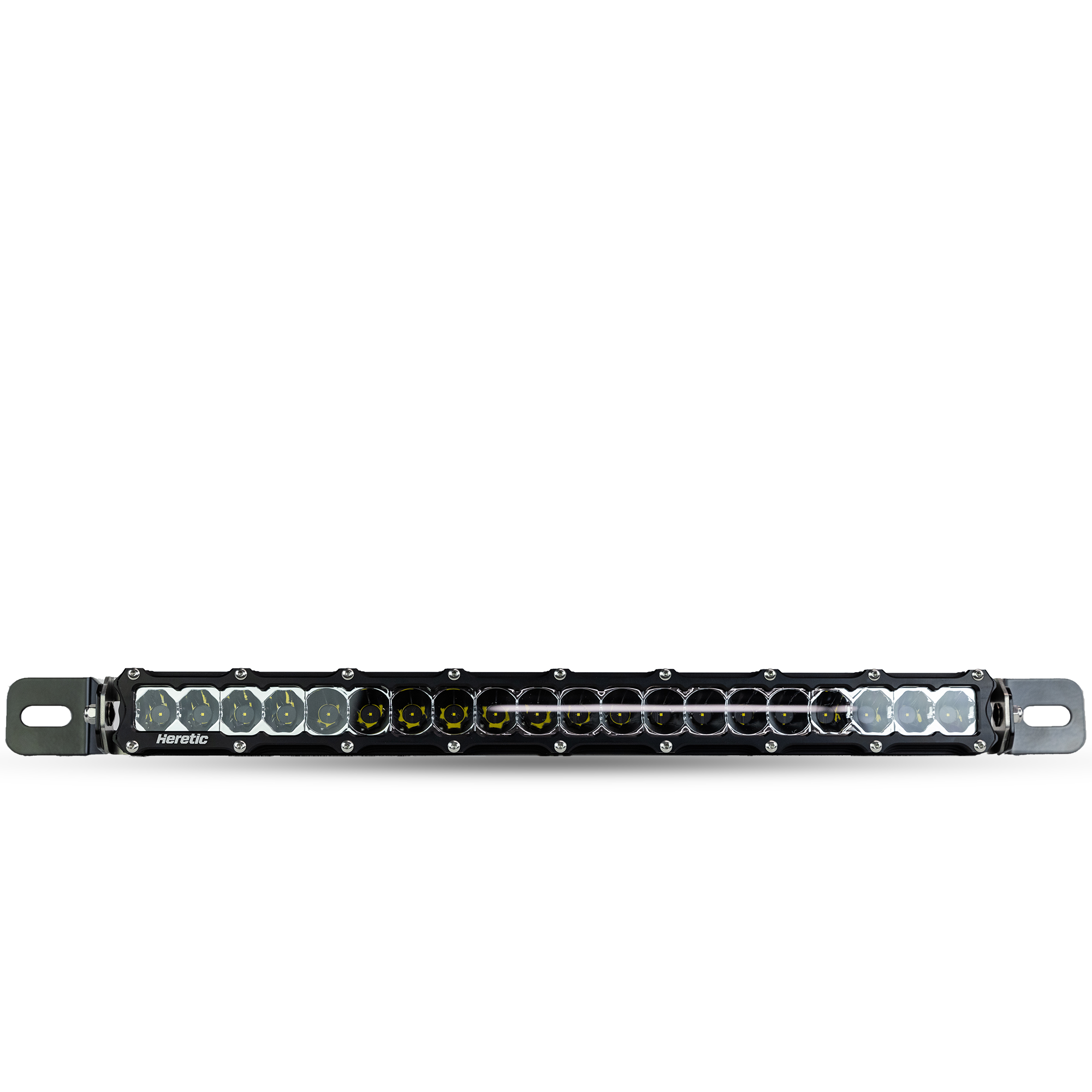

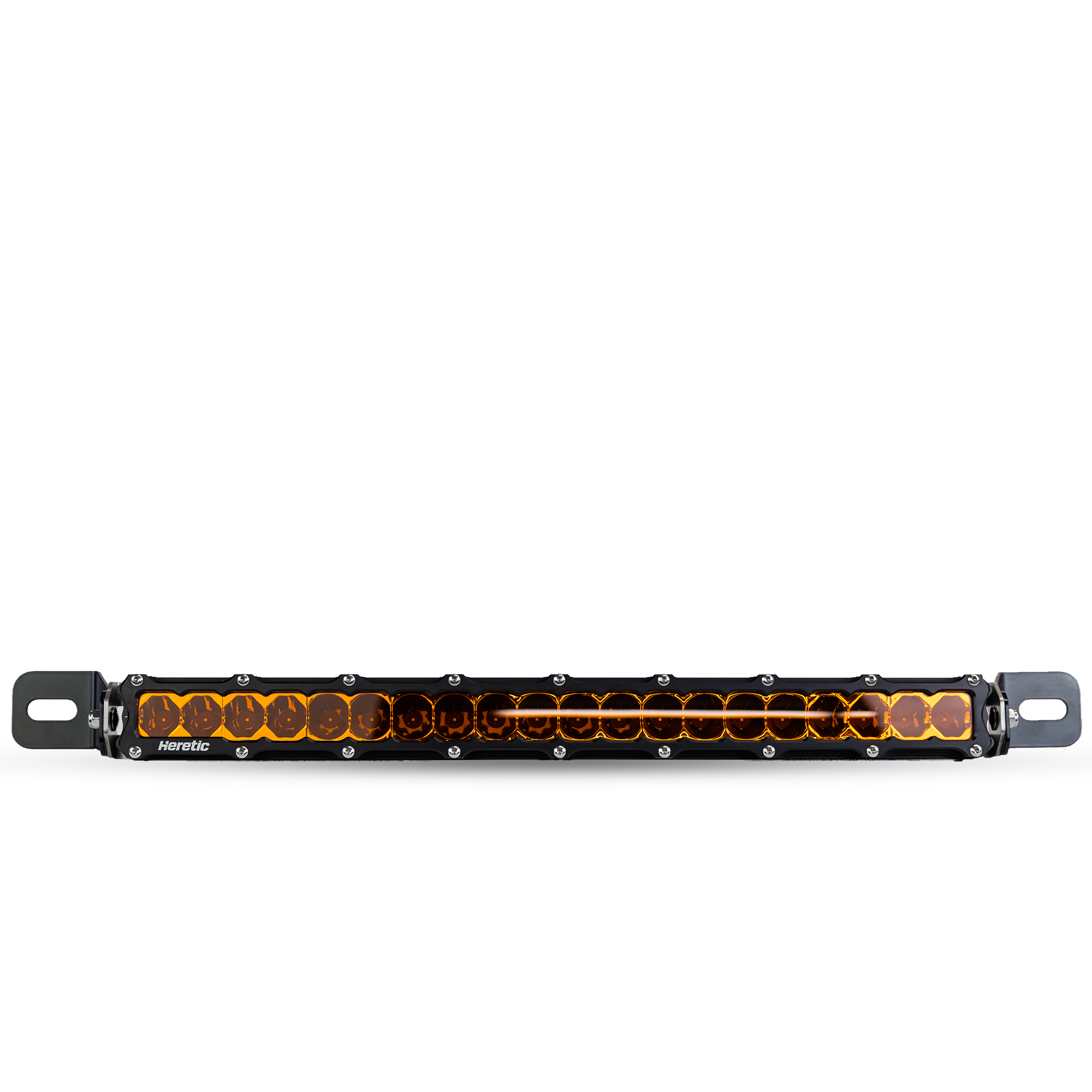

The Heretic 20" LED light bar is one of the most rugged and reliable lights on the market. These high performance 6-series LED light bars are designed and assembled in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. With the bracket this becomes a 22" LED light bar. Customize Your Beam Pattern: Combo, Spot, or Flood.
Kit Includes
- 20in light bar

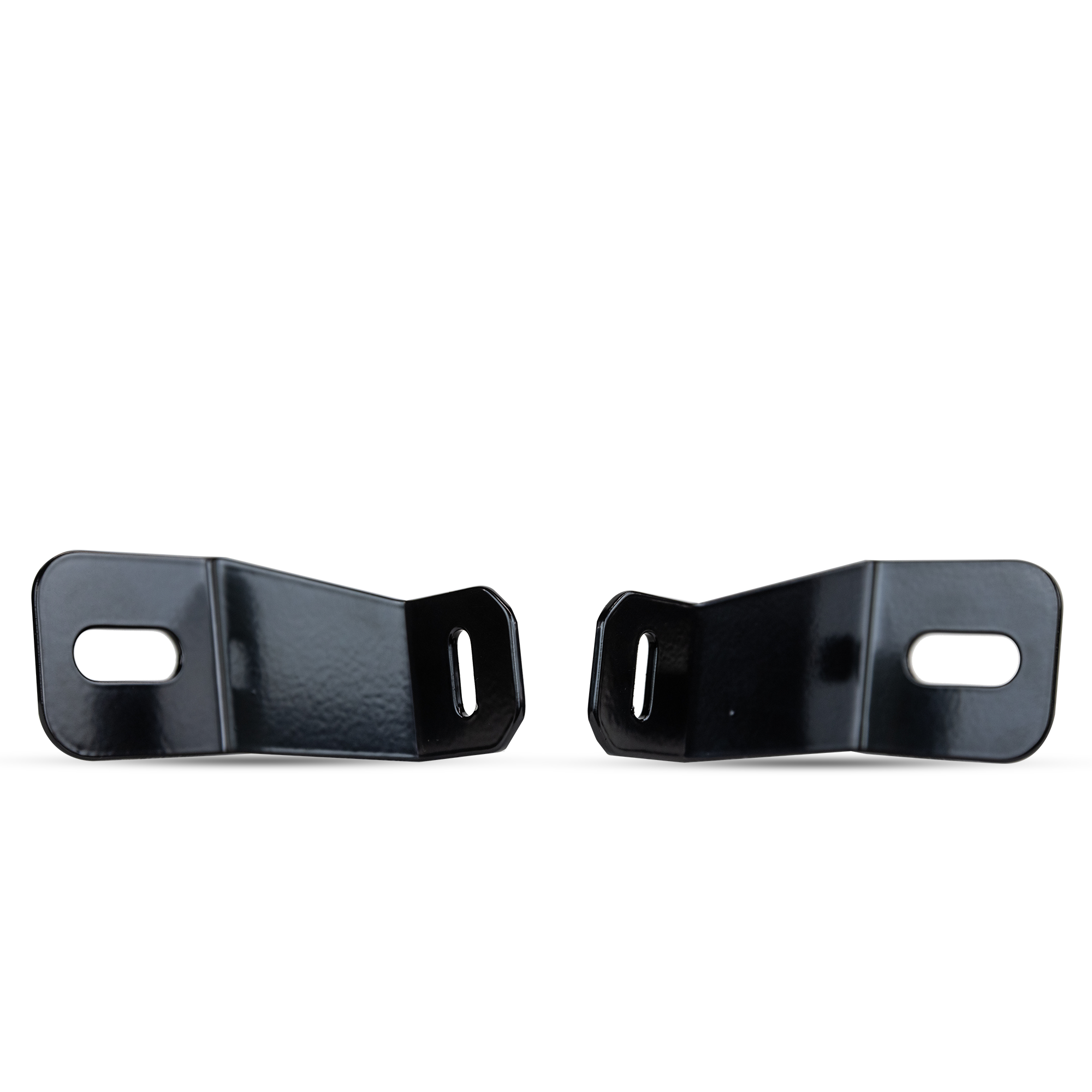

- Stainless Steel Powder Coated Brackets
- Wire Harness
- Hardware
Vehicle Trim Compatibility
Ford Ranger ('19+)
Details/Specs
Shipping Weight: 5lbs
Type: 20” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Amber
Wattage: 120W
Amp Draw at 13.8V: 11.3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 21” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 22” x D 1.5” x H “2.4
Lumens: 14520 lm
Lux At 10m:
- Spot: 4125 lx
- Flood: 878 lx
- Combo: 2826 lx
Candela:
- Spot: 412500 cd
- Flood: 87750 cd
- Combo: 282600 cd
Beam Distance:
- Spot: 1285 m
- Flood: 592 m
- Combo: 1063 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No
