Ford Super Duty Dana 60 Differential

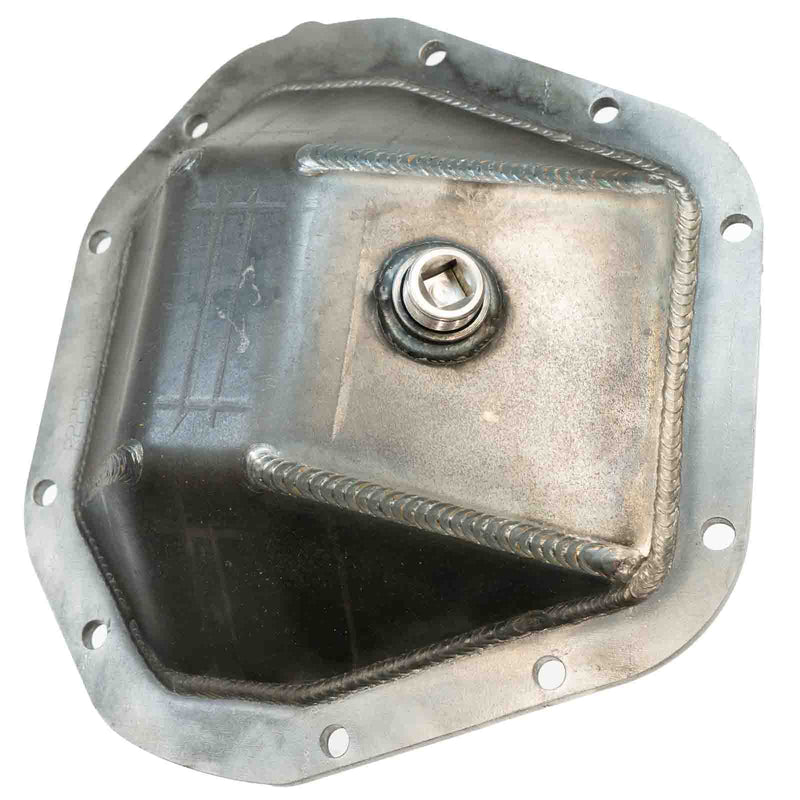

Ford Super Duty Dana 60/50 Differential Cover

Low-profile 3/8" steel protection for Super Duty front axles—clearance where it counts, strength you can trust.

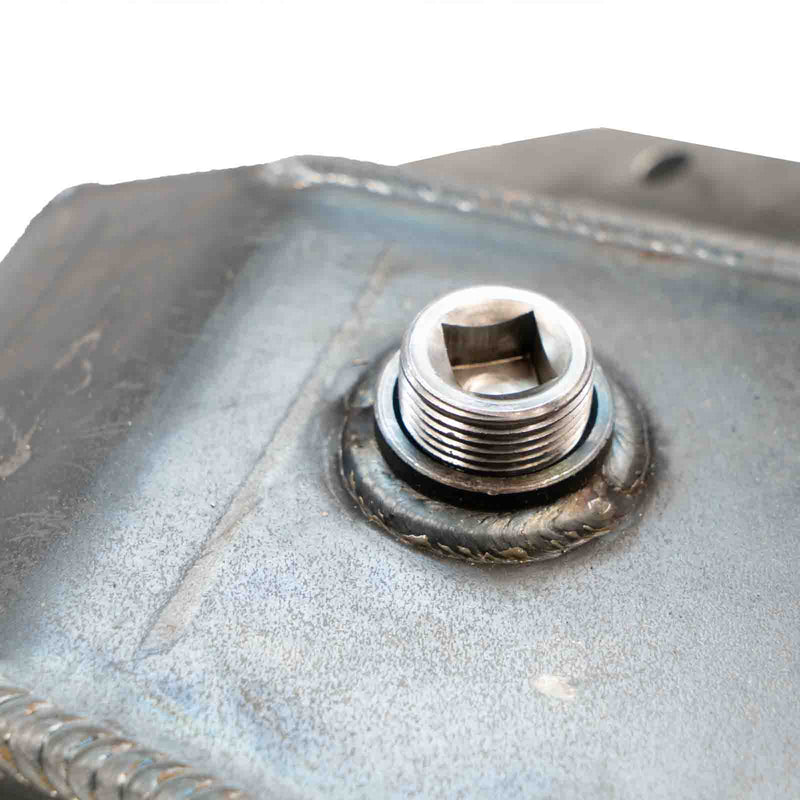

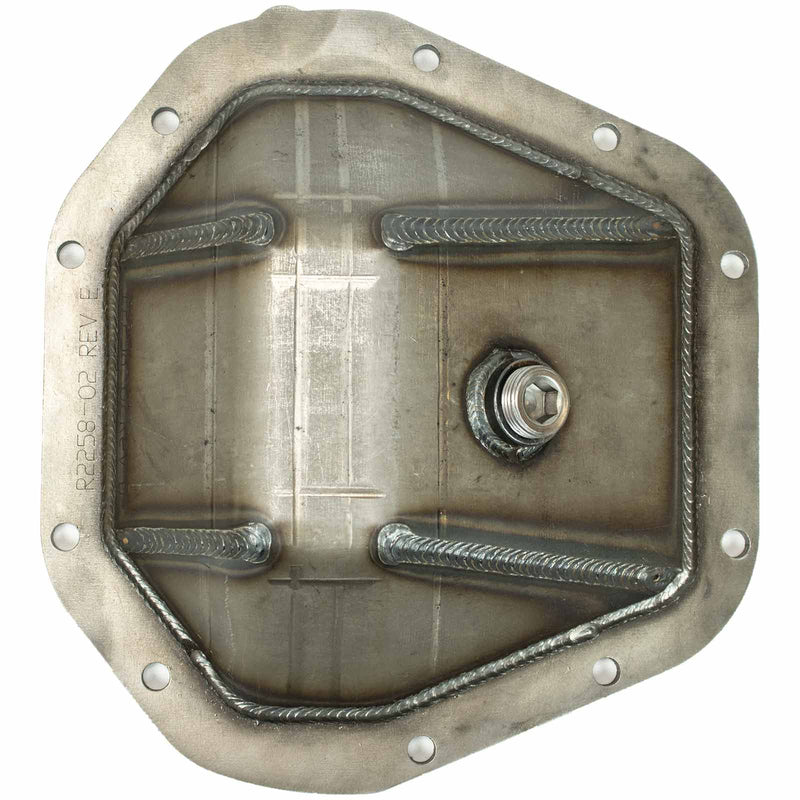

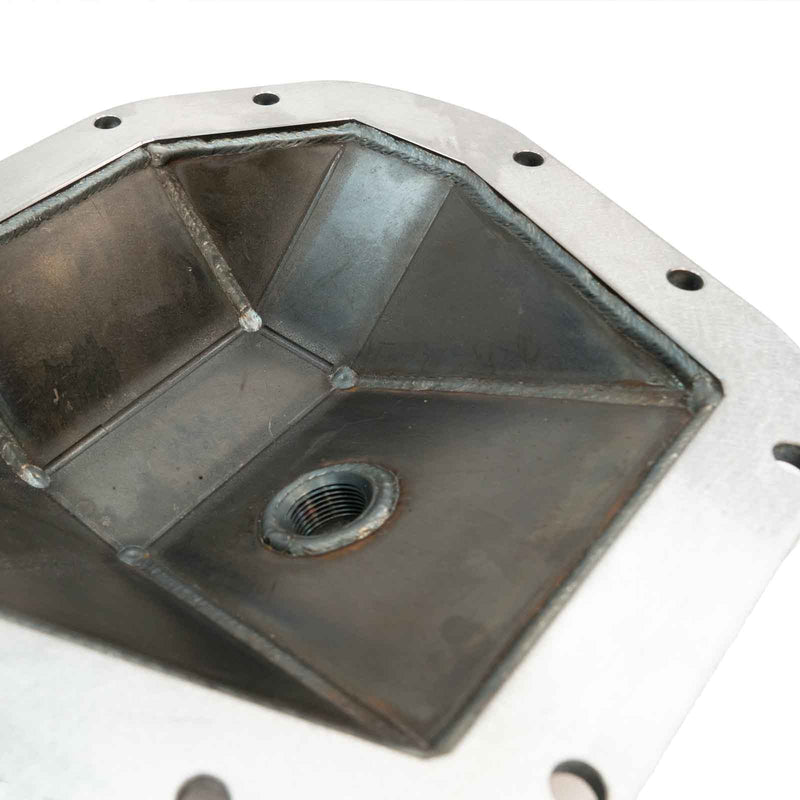

Built from A36 P&O steel, this cover uses a one-piece 3/8" plate cap bent in 8 places and welded to a 3/8" ring for serious impact resistance. After welding, the flange is machined perfectly flat so it seals up clean—no fuss, no leaks—whether you’re daily driving or banging through the rocks.

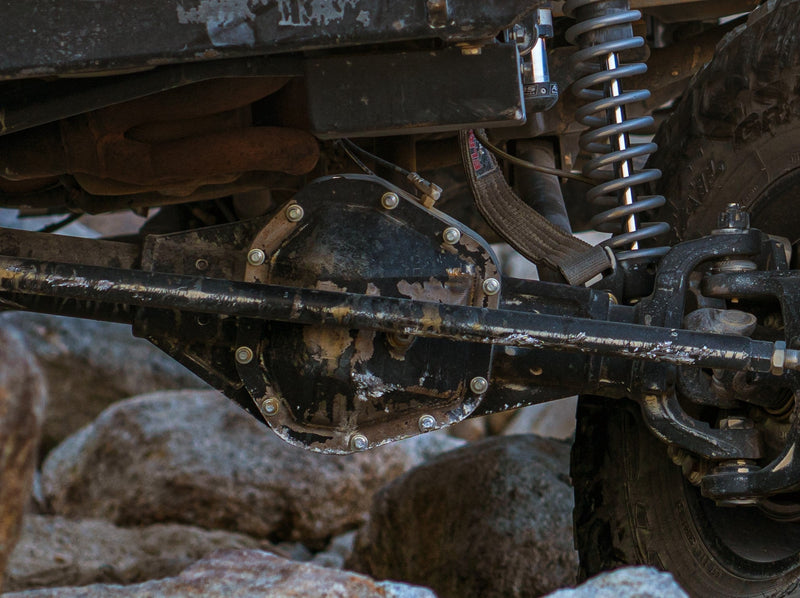

Engineered specifically for the Super Duty front axle, the low-profile shape clears the steering linkage and won’t interfere with the ring gear like a standard D60 cover can. It’s a straightforward upgrade that adds real protection without complicating the install.

Key Features

• Part Number: R2258
• Fits: 1999–present Ford F-250/F-350 Dana 60 front; 1999–2005 Excursion Dana 50 front
• Low-profile design clears steering linkage; no ring gear interference
• 3/8" plate steel cap (bent 8 ways) welded to a 3/8" ring
• A36 P&O steel construction
• Machined-flat sealing surface

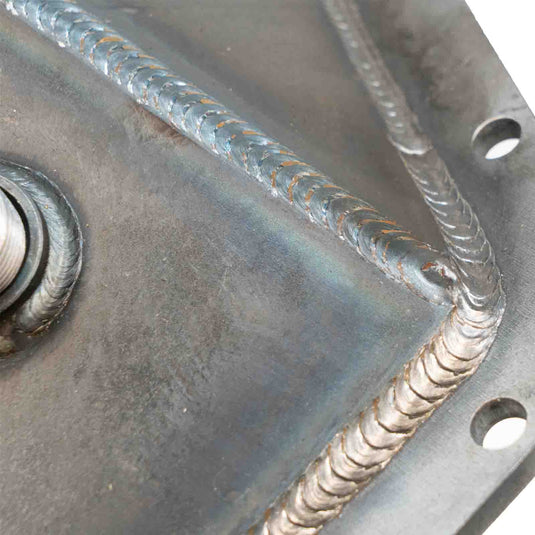

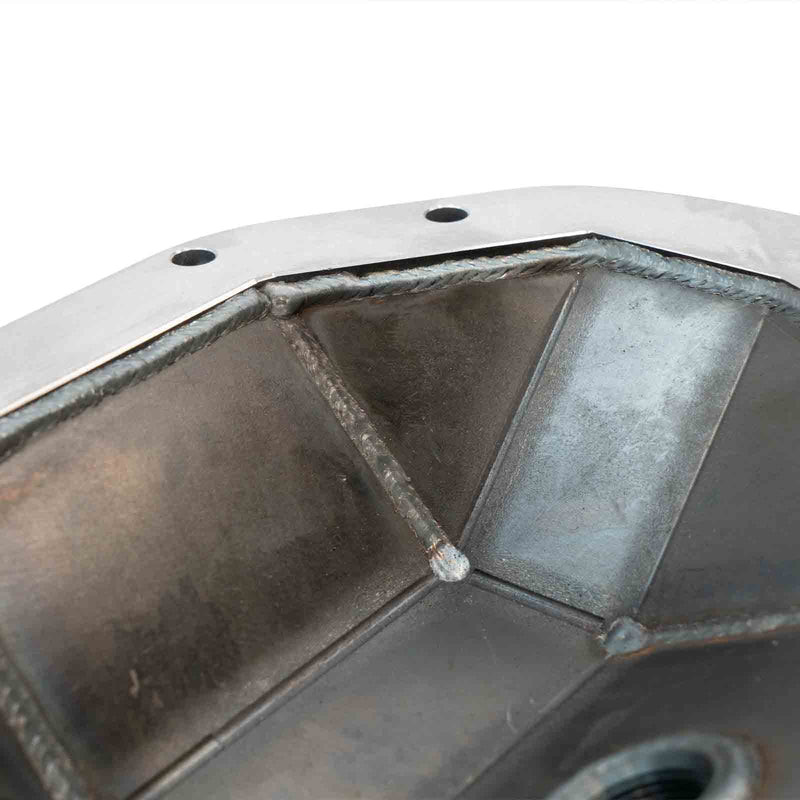

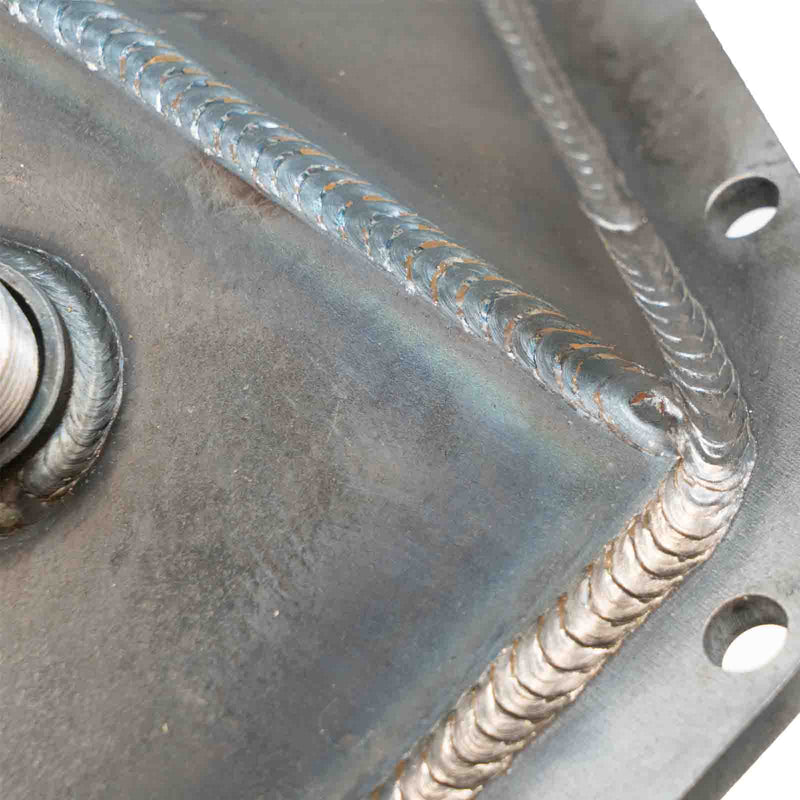

• All seams fully welded inside and out
• Includes mounting hardware
• Lifetime warranty on differential covers

What's Included

• Super Duty Dana 60/50 differential cover
• Mounting hardware

Note

Direct bolt-on installation. Does not fit TTB front axles or non–Super Duty Dana 60 housings. Lifetime warranty on the differential cover.
