Load image into Gallery viewer, Fox Bump Stops

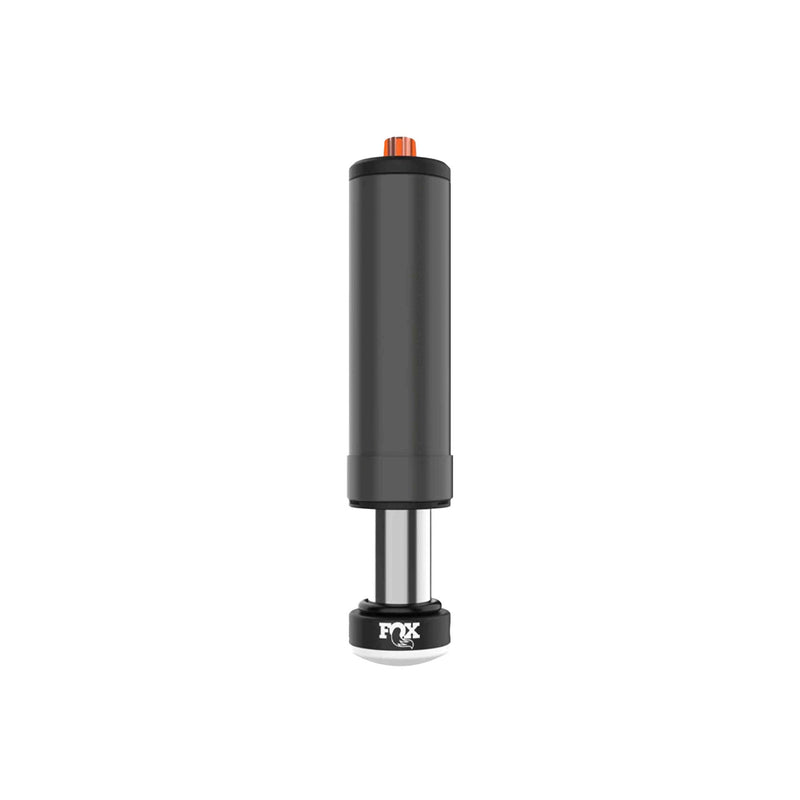

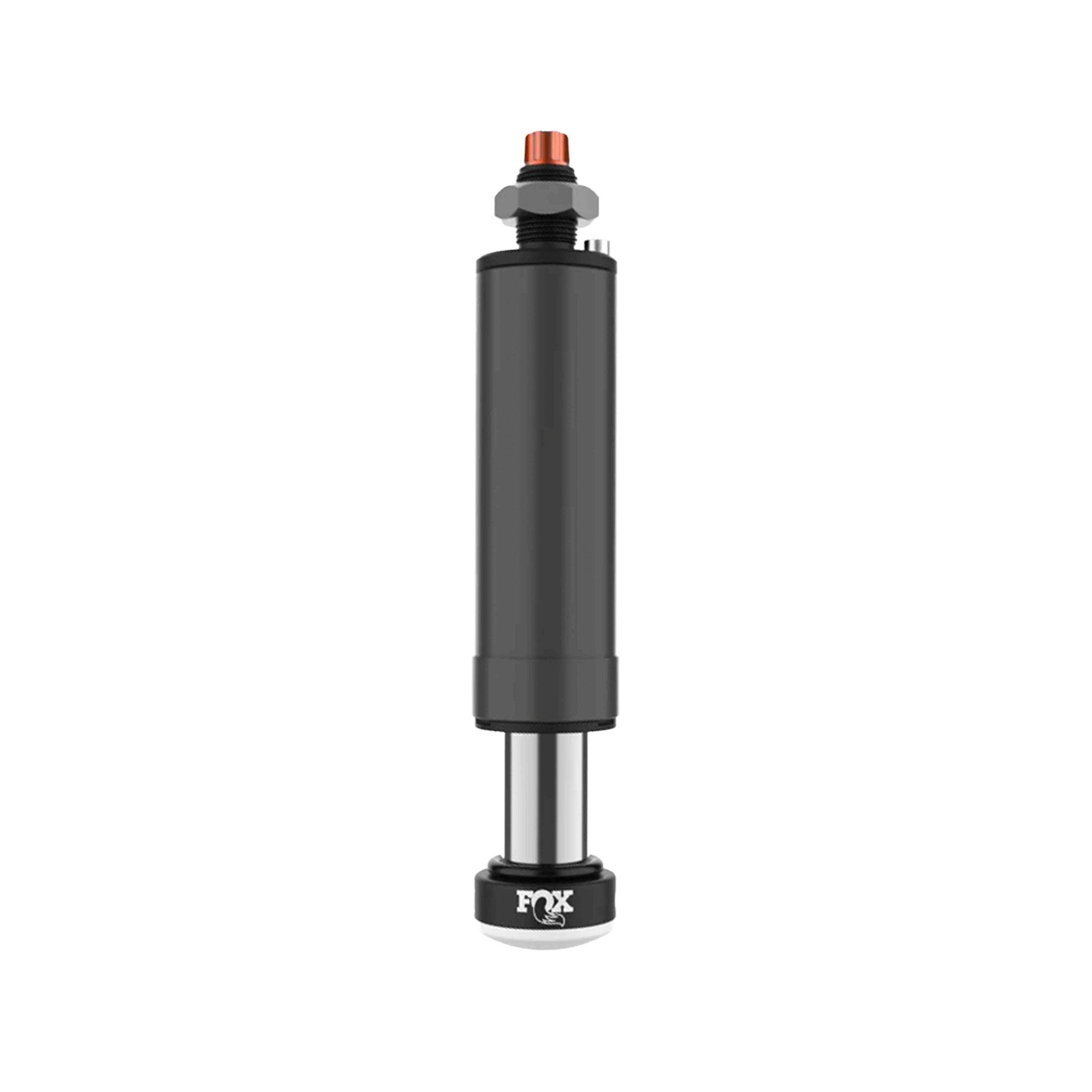

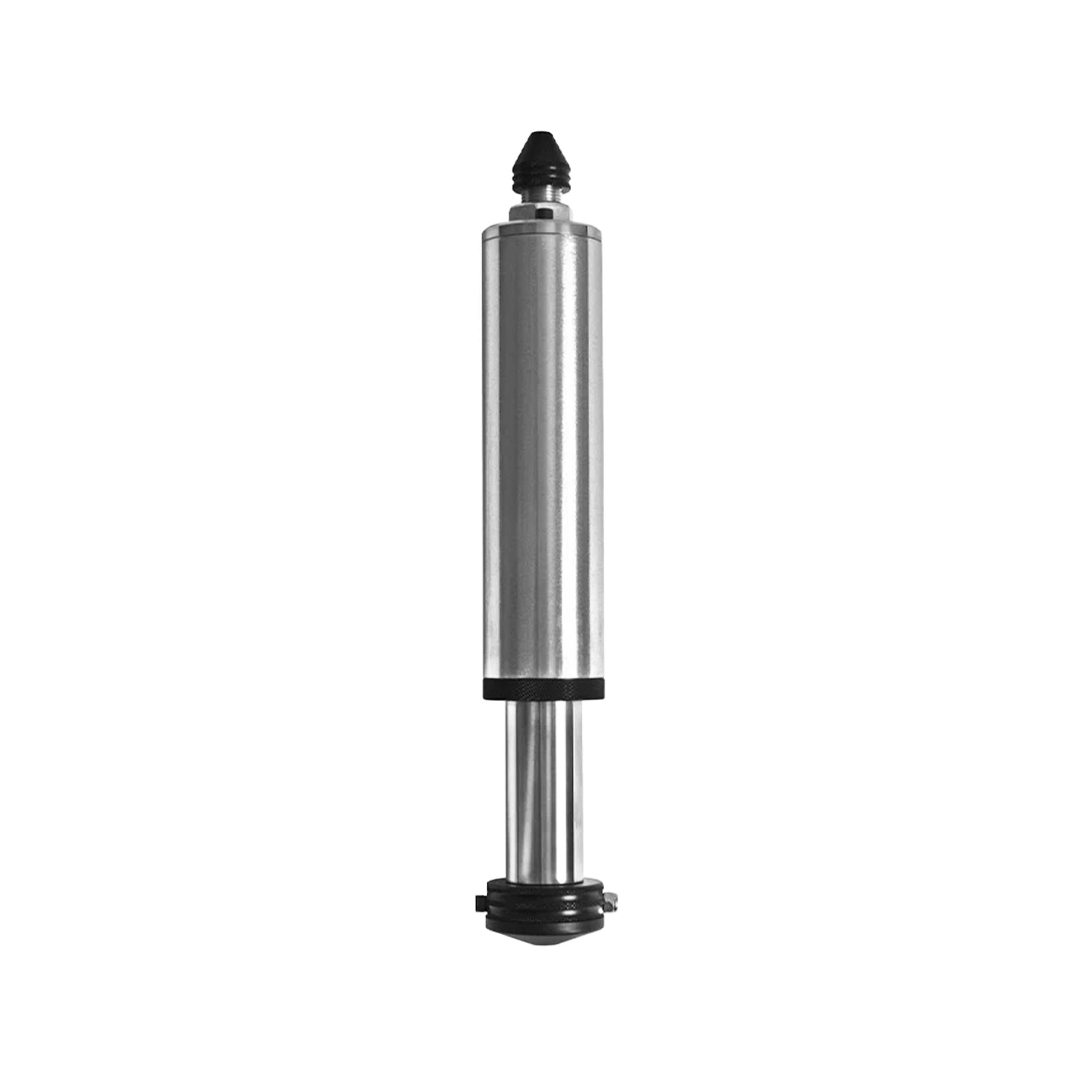

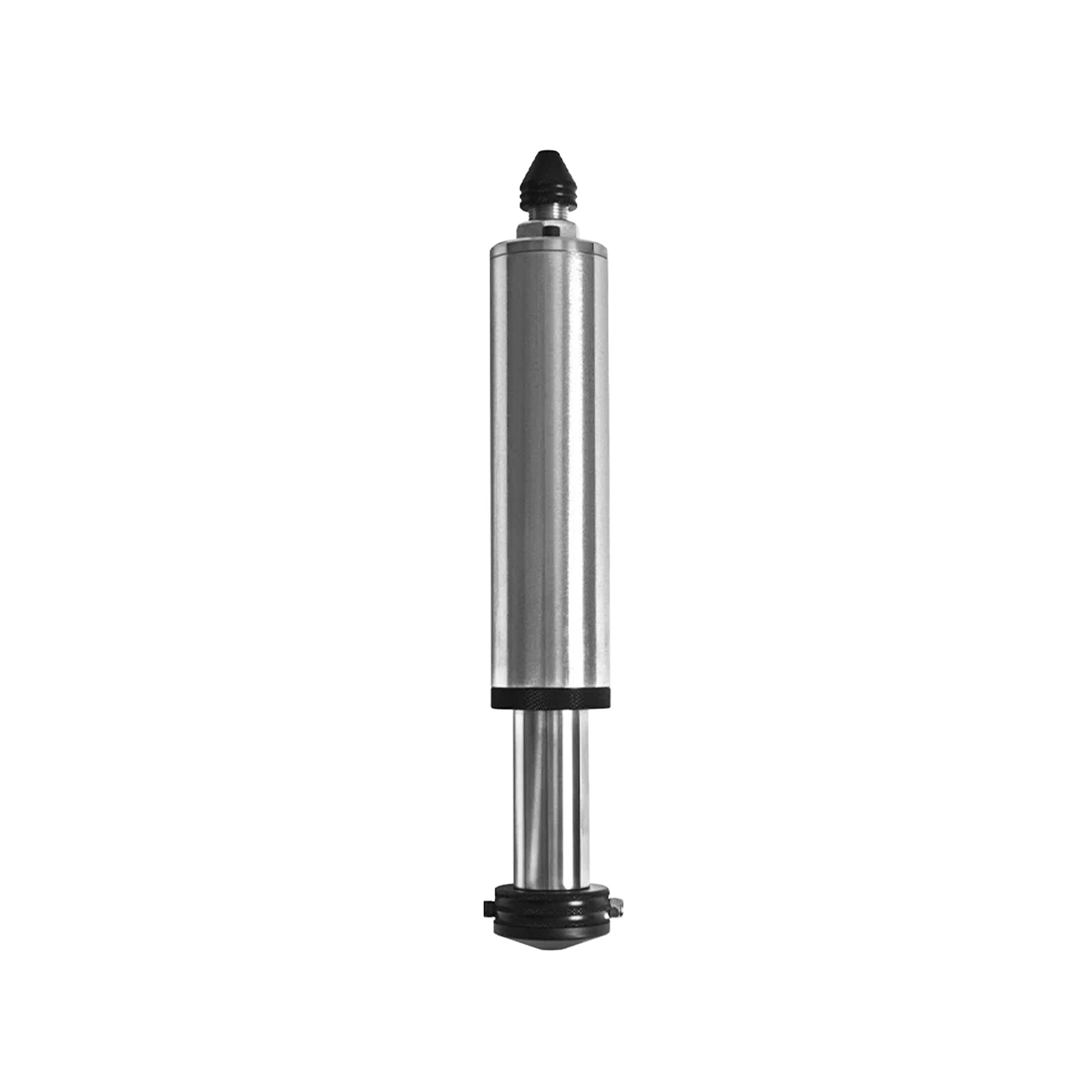

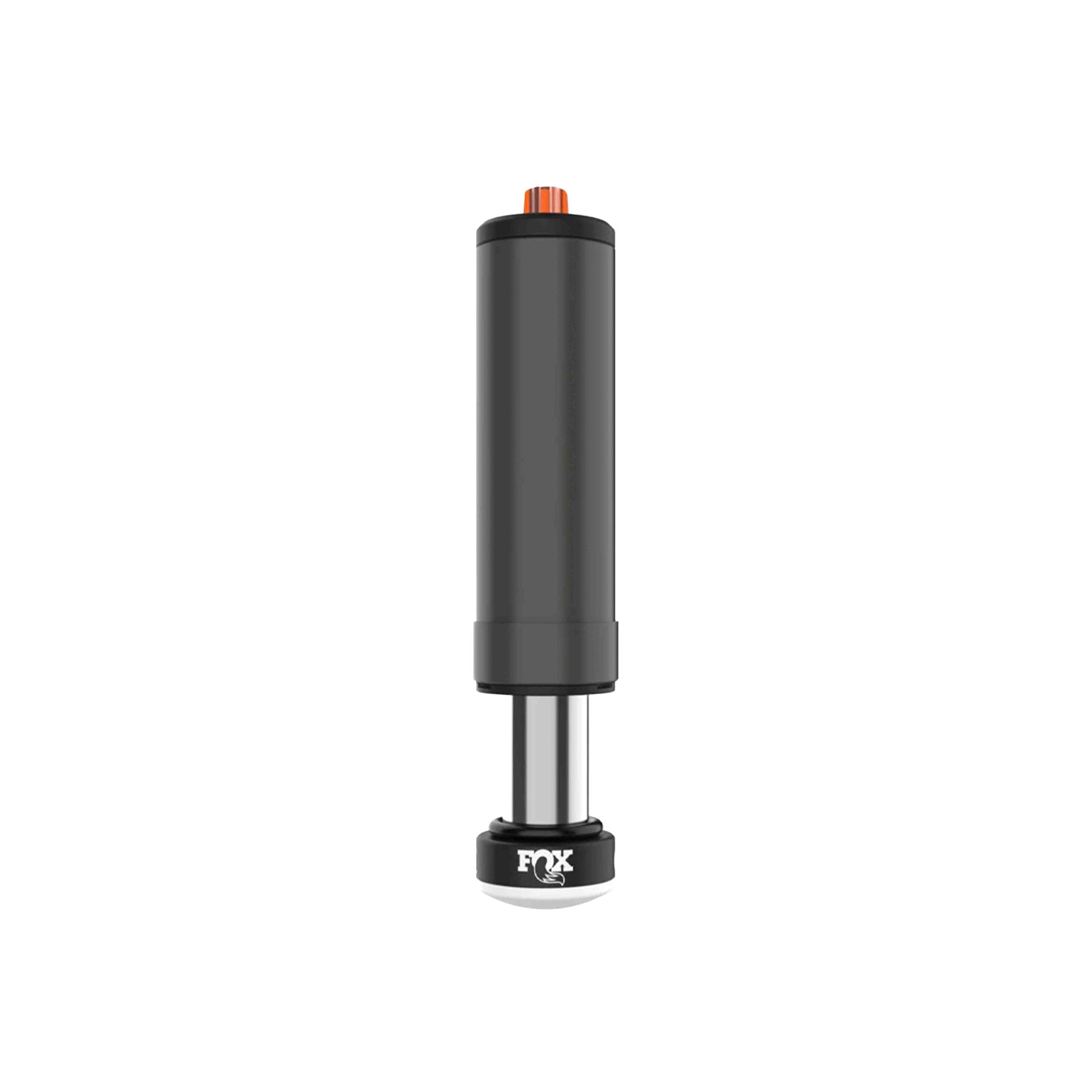

Fox Bump Stops

Name: Fox Bump Stops
Brand: Dirt King
SKU: Make Selection
Price: 254.95 USD
Availability: InStock

Dirt King

$254.95

Sale Sold out

Select

2.0" x 2.0" (Stem Top) Sold out

2.0" x 2.0" (Pinch Style) Sold out

2.0" x 4.0" (Pinch Style) Sold out

2.5" x 2.45" (Pinch Style) Sold out

2.5" x 2.45" (Stem Top) Sold out

2.5" x 3.75" (Stem Top) Sold out

Quantity must be 1 or more

Description

Off-road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control of the last few inches of suspension travel. By applying our race-proven damping technology in a purpose-built, stand-alone component, you can use every bit of suspension travel without harsh bottoming.

The built-in FOX Air Valve (FAV) Valve allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.

Specifications

Manufacture: Fox

What's Included

1 Fox Bump Stop

Features

Body	Smooth bore and honed seamless steel
Body Plating	Zinc plated and clear coated for a long lasting finish
Components	Black anodized, CNC machined 6061-T6 billet aluminum
Valving	Tunable, velocity sensitive deburred valve shims
Seals	Redundant sealing pack system, main seal, wiper seal, scraper seal
Pad	Replaceable Delrin® strike pad
Shafts	Hard chromed 4130 steel
Options	Custom compression and rebound valving available (Add -1 to end of part number)
Adjustments	Nitrogen Pressure
Top Mount	Eyelet
Bottom Mount	Eyelet
Reservoir	Emulsion
Valving	STANDARD

Compatibility

Universal
