Frame Coil Bucket, Offset

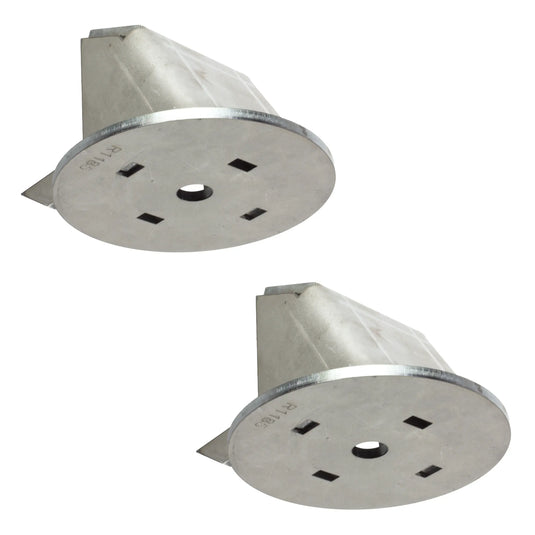

Offset Frame Coil Buckets (Pair)

Offset your coil spring mounts 2" in or out for better clearance and control.

These offset coil buckets are built for custom suspension setups where centered coils just don’t work — whether you're avoiding frame interference, link brackets, or tight packaging. They're designed to move the coil spring either 2" inside or 2" outside of the frame rail, giving you more control over coil placement on full custom or reworked rigs.

Each bucket is cut from 1/4" steel and pairs with pads and retainers for 2.5" coilovers, 4.5", or 5.5" coil springs. They’re made to weld directly to the frame and work cleanly with our lower coil spring mounts. 3/4" Grade 8 hardware is included to lock everything down once it’s dialed in.

Key Features

• Part Number: R1374
• Offsets coil spring 2" inside or 2" outside of frame rail
• 1/4" HR steel construction
• Compatible with 2.5" coilovers, 4.5", or 5.5" coil springs
• Works with RuffStuff coil spring pads and retainers
• Includes 3/4" Grade 8 hardware
• Welding required

What's Included

• (2) Offset frame coil buckets
• (2) 3/4" Grade 8 bolts and hardware

Start your selection

Note

Welding required. These buckets are designed to weld directly to the frame and move the coil spring 2" inboard or outboard from center. Use with RuffStuff lower coil spring mounts and matching pads/retainers based on spring size. Coil pad and retainer sold separately.
