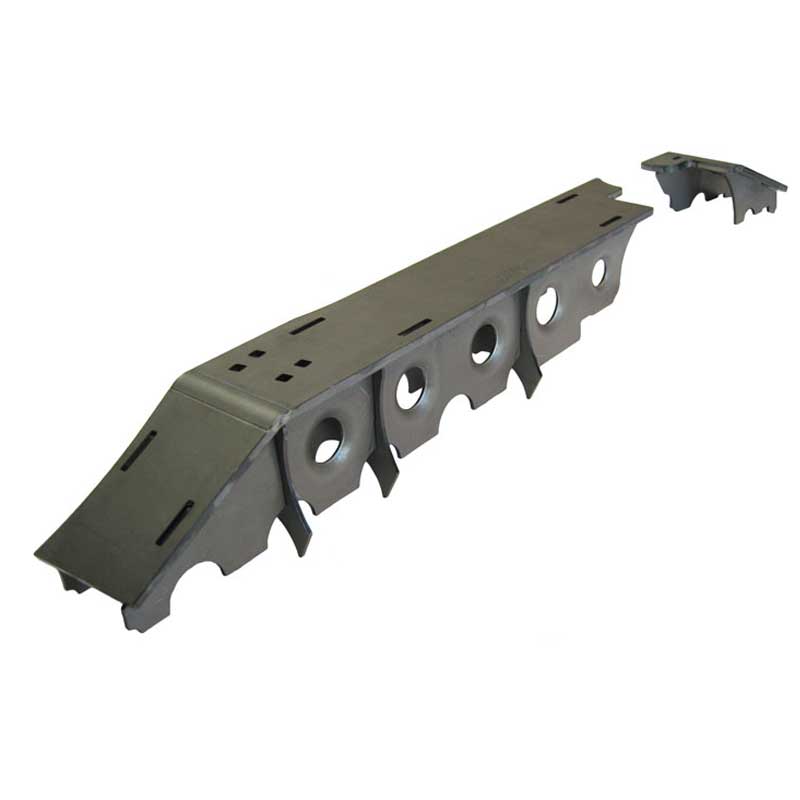

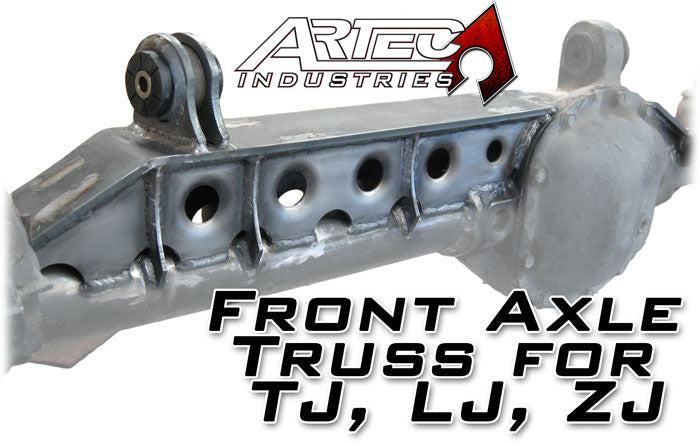

Front Axle Truss for TJ, LJ, ZJ
This heavy duty and light weight truss system is designed to take serious abuse and reinforce your front 30 or 44 TJ/LJ axle. The 1/4" thick truss top and 10Ga. gusseting incorporates a unique design to strengthen both axle tubes, not just the long tube. The precision cut and formed components of this setup ensure a hassle-free installation. Not only do we offer a truss, but you can also get a COMPLETE POLYURETHANE BUSHING REPLACEMENT for your upper control arms, or you can even upgrade to RockJock Johnny Joints.
Axle model options:
Features include:
|
 |
NOTE: This kit requires general welding and fabrication skills including welding to the cast center section. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
** In rare and extreme cases, the truss may come into contact with oil pan. Prior to operating the vehicle, remove the coil springs, cycle the suspension including full compression of both sides simultaneously and add bumpstop extensions to prevent damage to oil pan.
