Full Hydro Tie Rod Kit

Full Hydro Tie Rod Kit for PSC Double-Ended Ram

Everything you need to tie into your PSC full hydro setup — strong, simple, and adjustable.

This kit gives you a ready-to-go tie rod setup for your PSC double-ended hydraulic ram using clevis mounts. Built with 1.5" x .25" wall DOM tubing and heat-treated 4130 chromoly heims, it’s made to take serious trail abuse without question. The hex head weld-in bungs make fine-tuning the final length easy and clean — no guessing, no spinning the whole rod.

If you’re building a full hydro setup from scratch or upgrading a trail-worn system, this kit has everything you need to get your tie rod locked in right. Simple, solid, and ready to work.

Key Features

• Part Number: R1355
• Designed for PSC double-ended rams with clevis mounts
• 1.5" x .25" wall DOM tubing (12" length)
• Heat-treated 4130 chromoly 3/4" heims (RH & LH)
• Hex head weld-in bungs for easy adjustability
• Thread pitch: 3/4" with 3/4" bore

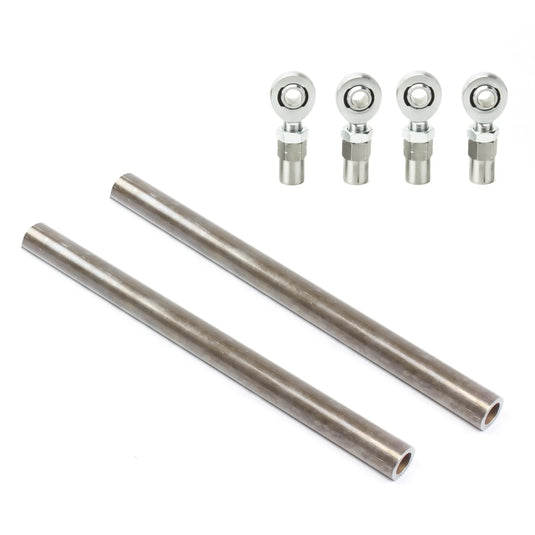

What's Included

• (2) RH 3/4" x 3/4" bore heat-treated chromoly heims
• (2) LH 3/4" x 3/4" bore heat-treated chromoly heims
• (2) RH 3/4" hex head tube adapters (for 1" ID tube)
• (2) LH 3/4" hex head tube adapters (for 1" ID tube)
• (2) RH 3/4" jam nuts
• (2) LH 3/4" jam nuts
• (2) 12" long 1.5" x .25" wall DOM tubes

Note

Bolt-on tie rod solution for use with PSC double-ended rams. Threaded and ready to assemble — welding not required unless modifying tube length. Be sure to verify ram clevis spacing before installation.
