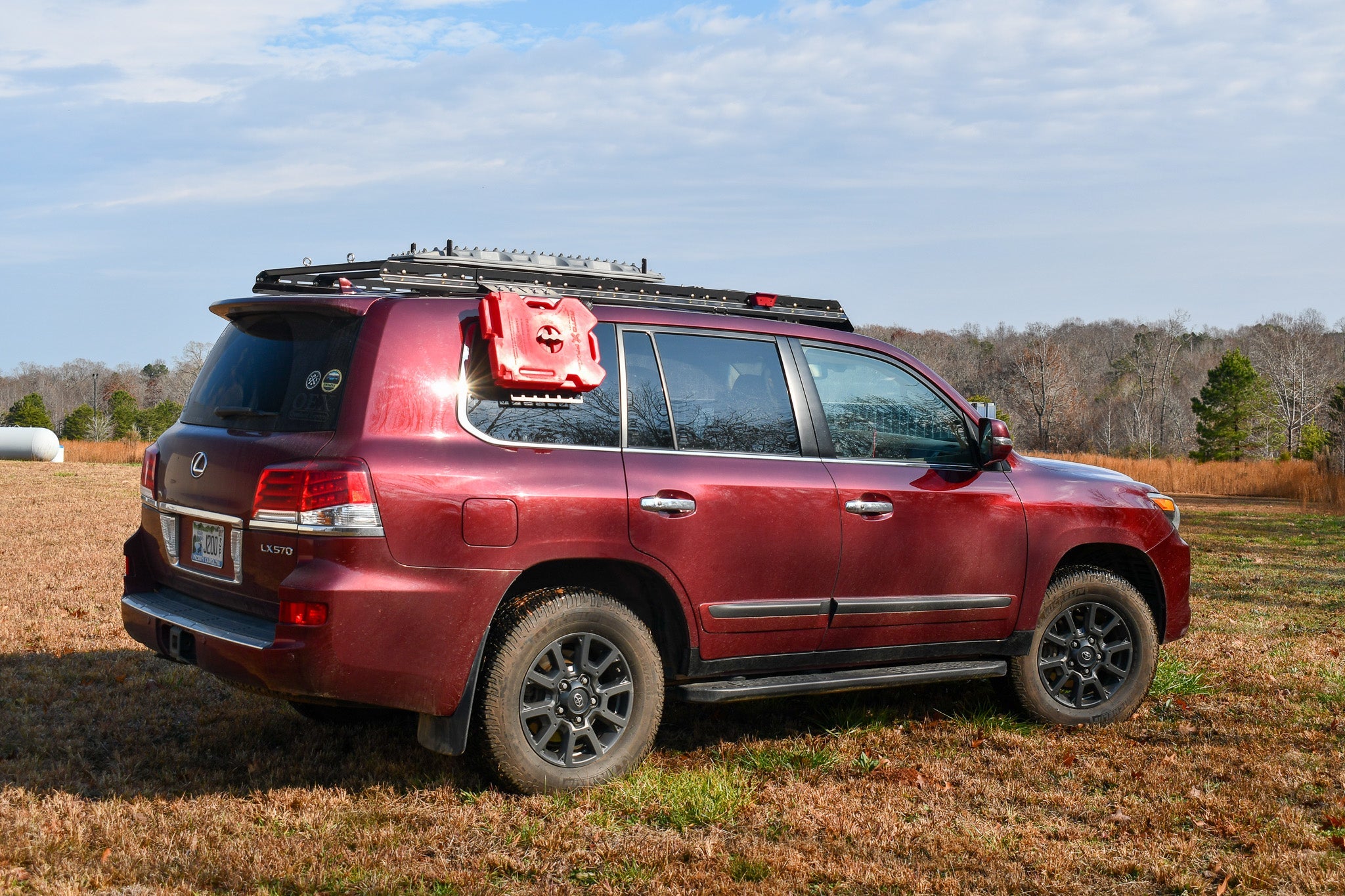

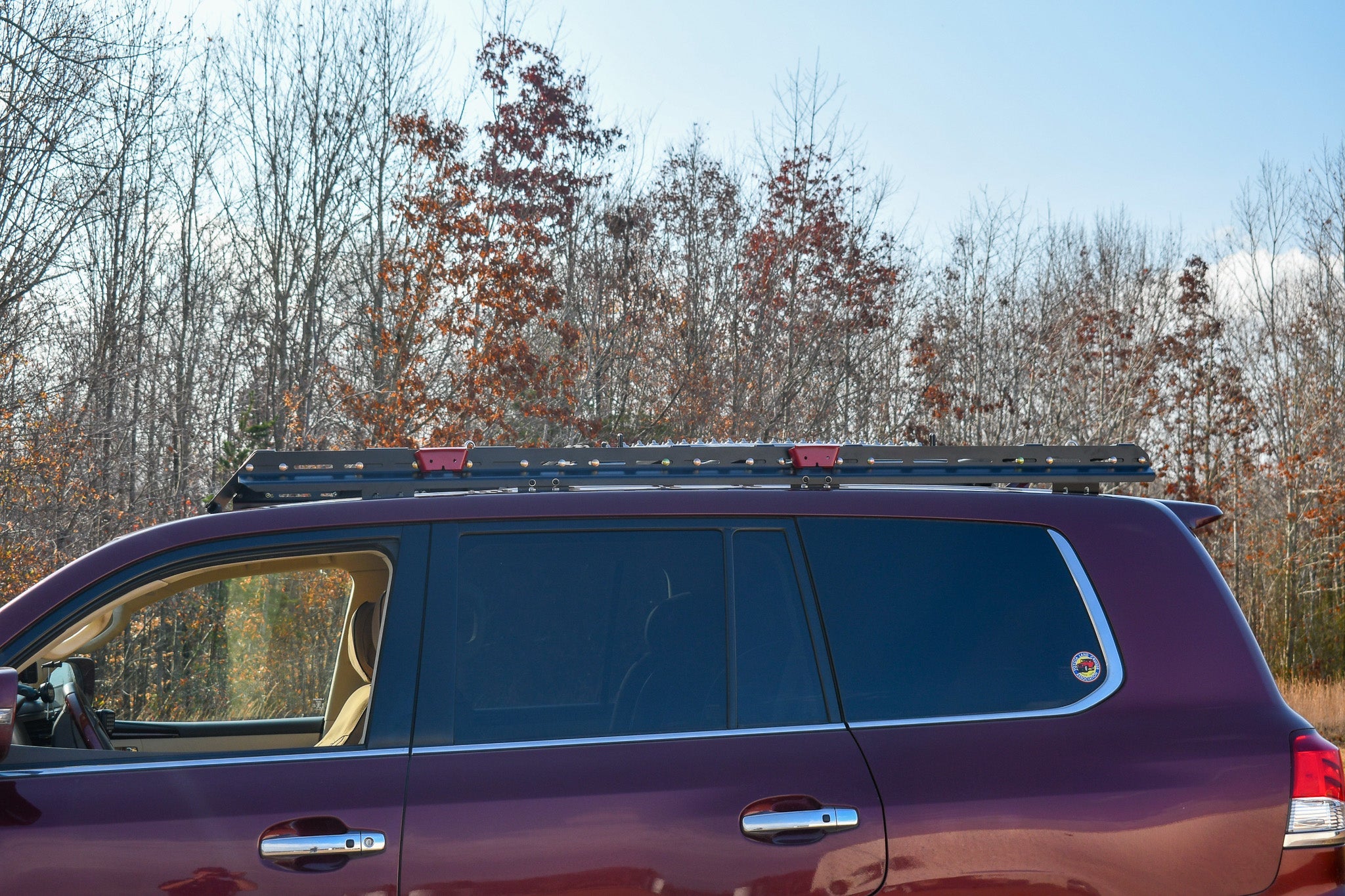

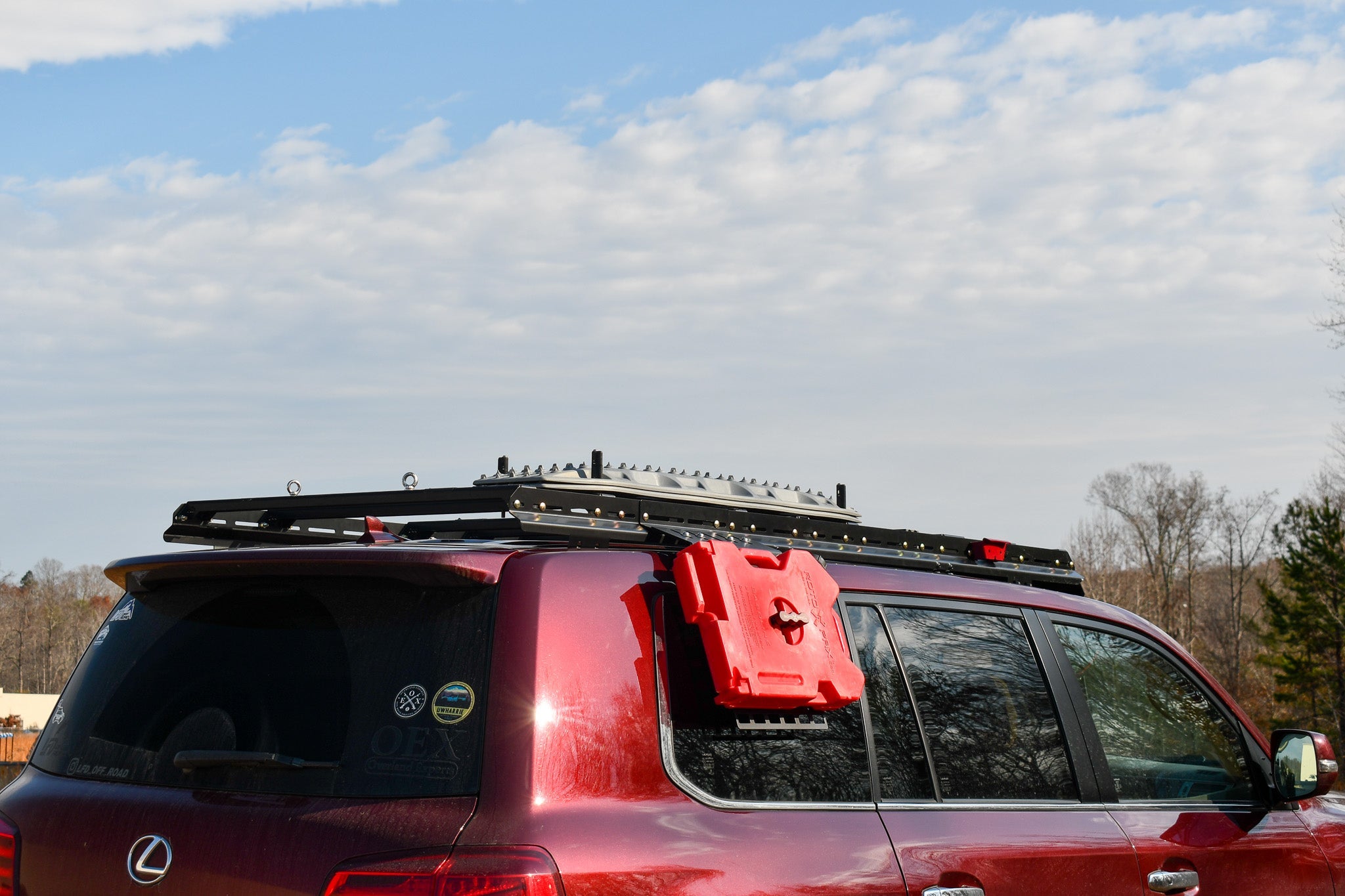

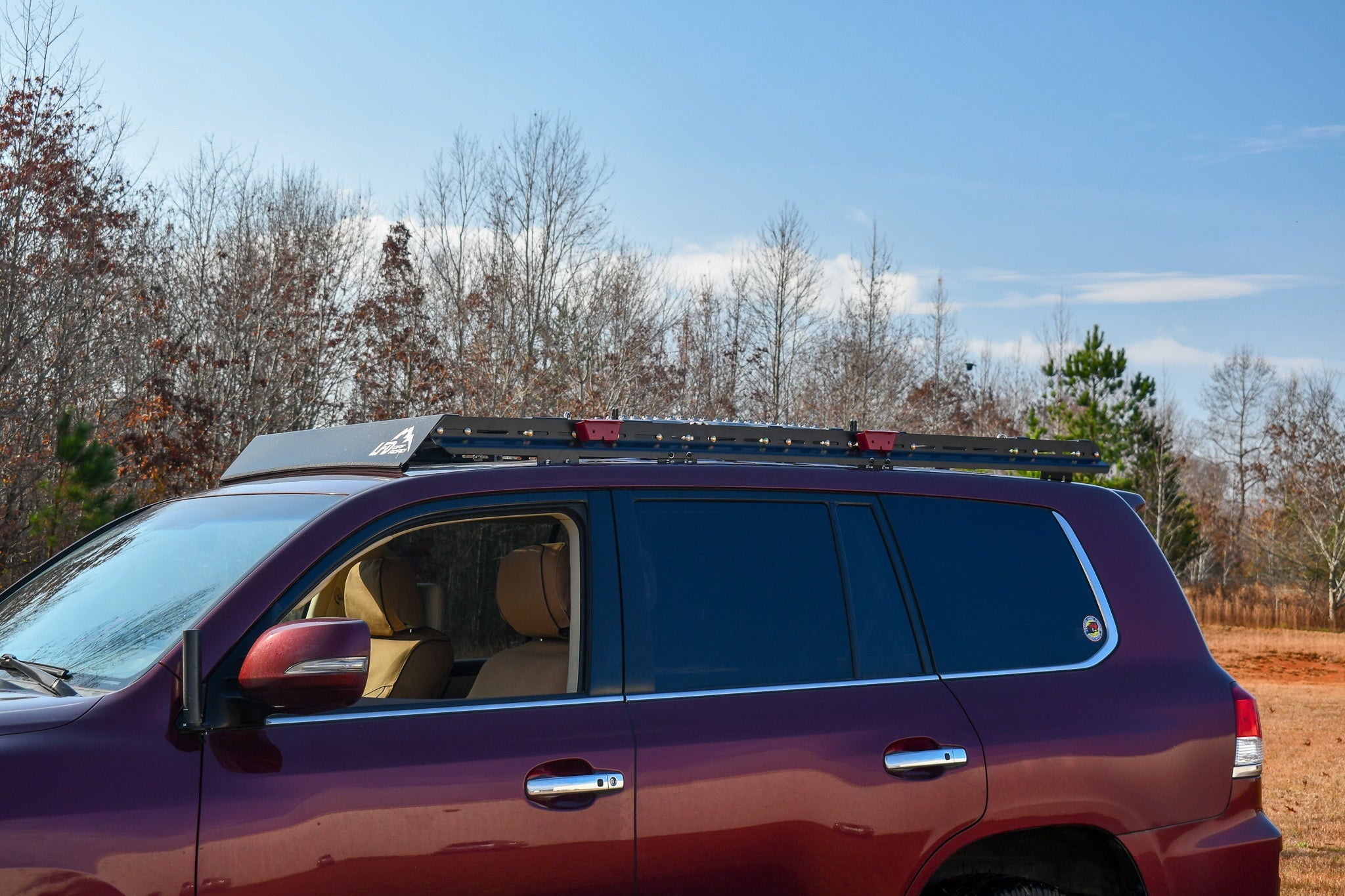

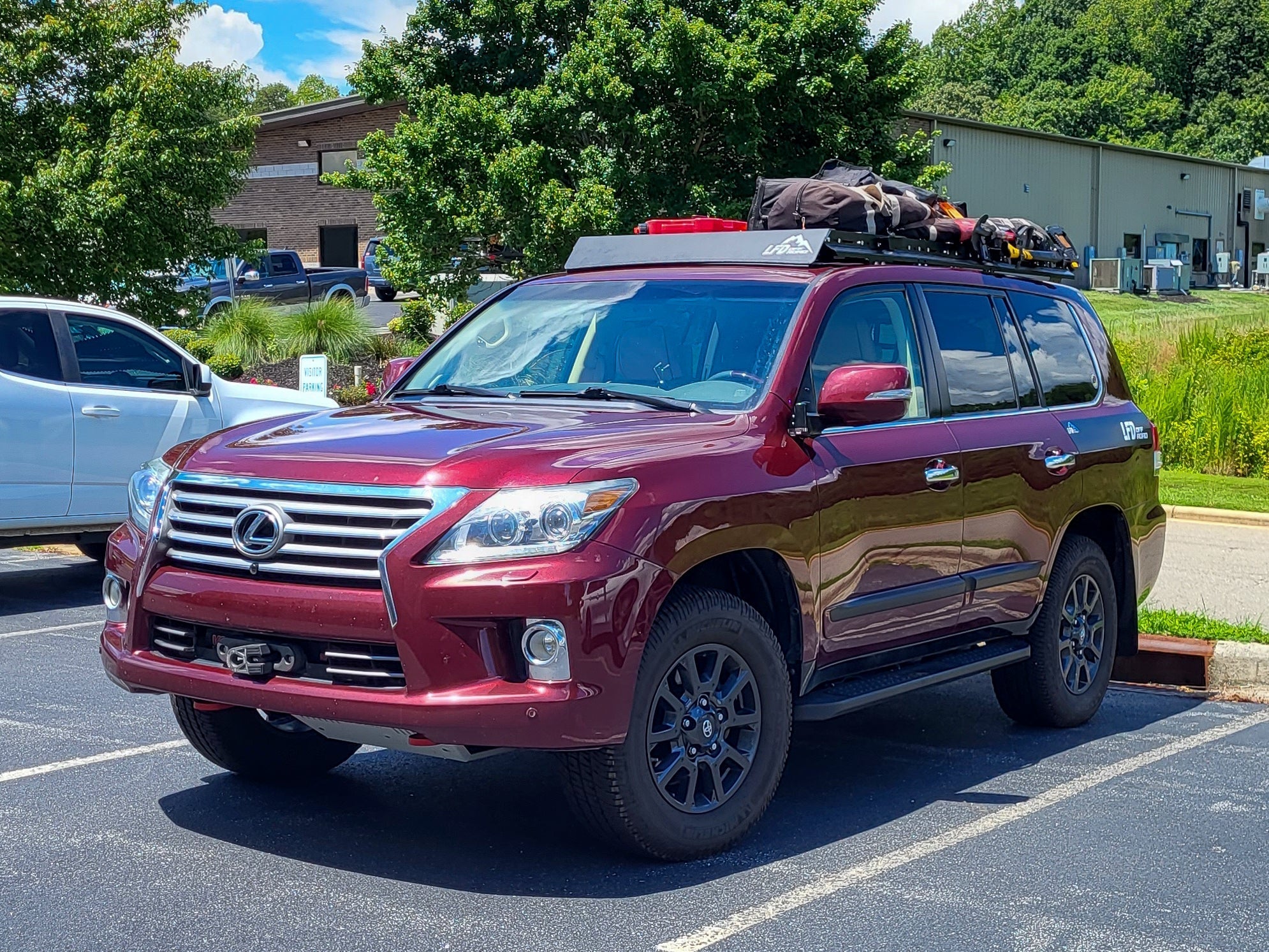

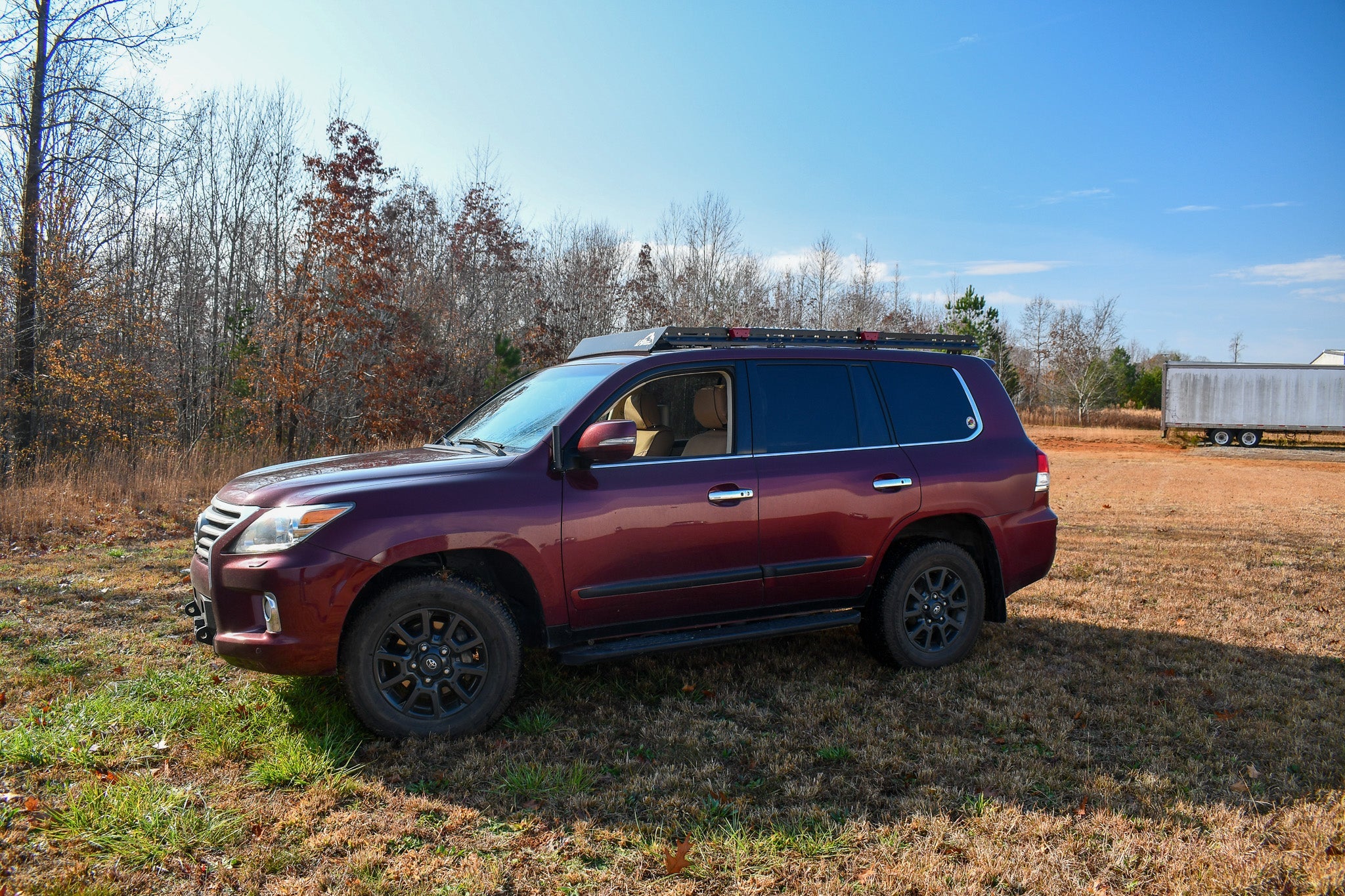

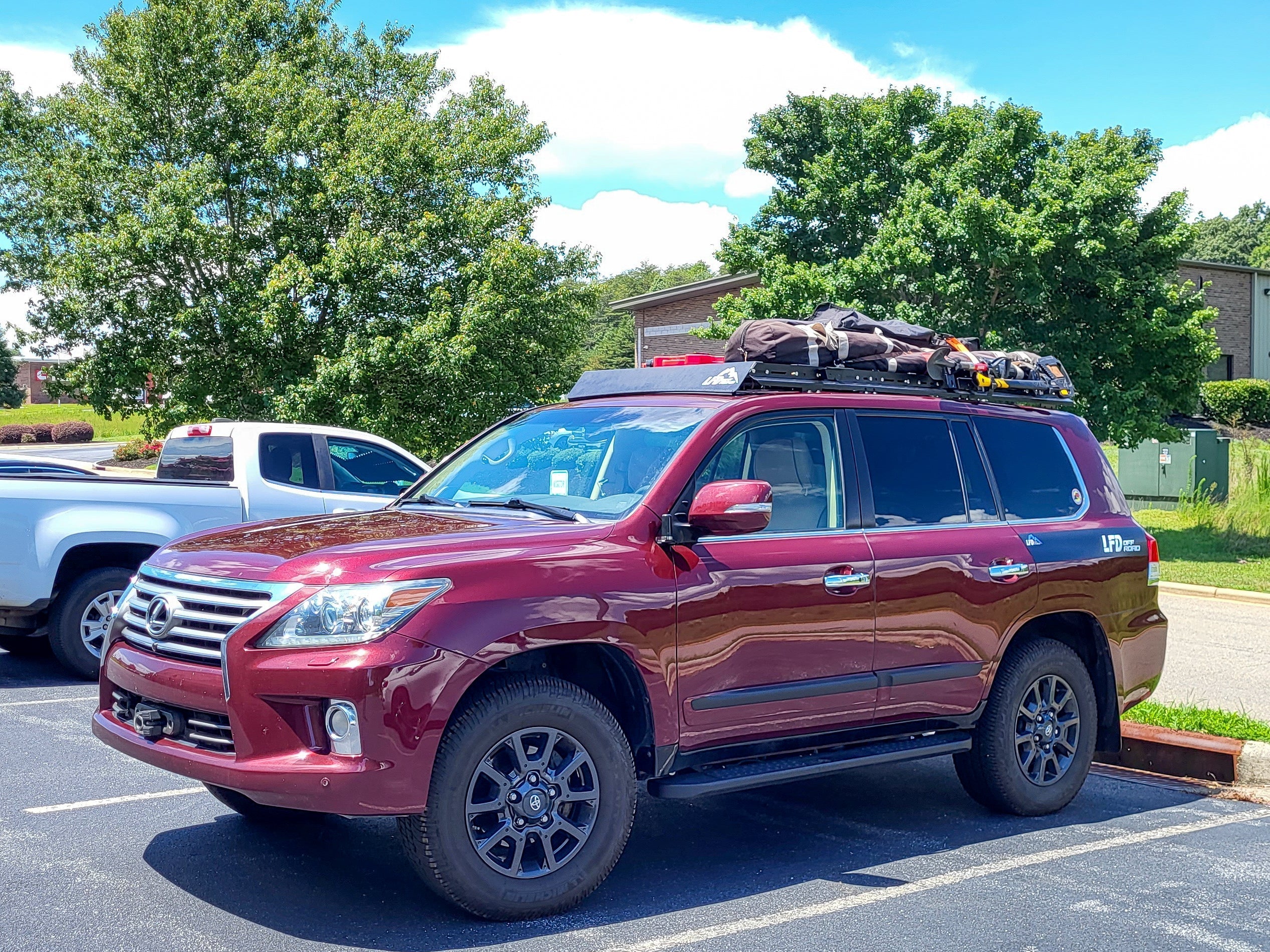

Our new roof rack for the LX570 offers a strong, rugged, and highly customizable roof cargo solution designed to help you get the most out of your roof rack!
This rack is not compatible with our LX570 Crossbars, but the rack does install fine on LX570s. Fits 2008-2021 LX570, however 2016-2021 models will require removal of the headliner for installation.
The side rails are constructed of 11 gauge Stainless Steel for excellent strength and corrosion resistance and powder coated with the same UV stable automotive grade powder coating as the Ruggedized Crossbars.
The crossbars have mounting slots designed to work with M8 bolts, M8 T nuts, or 3/8" bolts for easy mounting of gear.
The 100% Stainless Steel construction is corrosion resistant, and should not rust with normal use.
Our hardware is Grade 8.8 M8 bolts finished in a harsh environment coating with Nordlock washers and nuts. Nordlock washers are vibration resistant and take quite a bit of torque to loosen once tightened! These washers will not shake loose on the trail!
This listing is for a complete Full Length LX570 Roof Rack. The Roof Rack comes standard with 9 Stainless Steel Ruggedized Crossbars, and a curved wind fairing crossbar, for a total of 10 crossbars.
Grab Handles and Window Panel sold separately.
Toyota specifies a maximum dynamic roof load rating of 300 pounds, and 700 pounds static.
