Fully Welded Tie Rod For Jeep JK

Fully Welded Tie Rod for Jeep JK (2007–2017)

Heavy-duty, bolt-on tie rod upgrade for JKs running GM 1-ton steering.

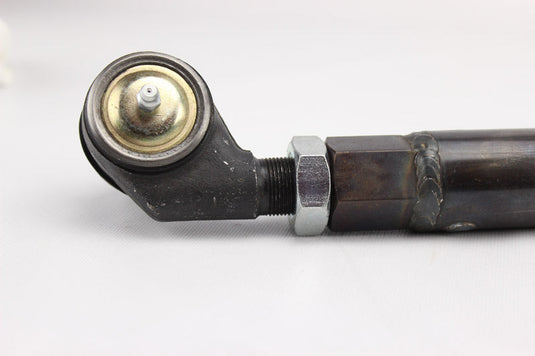

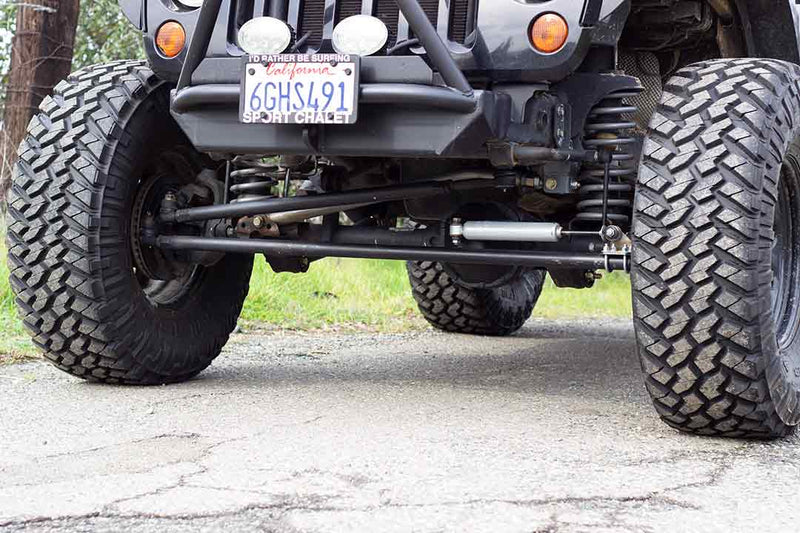

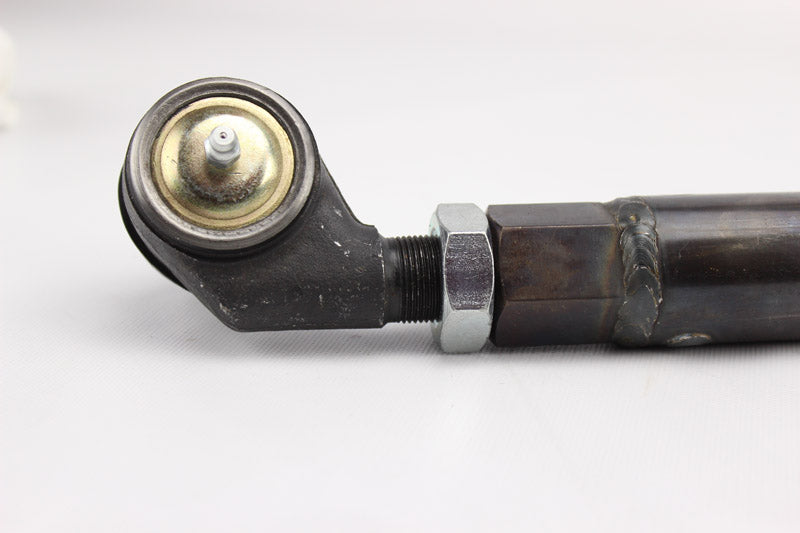

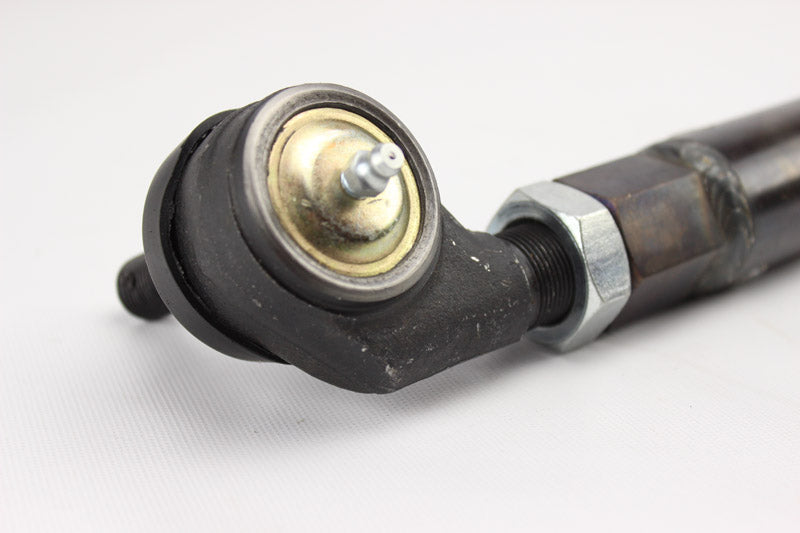

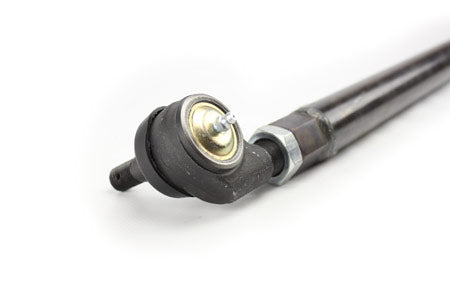

This fully welded tie rod kit is built specifically for Jeep JK Dana 30 and 44 axles. Using 1.5" x .25" DOM tubing, offset GM 1-ton tie rod ends, and hex head tube adapters, it’s ready to take serious hits and keep your alignment dialed. With the tie rod ends offset to clear JK axle geometry, this is a clean upgrade for off-road JKs running beefier tires and suspension setups.

It’s designed to fit most 17" steel wheels with a max 3.75" backspacing. Factory alloy wheels and deep-offset aftermarket wheels may interfere — always check clearance before installation. Your stock steering stabilizer bracket won’t work with this setup, so plan accordingly. In some cases, the knuckles will need to be reamed for GM 1-ton taper. This is a serious steering upgrade, and the results are worth the effort.

Key Features

• Part Number: R1627
• Fits 2007–2017 Jeep Wrangler JK (Dana 30 & Dana 44)
• Fully welded 1.5" x .25" DOM tie rod
• Includes offset GM 1-ton tie rod ends (1 LH, 1 RH)
• Hex head tube adapters and jam nuts included
• Designed to clear JK axle geometry
• Fits most 17" steel wheels with ≤3.75" backspacing
• Does not fit factory steering stabilizer bracket

What's Included

• (1) 1.5" x .25" DOM tie rod (fully welded)
• (2) Offset GM 1-ton tie rod ends with castle nuts
• (1) RH 7/8" hex head weld bung (18 TPI)
• (1) LH 7/8" hex head weld bung (18 TPI)
• (1) RH 7/8" jam nut (18 TPI)
• (1) LH 7/8" jam nut (18 TPI)

Recommended Upgrades

• Jeep JK Heavy Duty Drag Link Kit (R2022-Kit-1)– Complete your steering upgrade
• Flat Mount Steering Stabilizer Bracket(R1713-Kit-1)
• 90 Degree Steering Stabilizer Bracket(R1530-Kit-1)
• Reamer for GM 1 Ton TREs(R2118)– Required if your knuckles are not pre-reamed
• Tapered Knuckle Inserts(R1354)– For correcting or repairing GM taper fitment

Note

Bolt-on installation. This kit fits most 17" steel wheels with 3.75" or less backspacing. It may not fit OEM wheels or aftermarket wheels with deeper offset. Steering stabilizer bracket must be replaced. Check tie rod clearance at full lock and full compression before driving. Some knuckles may require reaming to accept GM 1-ton TRE taper.
