GM Dana 60 U-Bolt Plates (Front)

GM Dana 60 U-Bolt Plates (Front)

Heavy-duty solution for the unique GM Dana 60 front differential side.

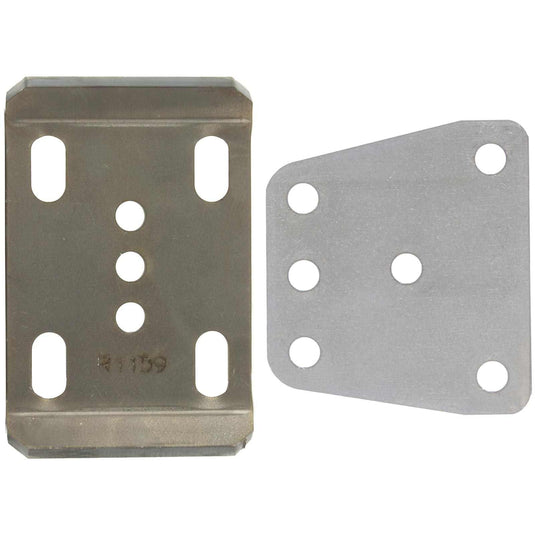

This kit includes a pair of U-bolt plates designed specifically for the GM Dana 60 front axle. The diff-side plate is 1/2" thick, flat, and bend-free to resolve common clearance issues found in GM applications. The matching off-side plate is our proven standard design, rounding out the setup for a secure and clean fit.

We’ve added three stud holes to the diff-side plate, giving you the flexibility to add an extra center stud for additional clamping strength — a simple upgrade that adds real-world durability on and off the trail.

Key Features:

• Part Number: R1158
• 1/2" thick laser-cut steel plate on diff side for GM Dana 60 front
• Flat design to eliminate clearance issues near the pumpkin
• Off-side uses our standard U-bolt plate design
• Three-hole stud-side layout allows optional center stud install

What's Included in the Kit:

• (1) 1/2" thick diff-side U-bolt plate with 3 stud holes
• (1) Standard off-side U-bolt plate

Note:

Designed for the GM Dana 60 front axle. Be sure to confirm U-bolt width and axle tube diameter before ordering. U-bolts and hardware are not included.
