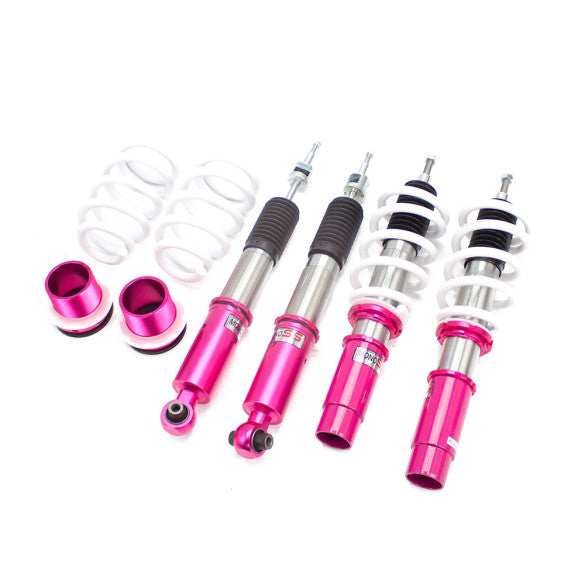

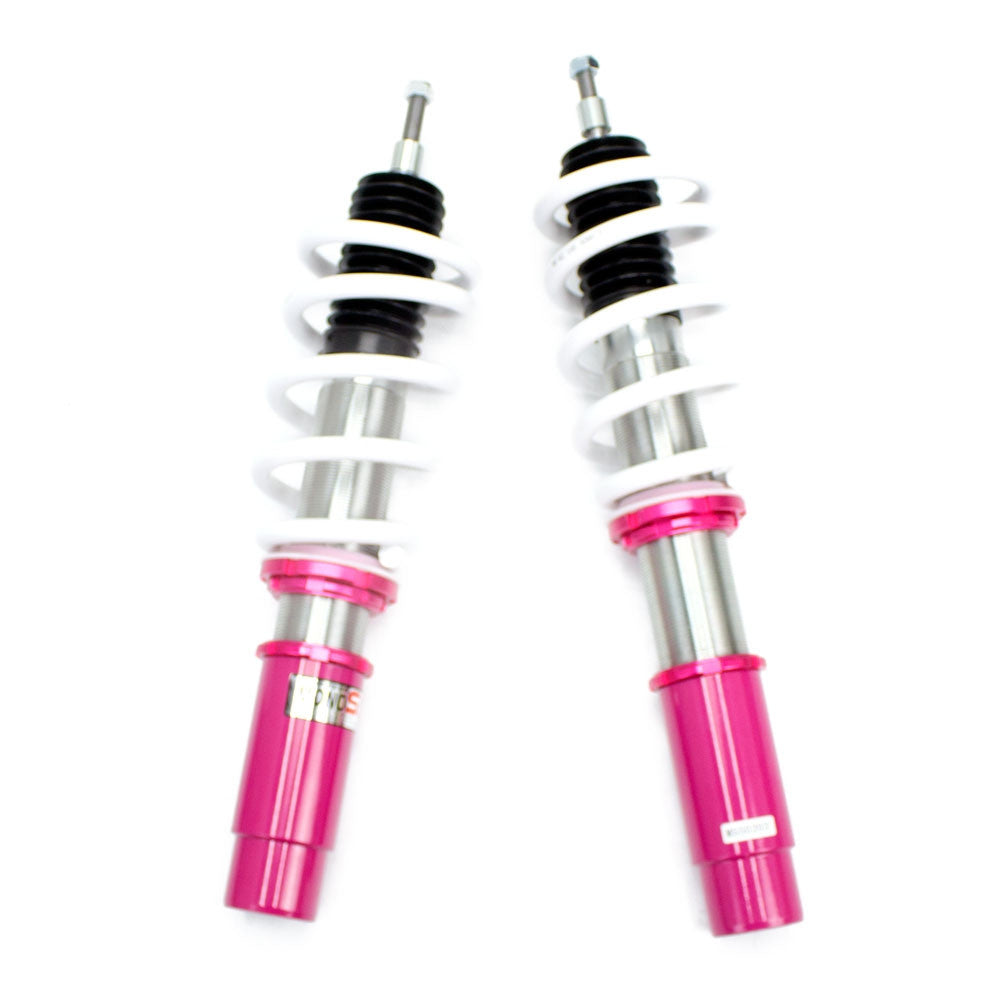

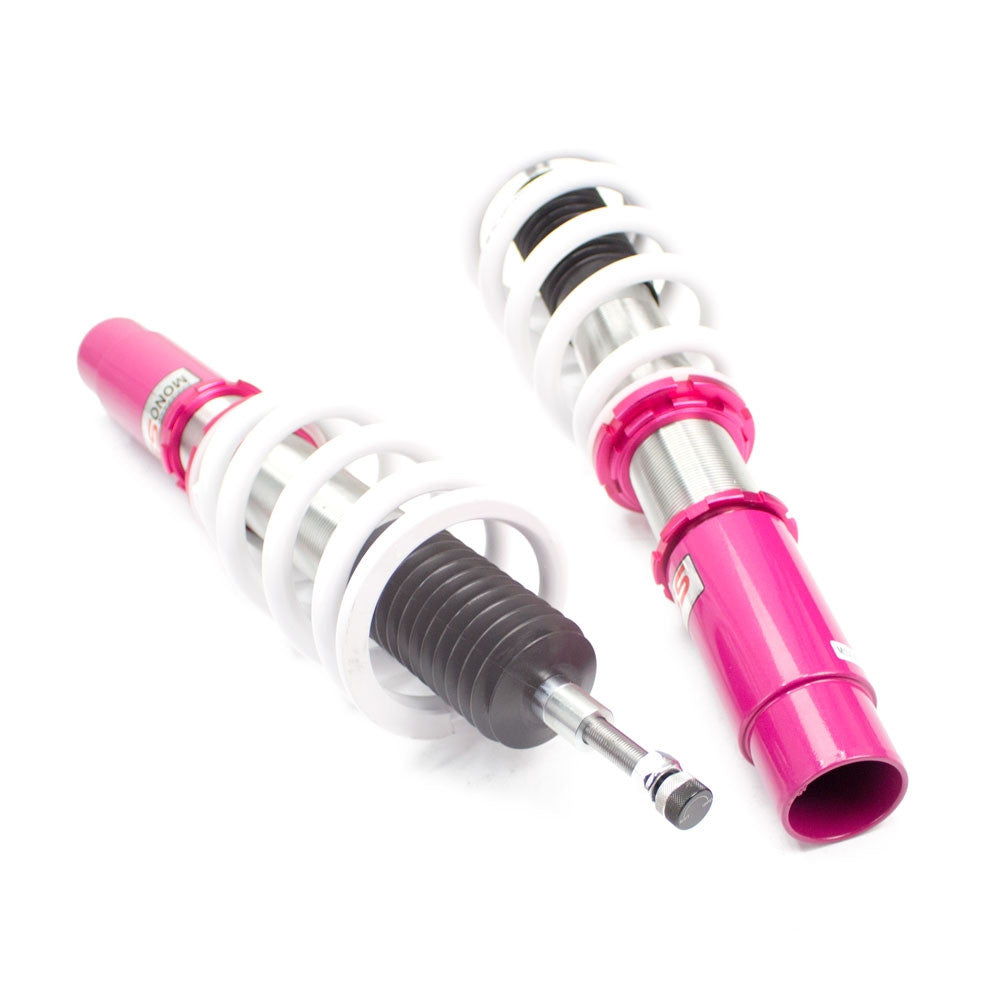

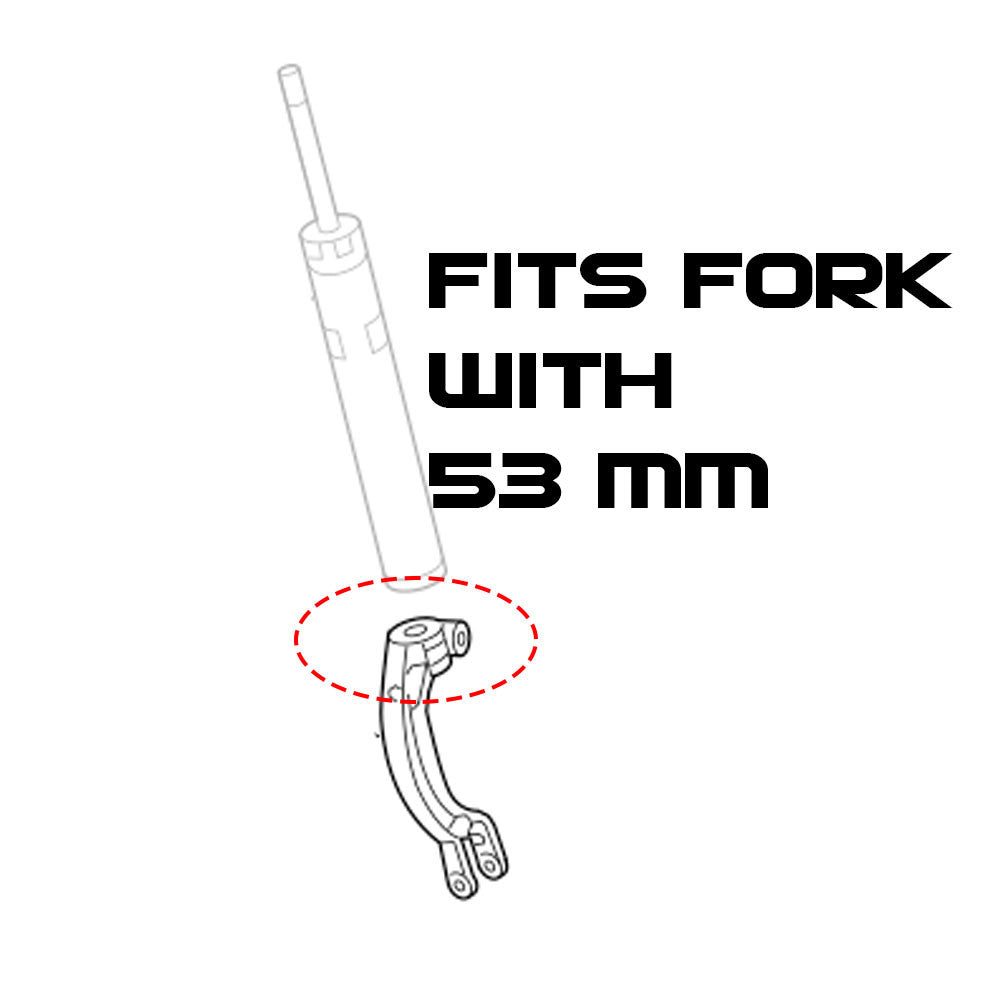

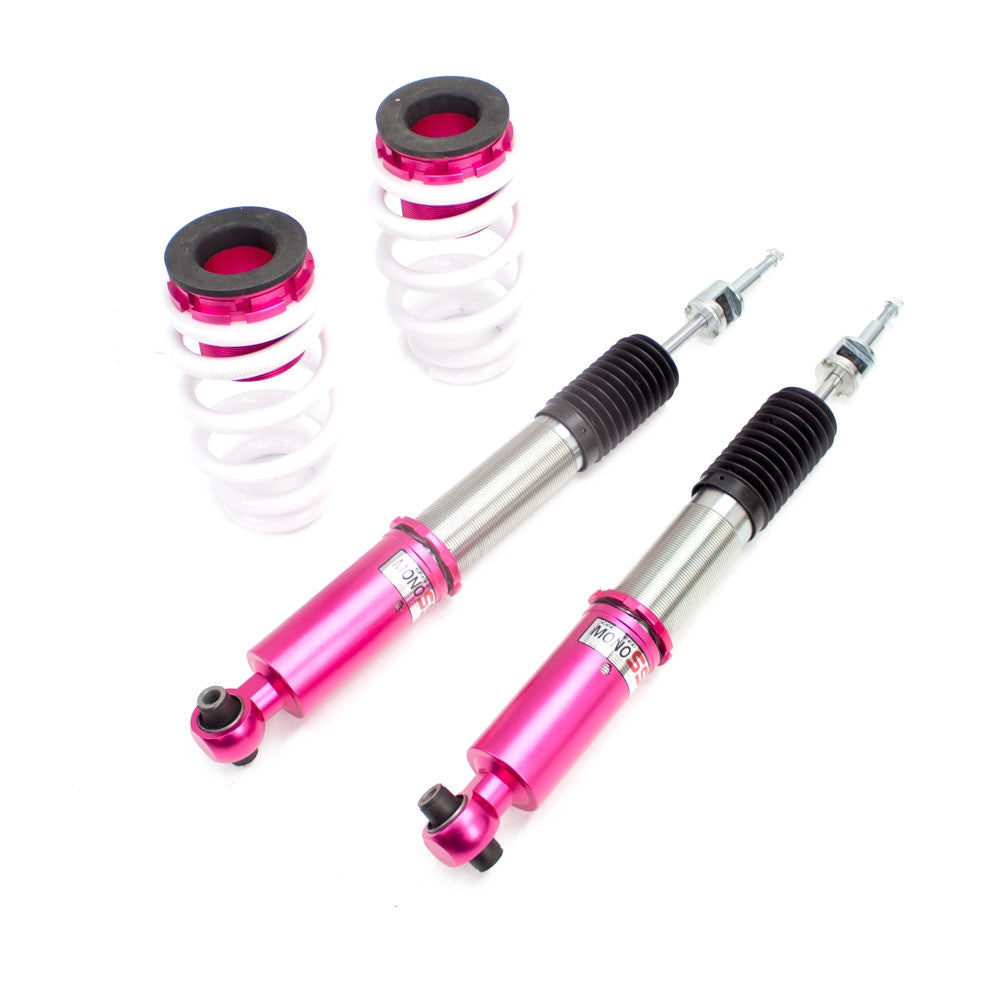

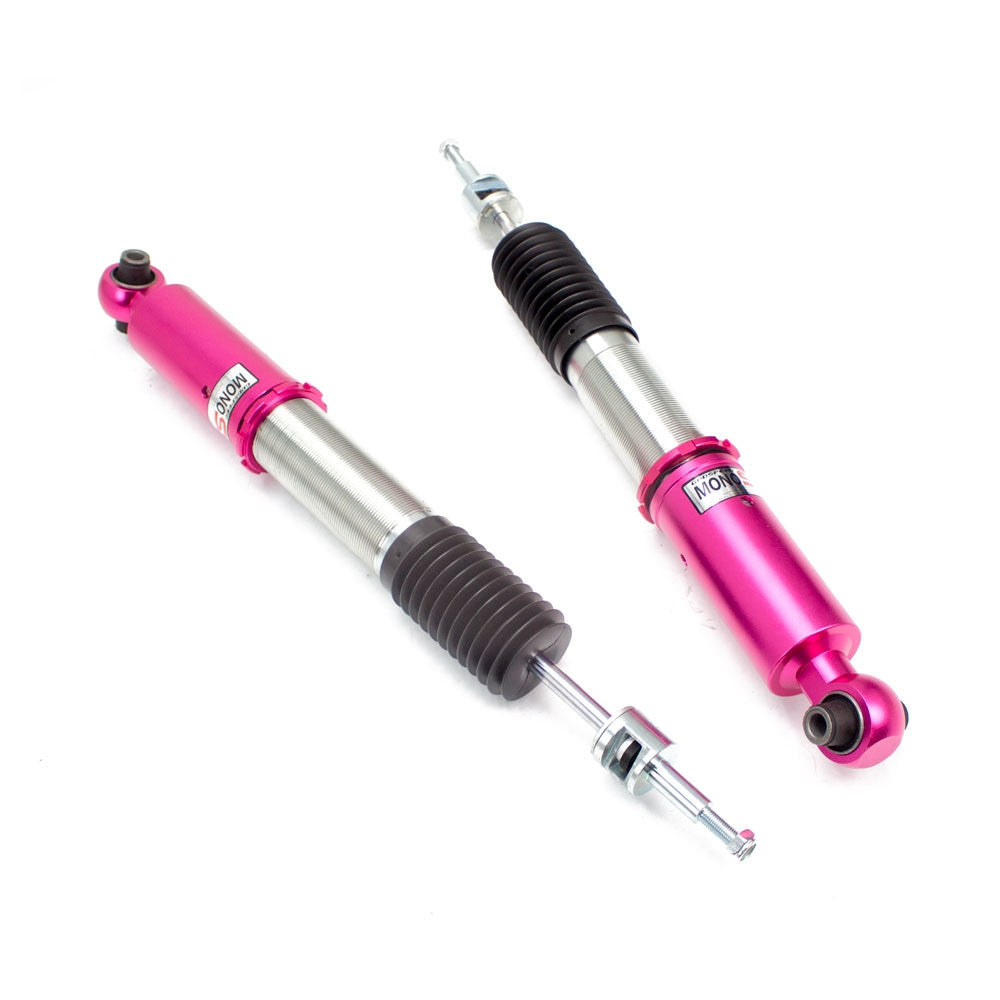

2017-2022, MonoSS (53 mm)
| Special Notes |
|
|---|---|
| Damping Levels | 16-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 8 kg/mm (448 lbs/inch) |
| Spring Rate(Rear) | 10 kg/mm (560 lbs/inch) |
| Spring Length(Front) | 185 mm |
| Spring Length(Rear) | 200 mm |

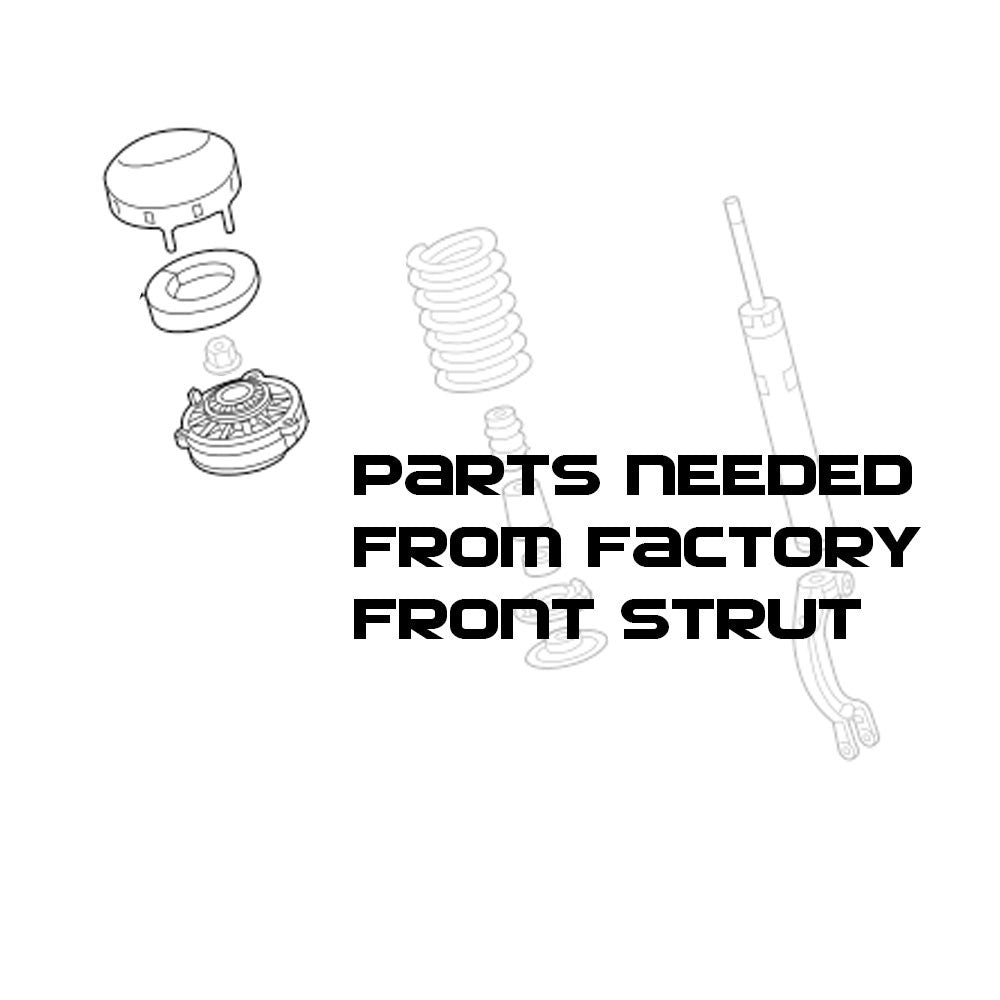

| Front Top Mount | No, Reuse Factory |

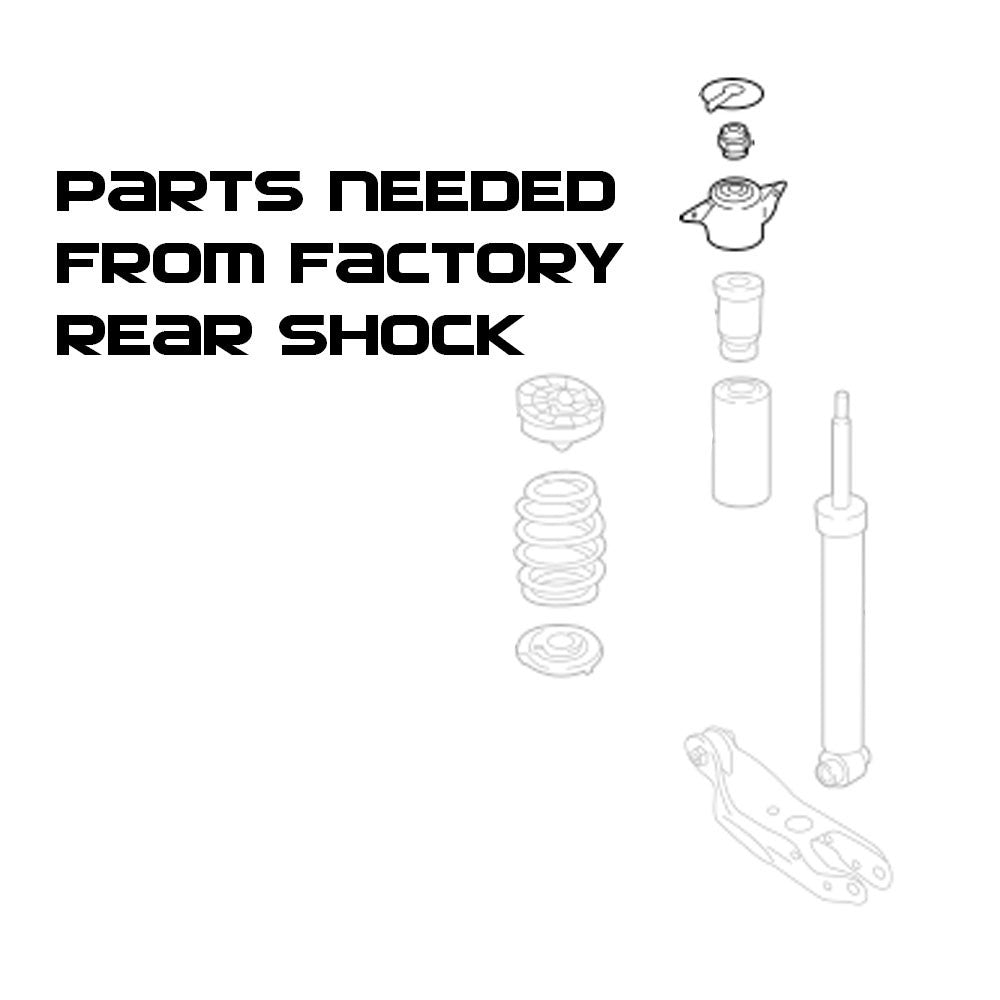

| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | 365 days limited warranty from date of purchases, proof requires. Warranty are not transferable. |
| User Guide | Coilover User Guide |

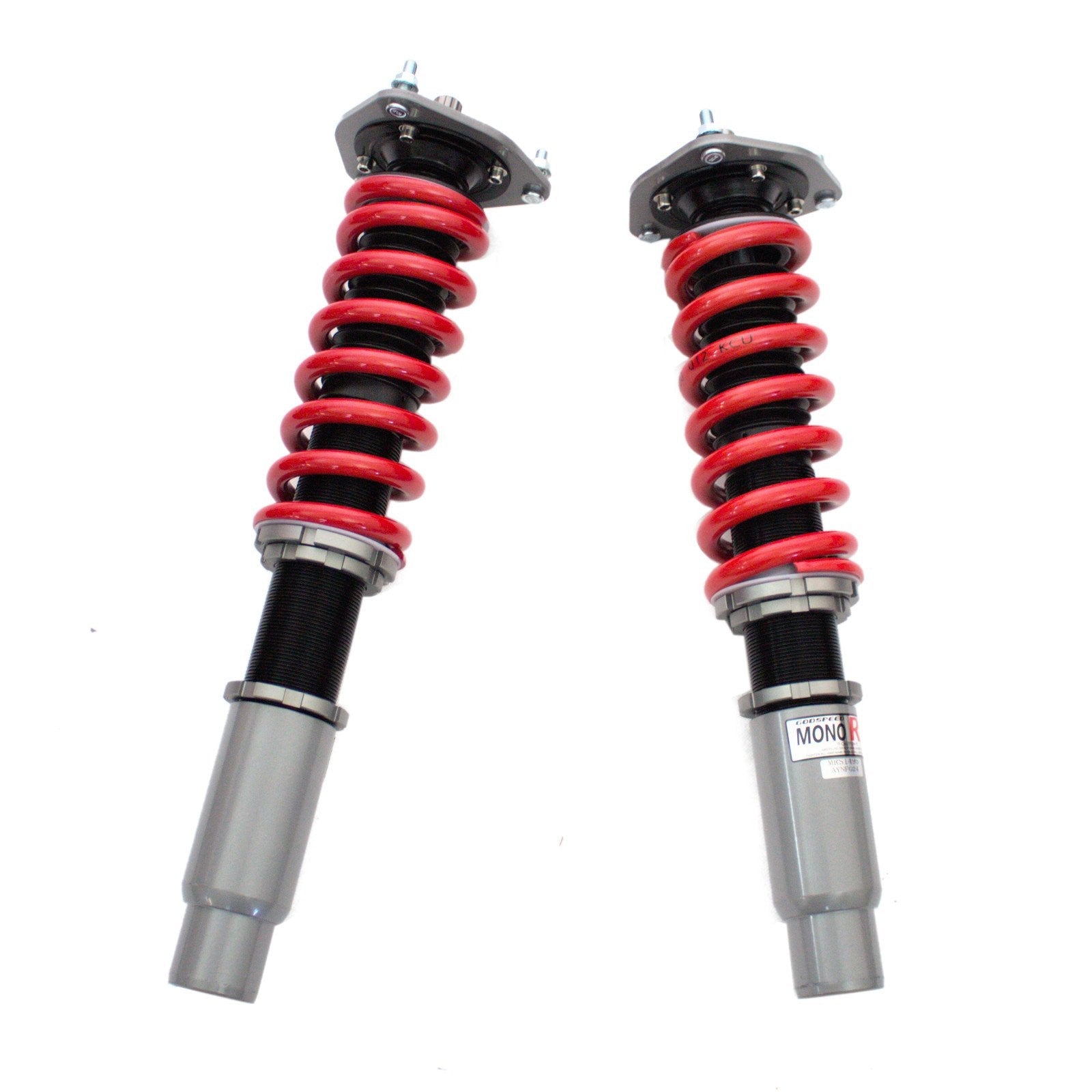

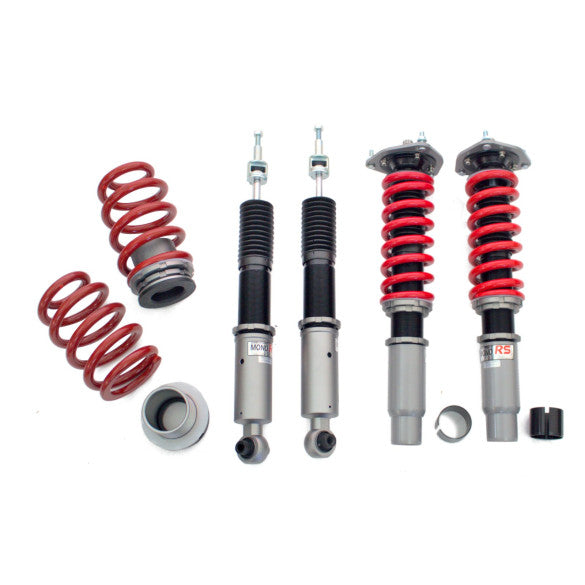

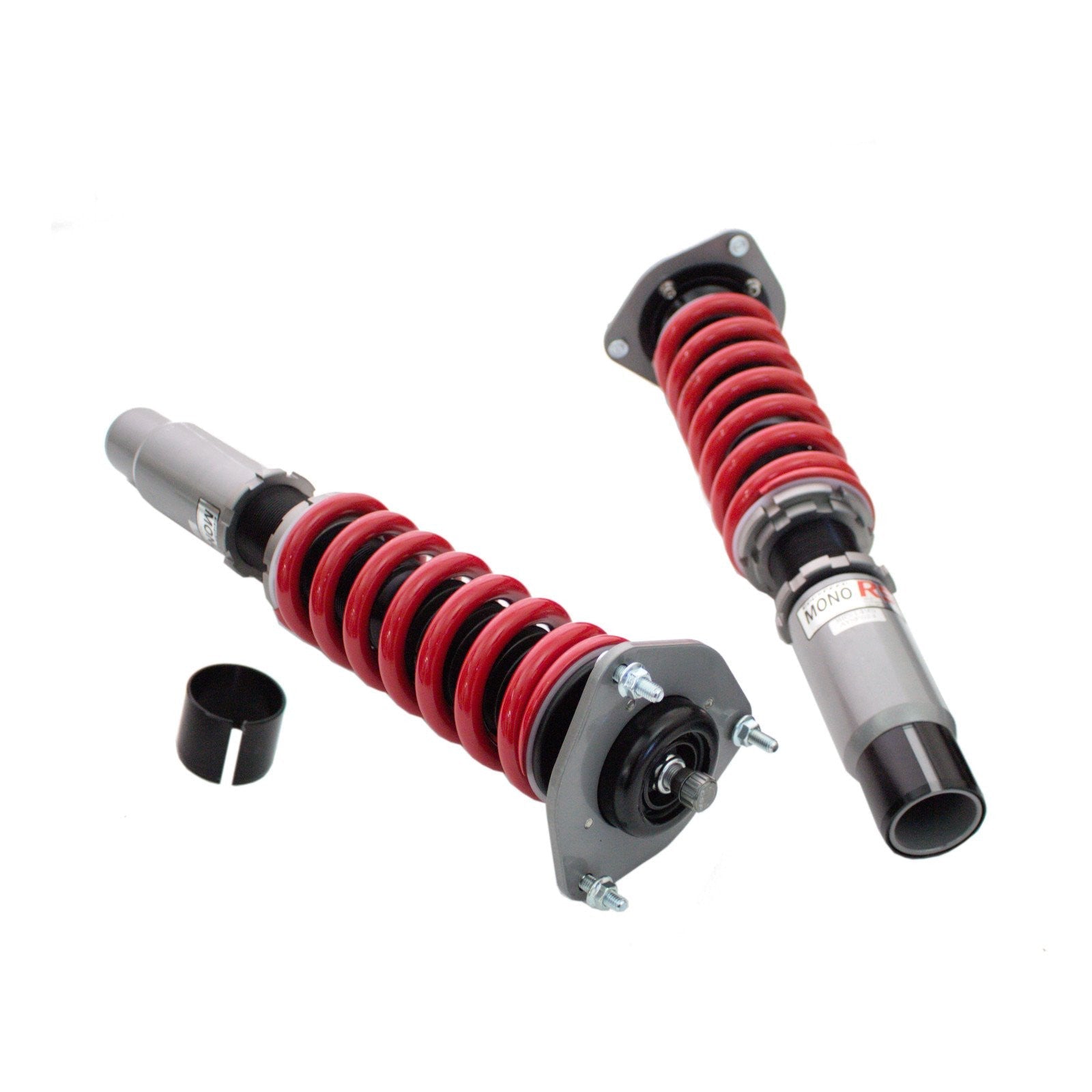

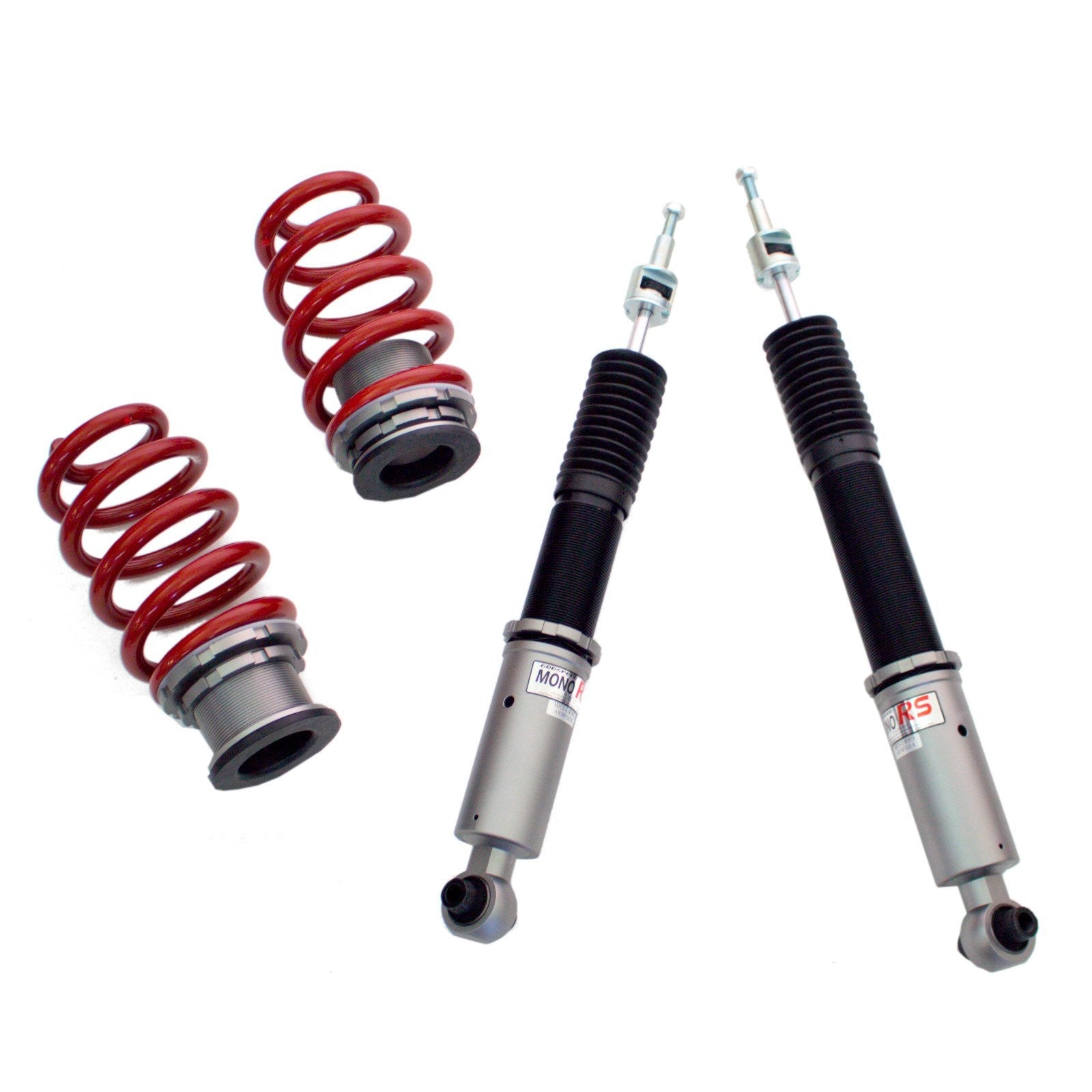

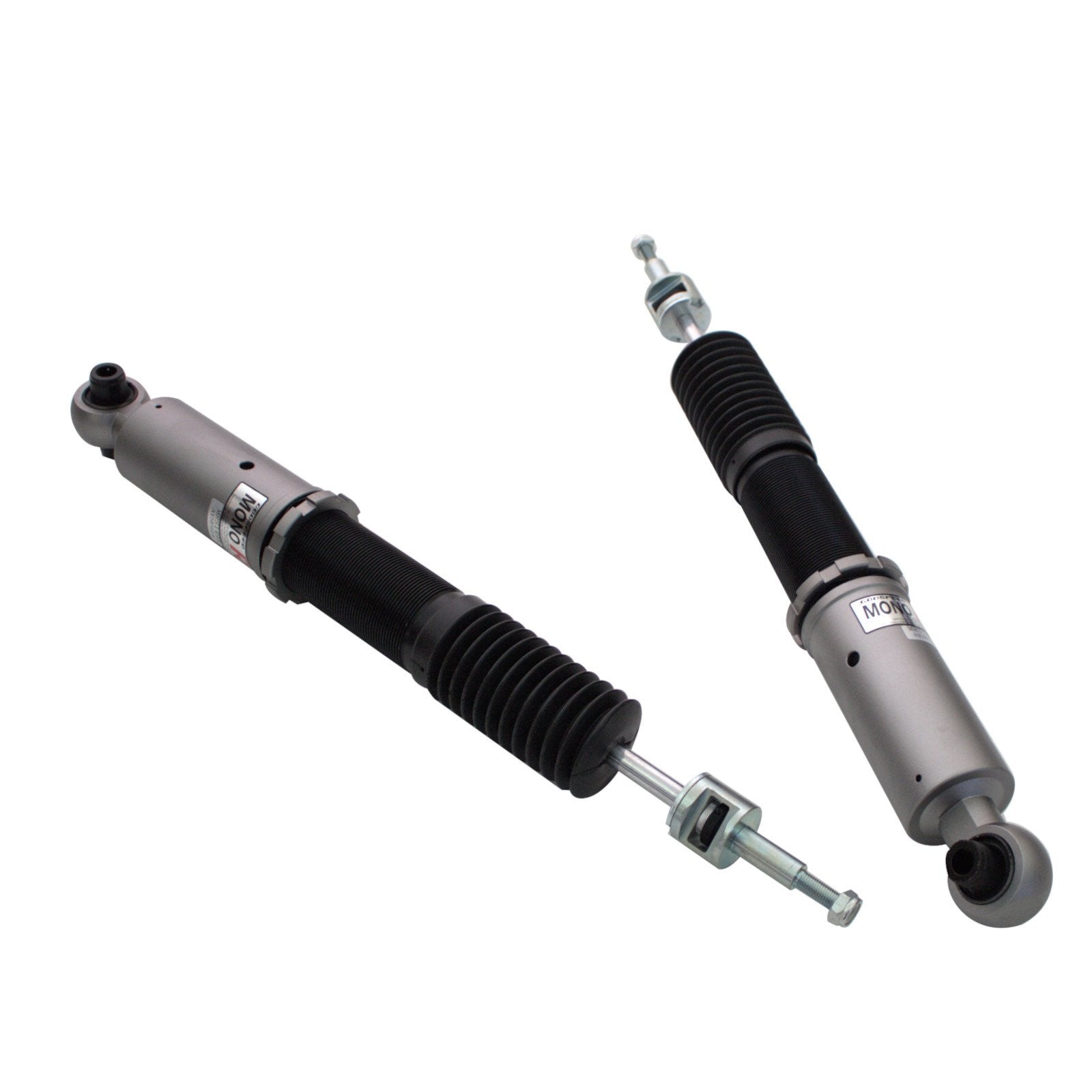

2017-2023, MonoRS (48/53mm)
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 32-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 12 kg/mm (672 lbs/inch) |
| Spring Rate(Rear) | 10 kg/mm (560 lbs/inch) |
| Spring Length(Front) | 220 mm |
| Spring Length(Rear) | 200 mm |
| Front Top Mount | Yes, Standard Type |

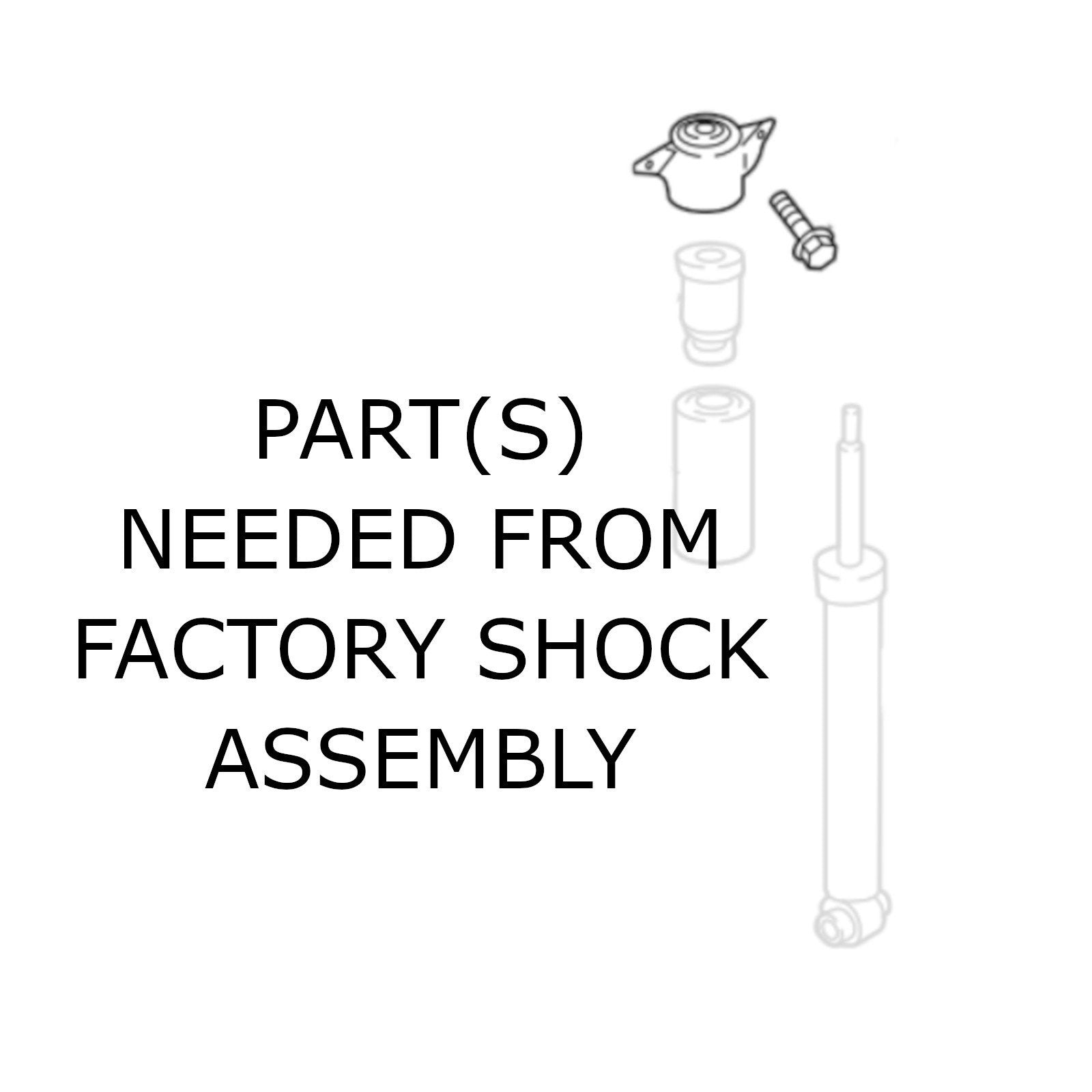

| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm |
| Spring Inner Diameter(Rear) | 62-80 mm (2.44-3.15 inch) |
| Warranty Note | 365 days limited warranty from date of purchases, proof requires. Warranty are not transferable. |
| User Guide | Coilover User Guide |
