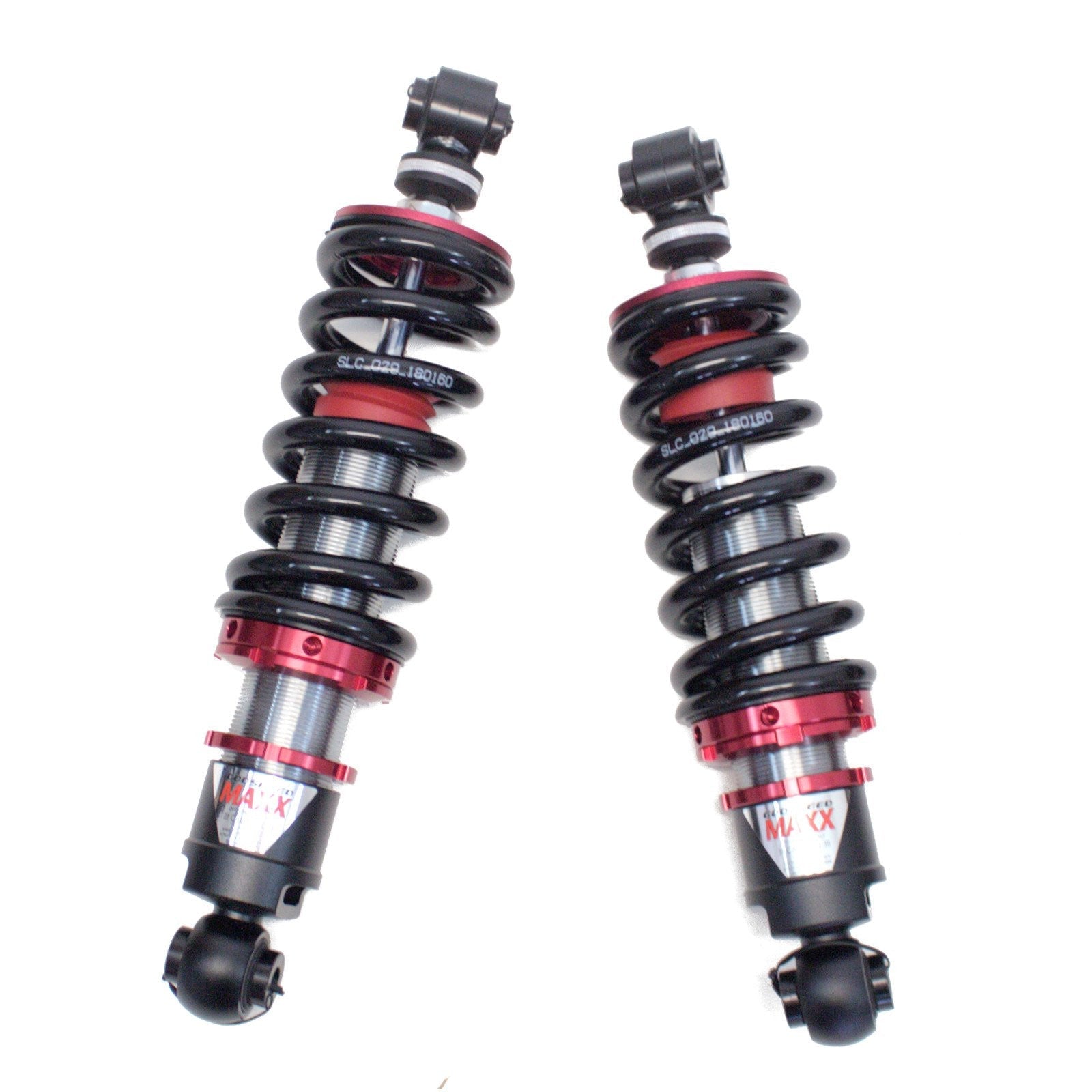

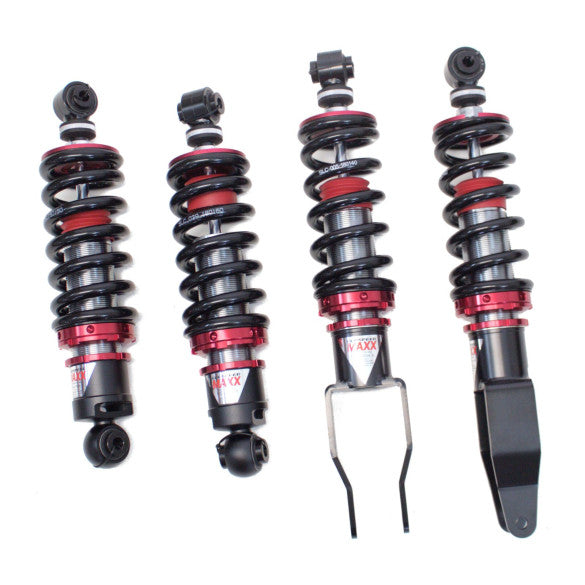

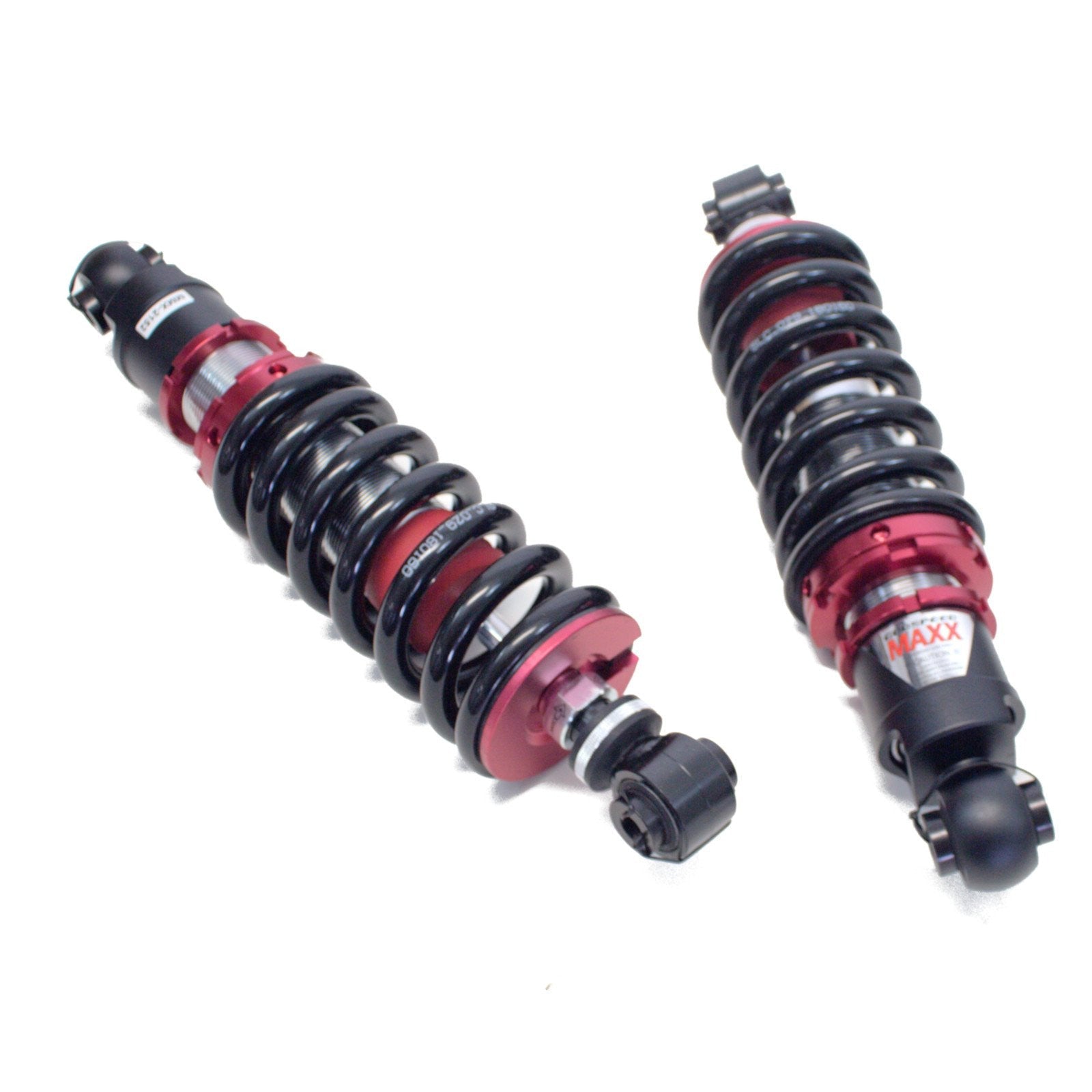

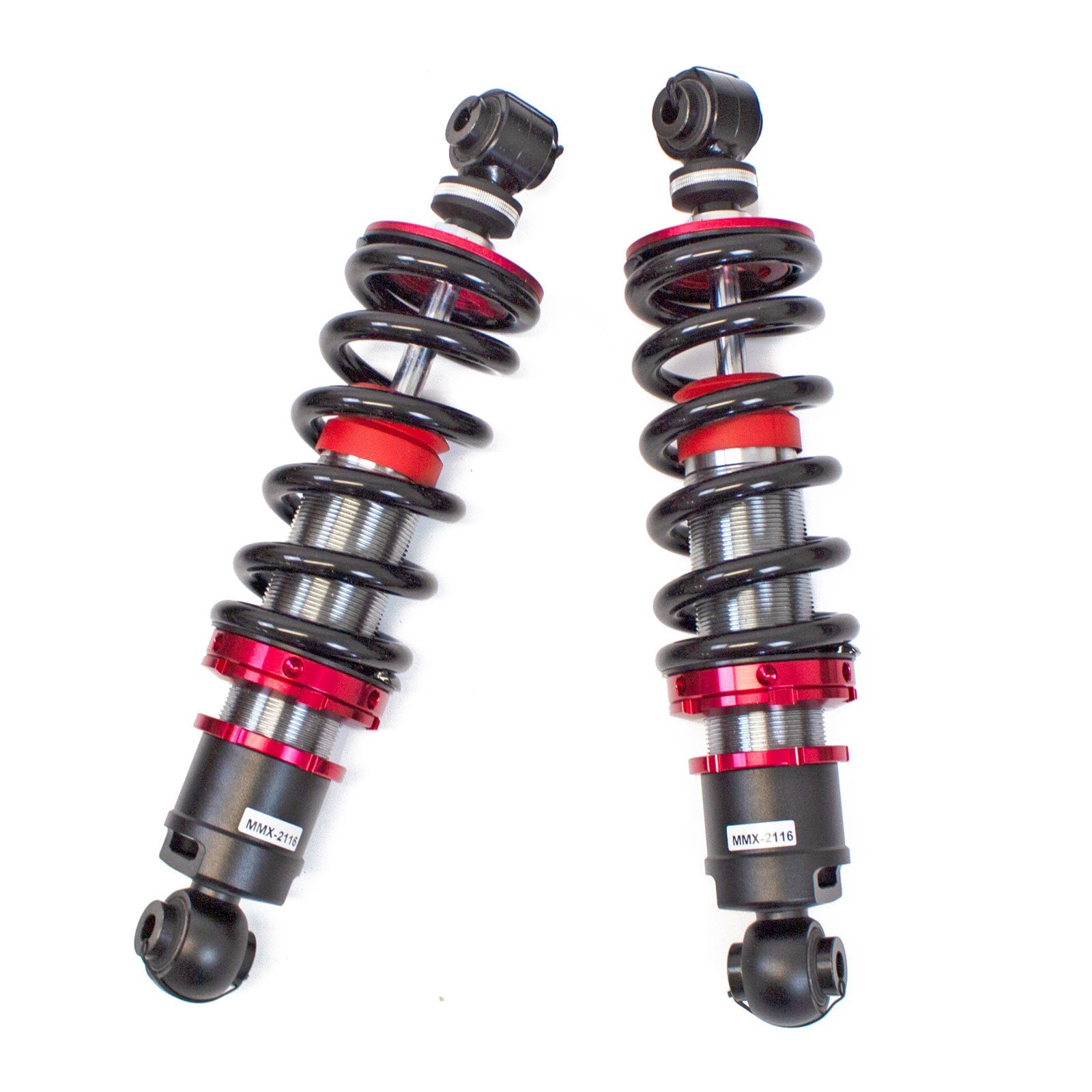

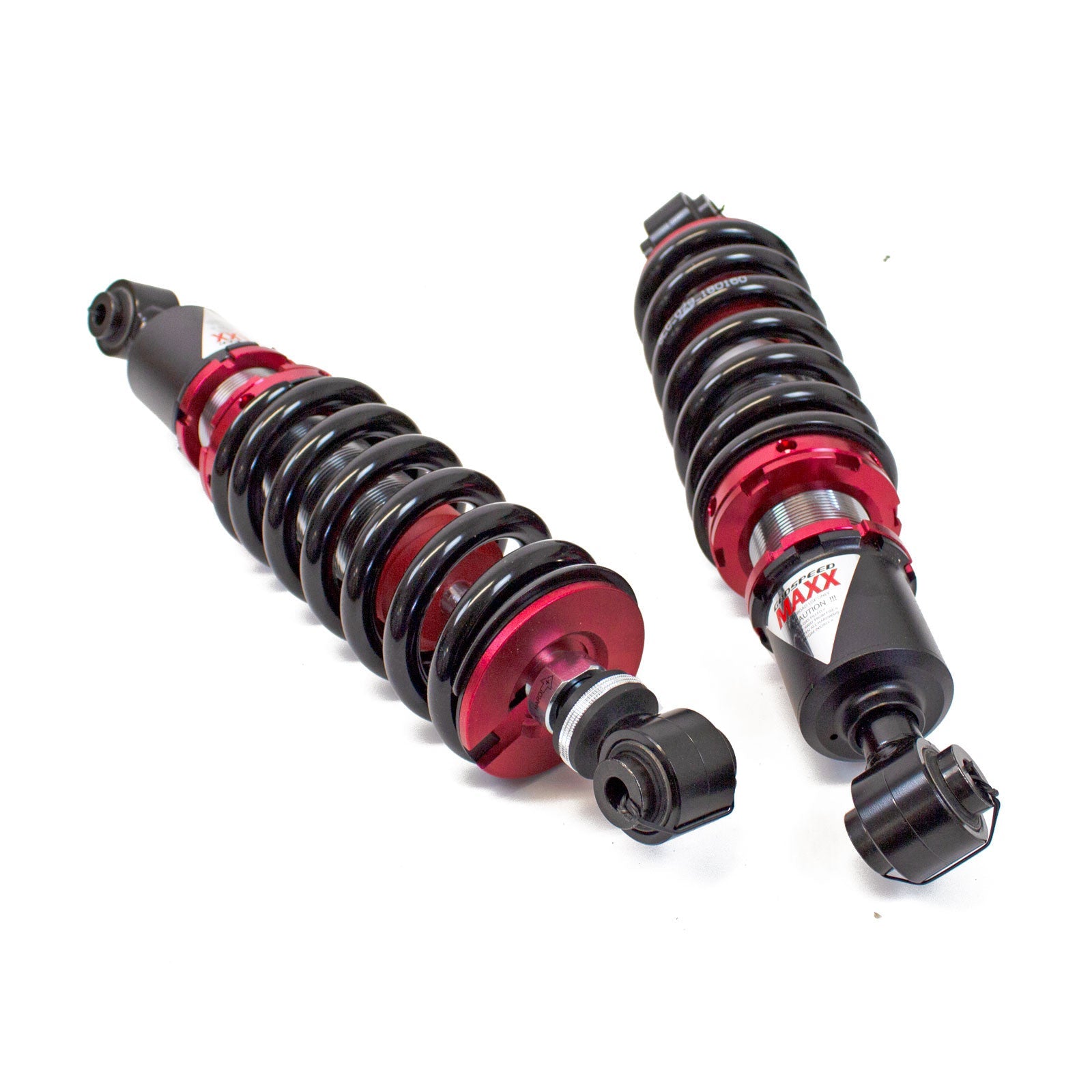

Type 42, 2007-2016, MAXX Coilovers
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 16 kg/mm (896 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 180 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |

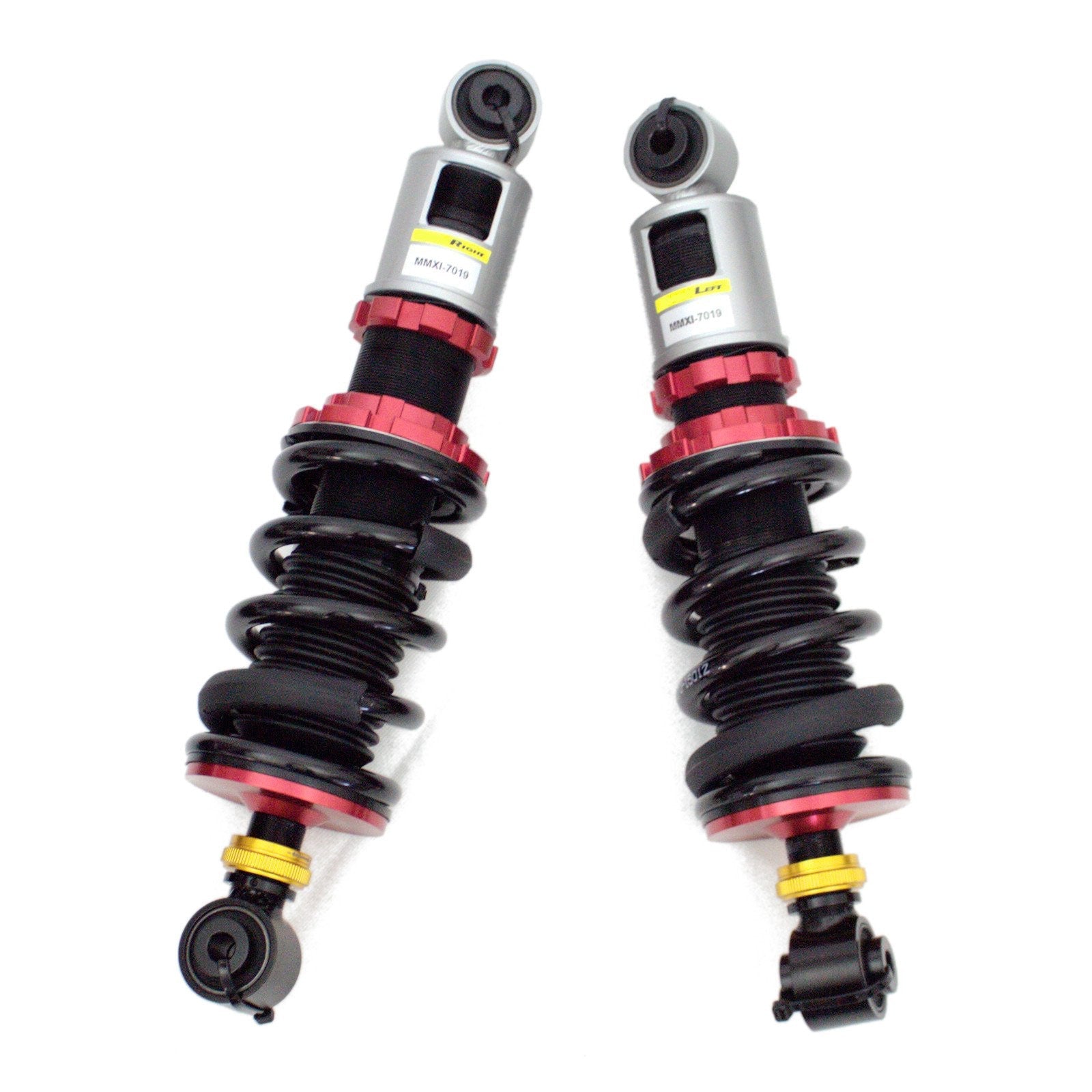

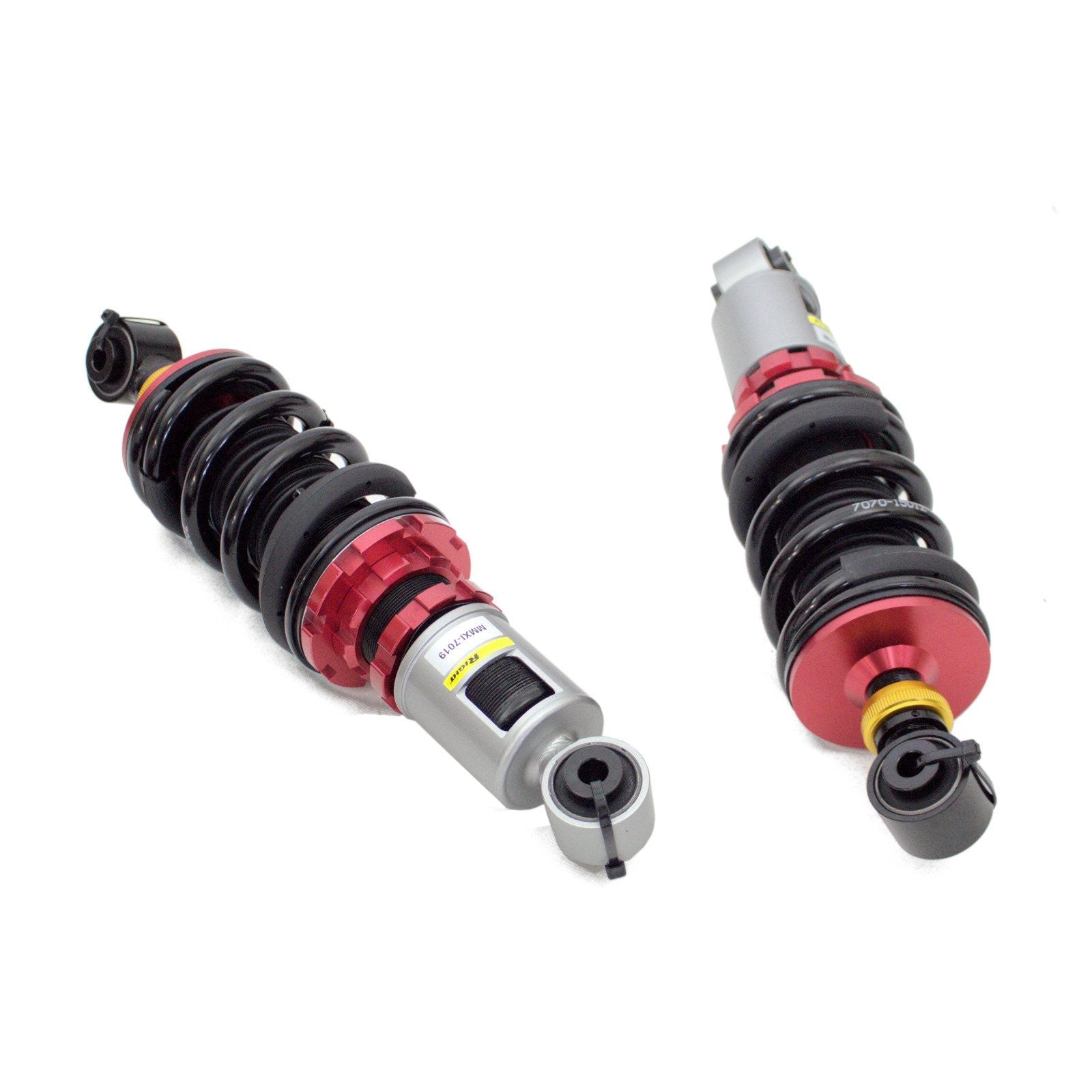

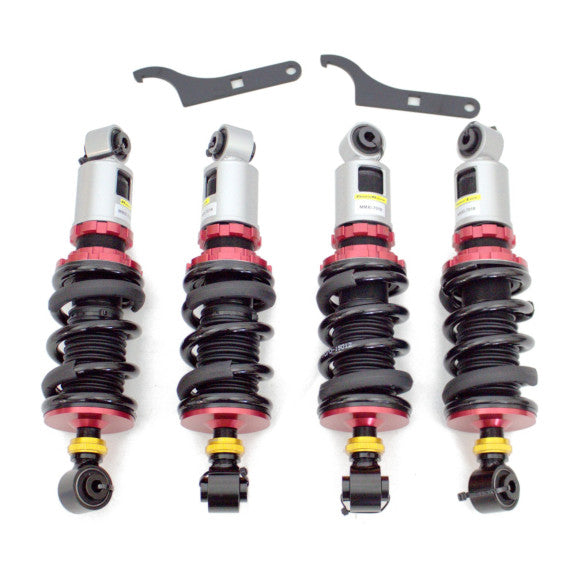

Type 42, 2007-2016, MAXX-Sports Inverted Coilovers
| Special Notes |
|
|---|---|
| Damping Levels | 20-Level |

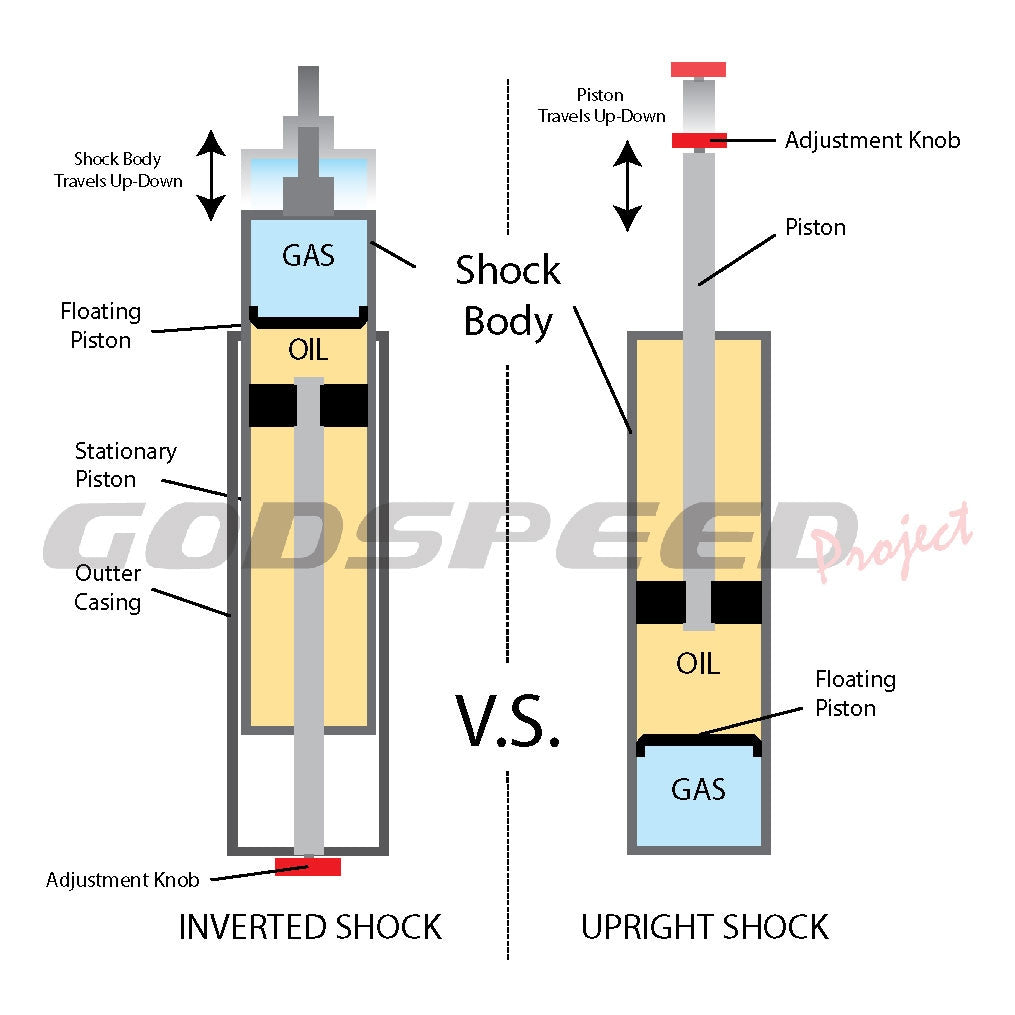

| Shock Type(Front) | Inverted Mono-Tube |
| Shock Type(Rear) | Traditional Mono-Tube |
| Height Adjustment | Yes |
| Top Mount(Front) | Adjustable Camber Plate With Pillow Ball |
| Top Mount(Rear) | Reuse Factory Top Mount |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 12 kg/mm (672 lbs/inch) |
| Spring Length(Front) | 150 mm |
| Spring Length(Rear) | 150 mm |
| Spring Inner Diameter(Front) | 70 mm (2.76 inch) / 70 mm (2.76 inch) |
| Spring Inner Diameter(Rear) | 70 mm (2.76 inch) / 70 mm (2.76 inch) |

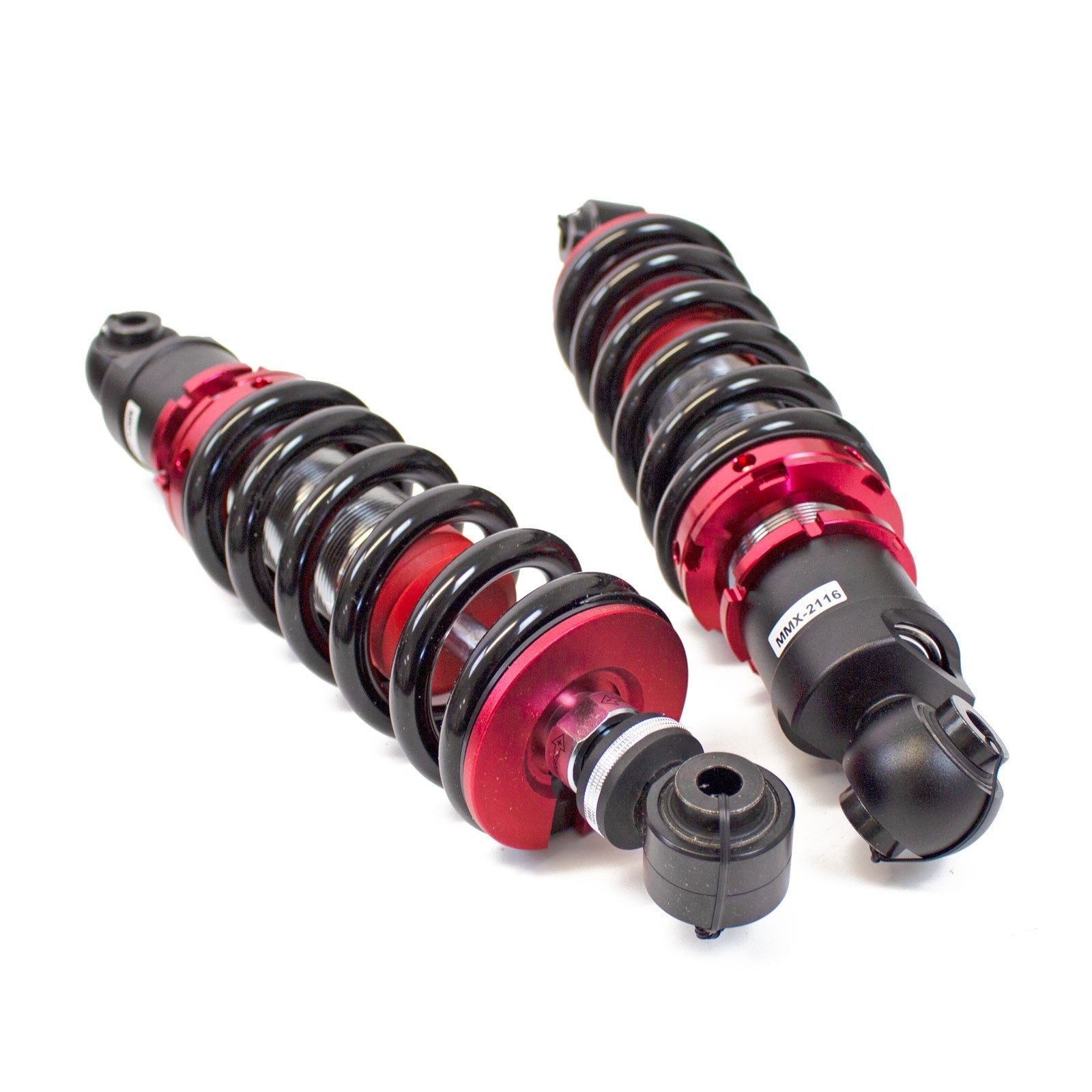

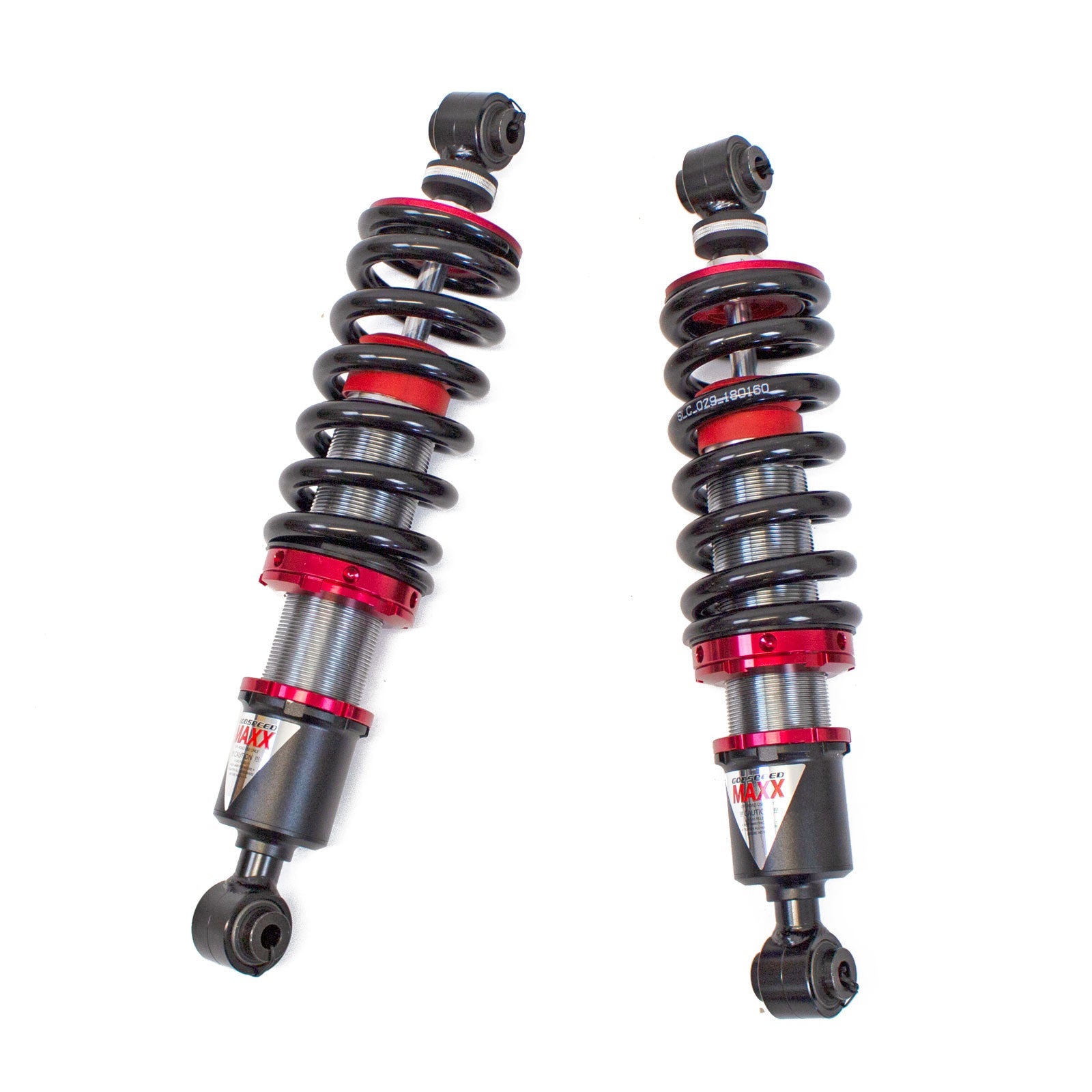

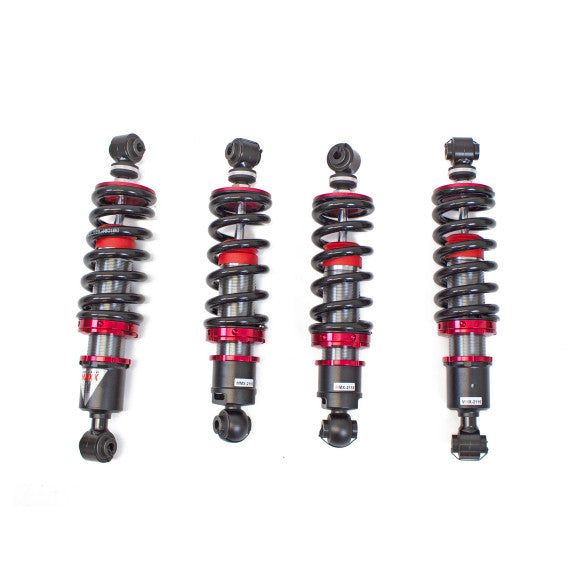

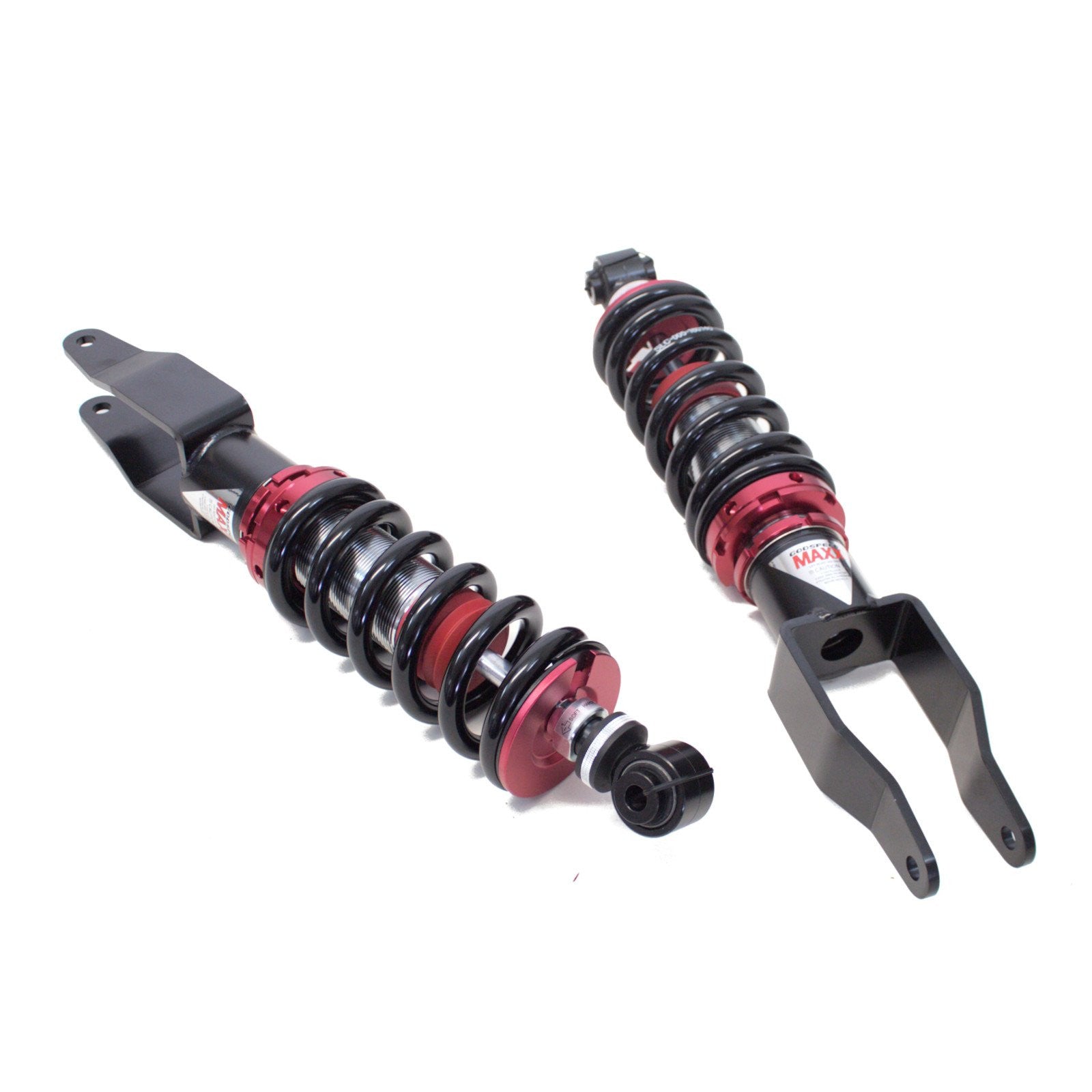

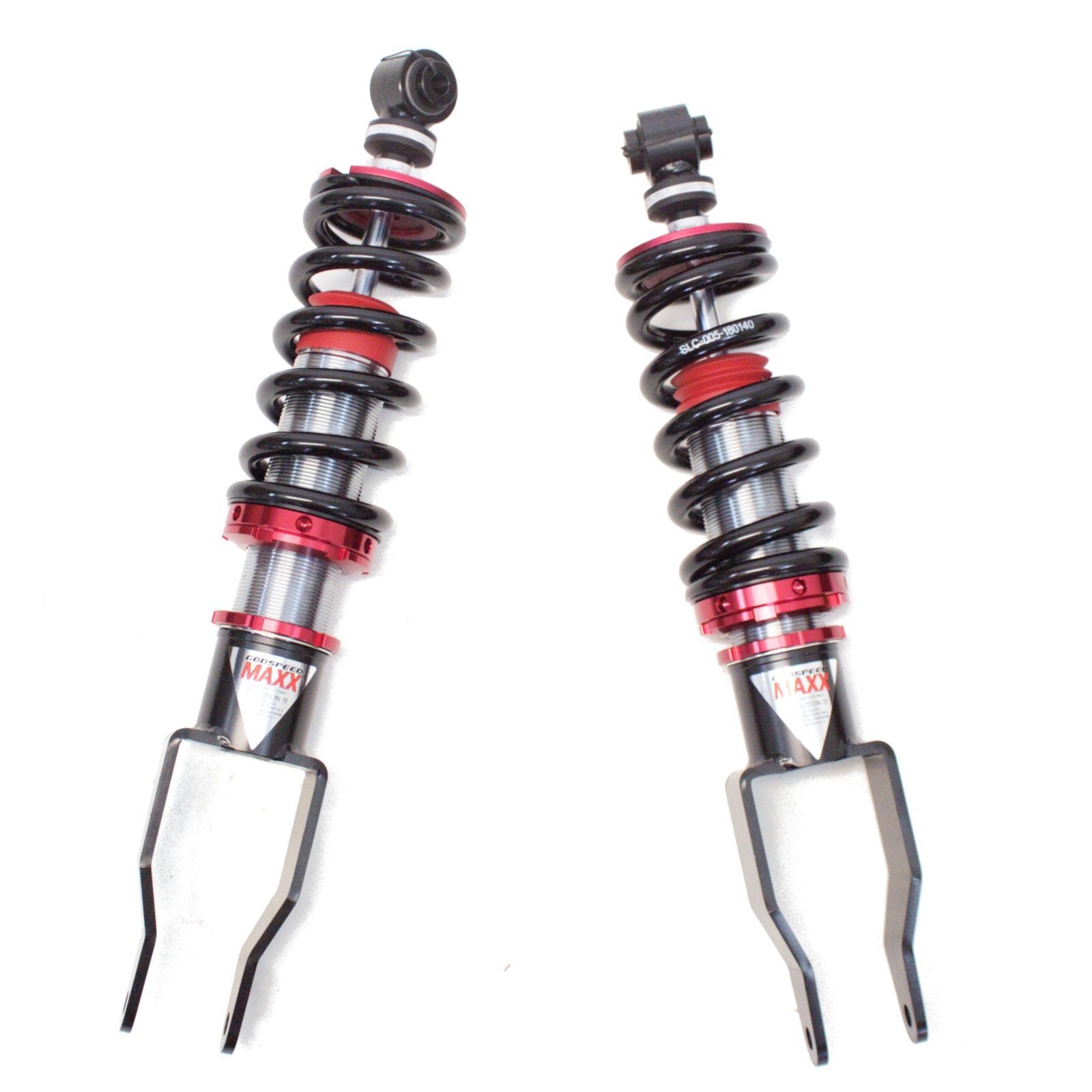

Type 4S, 2017-2023, MAXX Coilovers Lowering Kit (No MagneRide)
| Special Notes | No |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 16 kg/mm (896 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 180 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
