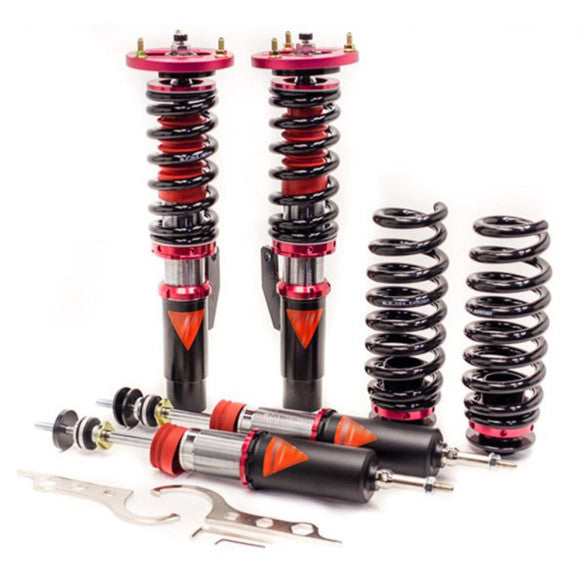

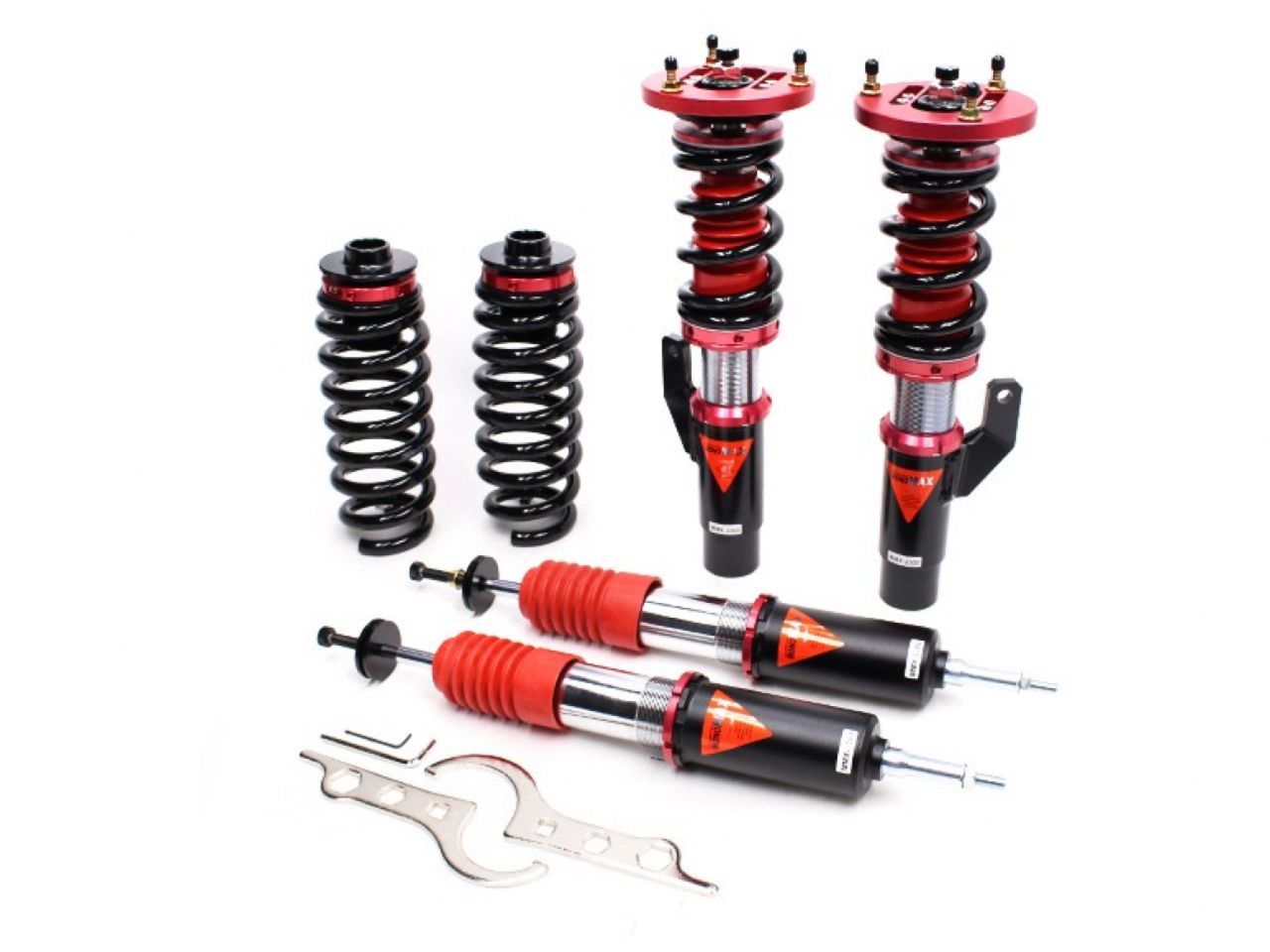

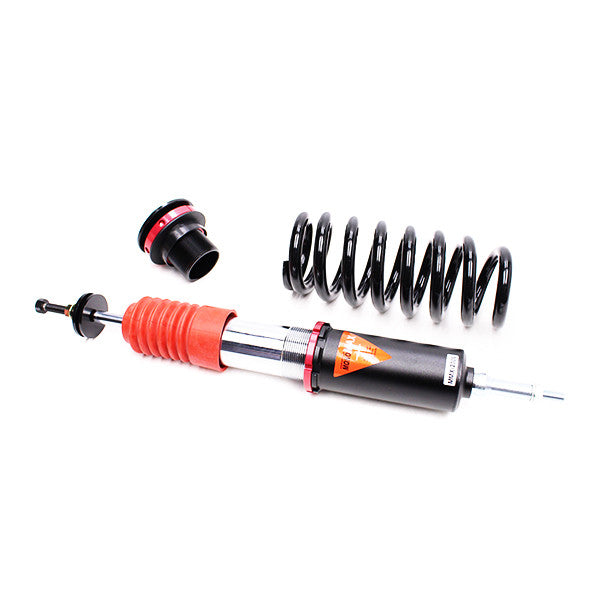

MAXX (Front: 14 kg/mm (784 lbs/inch) Rear: 9 kg/mm (504 lbs/inch))
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 9 kg/mm (504 lbs/inch) |
| Spring Length(Front) | 140 mm |

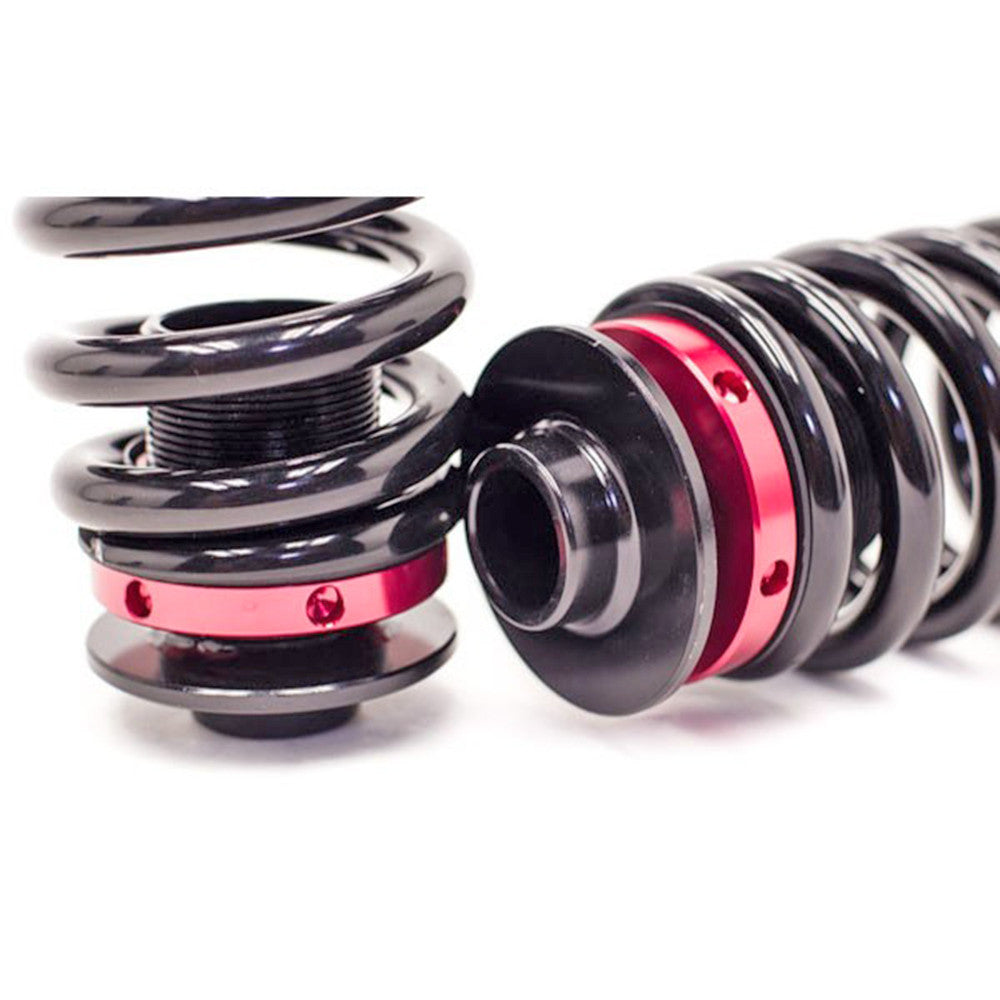

| Spring Length(Rear) | 245 mm |

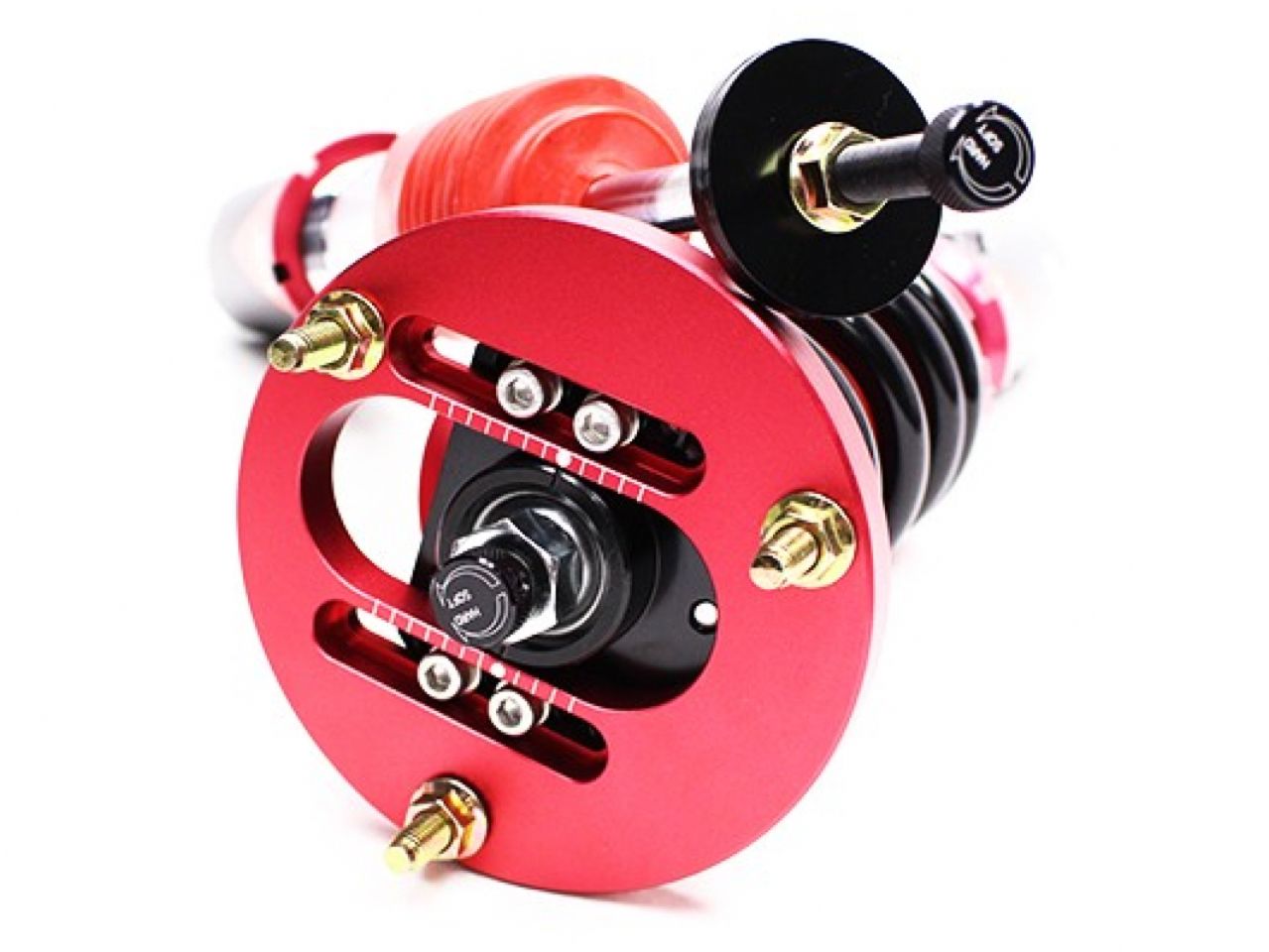

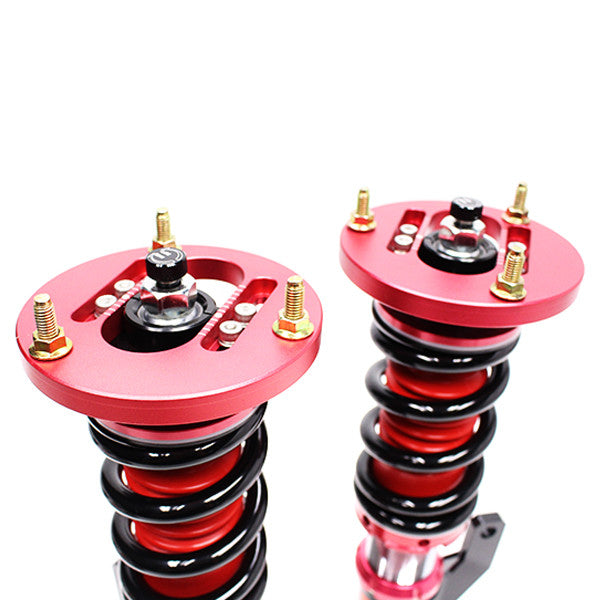

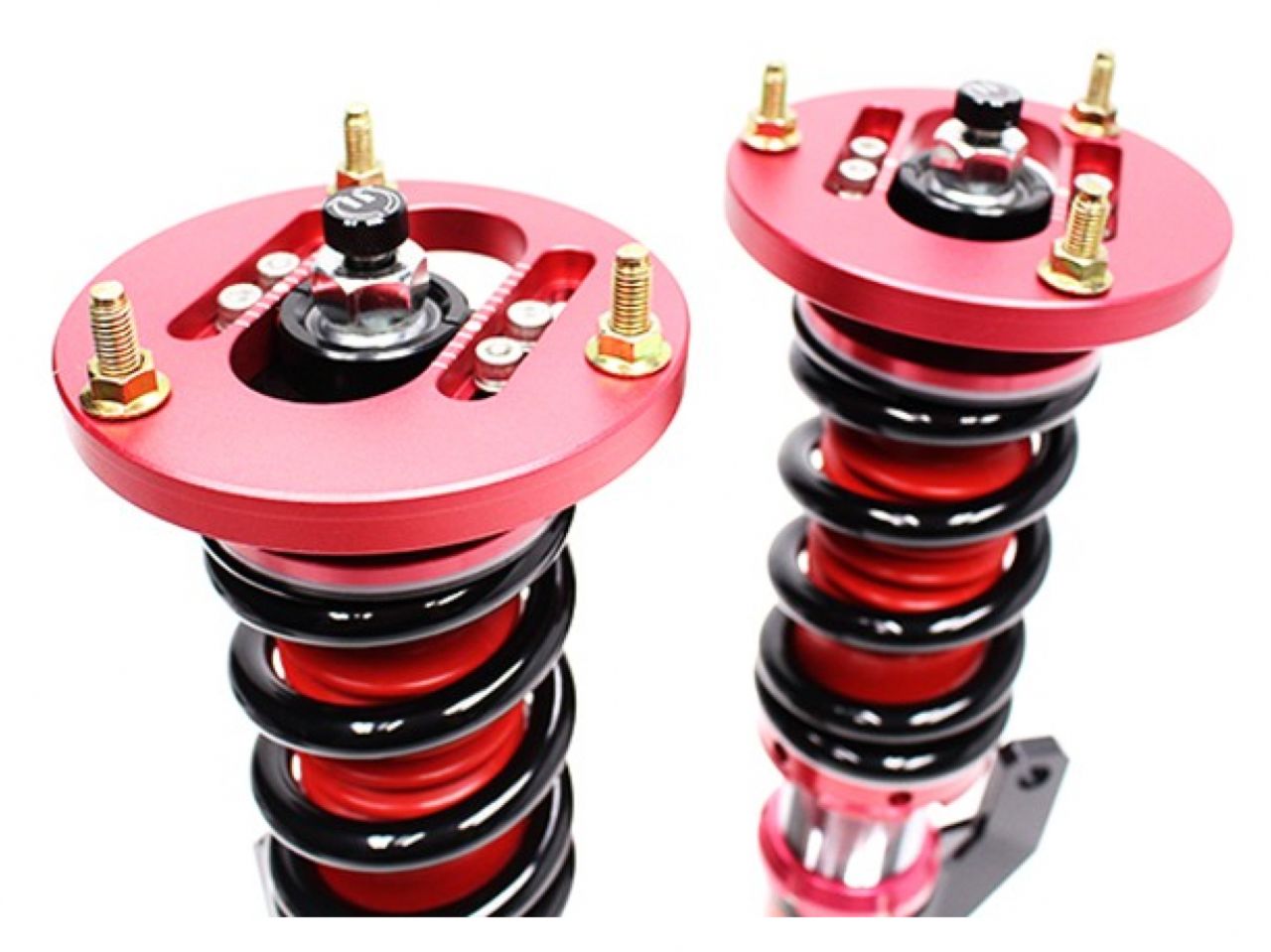

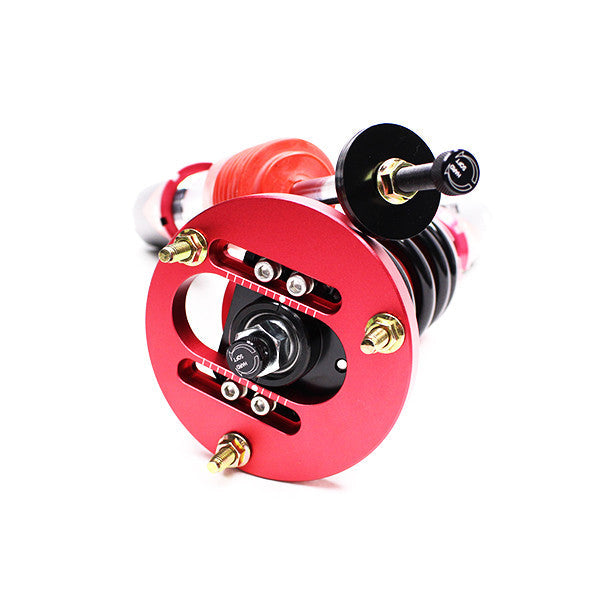

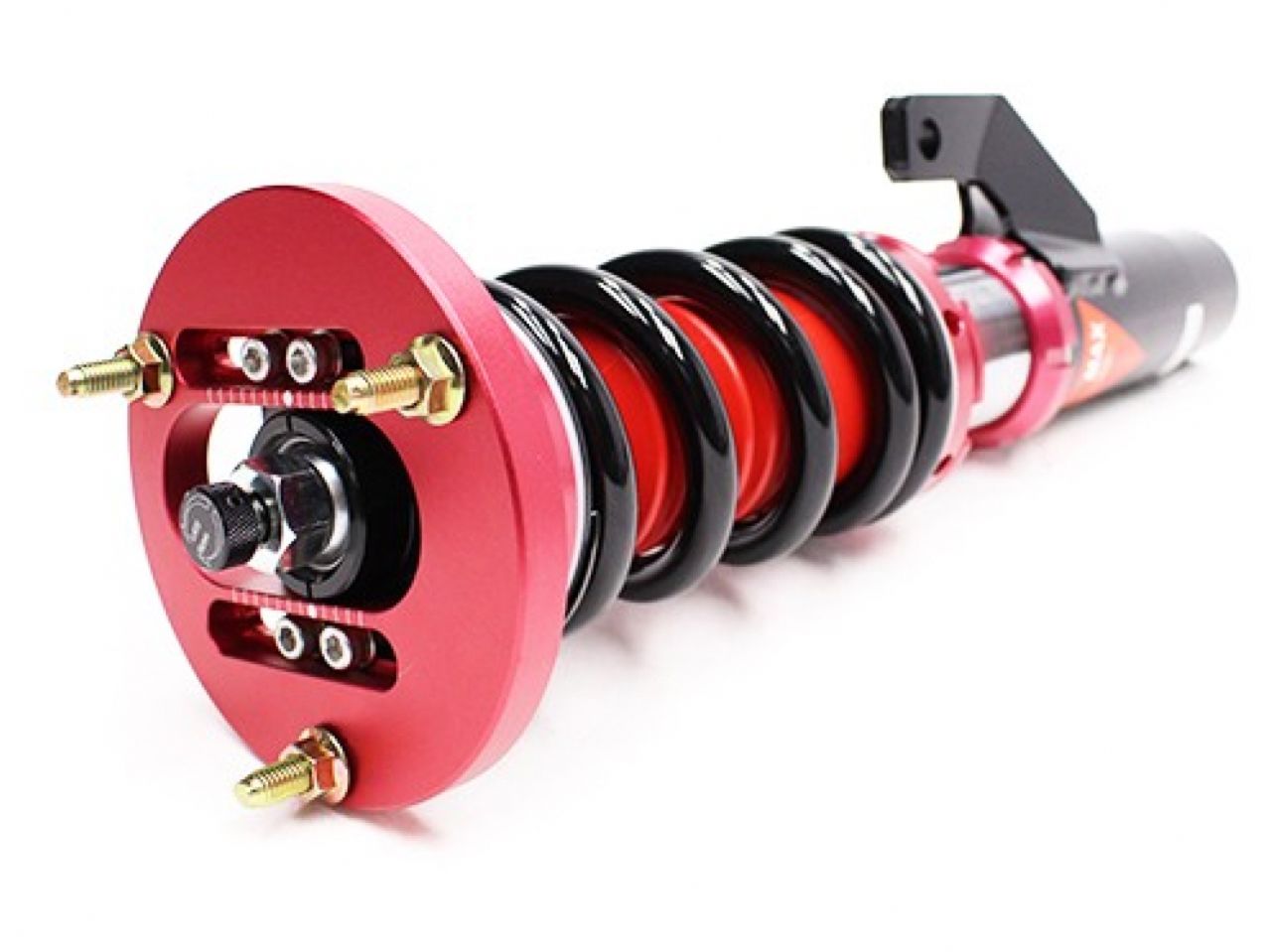

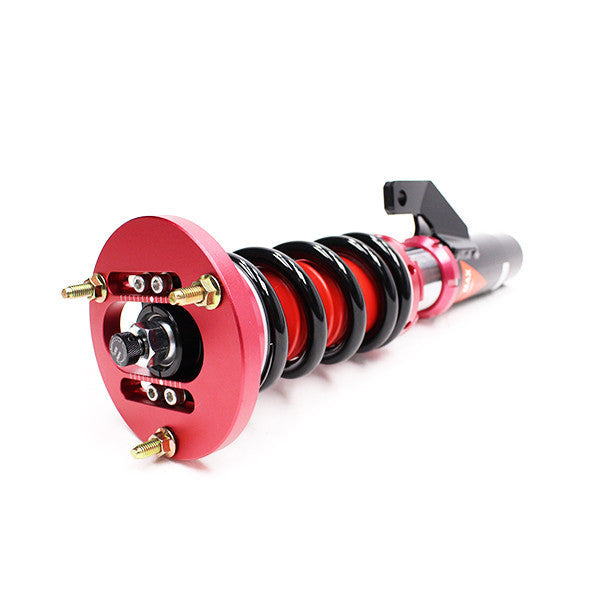

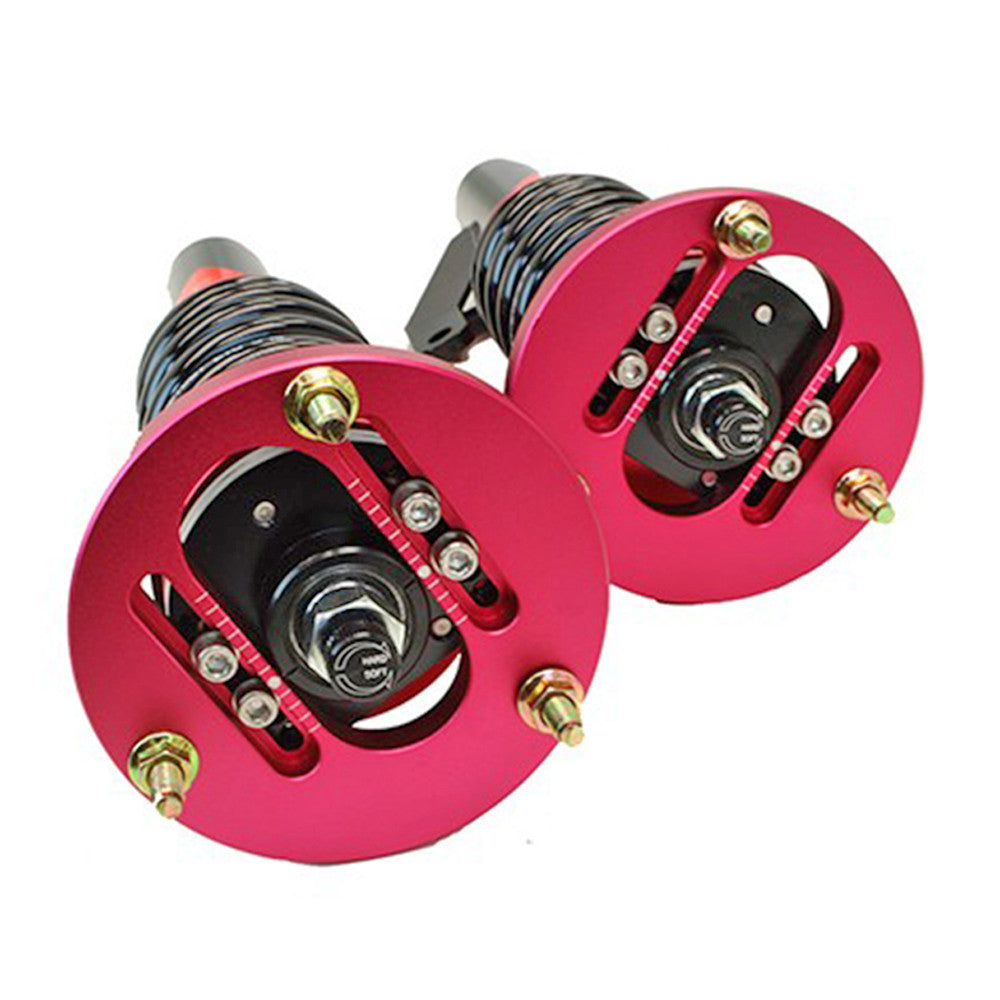

| Front Top Mount | Yes, Pillow Ball w/ Camber Plate |

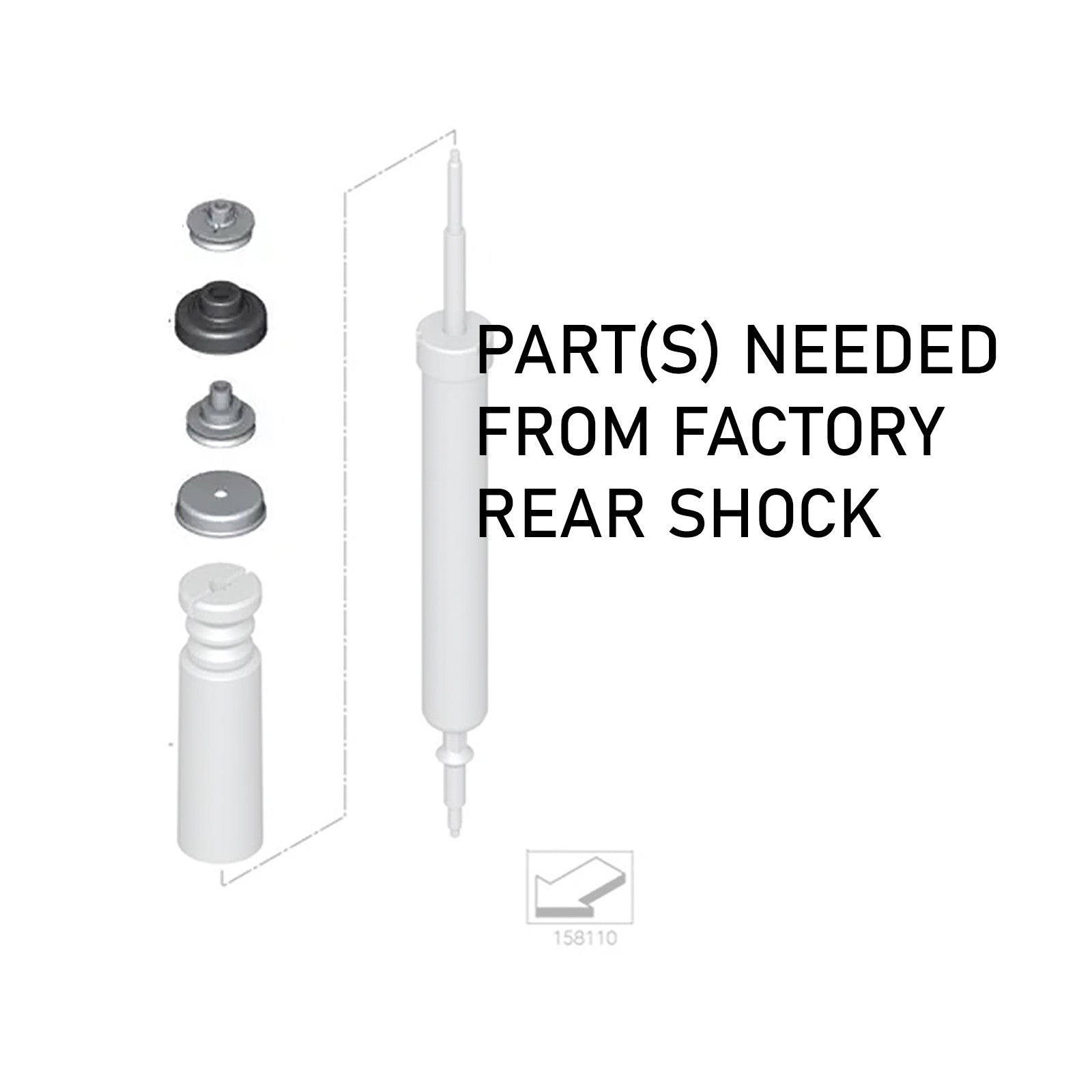

| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
MAXX (Front: 12 kg/mm (672 lbs/inch) Rear: 9 kg/mm (504 lbs/inch))
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 12 kg/mm (672 lbs/inch) |
| Spring Rate(Rear) | 9 kg/mm (504 lbs/inch) |
| Spring Length(Front) | 140 mm |
| Spring Length(Rear) | 245 mm |
| Front Top Mount | Yes, Pillow Ball w/ Camber Plate |
| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
