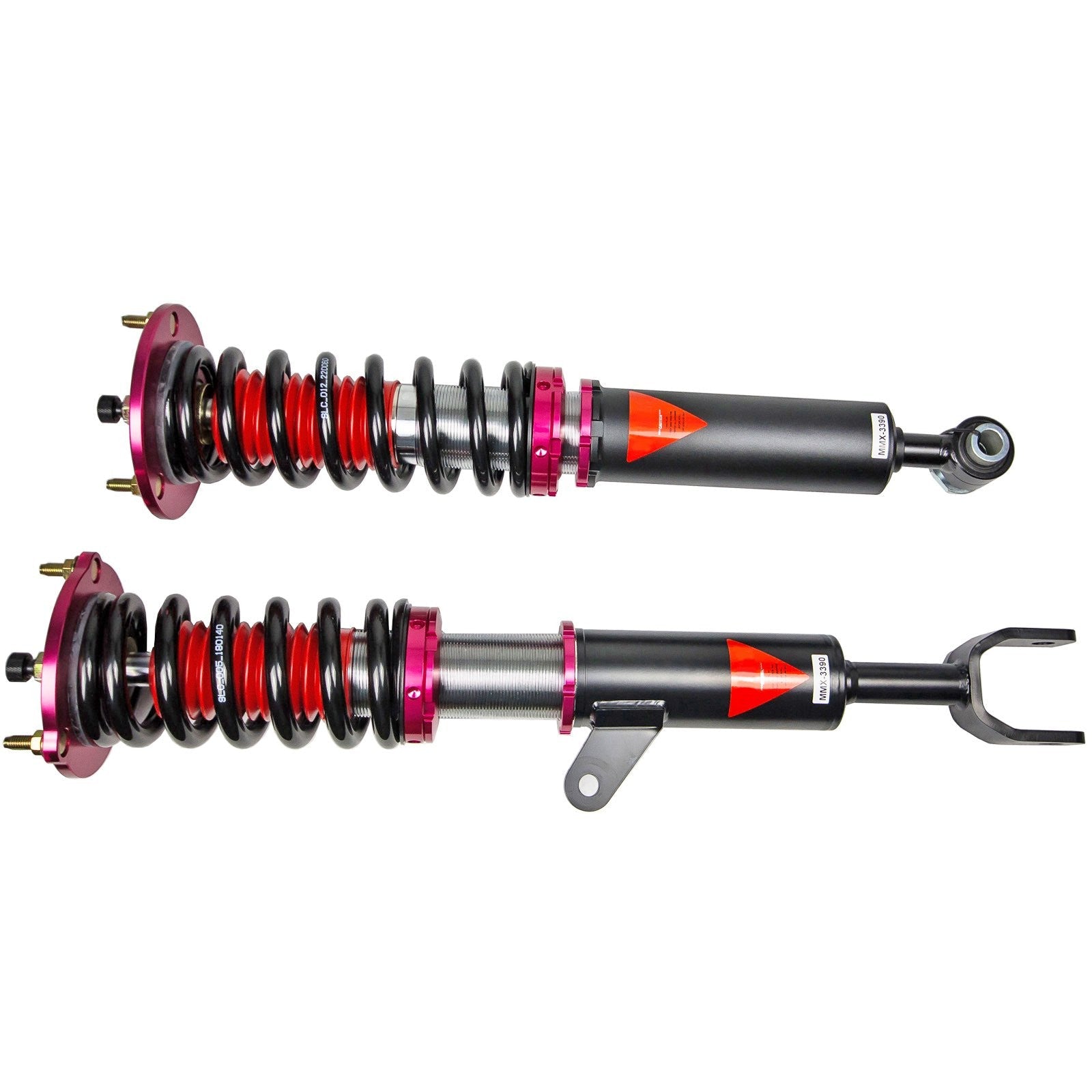

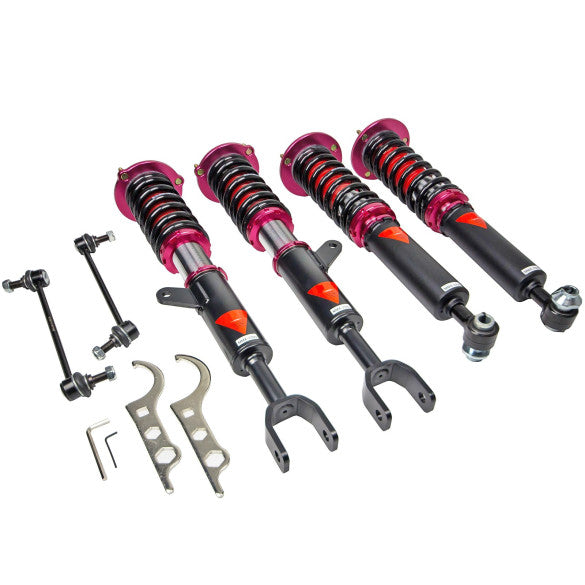

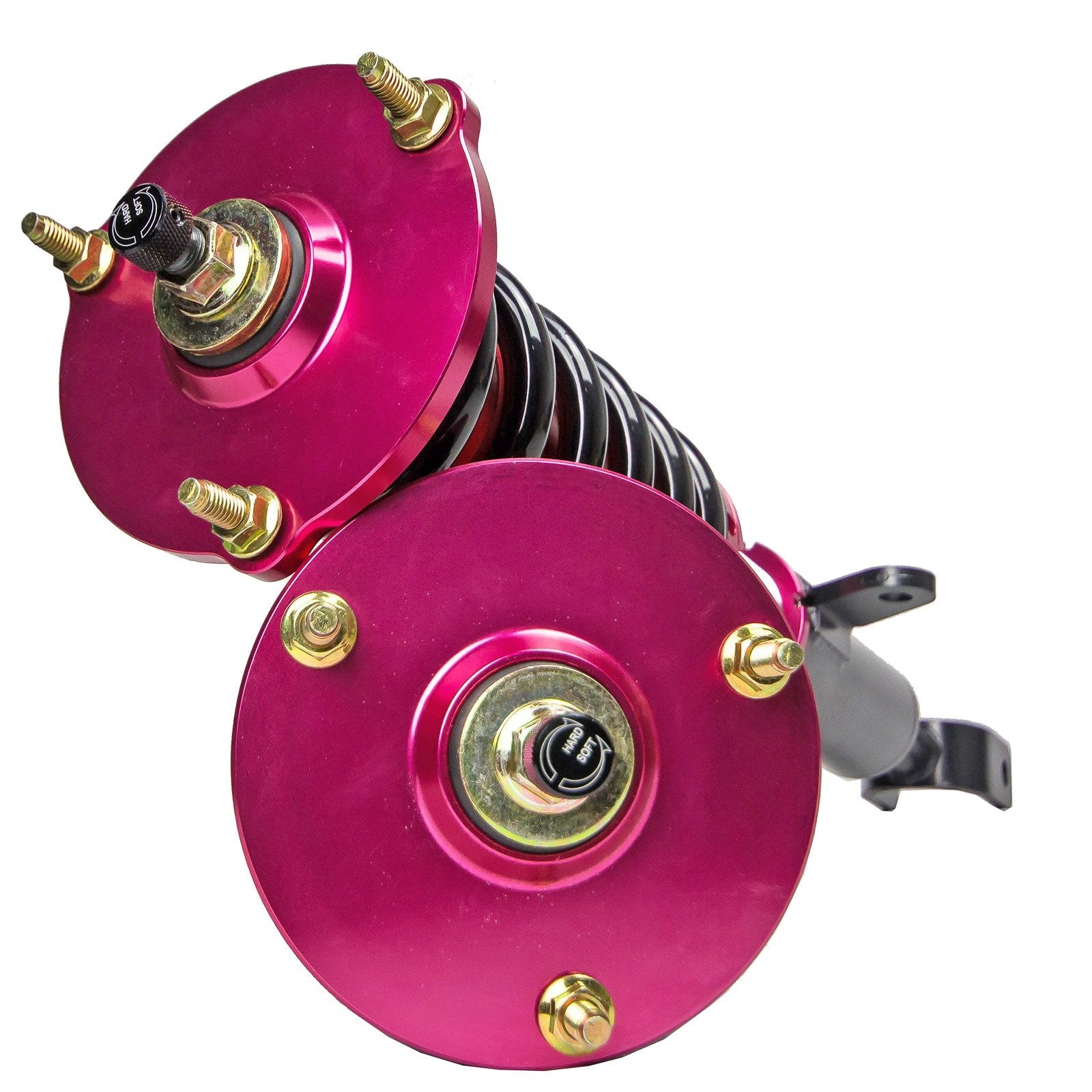

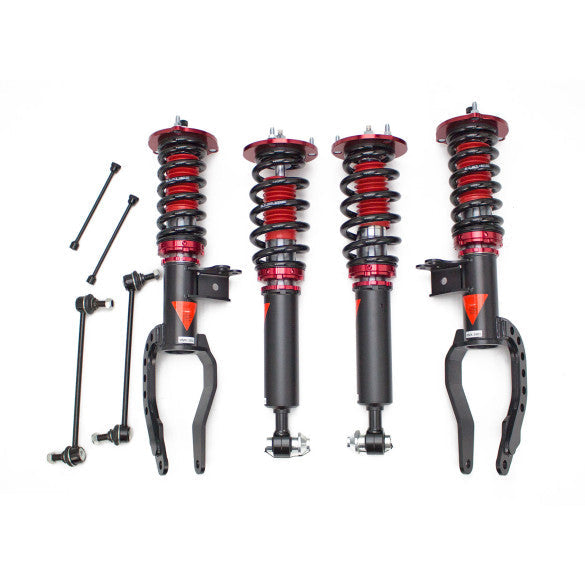

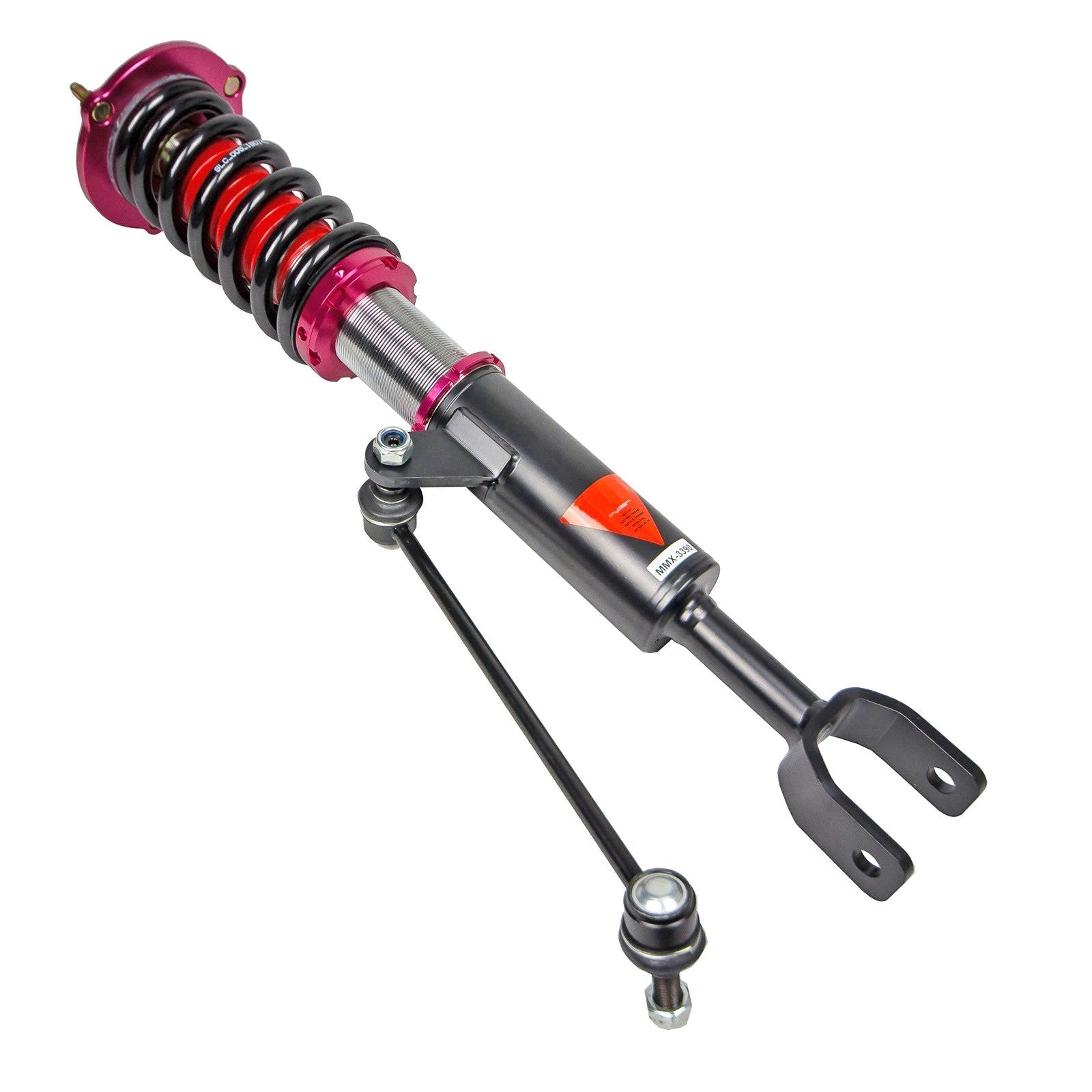

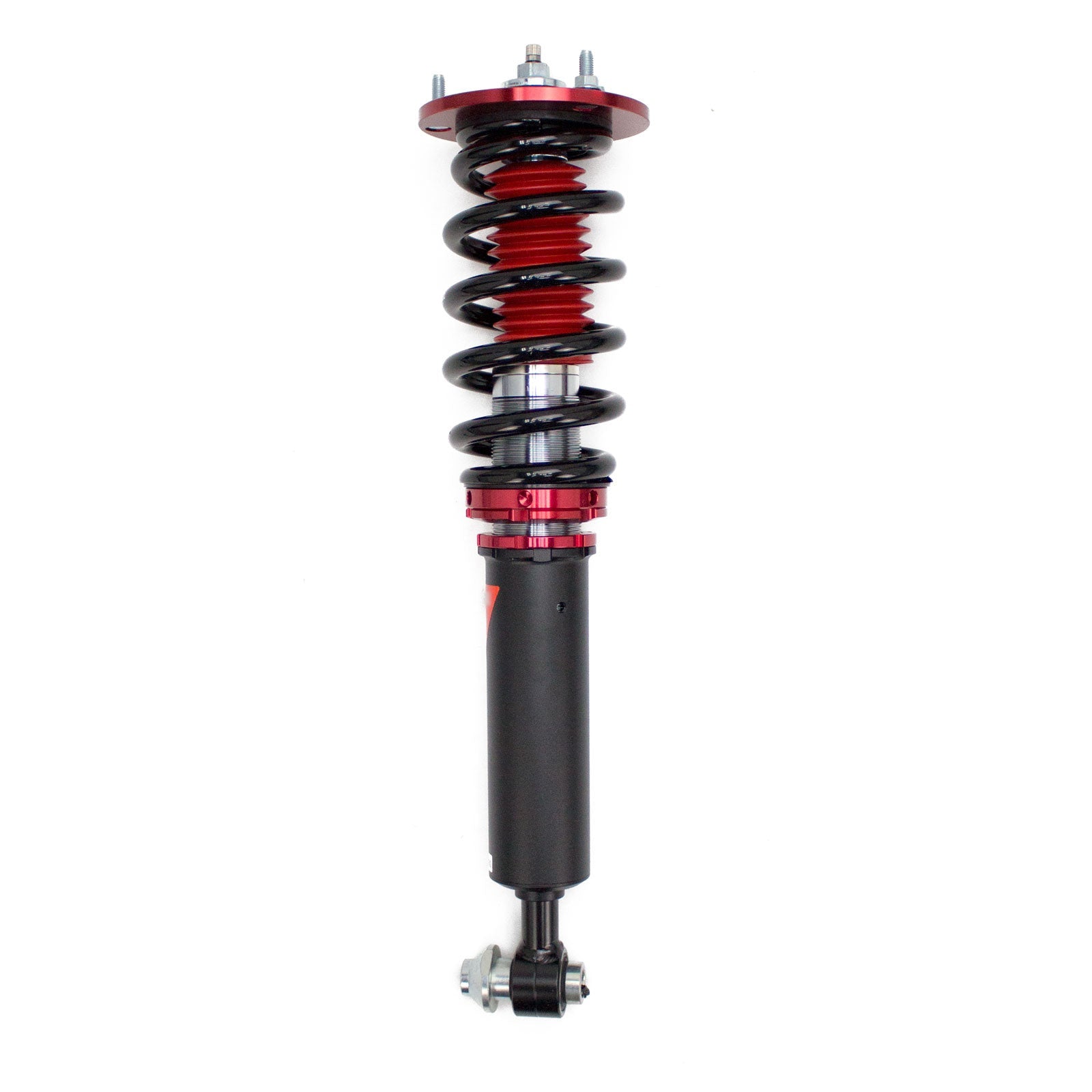

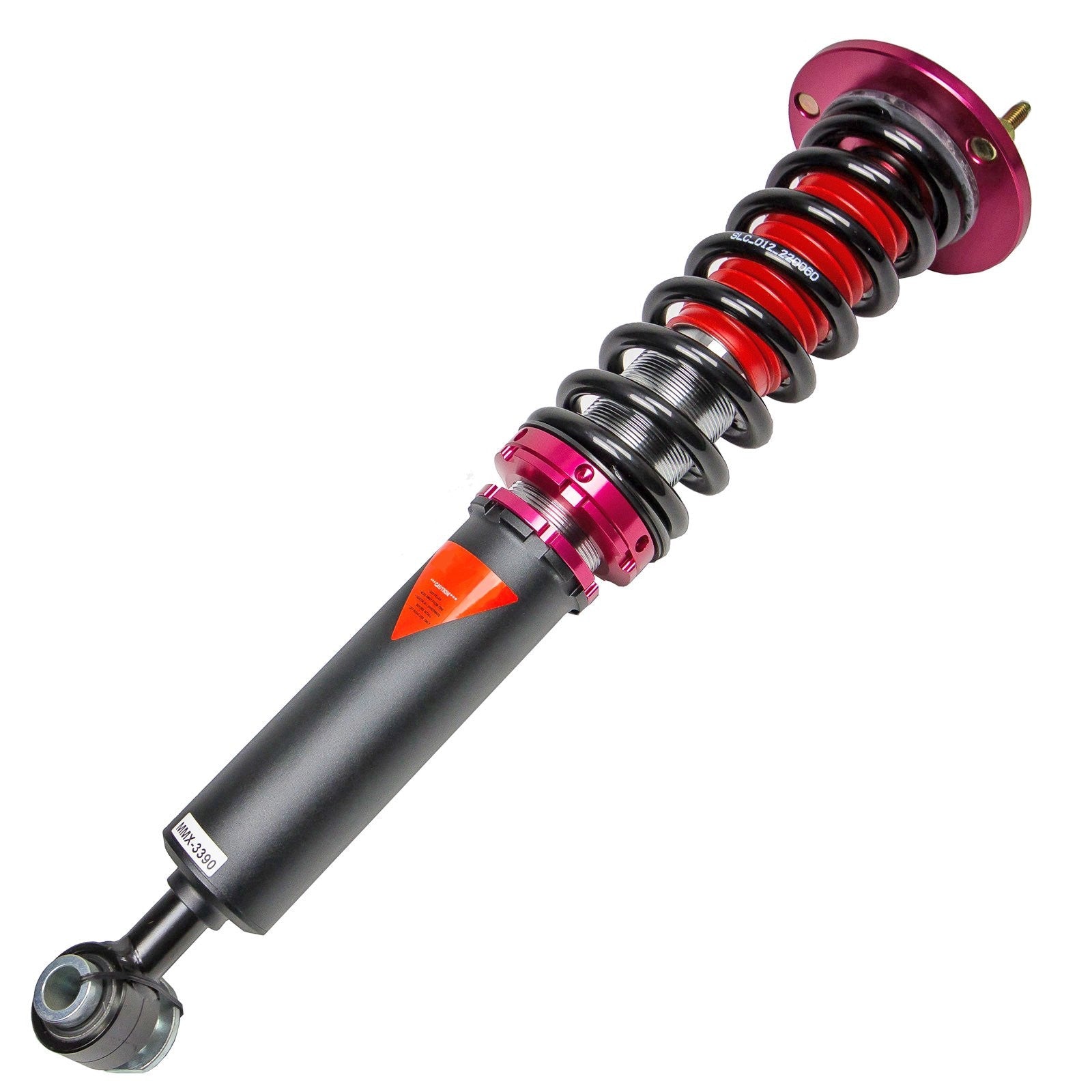

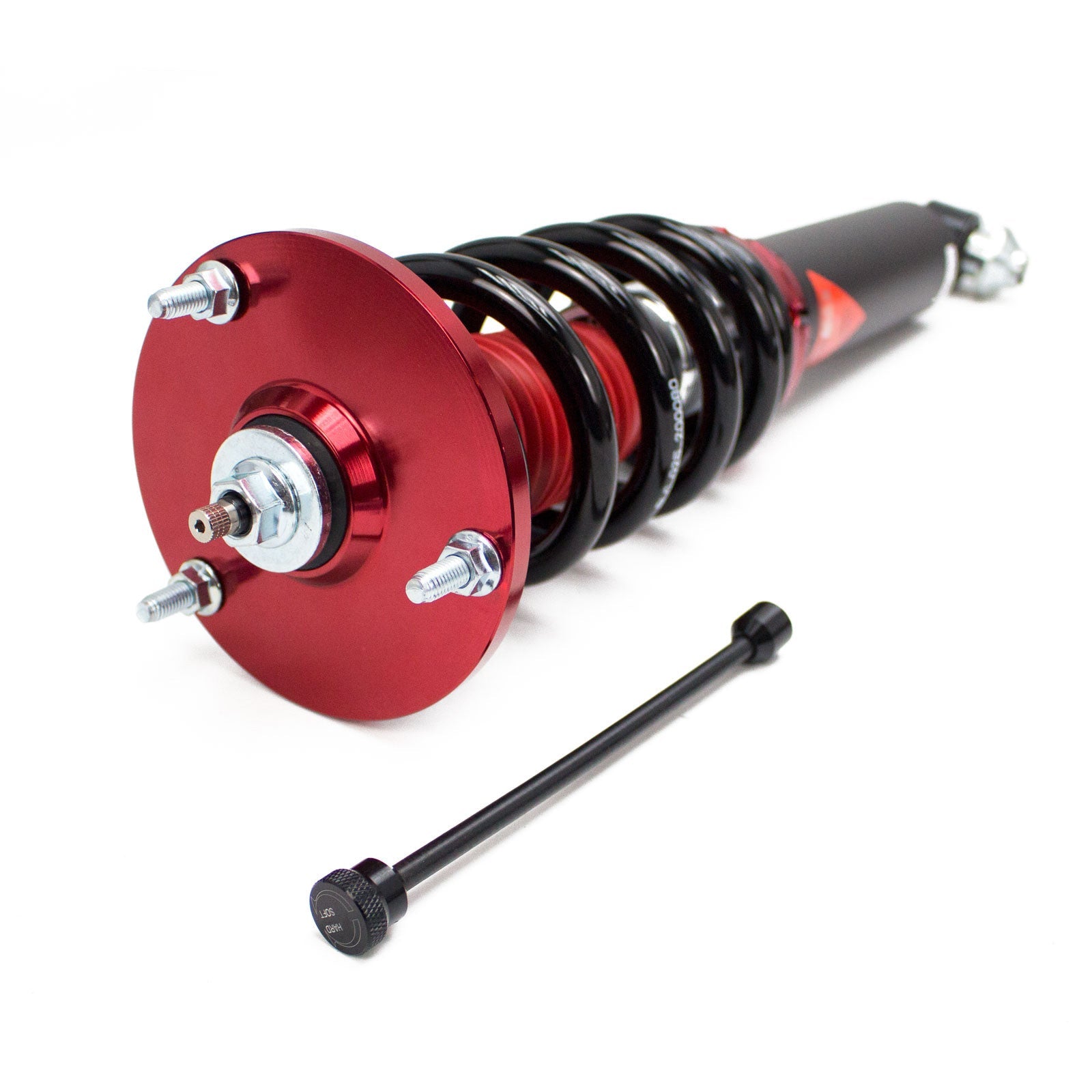

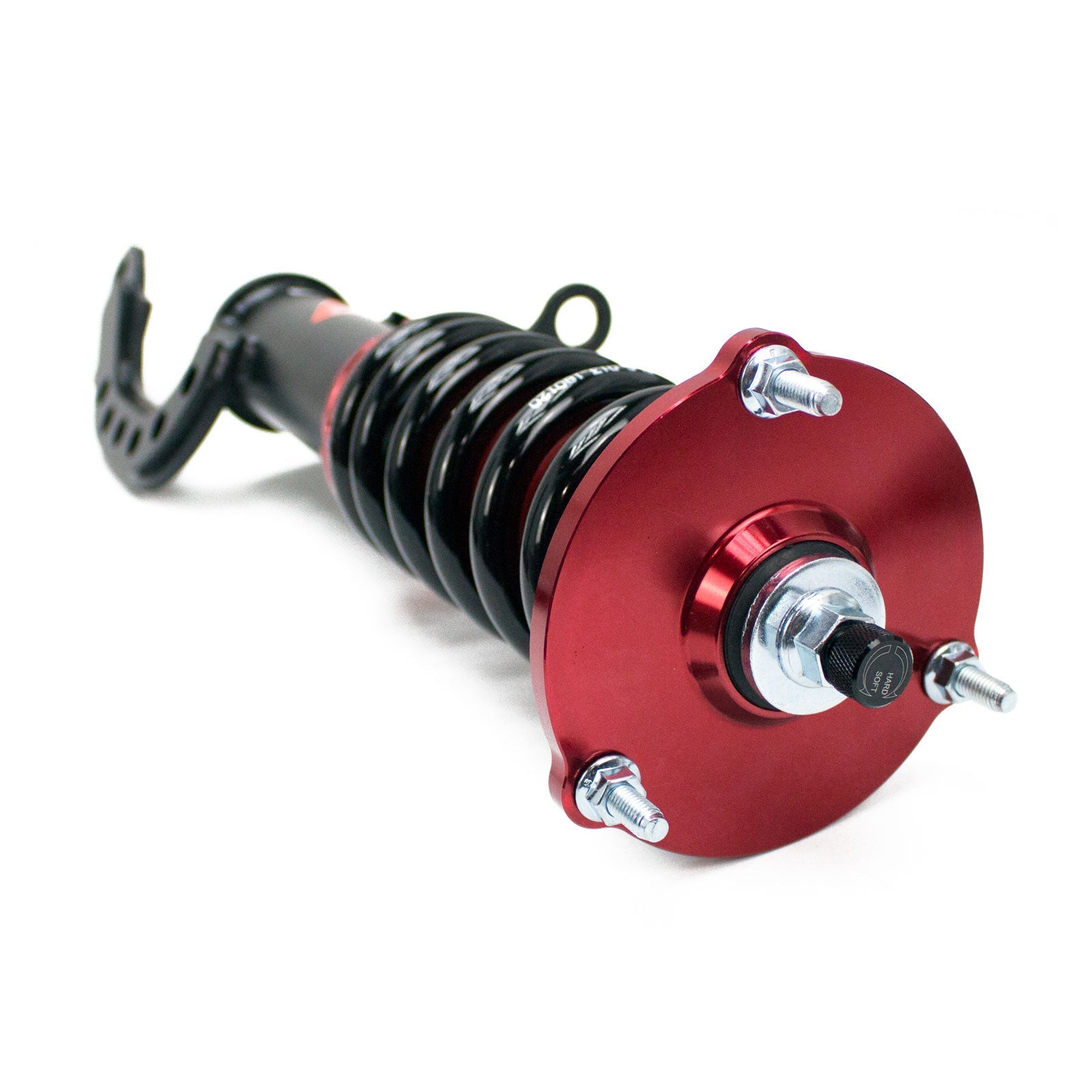

F10 RWD, 2011-2016, MAXX
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. Not for vehicles with "Integral Active Steering". |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 8 kg/mm (448 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 220 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |

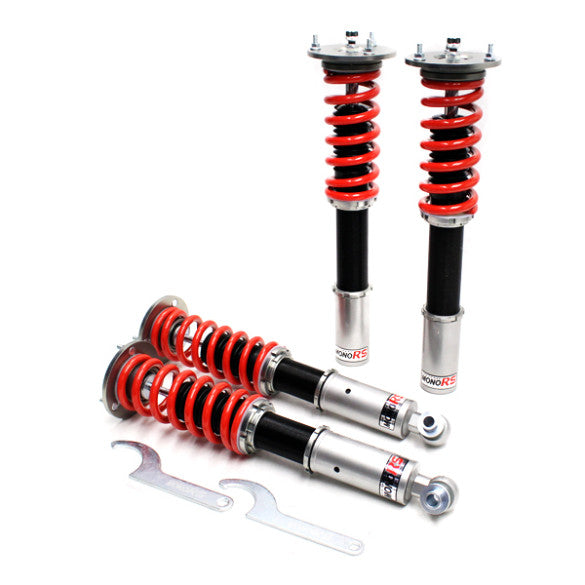

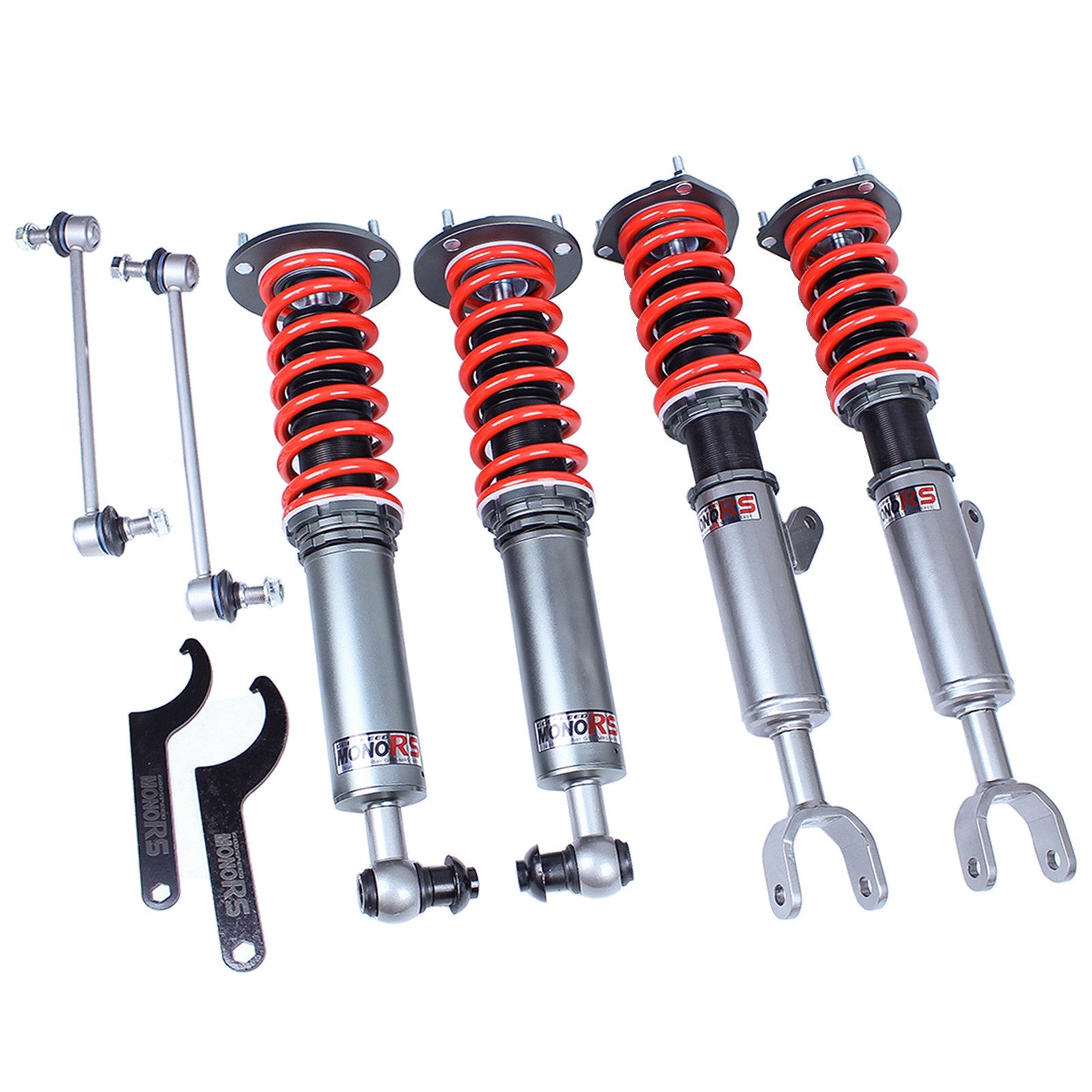

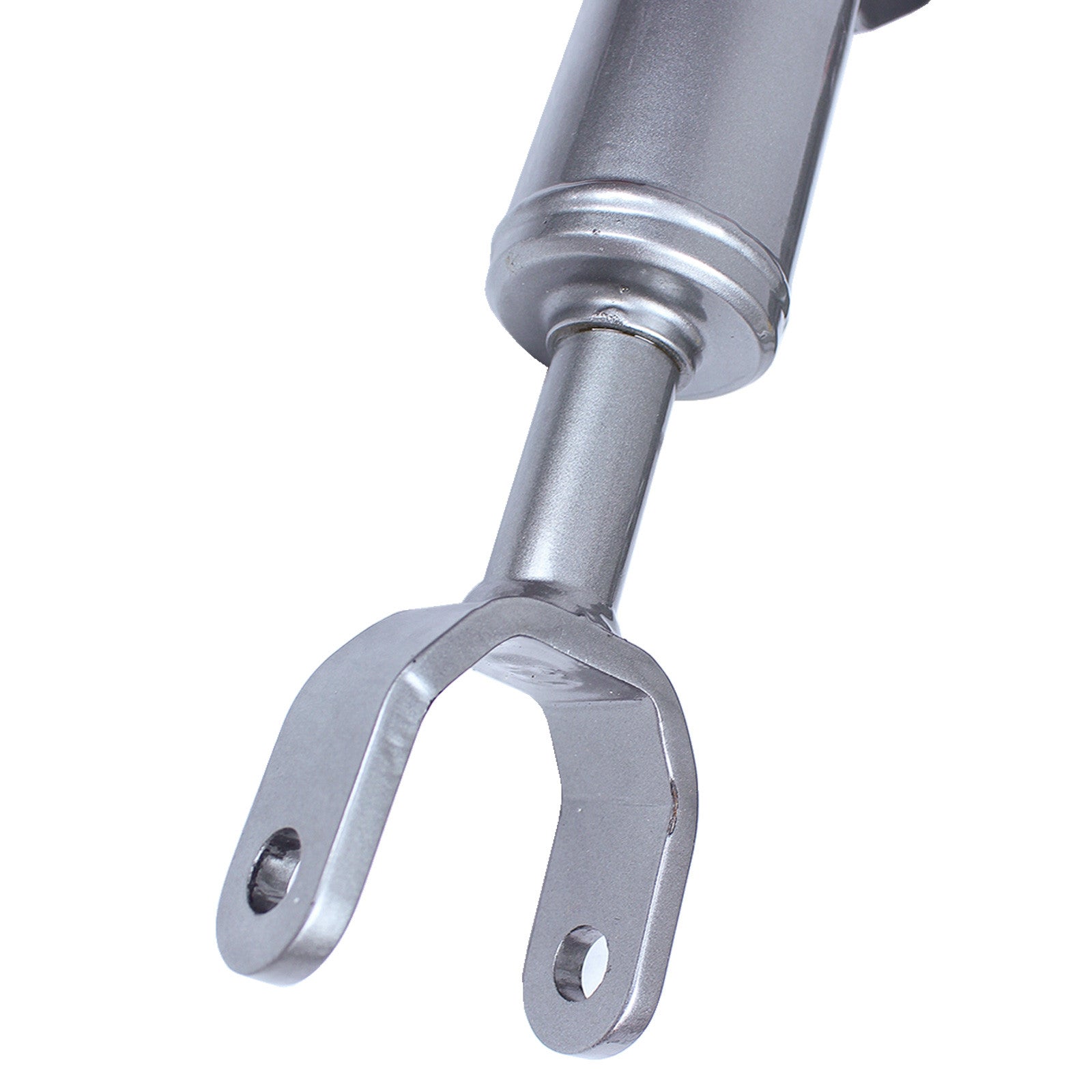

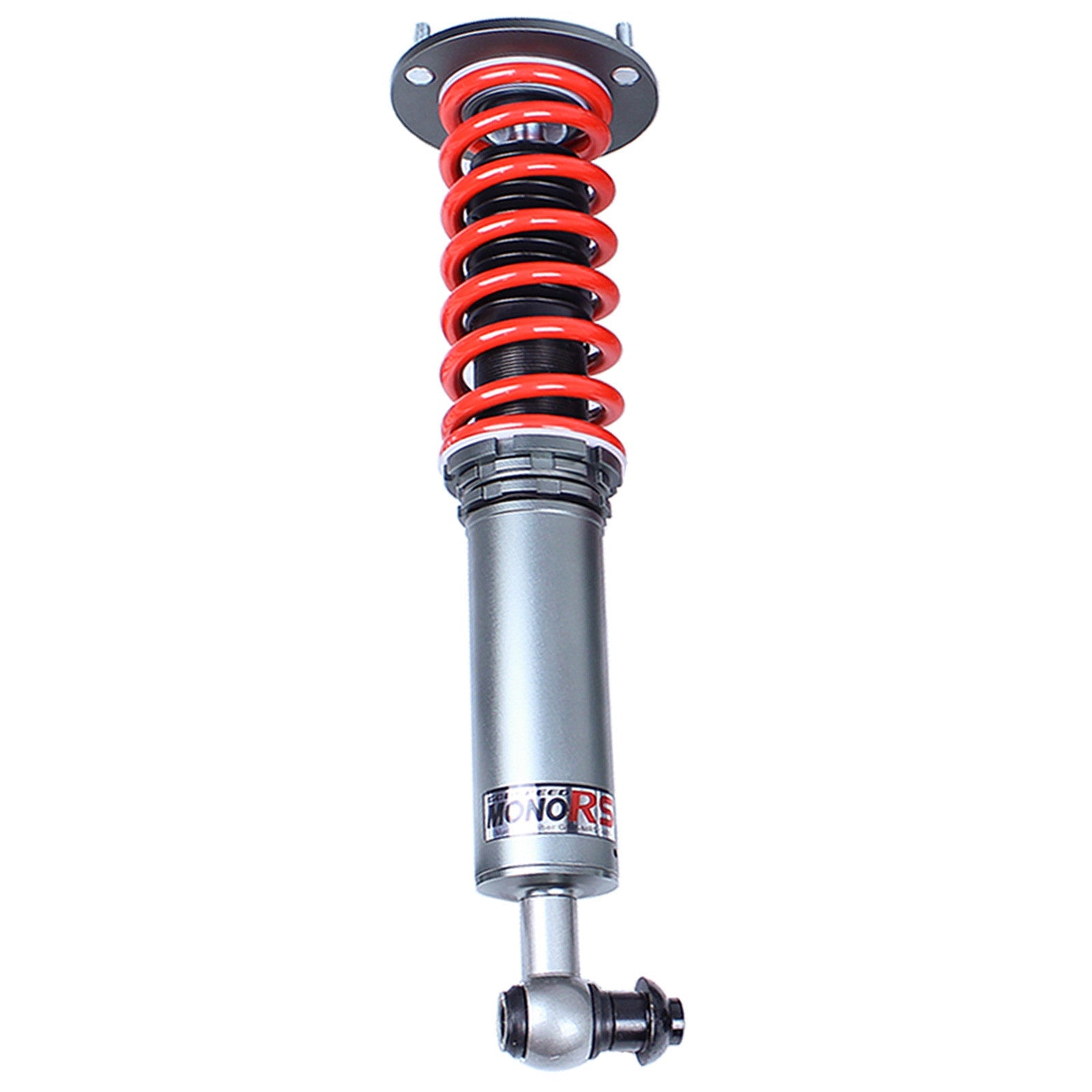

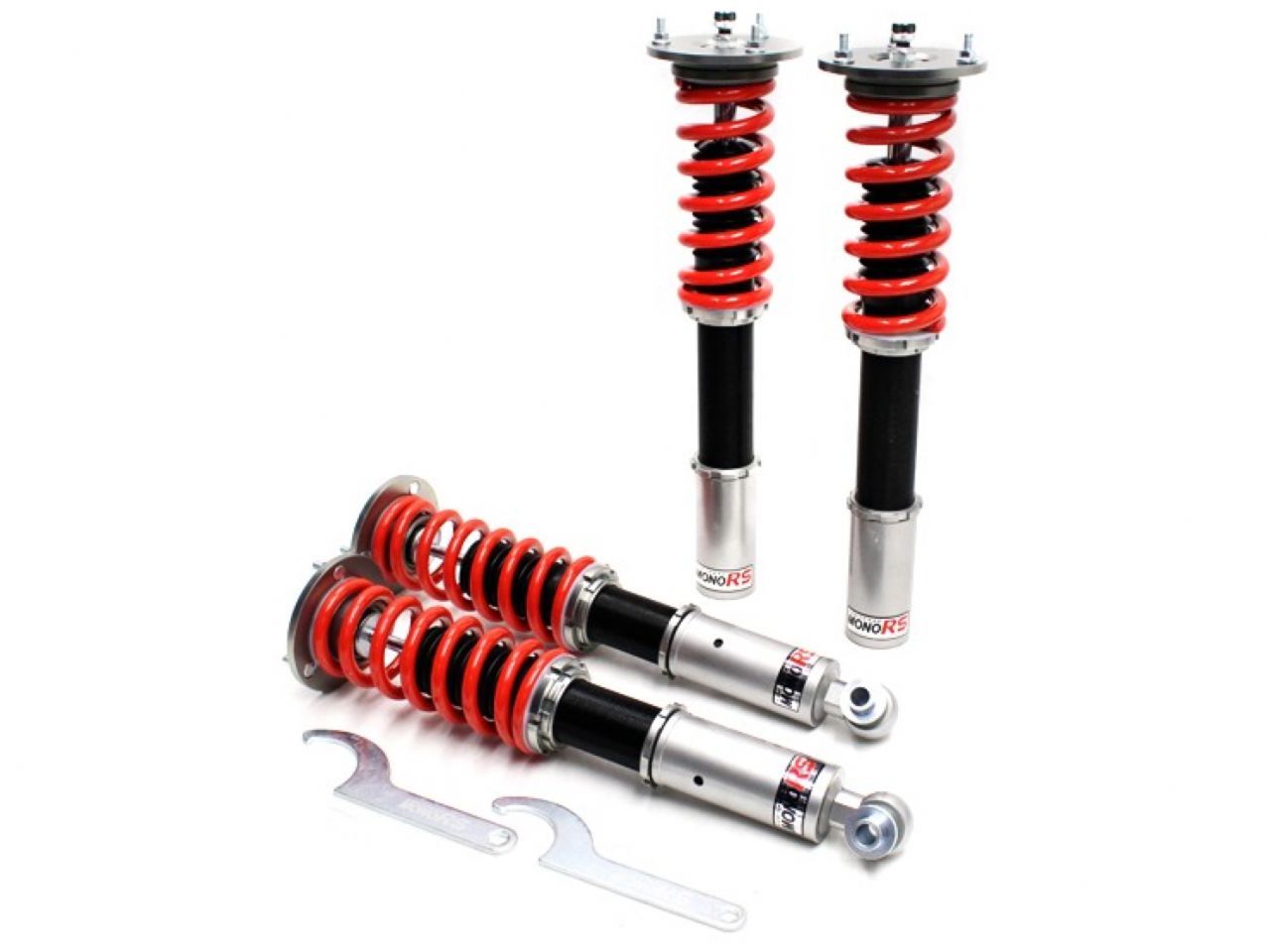

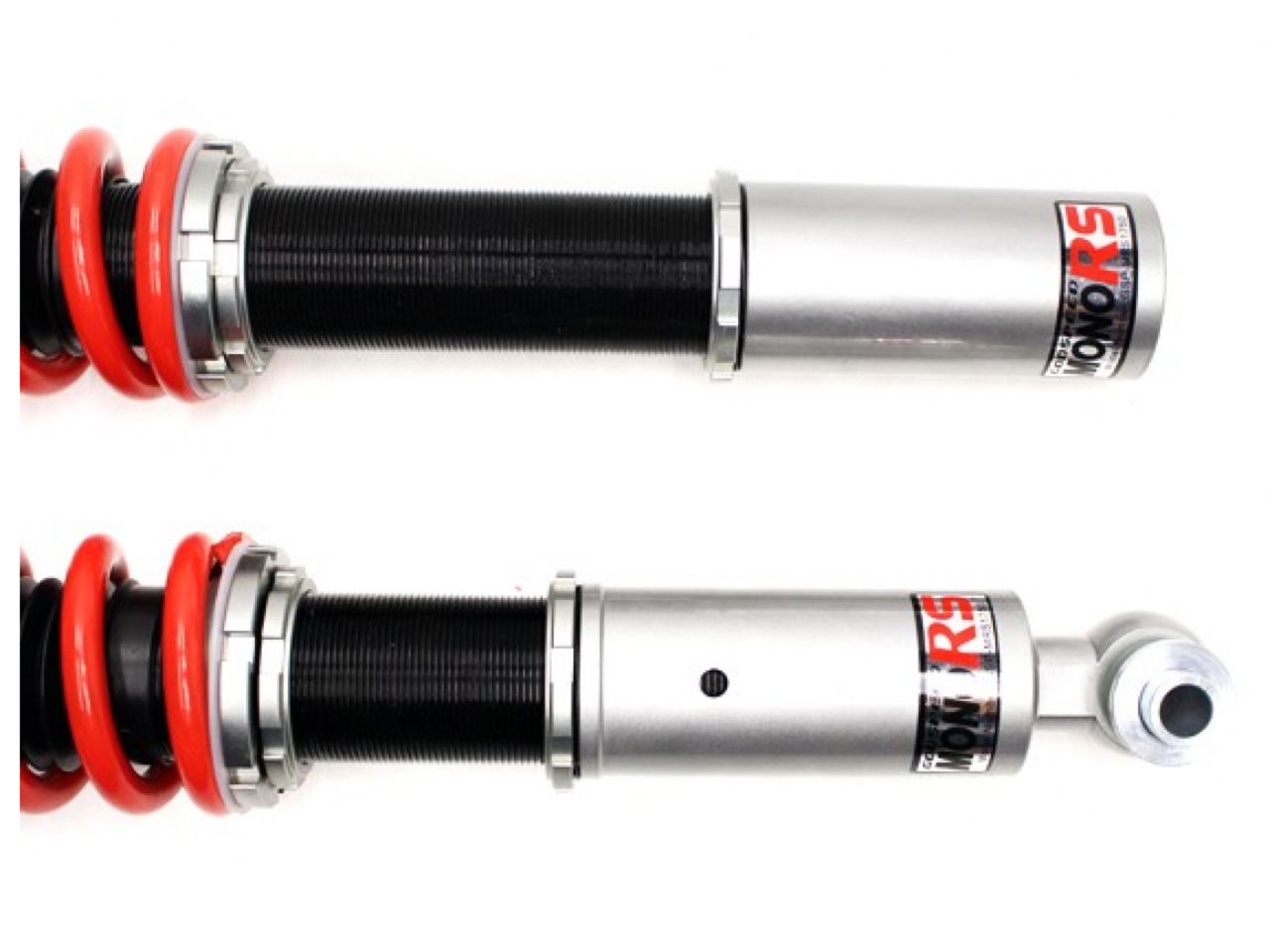

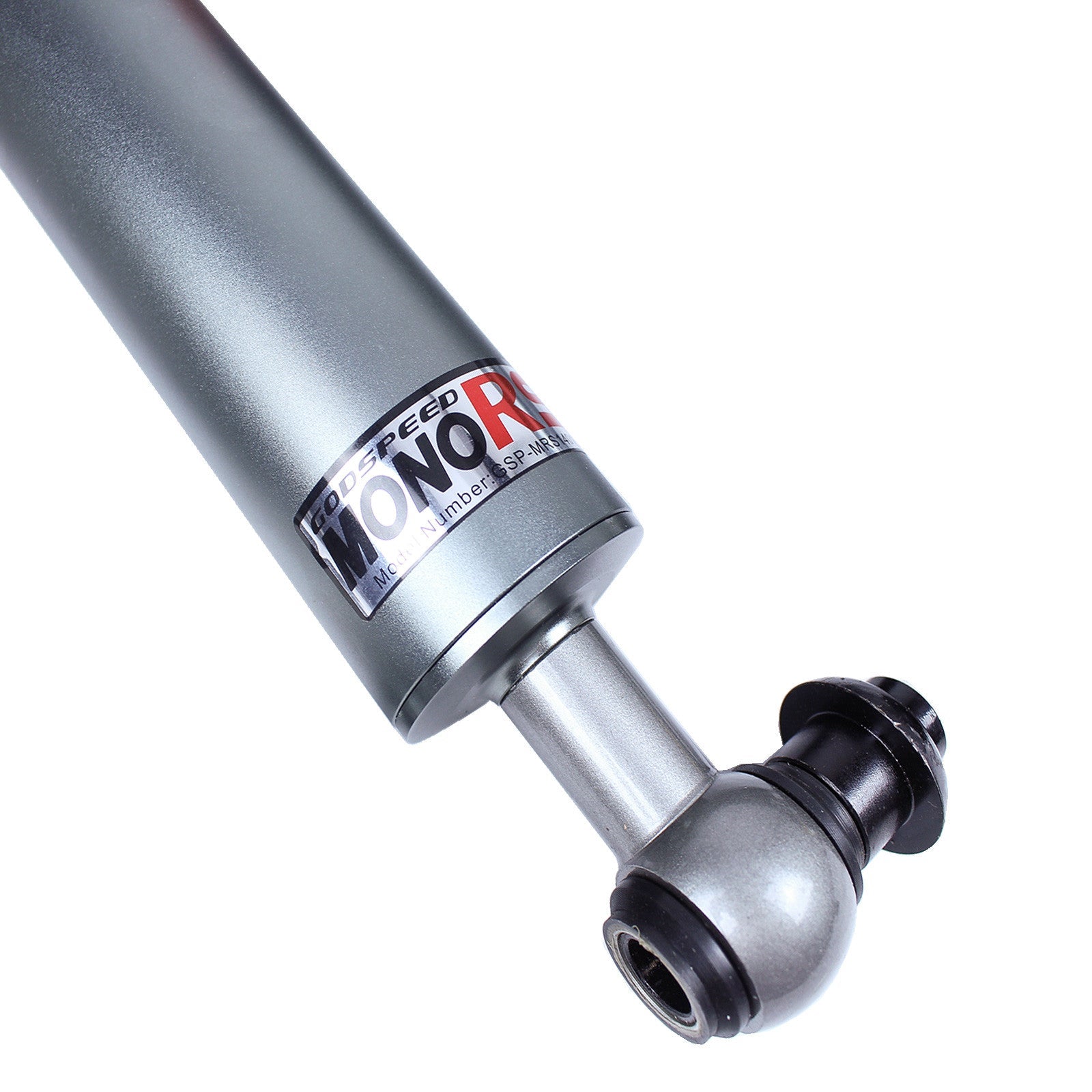

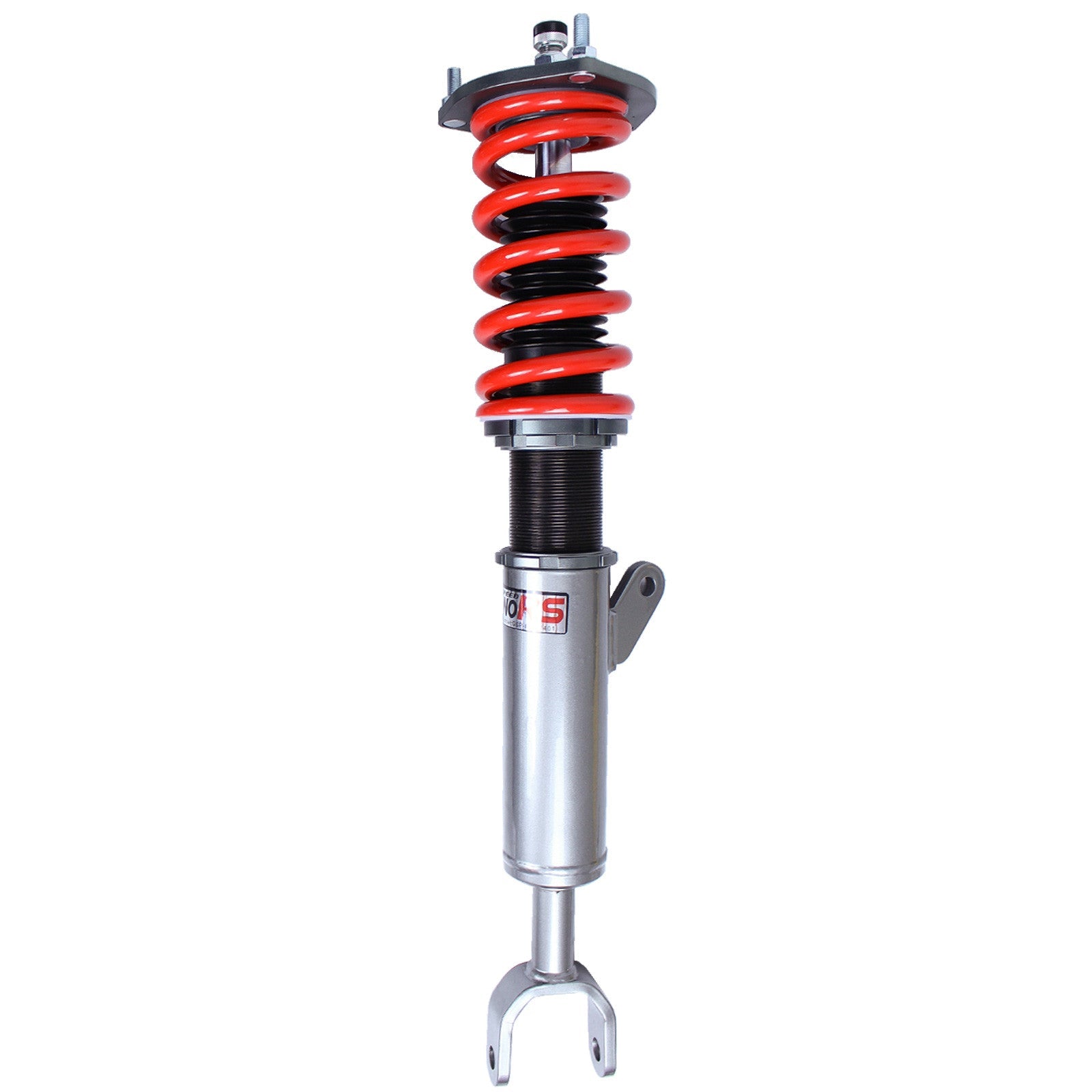

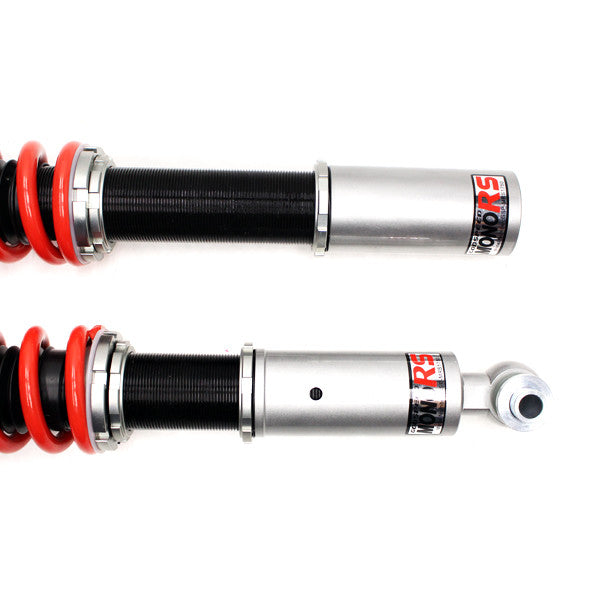

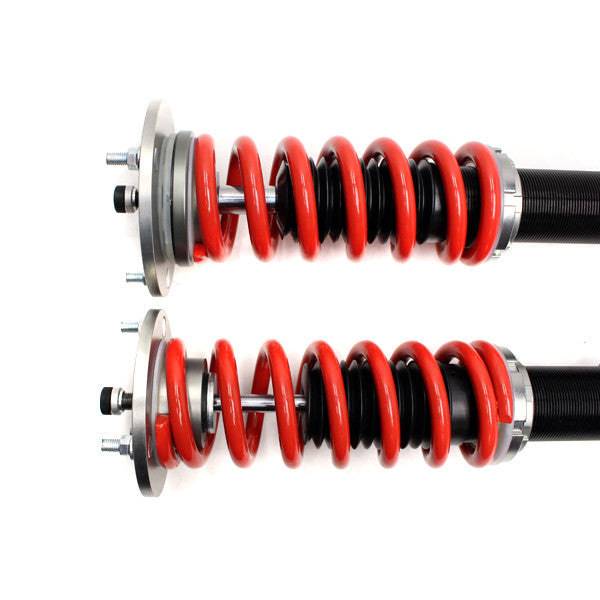

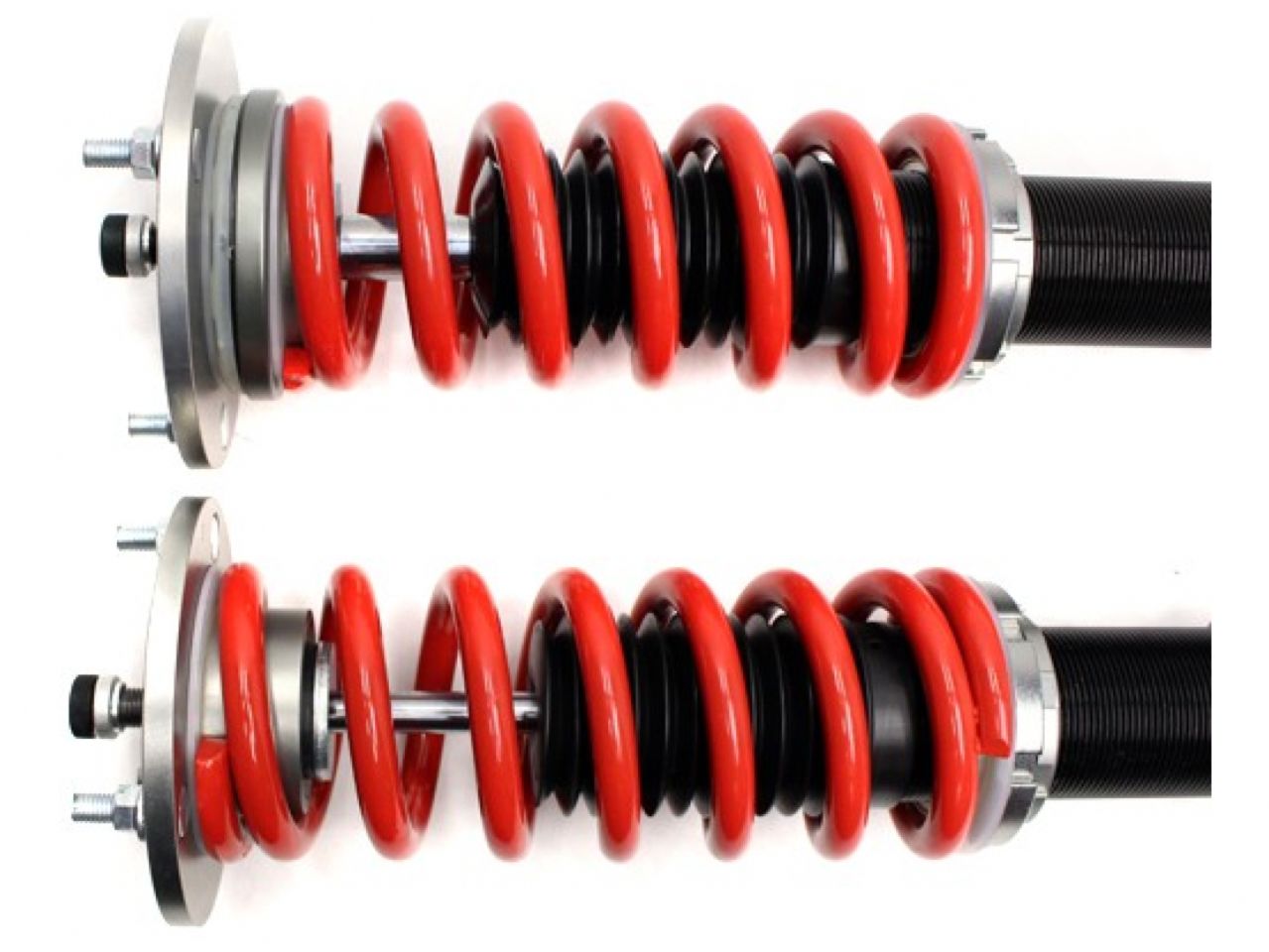

E60 RWD, 2004-2010, MonoRS
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 32-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 12 kg/mm |
| Spring Rate(Rear) | 8 kg/mm |
| Spring Length(Front) | 200 mm |
| Spring Length(Rear) | 220 mm |

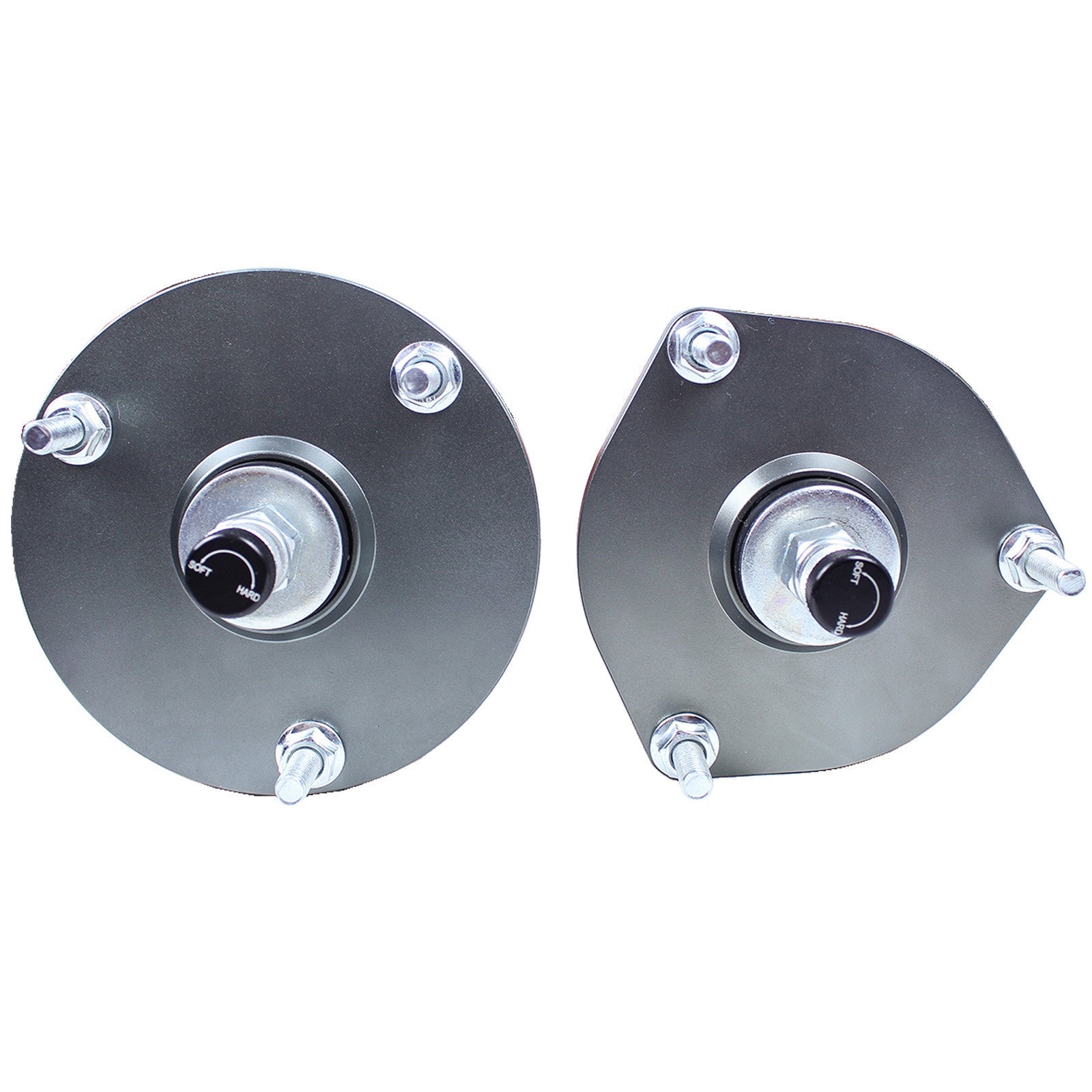

| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm |
| Spring Inner Diameter(Rear) | 62 mm |
| Warranty Note | No |
| User Guide | Coilover User Guide |
F10 RWD, 2011-2016, MonoRS
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.; Not for vehicles with "Integral Active Steering"; Vehicles equipped with electronic damper control: Electronic damper control needs to be disabled. |
|---|---|
| Damping Levels | 32-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm |
| Spring Rate(Rear) | 6 kg/mm |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 220 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm |
| Spring Inner Diameter(Rear) | 62 mm |
| Warranty Note | No |
| User Guide | Coilover User Guide |

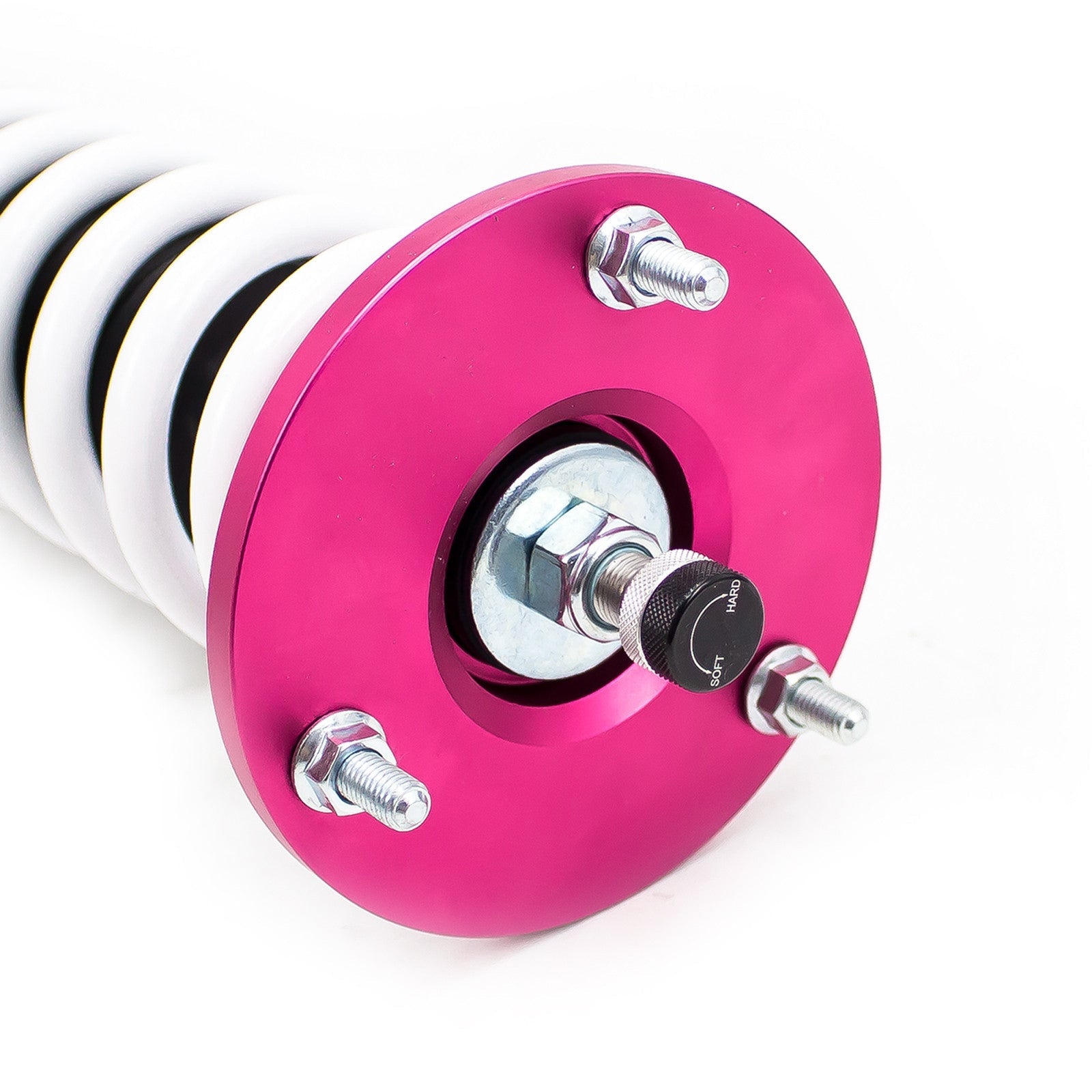

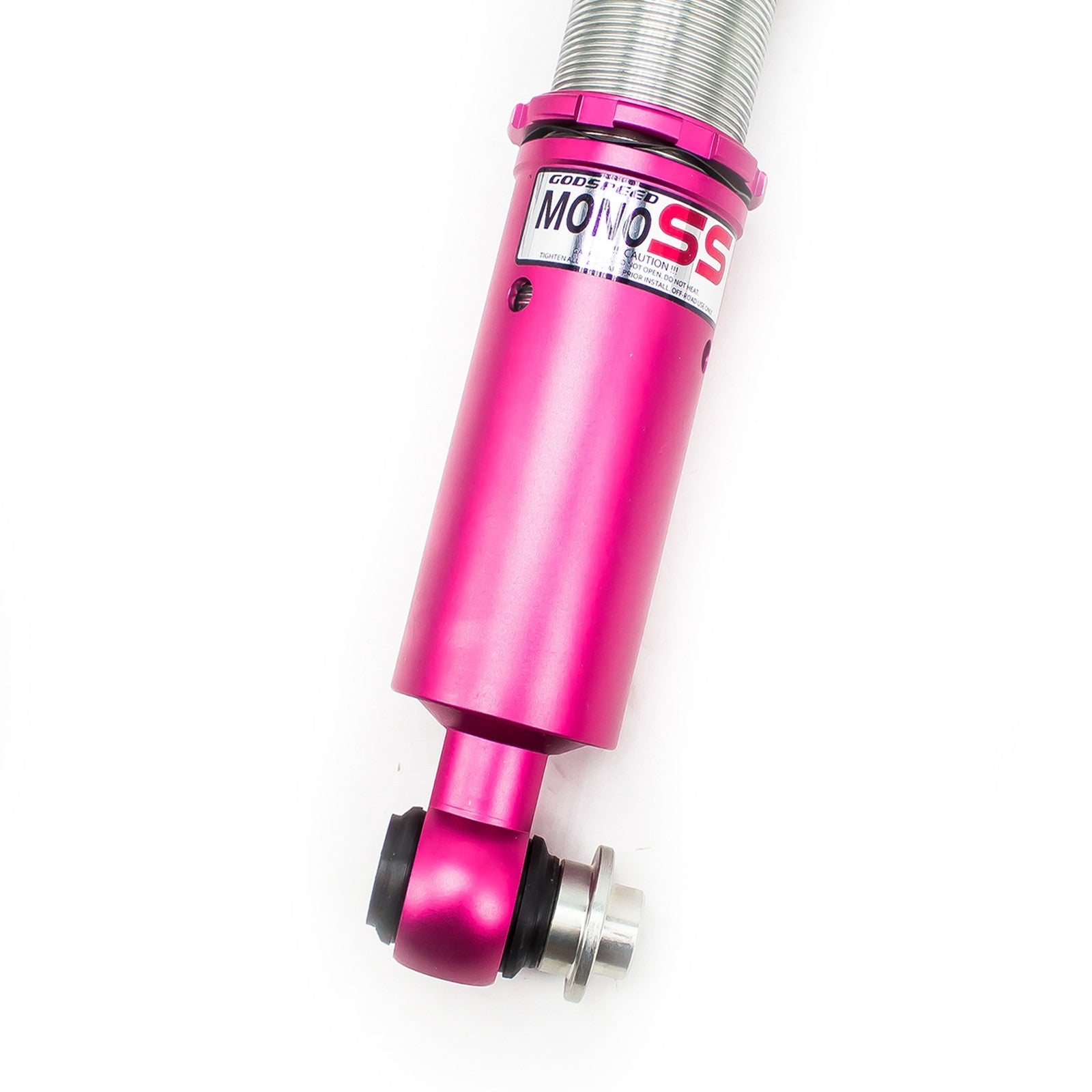

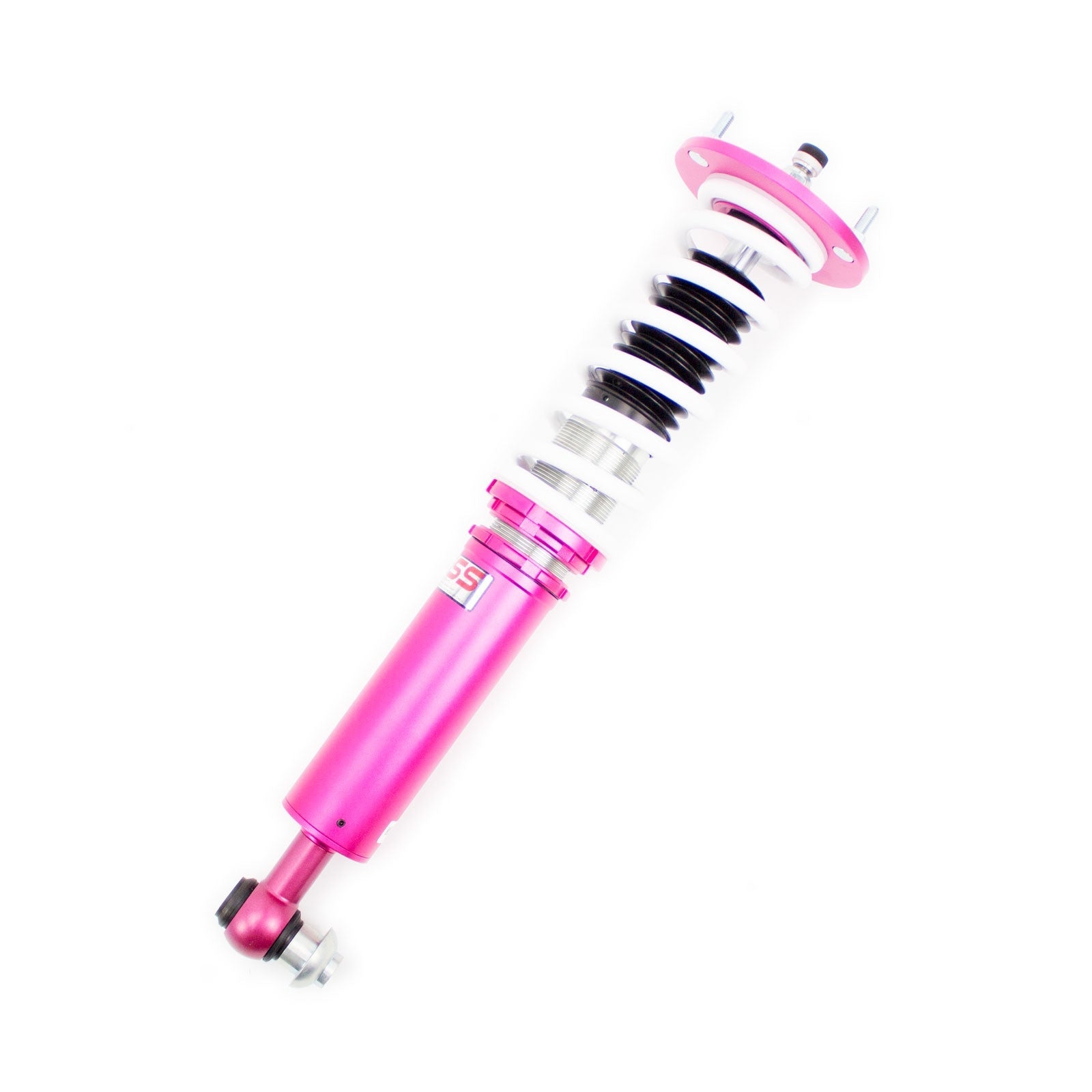

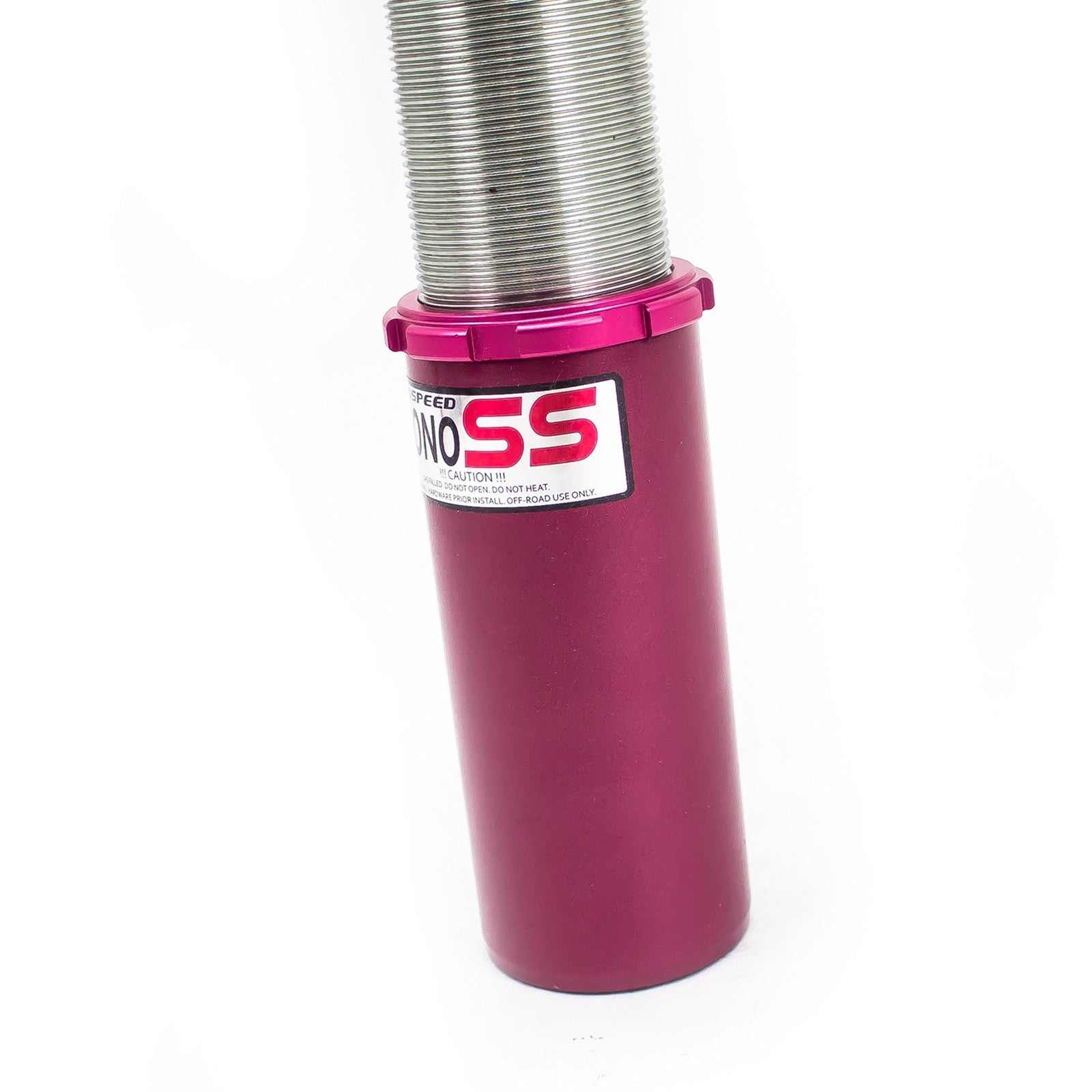

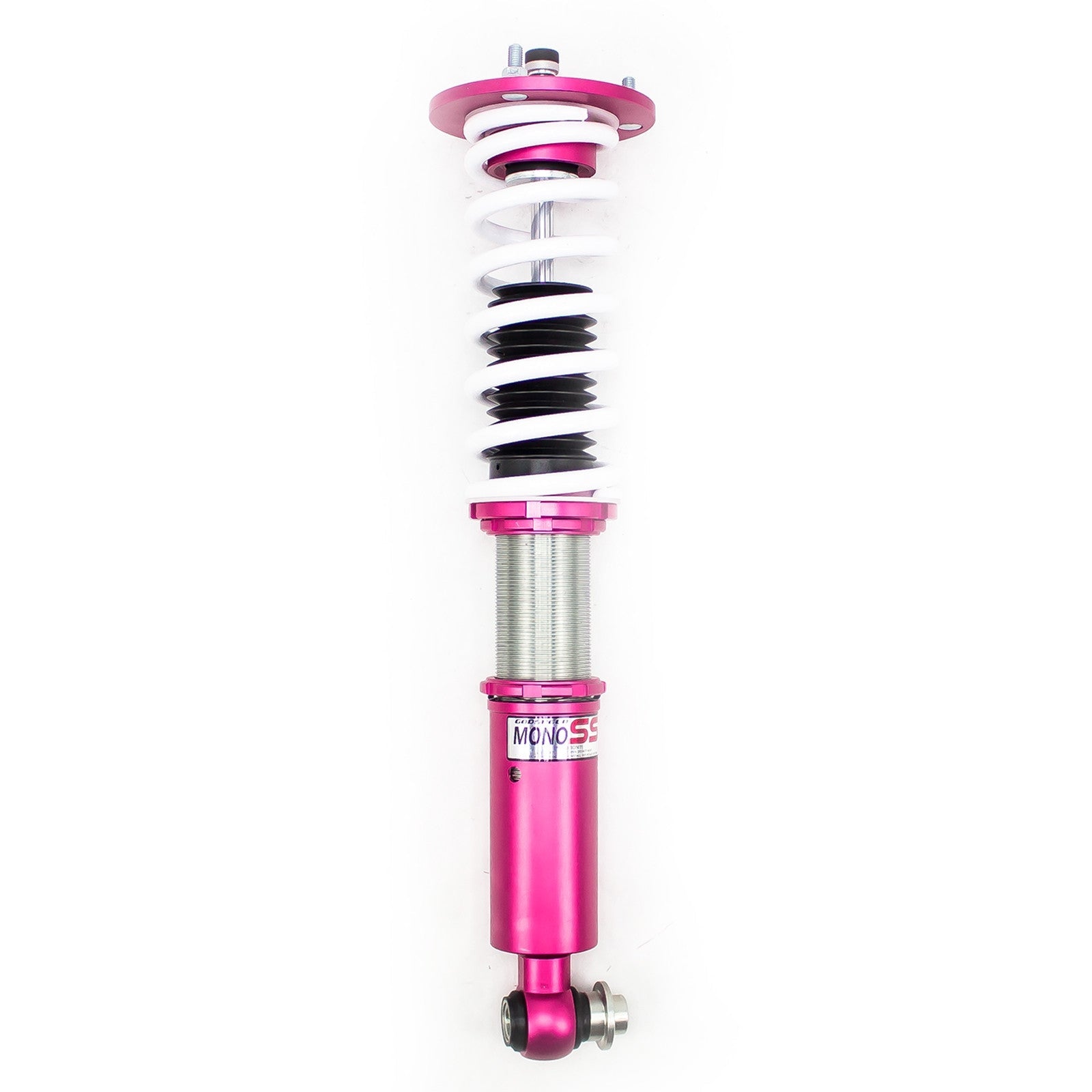

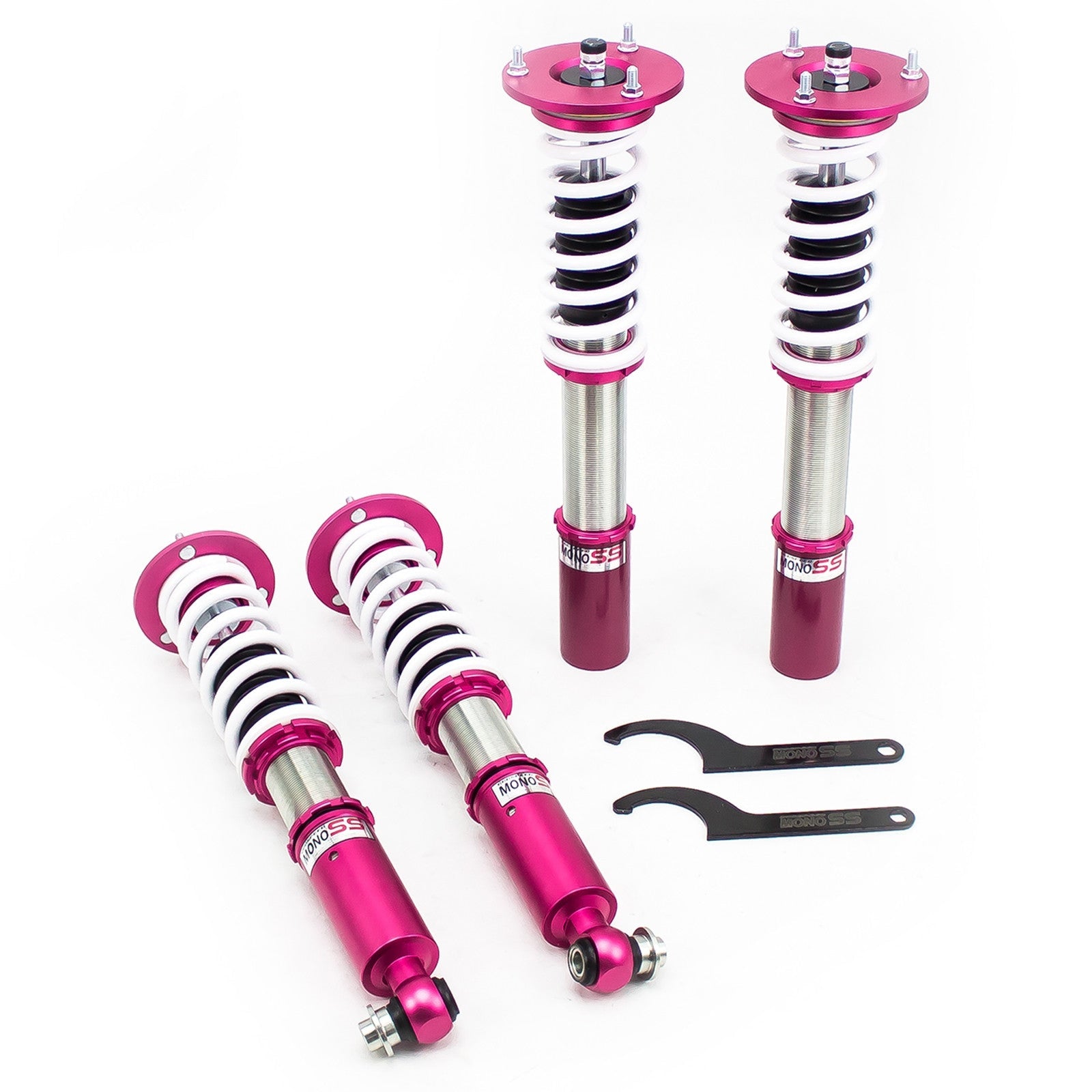

E60 RWD, 2004-2010, MonoSS
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 16-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 12 kg/mm (672 lbs/inch) |
| Spring Rate(Rear) | 8 kg/mm (448 lbs/inch) |
| Spring Length(Front) | 220 mm |
| Spring Length(Rear) | 220 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |

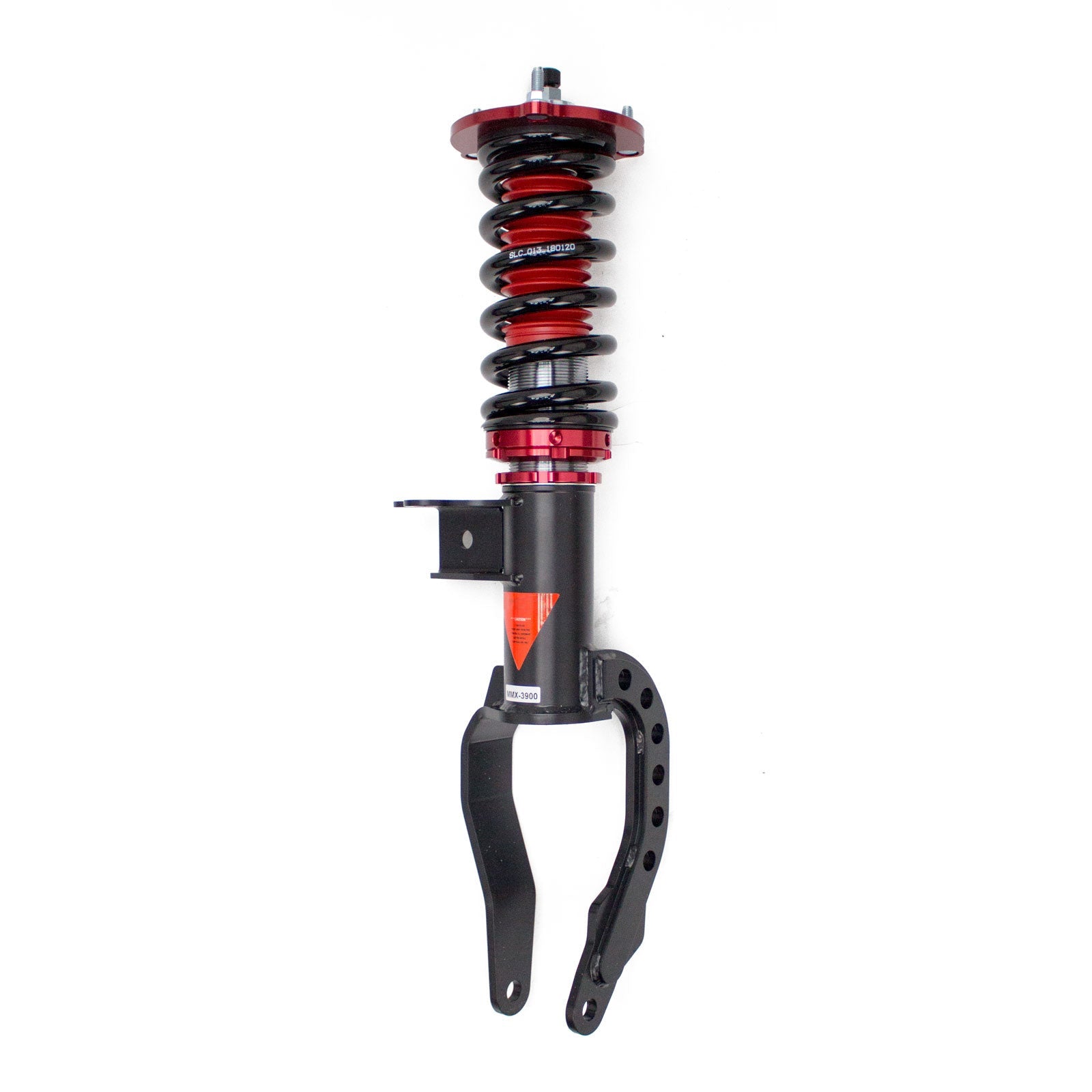

F10 AWD, 2011-2016, MAXX
| Special Notes | No |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 12 kg/mm (672 lbs/inch) |
| Spring Rate(Rear) | 8 kg/mm (448lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 200 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |

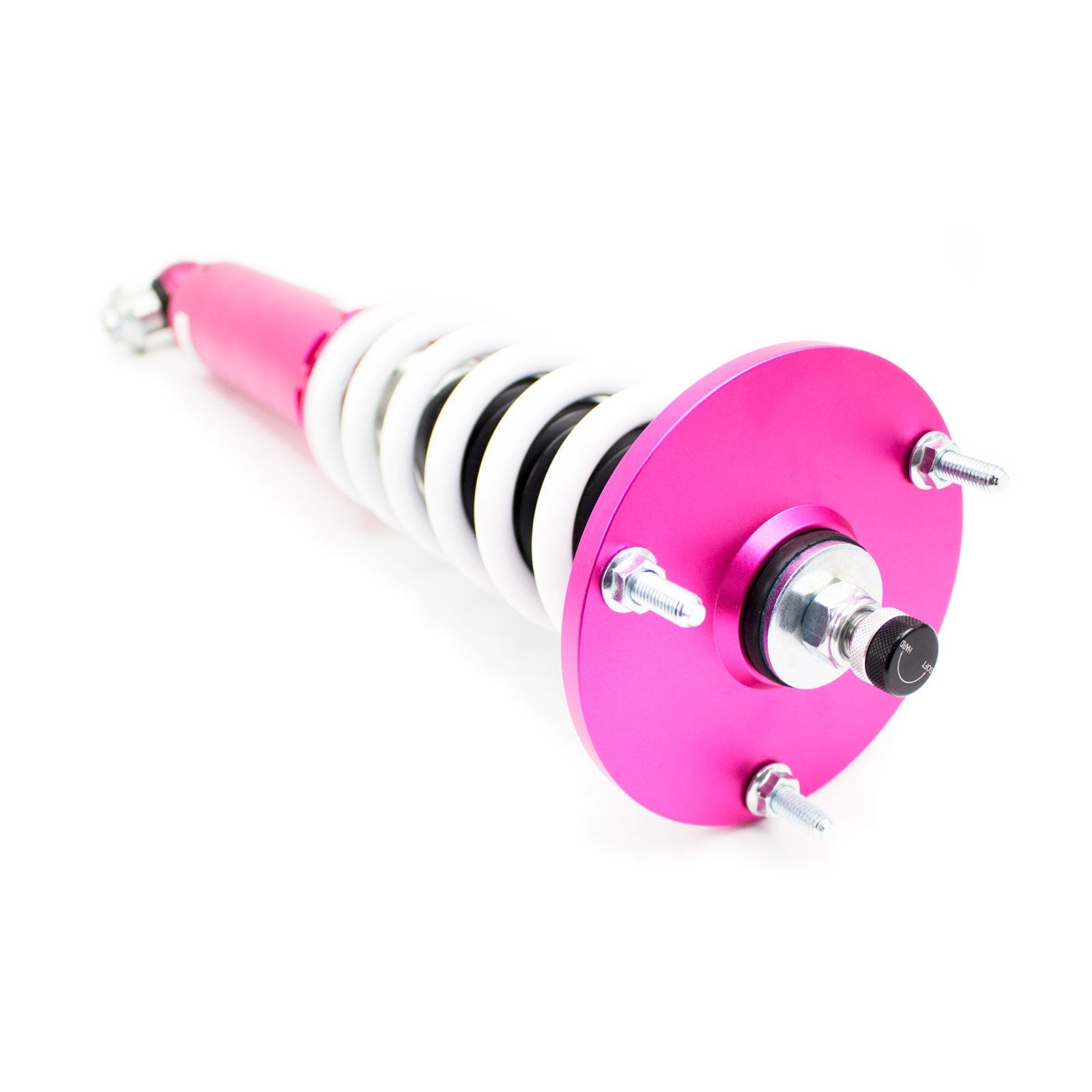

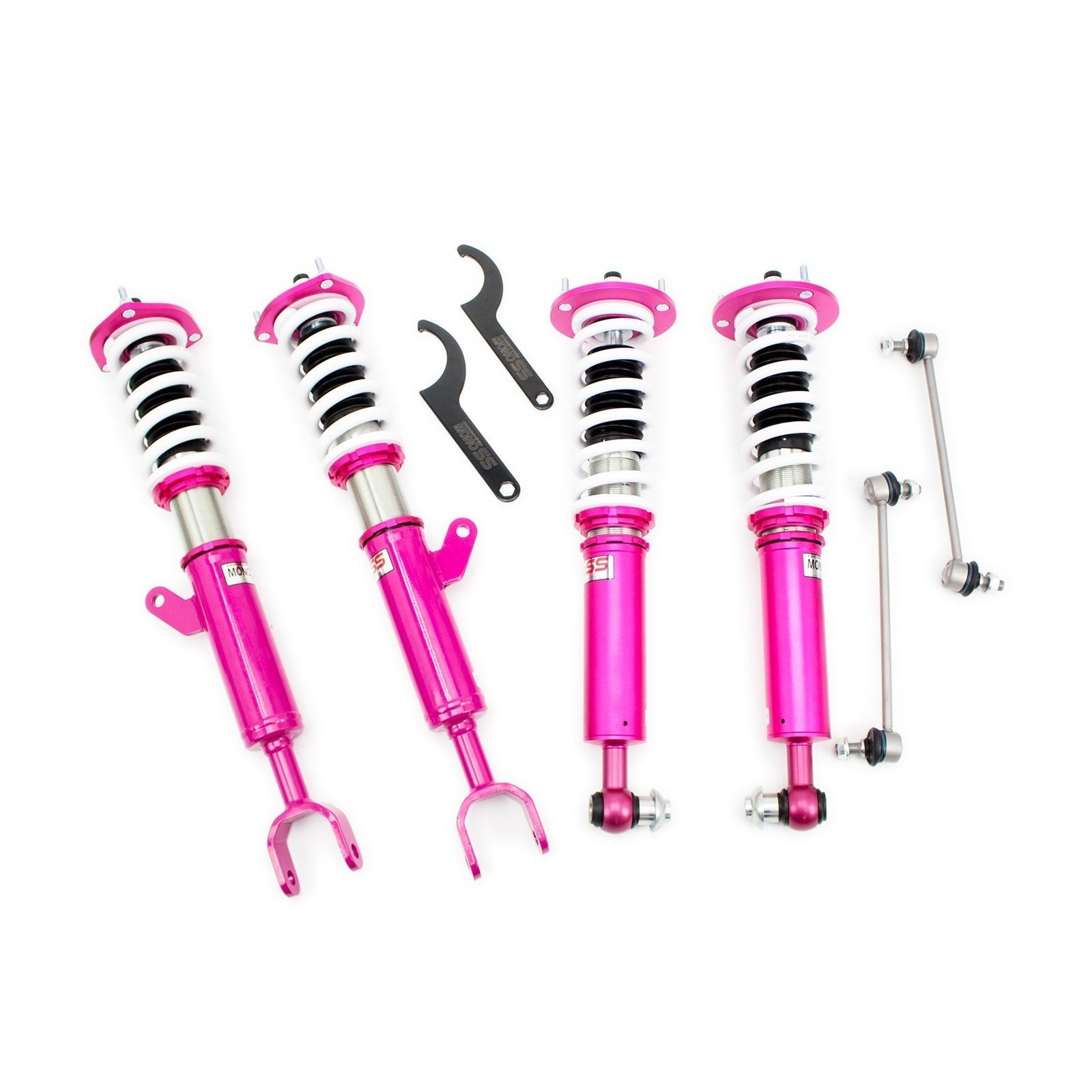

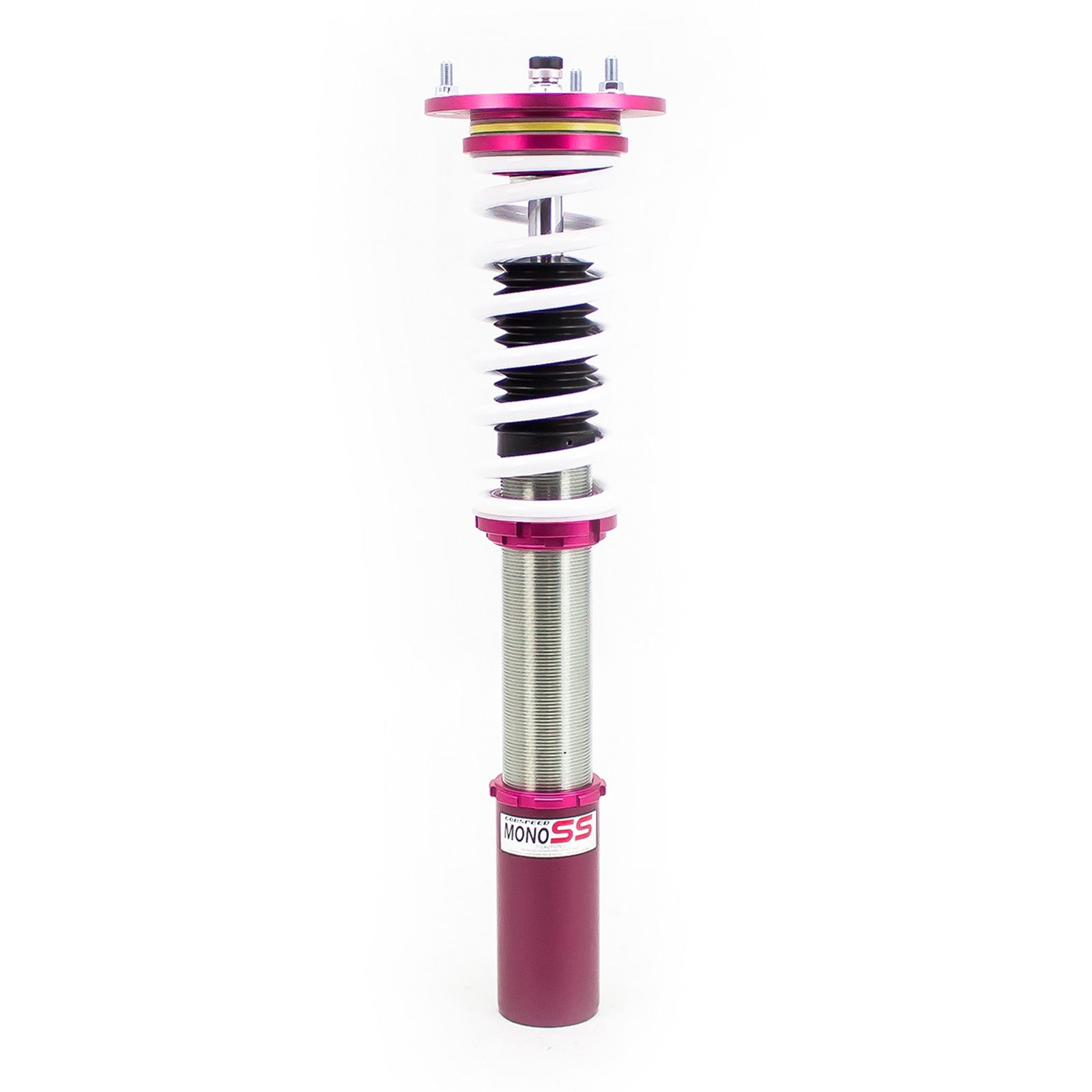

F10 RWD, 2011-2016, MonoSS
| Special Notes |
|
|---|---|
| Damping Levels | 16-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 6 kg/mm (336 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 220 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
G30 RWD, 2017-2024, MAXX
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. Not for vehicles with "Integral Active Steering". |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 8 kg/mm (448 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 220 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
G30 RWD, 2017-2024, MonoSS
| Special Notes |
|
|---|---|
| Damping Levels | 16-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 6 kg/mm (336 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 220 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
