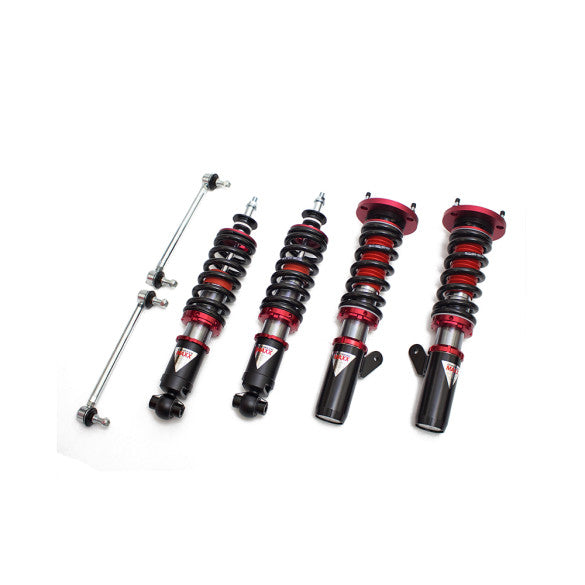

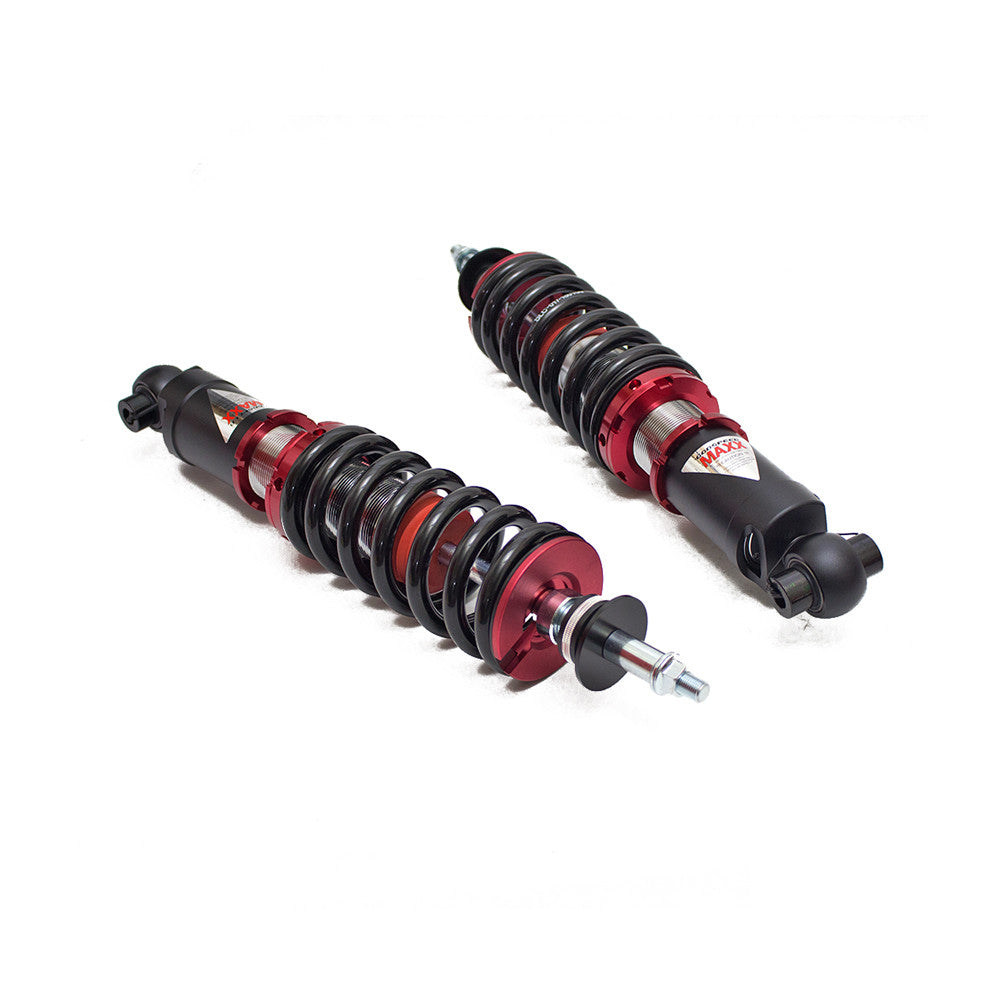

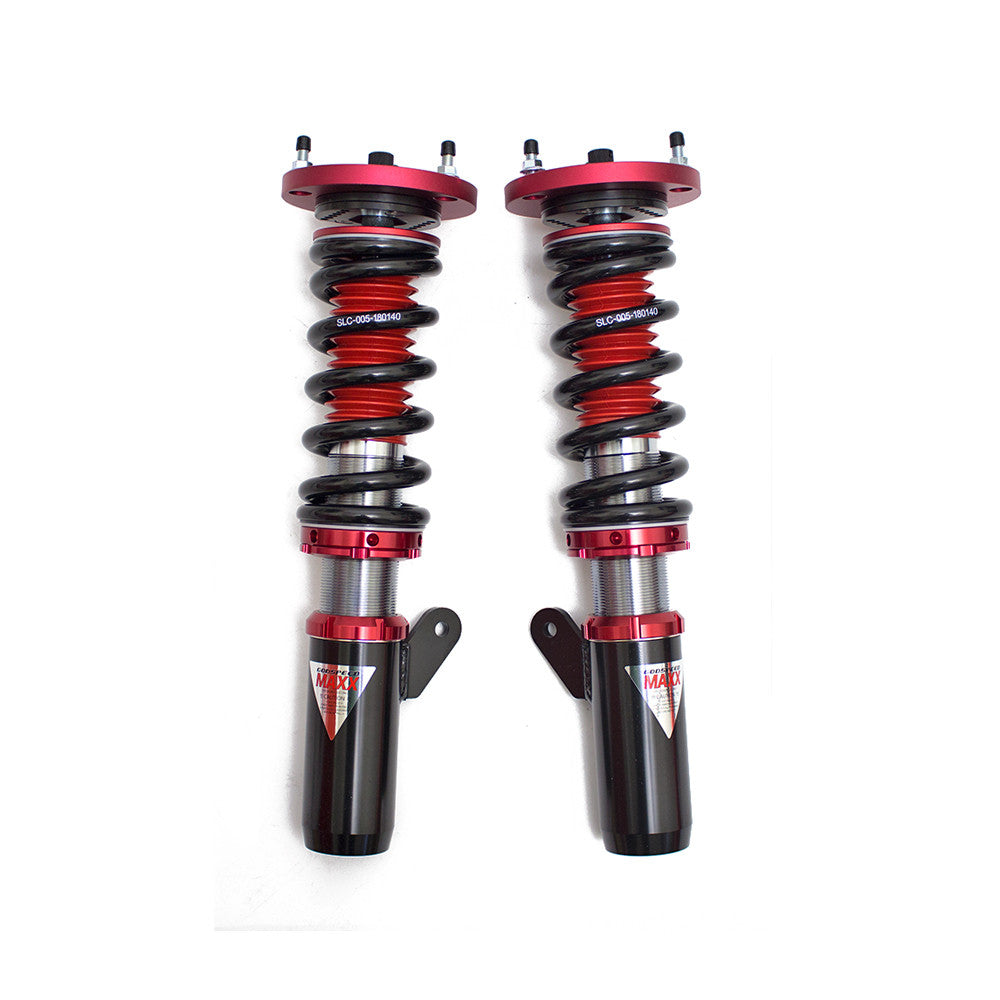

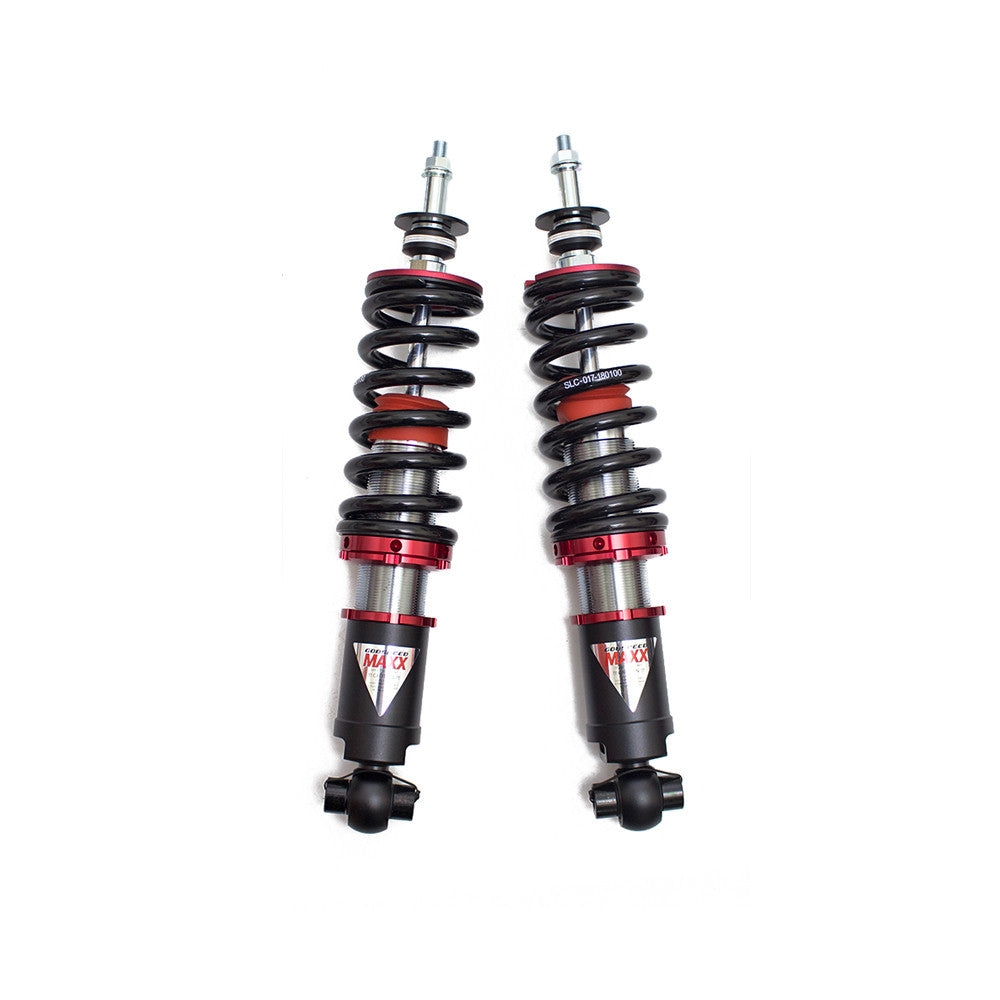

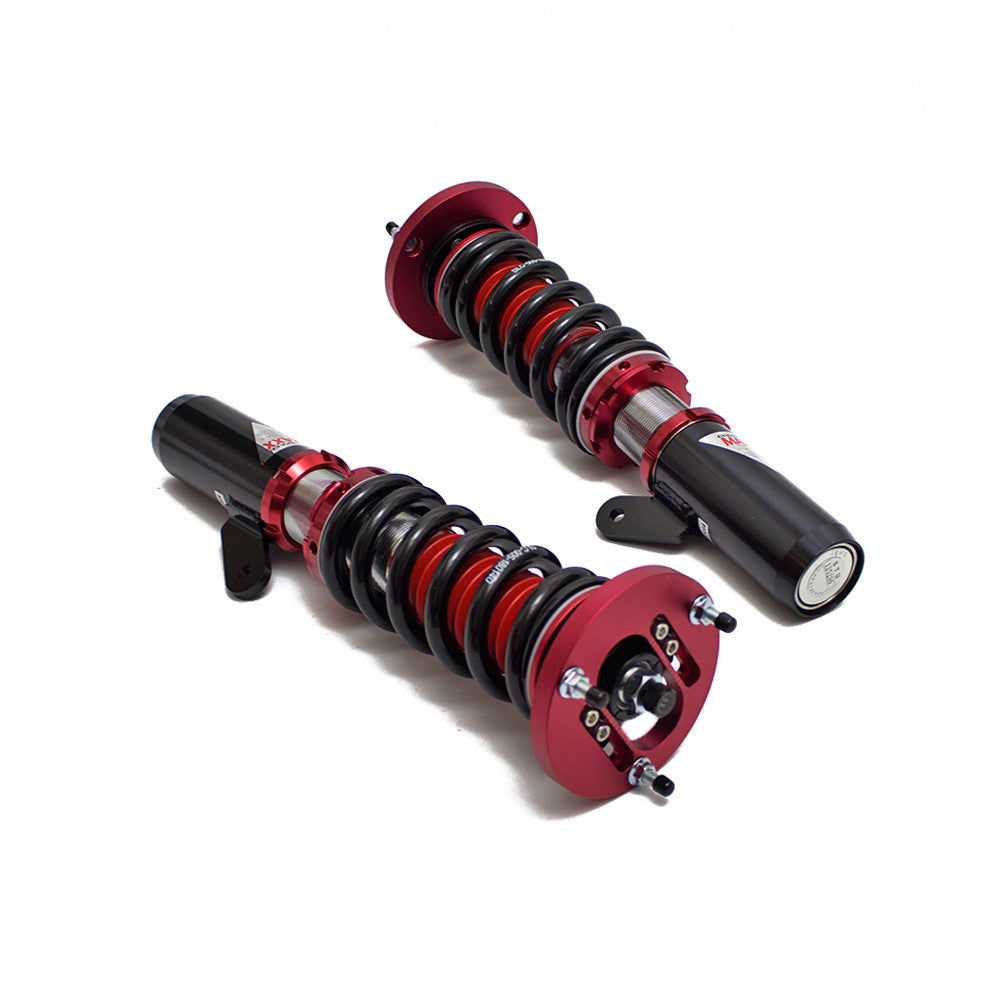

E90/E91/E92/E9, MAXX Coilovers - True Coilovers Setup
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 10 kg/mm (560 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 180 mm |
| Front Top Mount | Yes, Pillow Ball w/ Camber Plate |
| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | 365 days limited warranty from date of purchases, proof requires. Warranty are not transferable. |
| User Guide | Coilover User Guide |

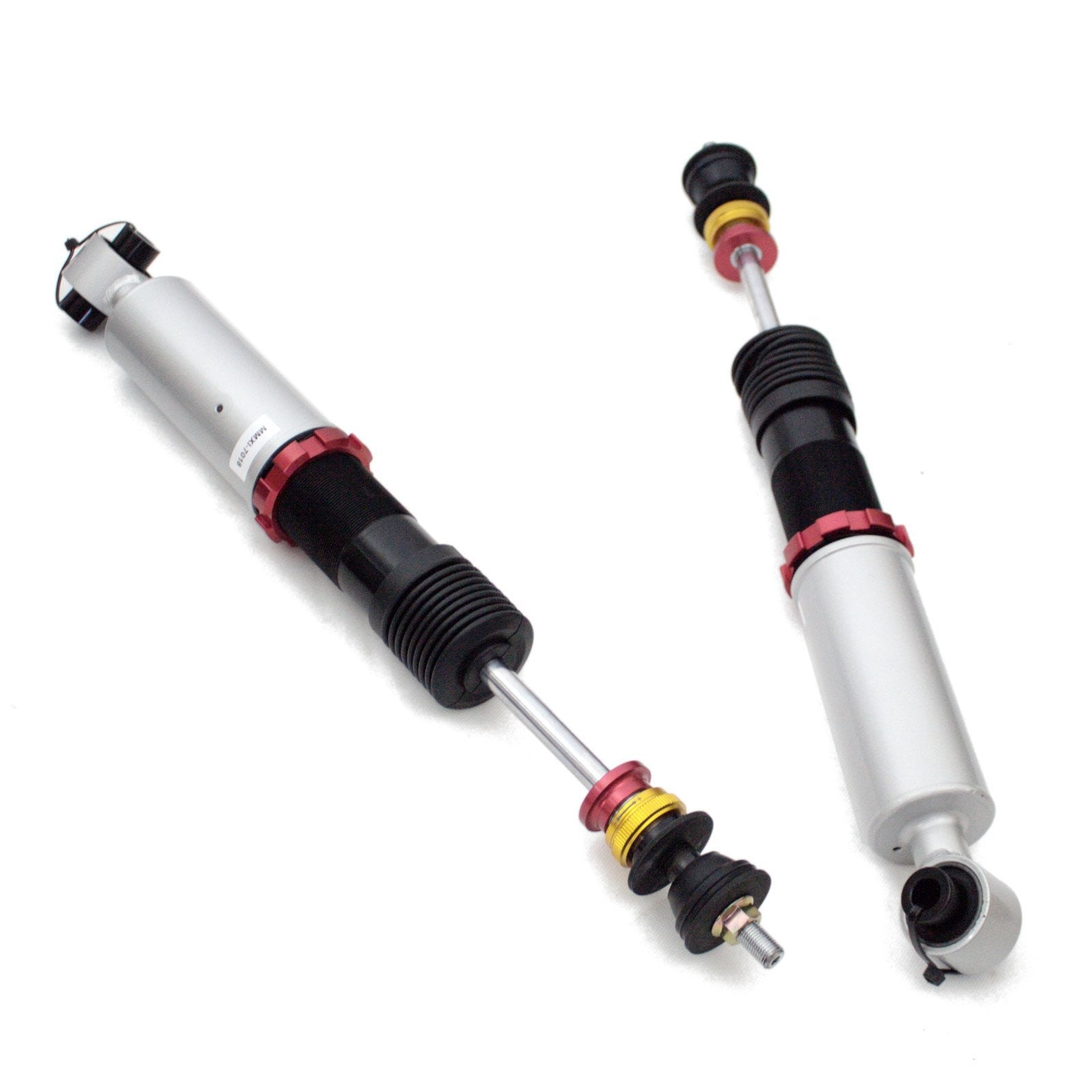

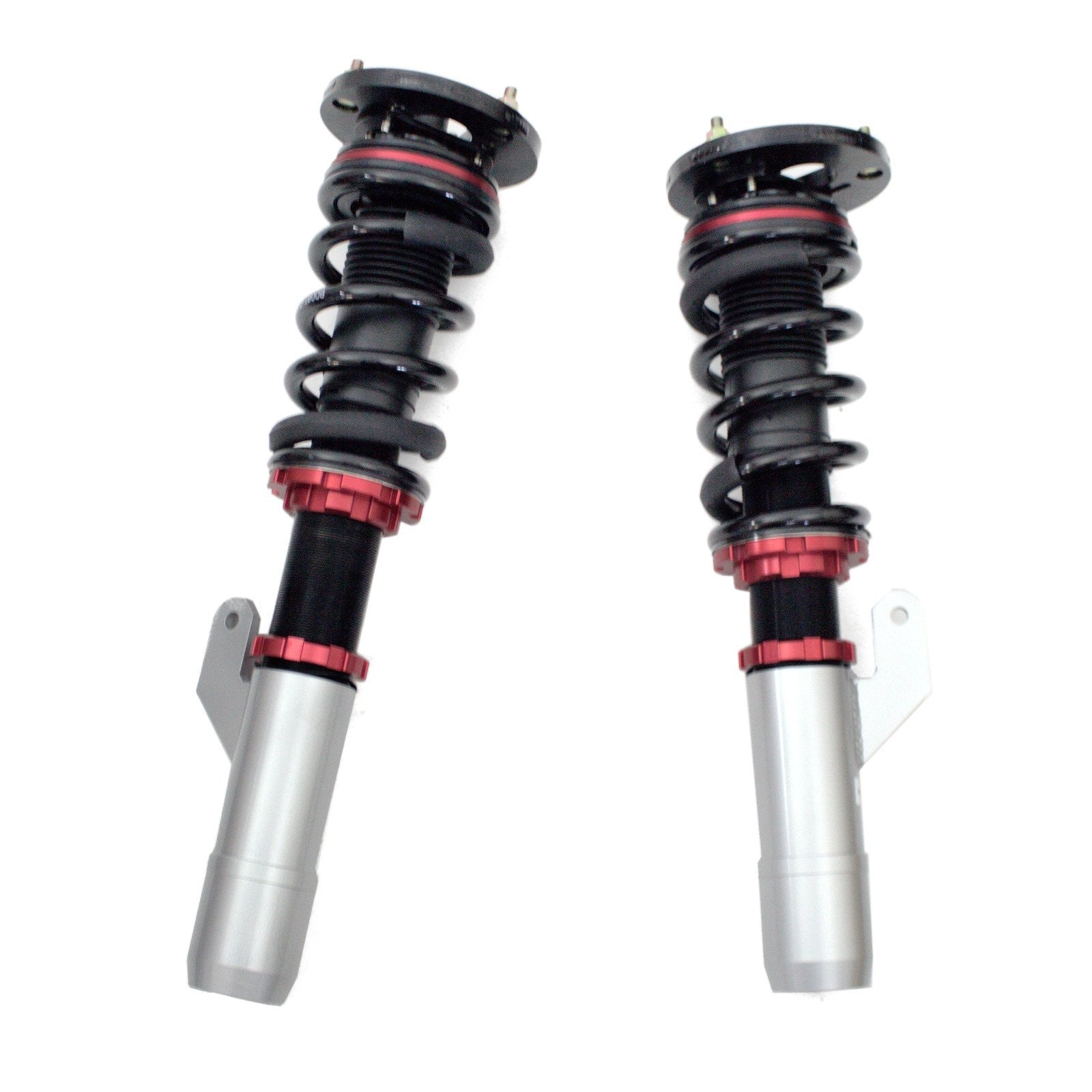

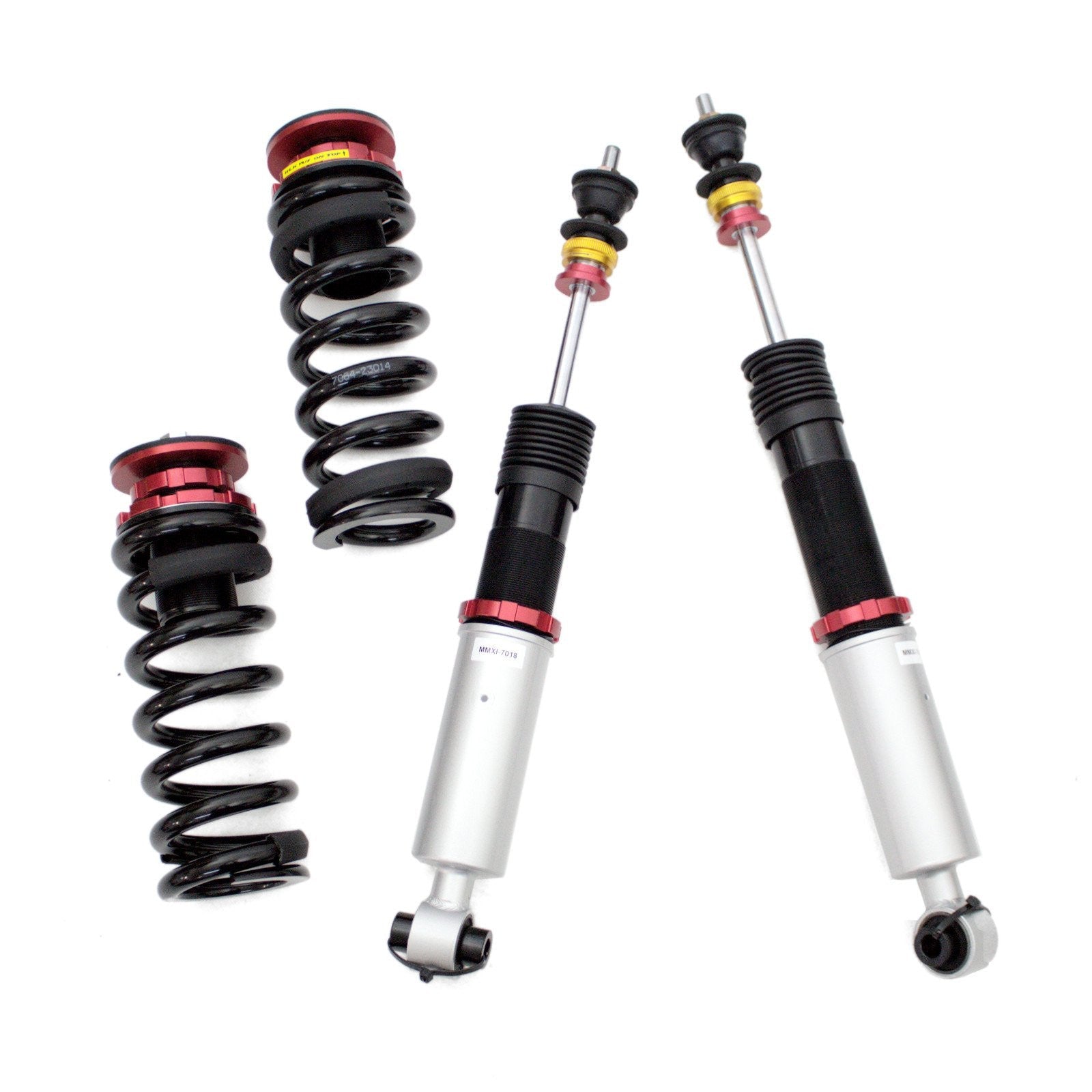

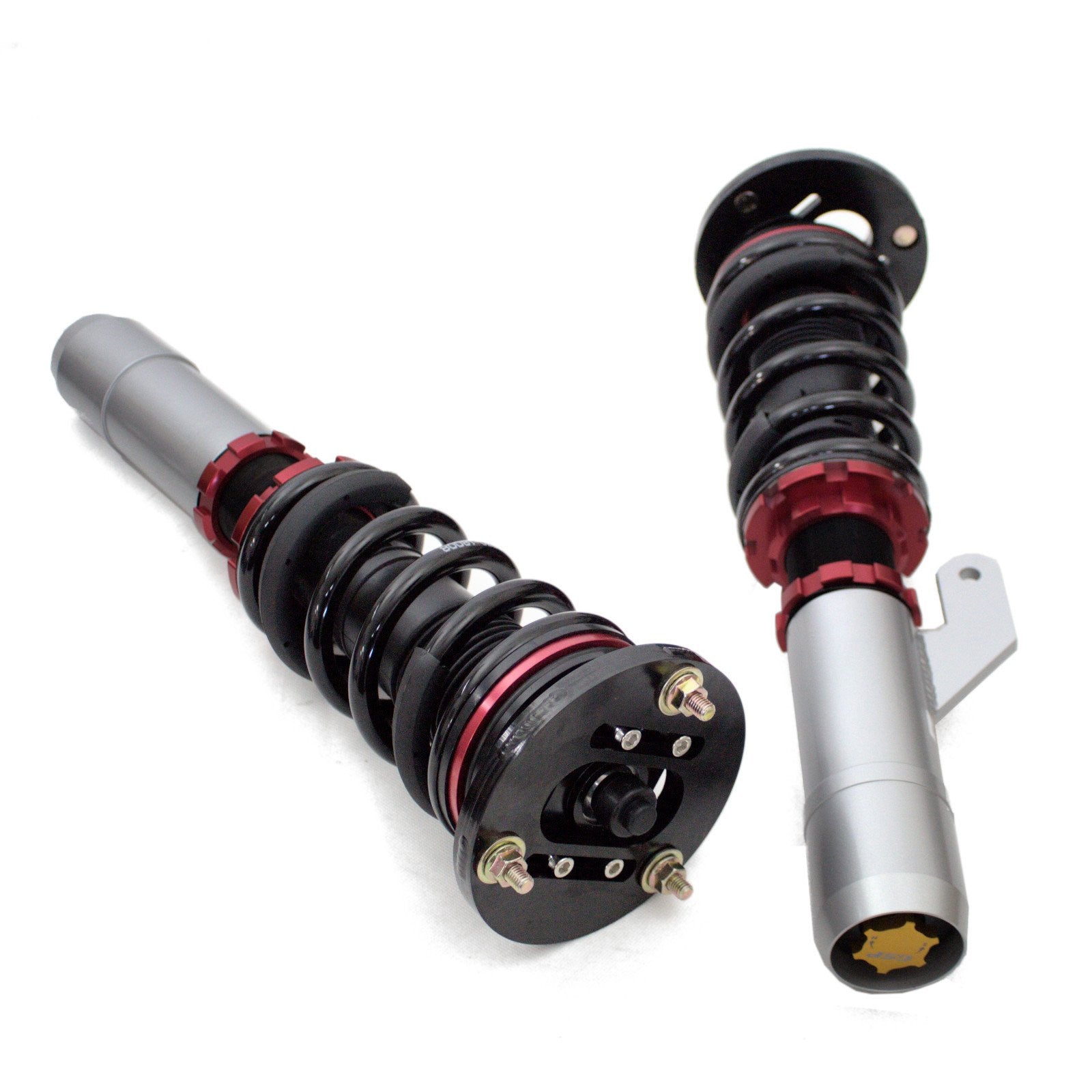

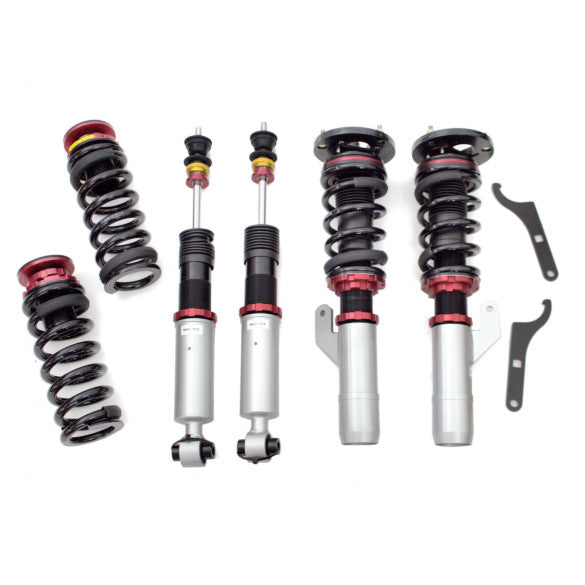

E90/E92/E93, MAXX-Sports Inverted Coilovers (2023 Edition)
| Special Notes |
|
|---|---|
| Damping Levels | 20-Level |

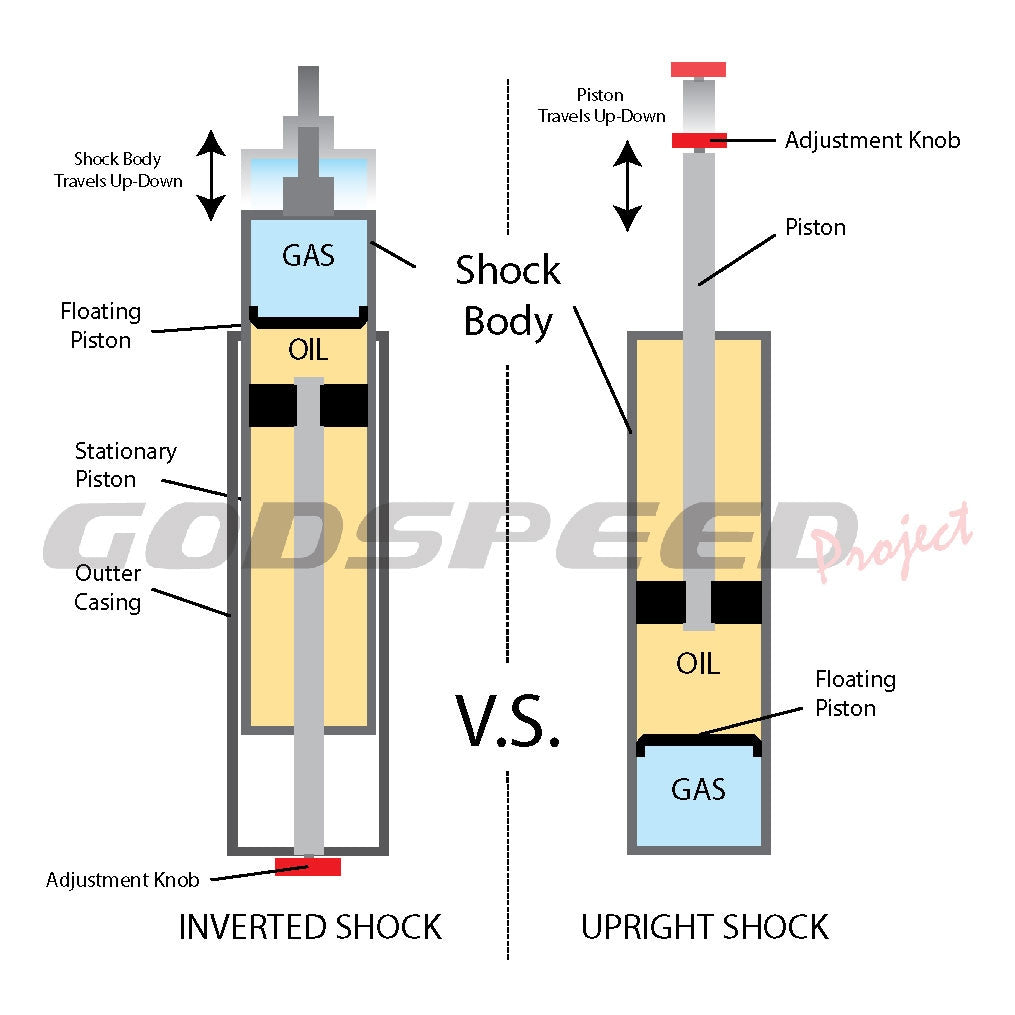

| Shock Type(Front) | Inverted Mono-Tube |
| Shock Type(Rear) | Traditional Mono-Tube |
| Height Adjustment | Yes |
| Top Mount(Front) | Adjustable Camber Plate With Pillow Ball |
| Top Mount(Rear) | Reuse Factory Top Mount |
| Spring Rate(Front) | 8 kg/mm (448 lbs/inch) |
| Spring Rate(Rear) | 14 kg/mm (784 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 230 mm |
| Spring Inner Diameter(Front) | 85 mm (3.35 inch) / 70 mm (2.76 inch) |
| Spring Inner Diameter(Rear) | 70 mm (2.76 inch) / 64 mm (2.52 inch) |
