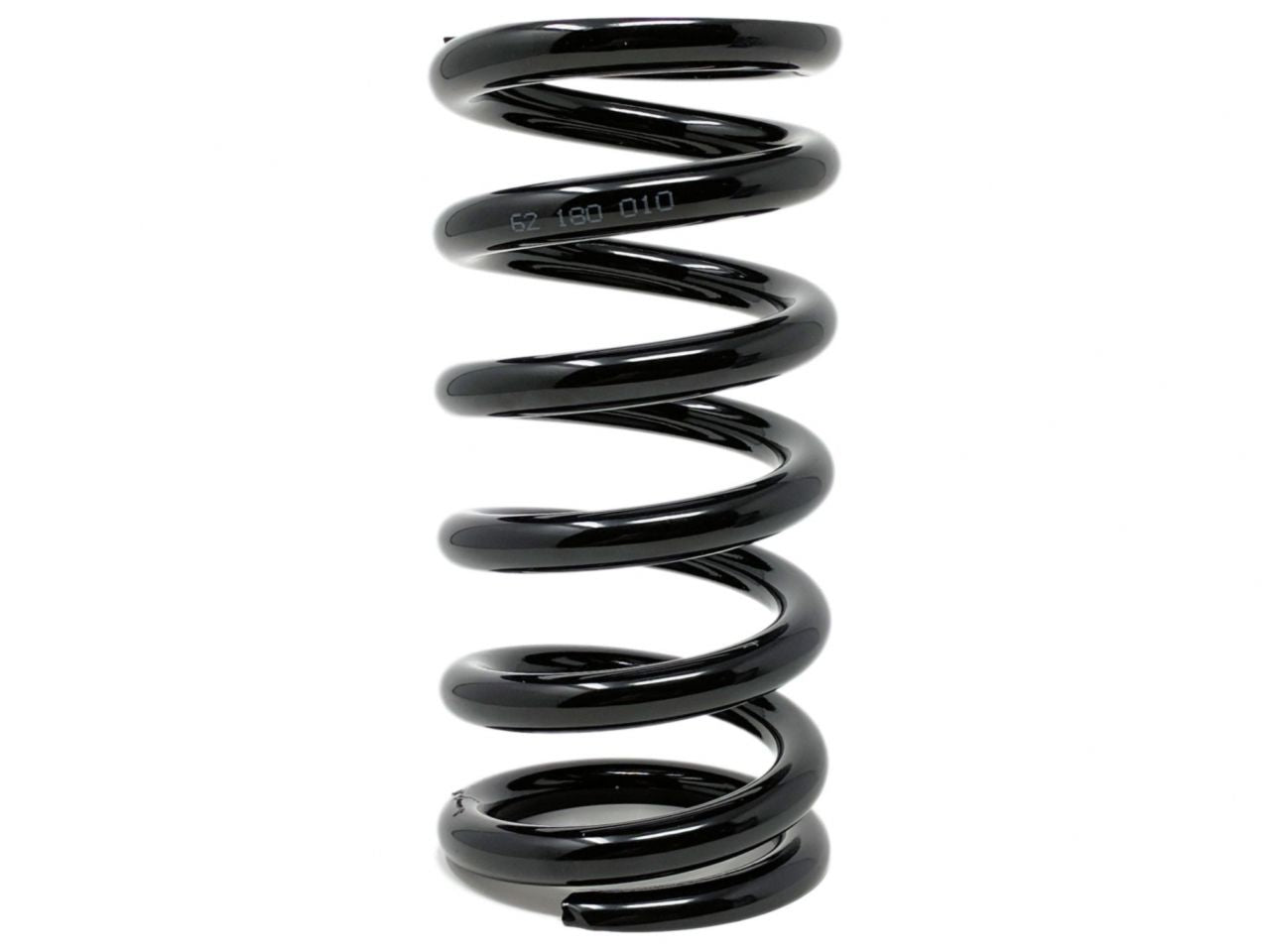

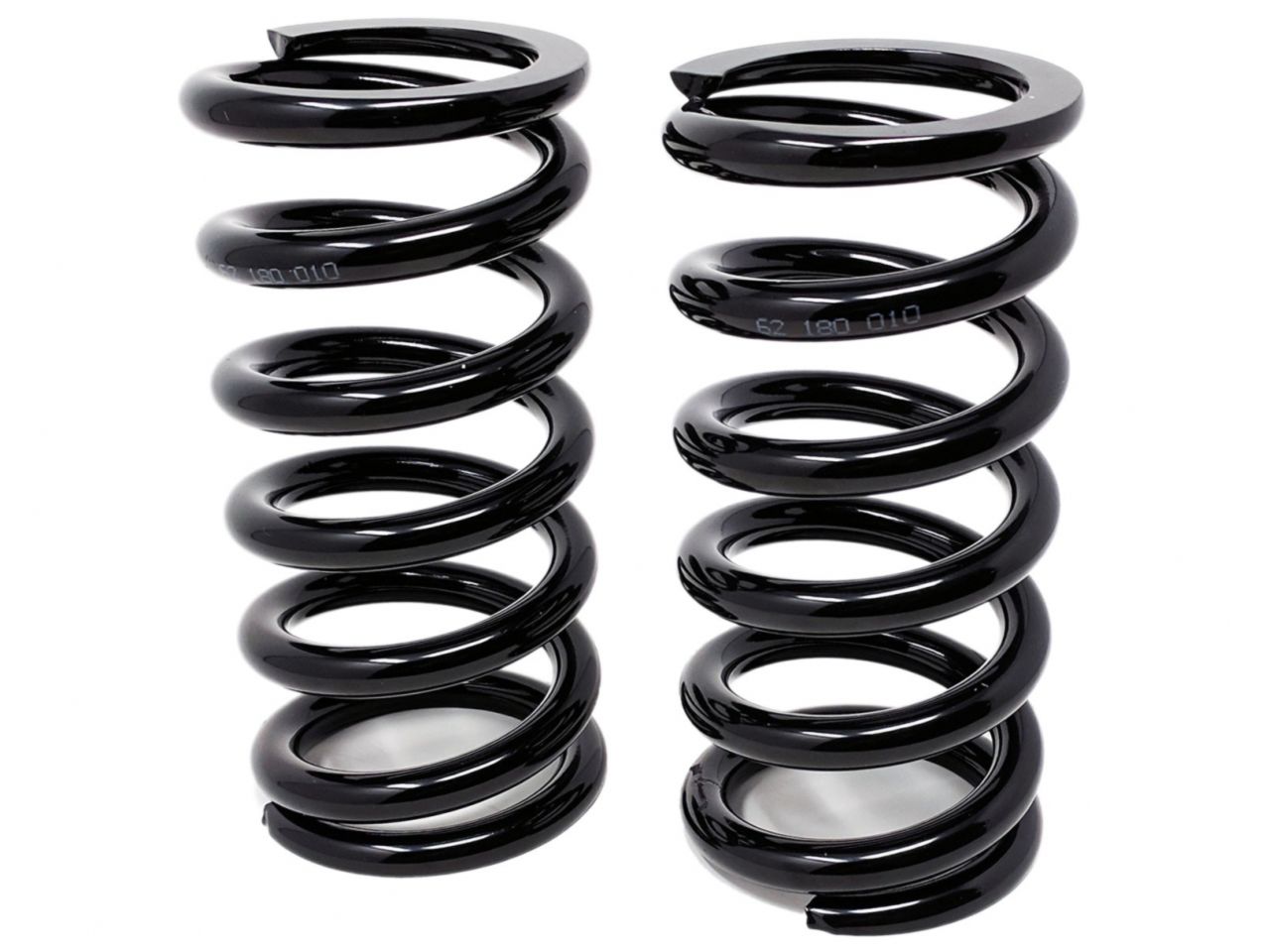

10 kg/mm (560 lbs./inch)
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 10 kg/mm (560 lbs./inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 112 mm (4.4 inch) |
| Max Load | 1115 kg (2458 lbs.) |

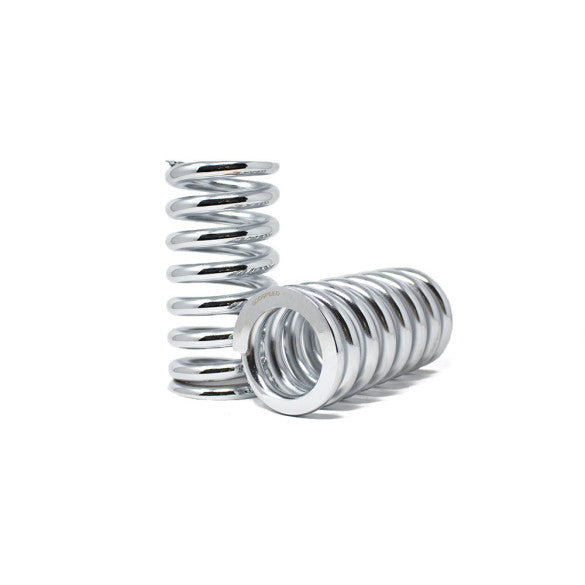

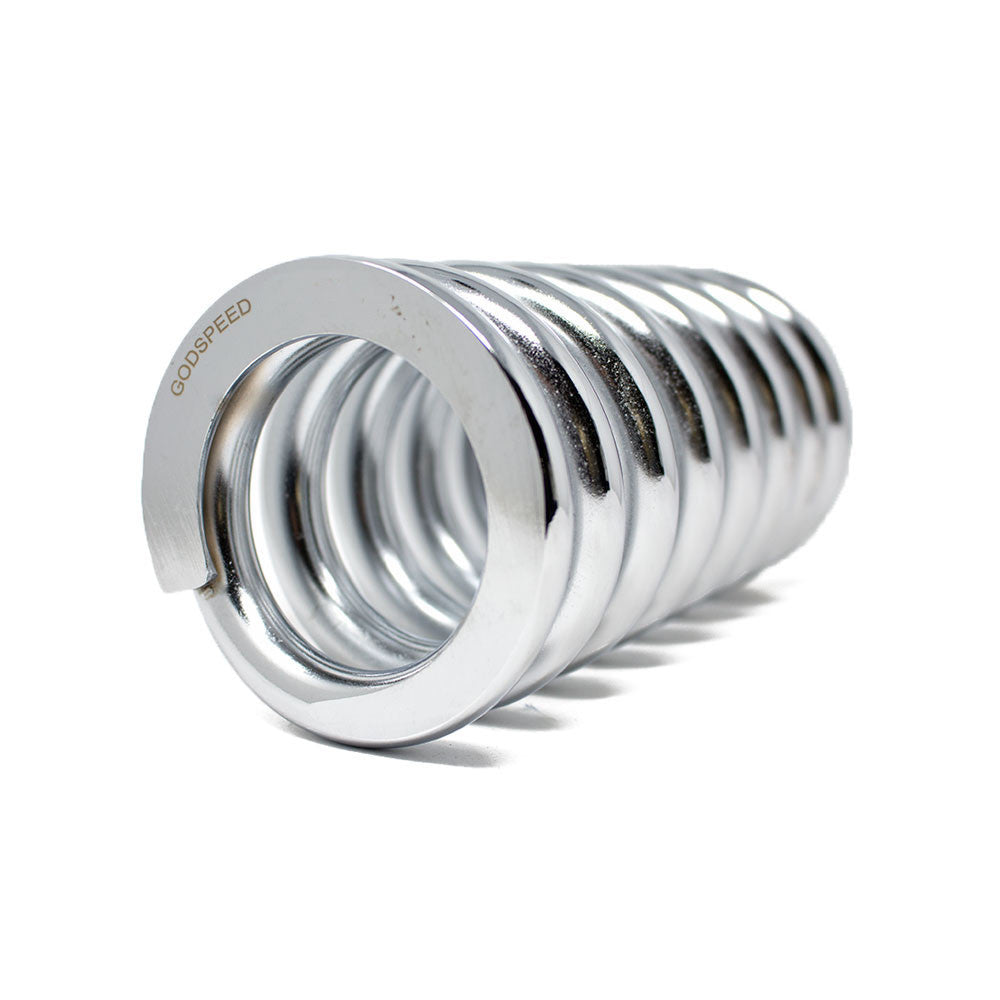

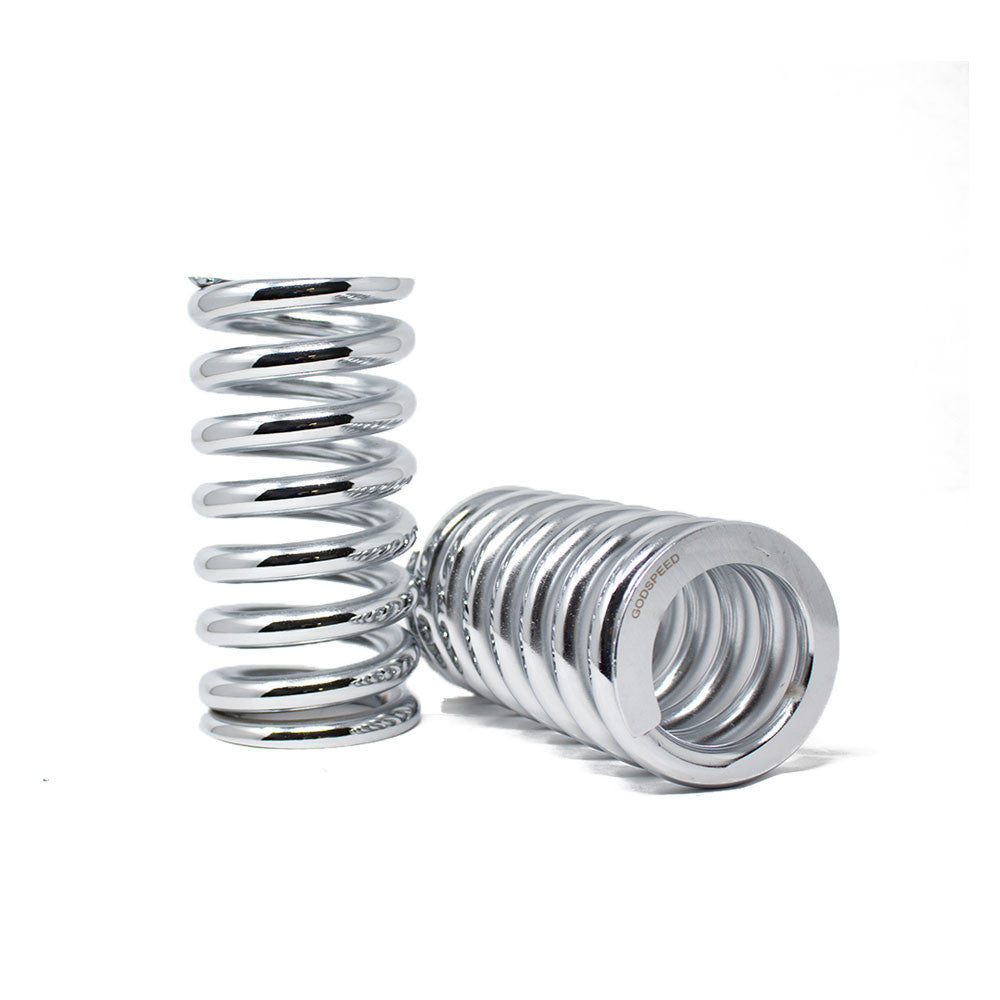

10 kg/mm (560 lbs./inch) Chrome Finish
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 10 kg/mm (560 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 112 mm (4.4 inch) |
| Max Load | 1115 kg (2458 lbs.) |

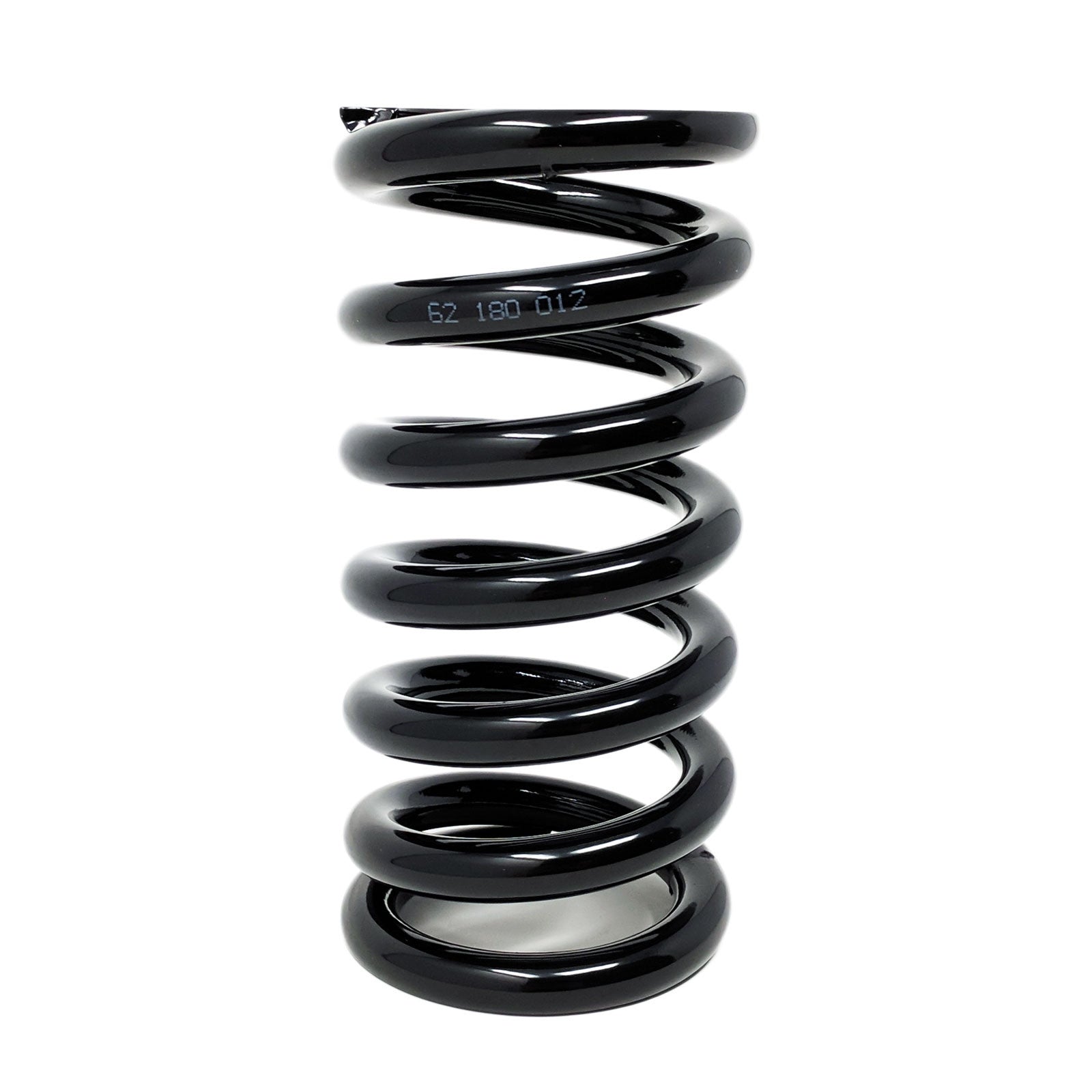

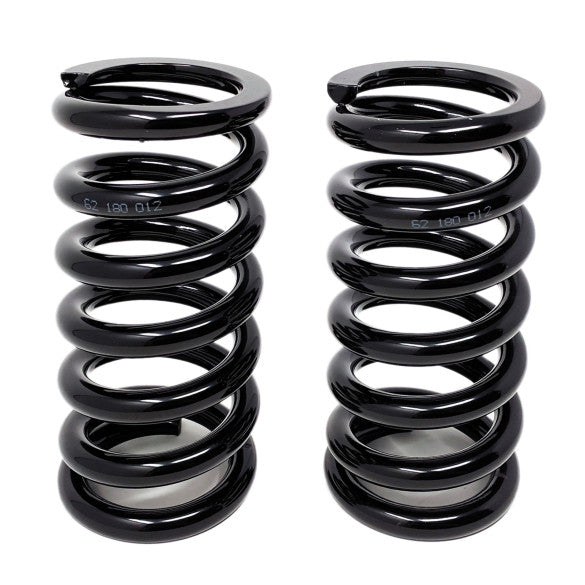

12 kg/mm (672 lbs/inch)
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 12 kg/mm (672 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 108 mm (4.3 inch) |
| Max Load | 1298 kg (2862 lbs) |
12 kg/mm (672 lbs/inch) Chrome Finish
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 12 kg/mm (672 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 112 mm (4.4 inch) |
| Max Load | 1298 kg (2862 lbs) |

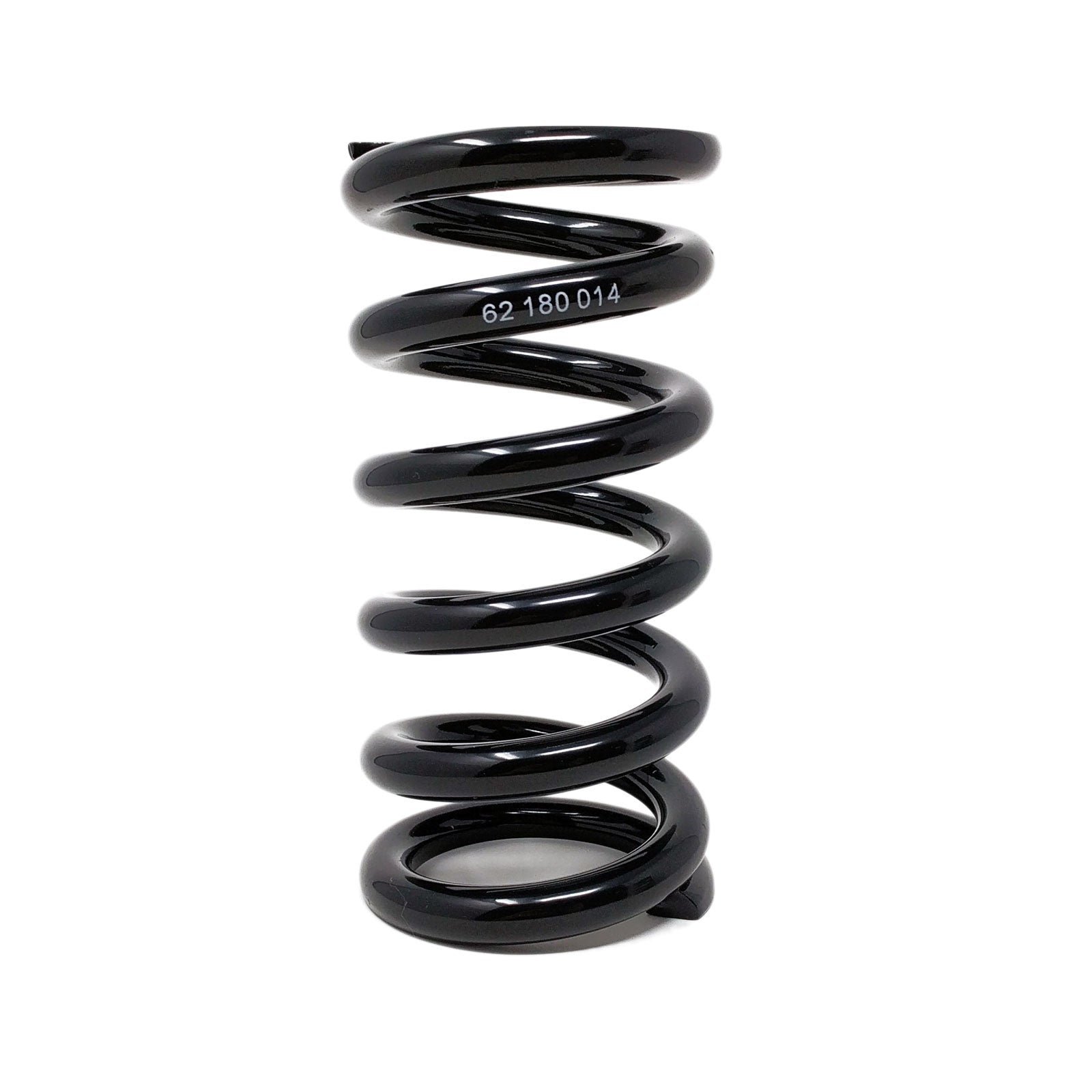

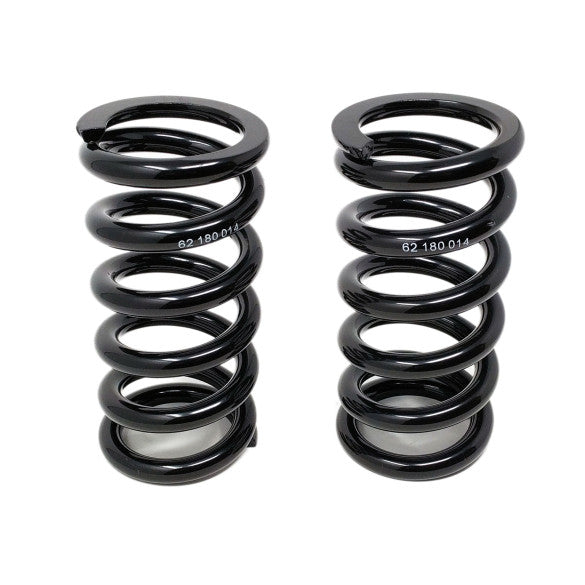

14 kg/mm (784 lbs/inch)
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 14 kg/mm (784 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 104 mm (4.1 inch) |
| Max Load | 1453 kg (3204 lbs.) |
14 kg/mm (784 lbs/inch) Chrome Finish
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 14 kg/mm (784 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 104 mm (4.1 inch) |
| Max Load | 1453 kg (3204 lbs.) |
16 kg/mm (896 lbs/inch)
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 16 kg/mm (896 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 101 mm (4.0 inch) |
| Max Load | 1614 kg (3559 lbs) |
16 kg/mm (896 lbs/inch) Chrome Finish
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 16 kg/mm (896 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 101 mm (4.0 inch) |
| Max Load | 1614 kg (3559 lbs) |
6 kg/mm (336 lbs/inch)
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 6 kg/mm (336 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 142 mm (5.6 inch) |
| Max Load | 769 kg (1695 lbs) |

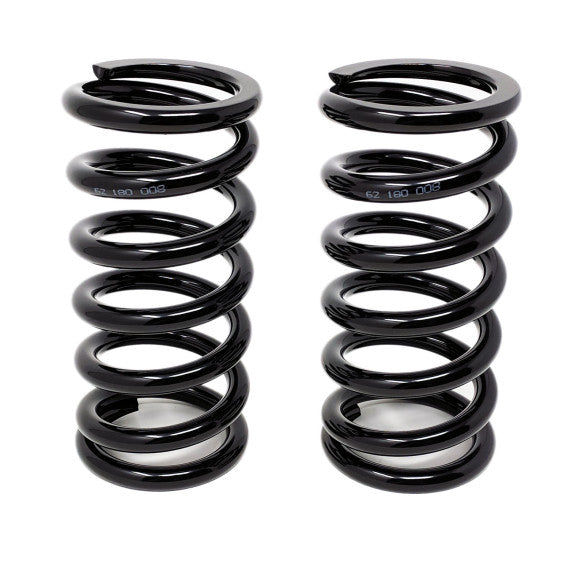

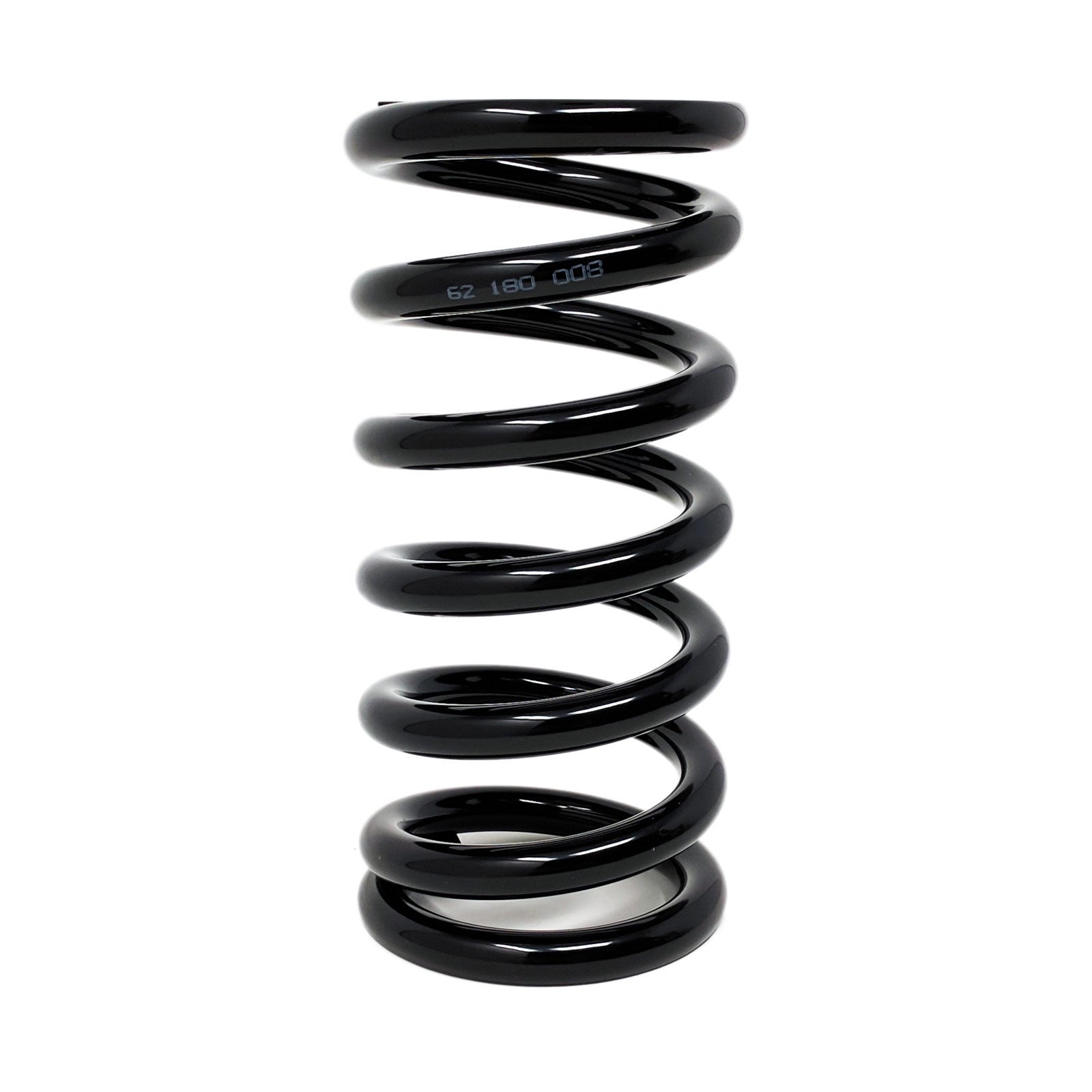

8 kg/mm (448 lbs/inch)
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 8 kg/mm (448 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 111 mm (4.4 inch) |
| Max Load | 886 kg (1954 lbs) |
8 kg/mm (448 lbs/inch) Chrome Finish
| Special Notes | Please measure your current setup before purchases. |
|---|---|
| Spring Rate | 8 kg/mm (448 lbs/inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) |
| Spring Length | 180 mm (7.09 inch) |
| Max Stroke | 111 mm (4.4 inch) |
| Max Load | 886 kg (1954 lbs) |
