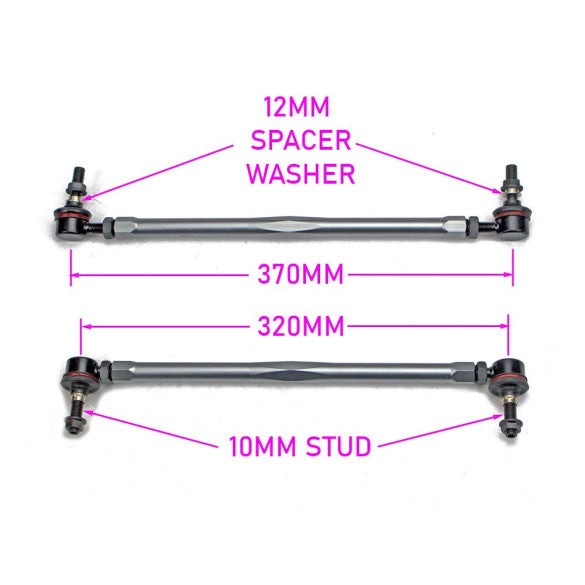

2005-2010, 320-370 mm (12.6-14.6 inch) / 10mm Bolt w/ 12mm Spacer Washer
| Special Notes | Can be used as universal end links if measurement matches specs that user needs. |
|---|---|
| Center Rod Length | No |
| Overall Length(Shortest-Longest) | 320-370 mm (12.6-14.6 in.) |
| Ball Joint Stud Size | No |
| Configuration Type | Horizontal |
| Link Type | Ball Joint |
| Adjustment Allow | Yes, On/Off The Car |

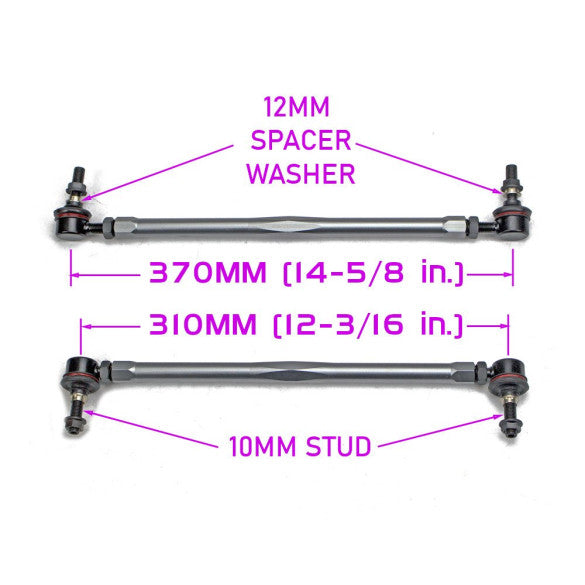

2011-2017, 310-370 MM (12-3/16 TO 14.5/8 INCH) / 10mm Bolt w/ 12mm Spacer Washer
| Special Notes | Can be used as universal end links if measurement matches specs that user needs. |
|---|---|
| Center Rod Length | No |
| Overall Length(Shortest-Longest) | 310-370 MM (12-3/16 TO 14.5/8 INCH) |
| Ball Joint Stud Size | No |
| Configuration Type | Horizontal |
| Link Type | Ball Joint |
| Adjustment Allow | Yes, On/Off The Car |
2011-2017, 320-370 mm (12.6-14.6 inch) / 10mm Bolt w/ 12mm Spacer Washer
| Special Notes | Can be used as universal end links if measurement matches specs that user needs. |
|---|---|
| Center Rod Length | No |
| Overall Length(Shortest-Longest) | 320-370 mm (12.6-14.6 in.) |
| Ball Joint Stud Size | No |
| Configuration Type | Horizontal |
| Link Type | Ball Joint |
| Adjustment Allow | Yes, On/Off The Car |
