Features:
- Factory replacement type Sports Turbine Kit for Lancer Evolution IV - IX.
- The turbine assembly utilizes the reverse rotation ball bearing which is inhouse designed and manufactured by HKS.
- The heat durability is enhanced by 4 times of the conventional kit. The product performance is maintained and stabilized.
- The product durability and reliability are improved by utilizing the heat resistant steel to the turbine wheel and housing.
Vehicle specification
|
|
|

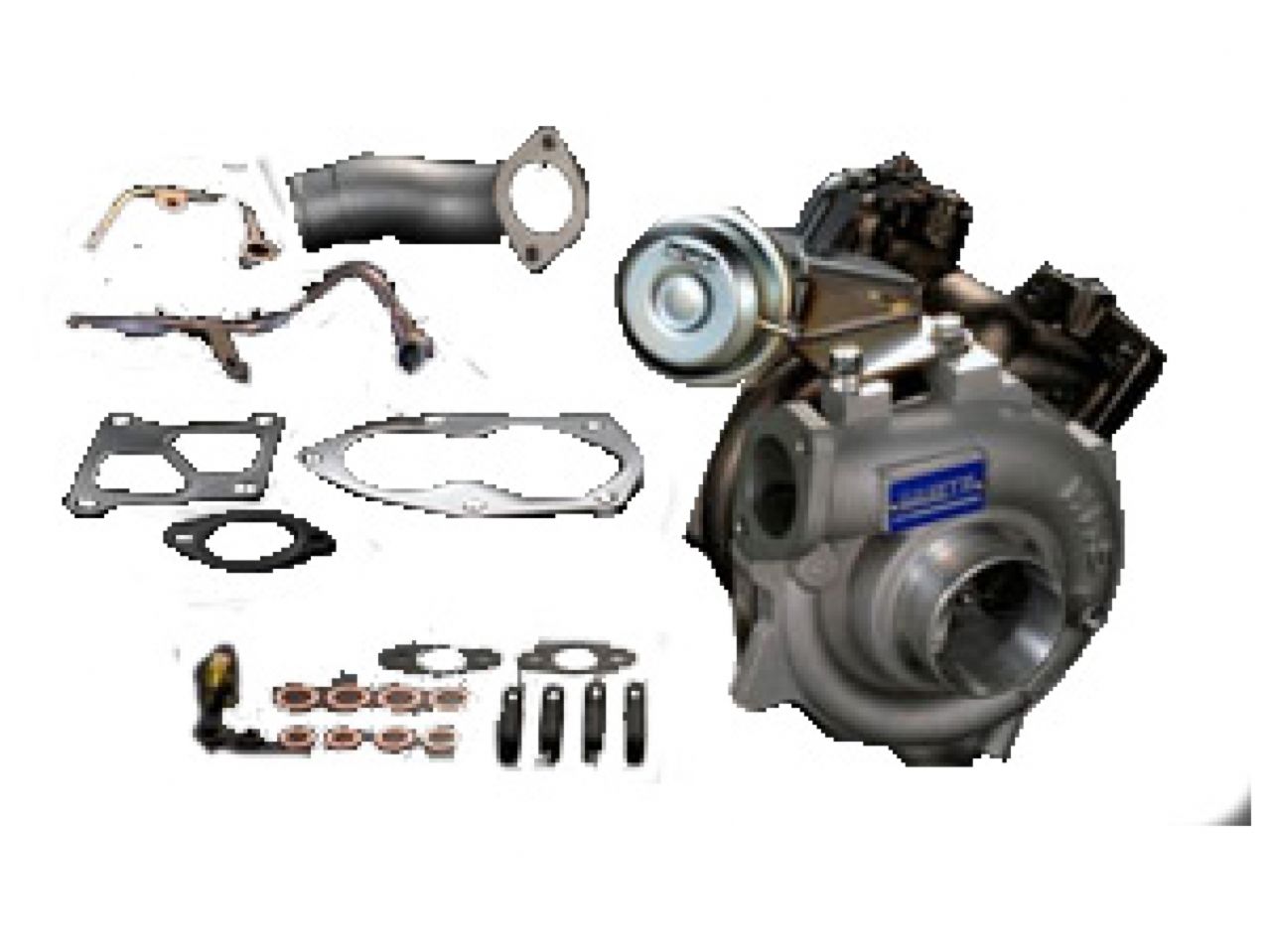

| Parts for the kit |
|

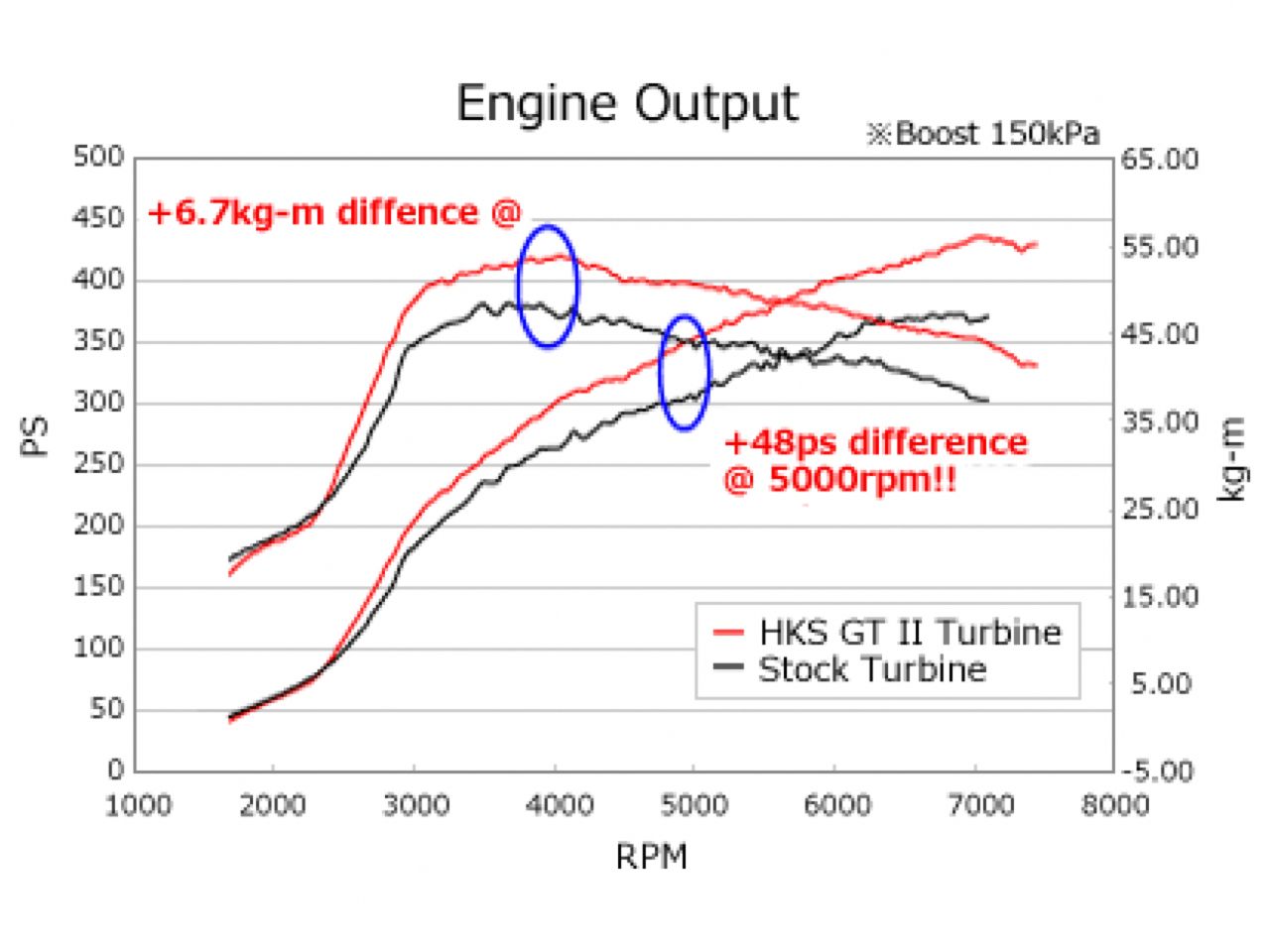

| Performance | Power | Torque |
| HKS GT II 7460R KAI SPORTS TURBINE KIT | 435.5ps/7000rpm | 53.9kg-m/4040rpm |
| NORMAL (BOOST UP/EVO IX) | 372.5ps/6890rpm | 48.5kg-m/3670rpm |
Remarks for installation
- Estimated installation time:4-6 hrs.
- Spark spark plugs must be replaced.
* Surging may occur if the exhaust system and/or suction parts are replaced to one of less resistance type to improve boost response.
| Performance | Power | Torque |
| HKS GT II 7460R KAI SPORTS TURBINE KIT | 459.2ps/7000rpm | 61.0kg-m/3740rpm |
| Model | control device |
compressor wheel | compressor housing | turbine wheel | exhaust housing | ||||||||
| trim | Inlet dia. (mm) |
Outlet dia. (mm) |
Inlet dia. (mm) |
Outlet dia. (mm) |
A/R | trim | outer dia. (mm) |
Outlet dia. (mm) |
inlet flange |
outlet flange |
A/R | ||
| Actuator | 450 | 49 | 52.0 | 74.00 | for 4G63 | for 4G63 | 0.82 | 81 | 60.0 | 54.0 | for 4G63 | for 4G63 | 0.74 |
| Vehicle | Model | Engine | Model Year | Type | Turbine Size | Boost Pressure | Code No. | Price | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| LANCER EVOLUTION | CT9A | 4G63 | 01/02-07/09 | GT II SPORTS TURBINE KIT | GT II 7460R KAI | 78.5kPa (0.8kgf/cm2) | 11004-AM003 | with enhanced actuator |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003 - 2006 | Mitsubishi | Lancer | Evolution |
| 2005 - 2006 | Mitsubishi | Lancer | LS Diamond, Evolution MR, Evolution RS |
| 2002 - 2006 | Mitsubishi | Lancer | LS, OZ Rally, ES |
| 2004 - 2006 | Mitsubishi | Lancer | Ralliart, DE |
| 2006 | Mitsubishi | Lancer | SE, Evolution SE |
| 2004 | Mitsubishi | Lancer | Sportback Ralliart, Sportback |
