?Ported shroud functions depending on the bolt's position.
?When surge occurs due to the vehicle specification,ported shroud is able to prevent surging.
Features

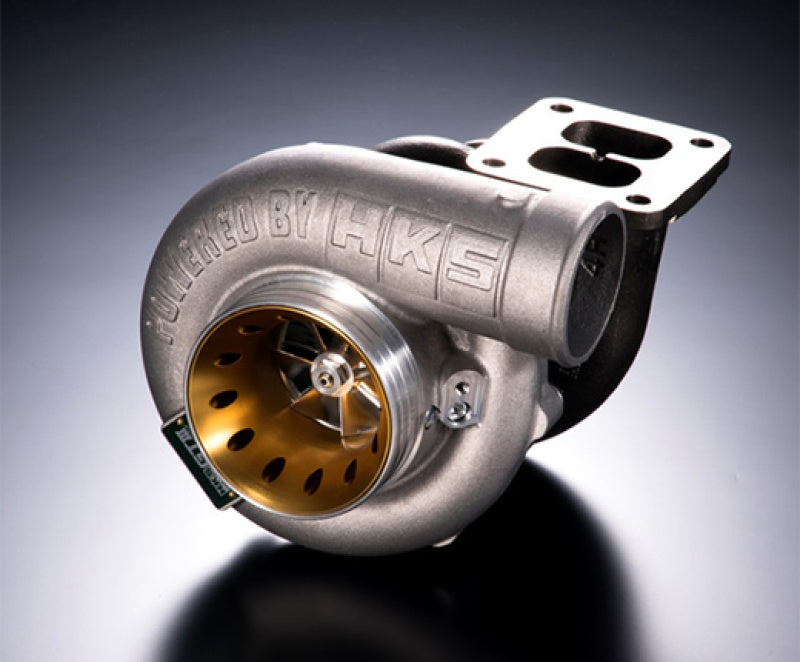

- A successor model of TO4Z. Compact in size, but withstandable over 700PS.
- Highly reliable MHI high performance CHRA & highly durable aluminum forged impeller are well-balanced.
- Ported shroud function is selectable using an adapter.
- Replacing the position of the bolt securing ported shroud is able to keep the intake air path to reduce surging.
- Impeller wheel rotation sensor compatible. ?The sensor will be available separately.??
- Easy replacement with TO4Z series turbine and the turbo kit using TO4Z.
(Oil inlet / outlet are designed for GTIII-4R).
* Water cooling line is not available. - A/R 0.81 WG
- Remarks: Turbo Flange:T4
