The intercooler is very important for forced induction tuning and HKS has developed new big type for GT1000 full turbine kit.

Feature:

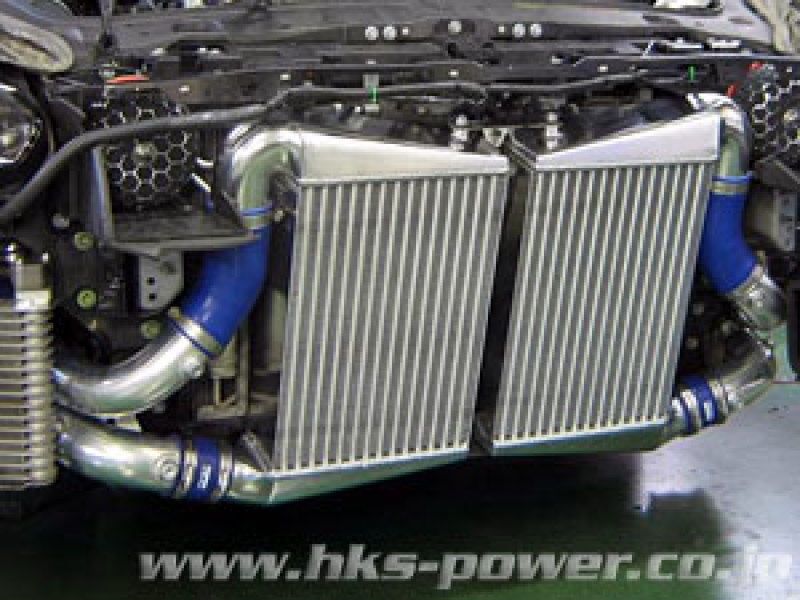

• We have designed the intercooler for best balance of left-right bank cooling and pipe layout for the same as vertical flow stock design. The core front surface is maximum size as stock type layout. And the thickness of core is 100mm (stock=65mm) which provides less air flow pressure loss for the 1000ps.

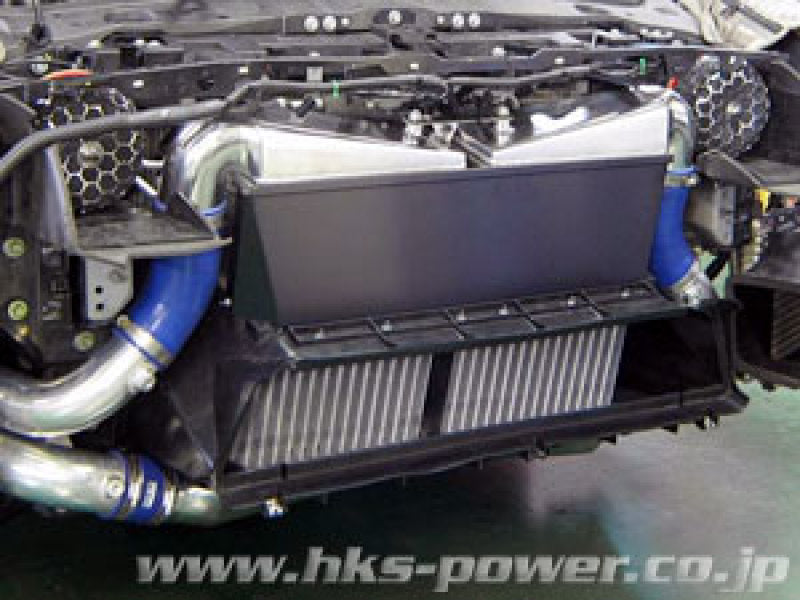

• We have designed the intercooler layout design to be installed with the stock air guide (need some work). The air came in from the open bumper is all flowed into the core for the maximum cooling efficiency.

VehicleModelEngineModel YearTypeCore Size?LocationTypeRemarksGT-RR35VR38DETT07/12-R type INTERCOOLER390×270×100?2? ????GT1000SPECNeed separate piping kit (13002-AN003) Can install to a left?hand drive car. Not checked for SPEC V.
