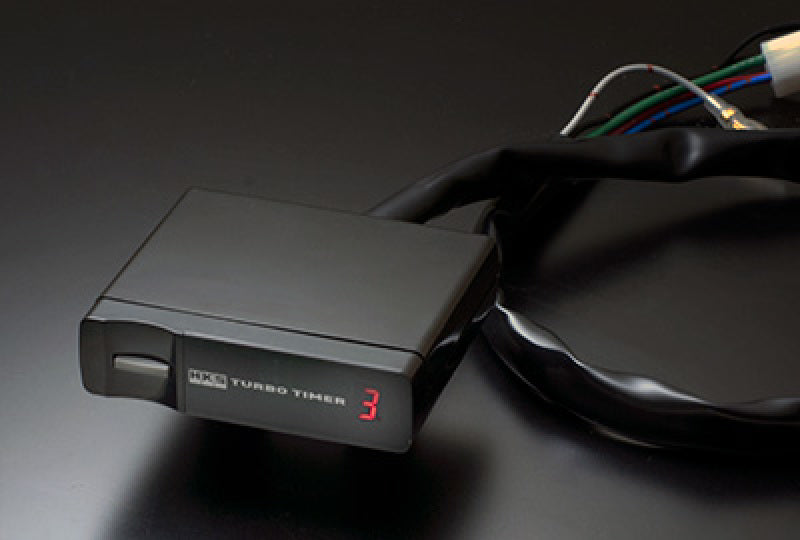

10th Model. Simple and Highly Operable Model from 35-year History. Function specialized in after-idling. Simple, and easy to use. Simple operation just by pressing a switch.

• DC12V Negative Ground (Operation Voltage: DC101?16V)
• Large Capacity Relay Equipped
  Ignition: 25A / Accessary: 25A
• Stand-by Current: 10mA or lower
• Operating Temperature: -20?60? (-4 to 140°F)
• Setting Time Range: ?1,?3,?5,?10, and 30 min.

Example of One Minute Time Range: Frequent after-idling for daily use. Idling takes place after street driving, commuting, etc.
It is convenient when a driver has to leave the car right after the engine is shut off.

Example of 3 Minutes Time Range: Effective after-idling after driving a highway. After idling can cool down the turbine and/or engine oil heated up by continuous high speed driving, and the engine shut off without imposing a load to the turbine and/or engine; therefore, the durability of the engine and engine oil is improved.

Example of 5 Minutes Time Range: Effective after-idling after circuit driving When high load is applied to an engine, and an engine runs at a high speed, the engine and turbine may become in a condition close to a limit. With Turbo Timer, after-idling takes place even if the ignition is turned off by mistake so the engine and turbine may not be damaged.

Example of 10 Minutes Time Range: To keep the interior temperature when leaving a vehicle for a short timeWith Turbo Timer, a driver can lock the vehicle door even while running an engine; it allows the vehicle interior temperature maintain when leaving the vehicle for ten minutes or so while reducing a load to a battery.

Example of 30 Minutes Time Range: To maintain the vehicle interior temperature in summer or winter Maximum timer duration is 30 minutes. A long after-idling enables the vehicle interior temperature to be maintained for a long time.
(A long after-idling may not be allowed depending on the area, facility, local regulation, etc.)

Functions

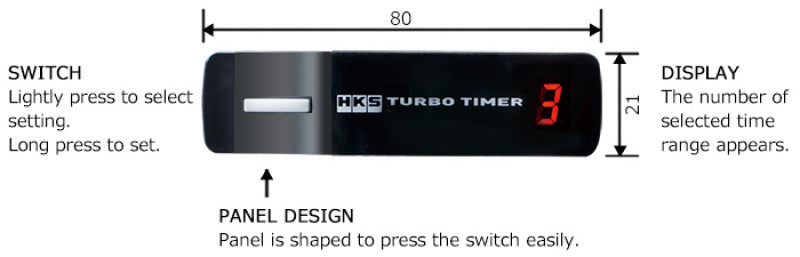

• Single button control and red LED numerical display simplify operation and improve visibility.
• 5 time ranges selectable between 1, 3, 5, 10, and 30min. Maximum timer duration is 30 minutes.
• Accurate time duration can be selected by manual setting.
• Handbrake detective safety circuit
• High capacity relay
• Timer operation stops under unstable conditions caused by low voltage of a battery, etc.

Application: Turbo vehicles that start the engine using the ignition key.

• Not applicable to a vehicle equipped with the push-button ignition.

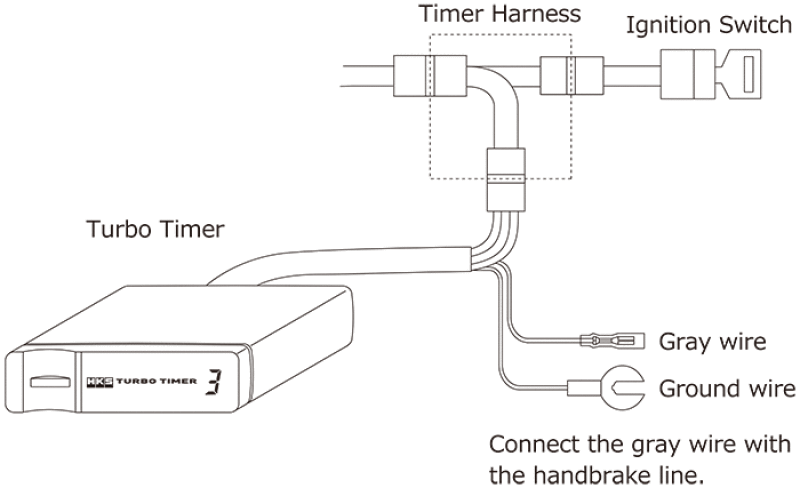

• Existing Turbo Timer Harness is compatible.

Features

• Simple after-idling function and easy operation
• Optimal touch button size for simple operation
• Wavy panel design around the button for better operability. Capable of operating the button even in the dark.
• Accurate setting is possible even by quick operation.
• One-digit display for easy recognition of the set time
• Time duration changed simply by pushing the button. Intuitive operations is possible.
• Selecting "OFF mode" turns off the display and buzzer.

Extension of Timer Duration

• Maximum timer duration is 30 minutes.
  Not only protecting the turbocharger, but also maintaining the temperature in a vehicle in summer and winter is possible.
